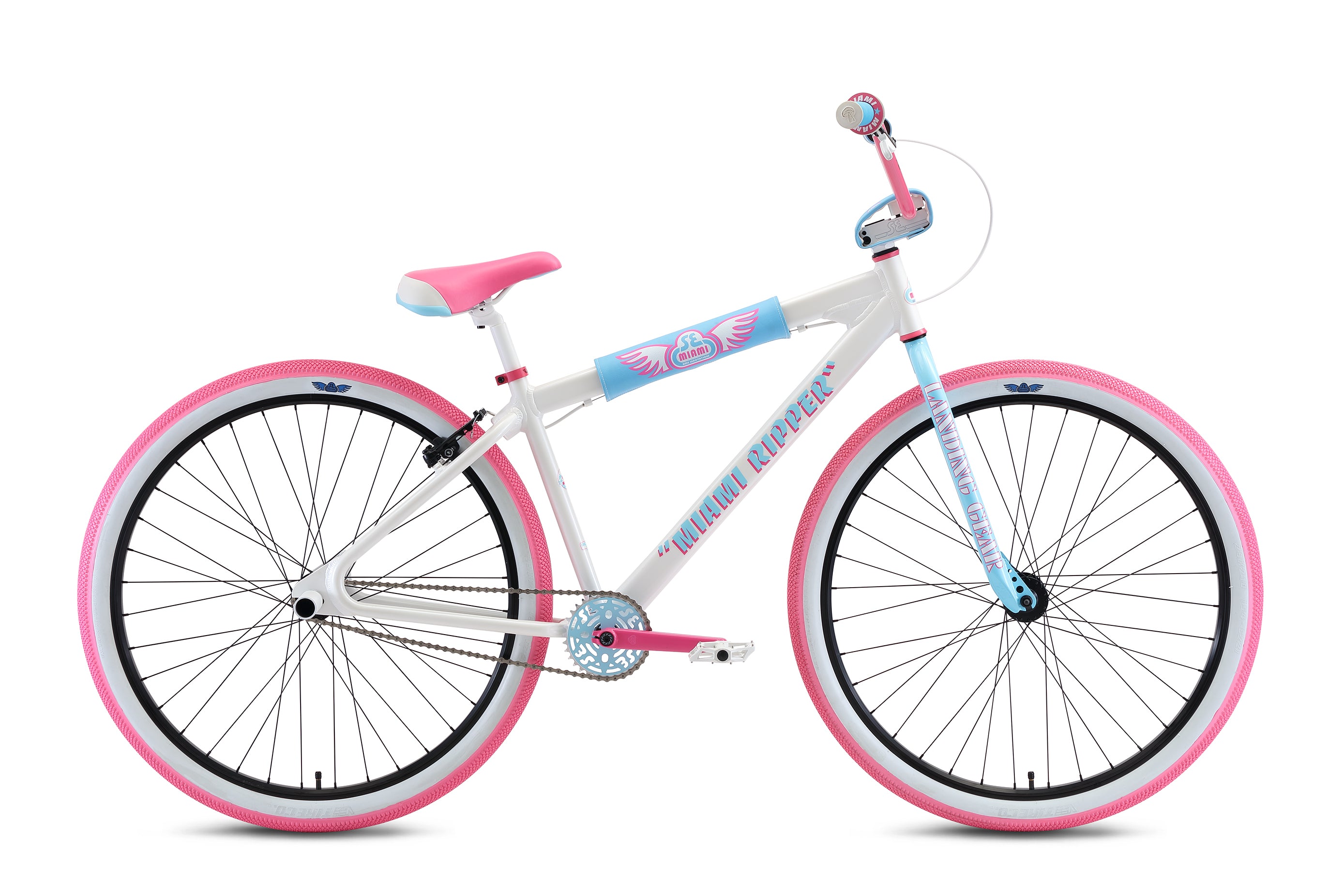

Miami Big Ripper 29" (2020)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Looptail Rear End, 68mm Euro Bottom Bracket, Retro Dropouts |
| Fork | Landing Gear, Full Cr-Mo |
| Crankset | SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, Sealed Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 33T Alloy SE Racing Sprocket |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC S1 |
| Wheelset | Sealed Bearing 36H High-Flange Alloy Flip Flop Hubs w/ Double-wall Rims, 15T Freewheel, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Speedster, 29" x 2.10" Front & Rear |
| Brakeset | Tektro 837-AL V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ Miami Donuts |
| Seat | Miami Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter |
| Accessories | SE Miami Padset, Alloy Valve Caps, SE Wheelie Pegs |
| Wheel Size | 29" |
| Weight | 29.3 lbs / 13.29 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 23.6" |
| Seat Tube, Center To Top | 16.9" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 18" |
| Wheelbase | 43.7" | |
| G | Bottom Bracket Height | 12" |
| Standover | 30.5" | |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 175mm | |
| Wheel Size | 29" | |
| Seat Post Diameter | 27.2mm |
