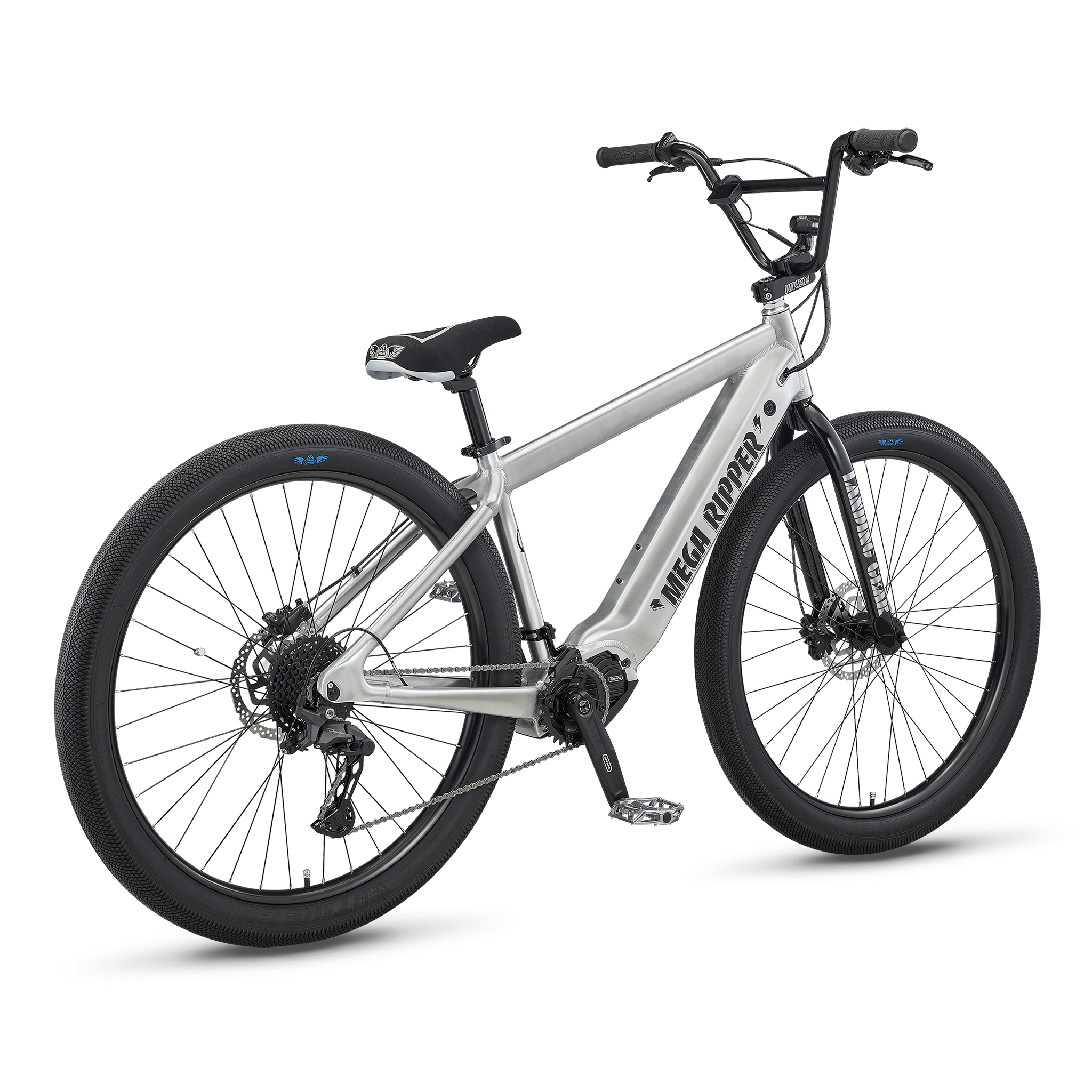

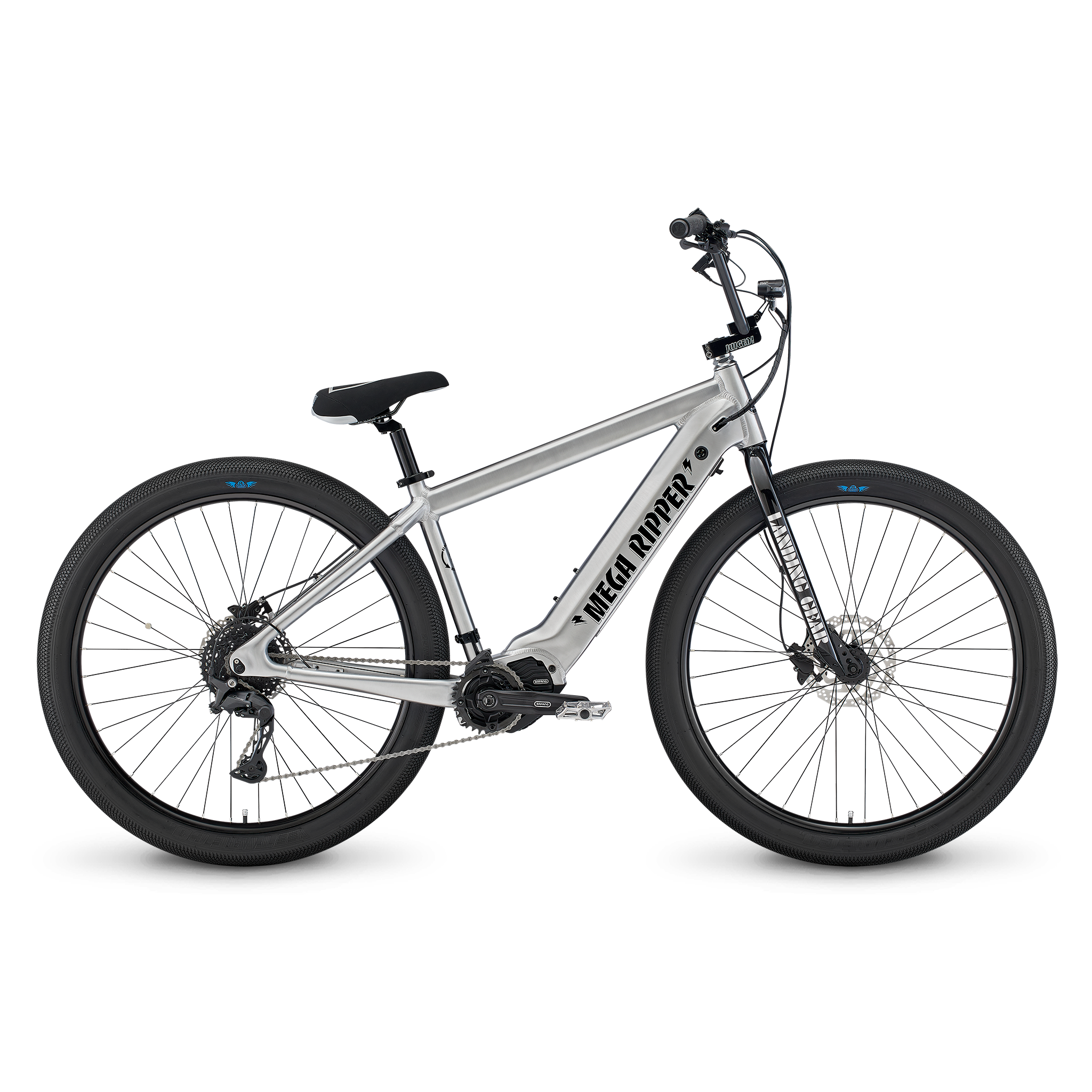

Mega Ripper 29"
Mega Ripper 29"
Mega Ripper 29"

Mega Ripper 29"

$3,099.99

Meet the newest innovation from SE Bikes! ⚡️ The all-new 28mph Mega Ripper e-bike is here, and it’s changing the game. Built around a 48V 500W mid-drive Bafang system and a Shimano Cues drivetrain, this Class 3 e-bike delivers a smooth, natural pedal assist feel that puts you in control—whether you’re cruising the streets or putting in mega miles. With a removable internal 15AH 720WH battery, dialed geometry, and signature SE style, the 29” Mega Ripper blends performance and presence like nothing else on the market.

Hit the links below for more information on the Bafang components that come with the Mega Ripper.

Bafang M560 Motor
Bafang Battery
Bafang Display
Bafang Sensor
Bafang system FAQ's and troubleshooting
Lezyne Front Light
Trelock Rear Light
Color:Ball Burnished Silver
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Class 3 pedal assist

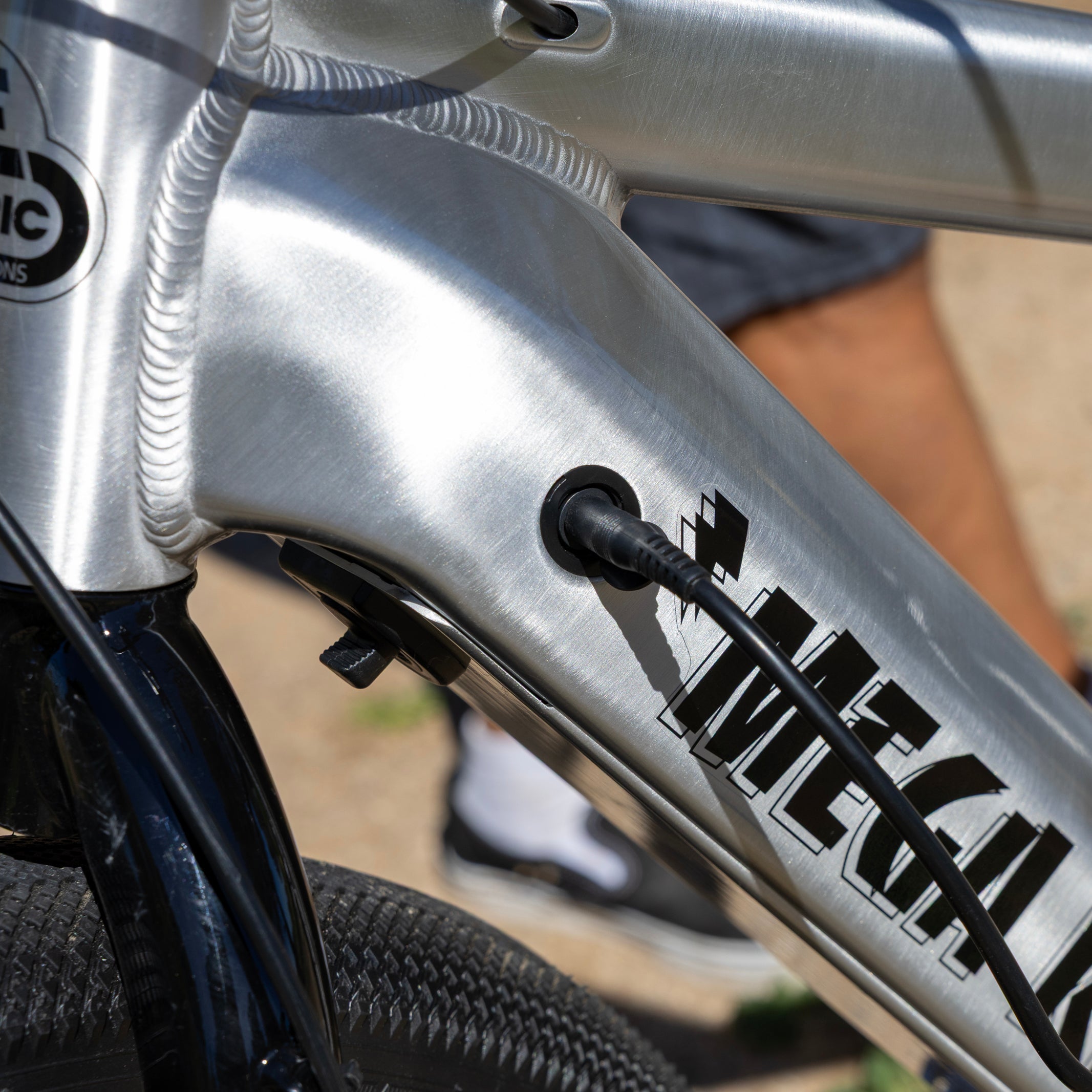

  • New SE Mega Ripper frame with hidden, removable battery, integrated charging port, and internal cable routing
  • Full Cr-Mo Landing Gear forks 
  • Bafang 500-watt, 48-volt mid drive
  • 950-watts of peak power, 28mph top speed
  • 15-amp hour, 720-watt hour Bafang battery
  • Bafang speed sensor for smooth, consistent power delivery
  • Shimano Cues 10-speed cassette with RapidFire shifter and pedal assist
  • LCD display
  • Shimano MT200 hydraulic brakes, front and rear, with 180mm rotors
  • 29” x 2.8” Speedster tires
  • Double-wall rims
  • SE Racing Mushroom flangeless grips
  • Water bottle mounts and kickstand included
SPECIFICATIONS

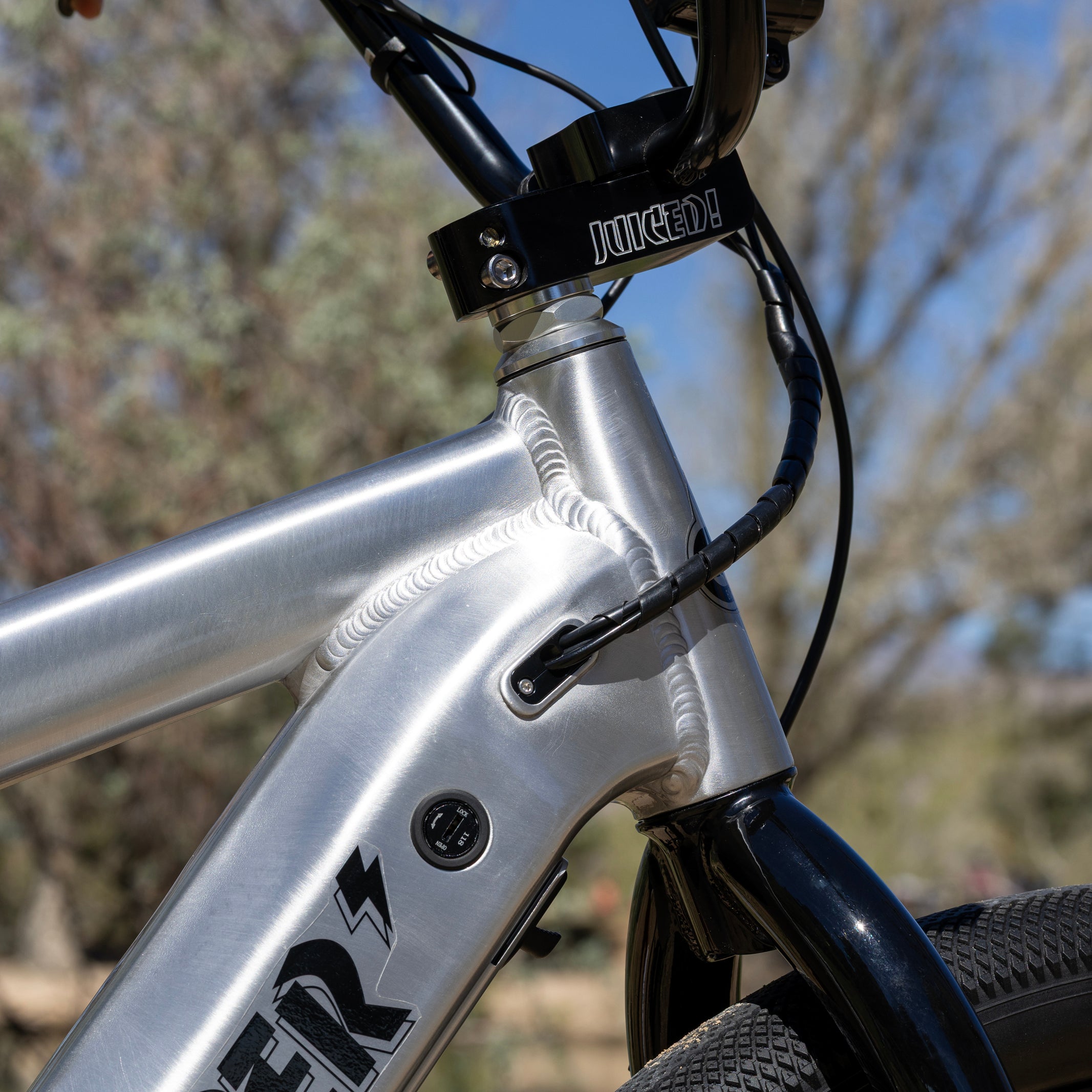

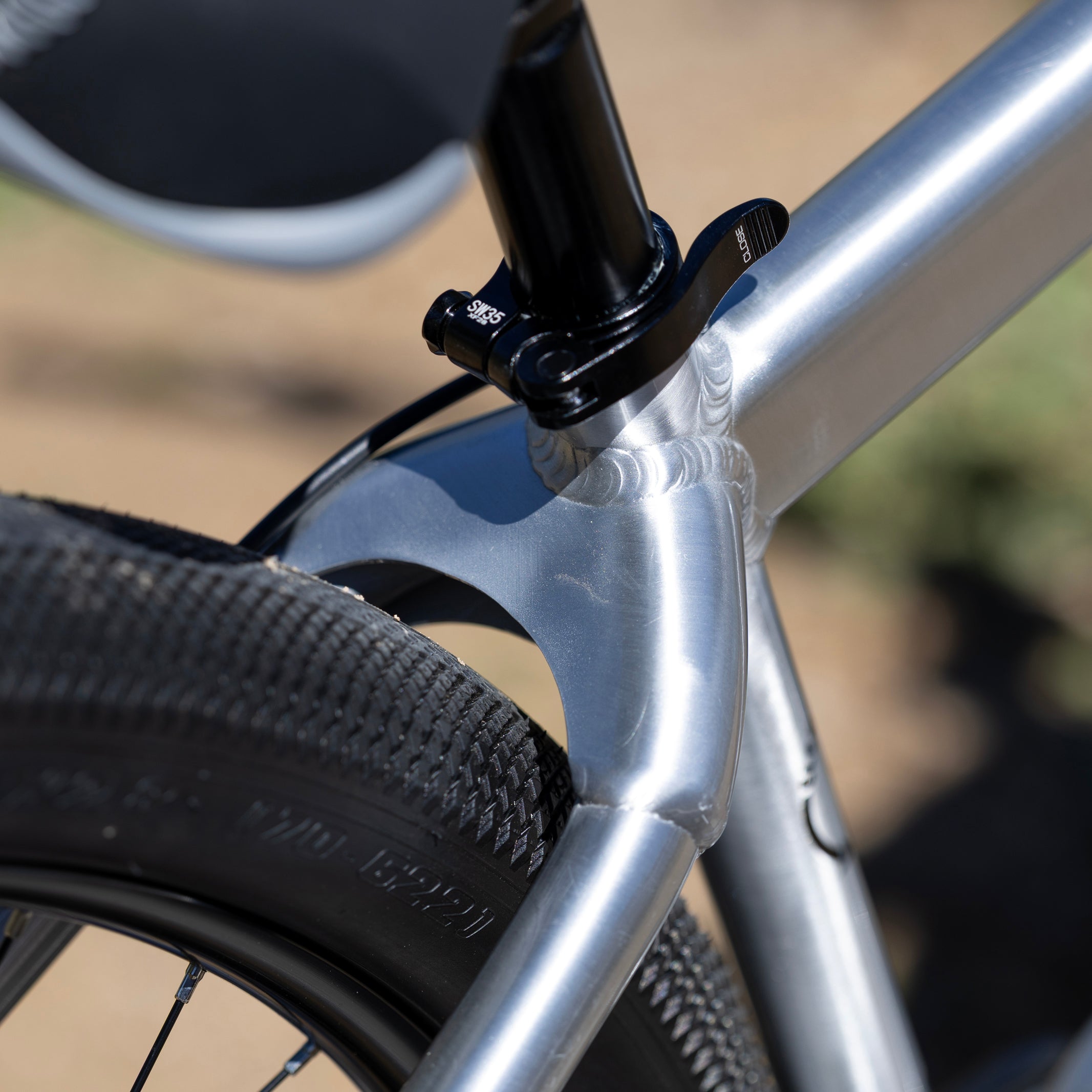

Frame 6061 Aluminum Floval Tubing, Mid-Drive Motor, Removeable Internal Battery, Internally-machined Tapered Integrated Head Tube, Looptail Rear End w/ 12x148mm Closed Dropouts, Disc Brake Tabs, Water Bottle Mounts
Fork Mega Landing Gear, Full Cr-Mo, Tapered Steerer Tube, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts, Disc Tabs
Crankset Bafang Aluminum, 170mm, 32T Alloy Chainring w/ Chain Guide
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Rear Derailleur Shimano CUES U6020, E-bike Rated, Low-Profile Design

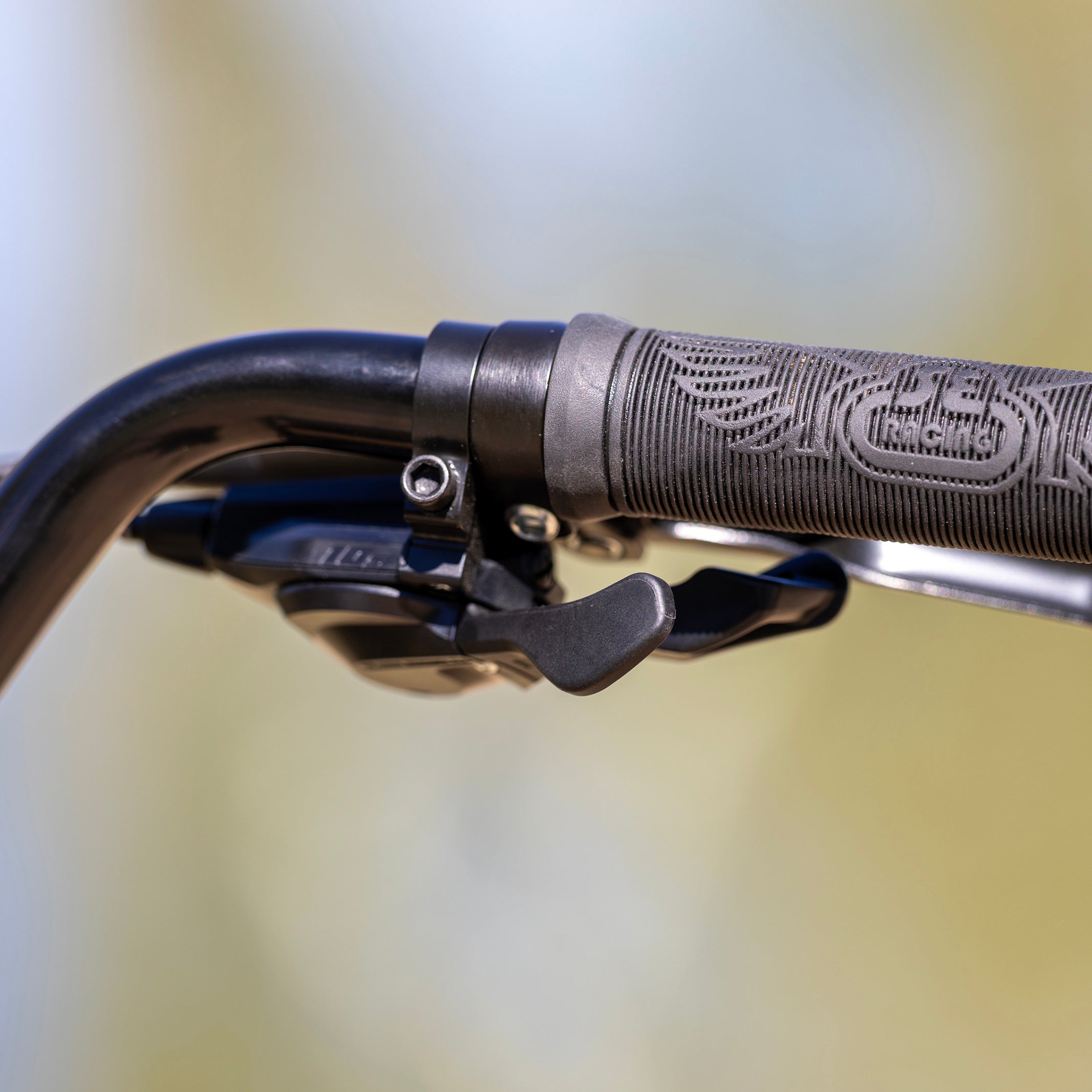

Shifters Shimano CUES U6000, Rapidfire Plus, 10-Speed, Optical Gear Display, Quick Lever Access
Cassette Shimano Linkglide, CS-LG300, 10-speed, 11-39T
Chain Shimano Linkglide, LG500
Wheelset Alloy 36H Nutted Sealed Front Hub, Thru-Axle Sealed Rear Hub, 110mm Front Hub & 148mm Rear Hub, w/ 36mm Double-Wall Disc Rims, Shimano LG-300, 11-39T, Cassette, Stainless Spokes
Tires Vee Tire Co x SE Racing Speedster, MPC Durable Compound, 29" x 2.8" Front & Rear

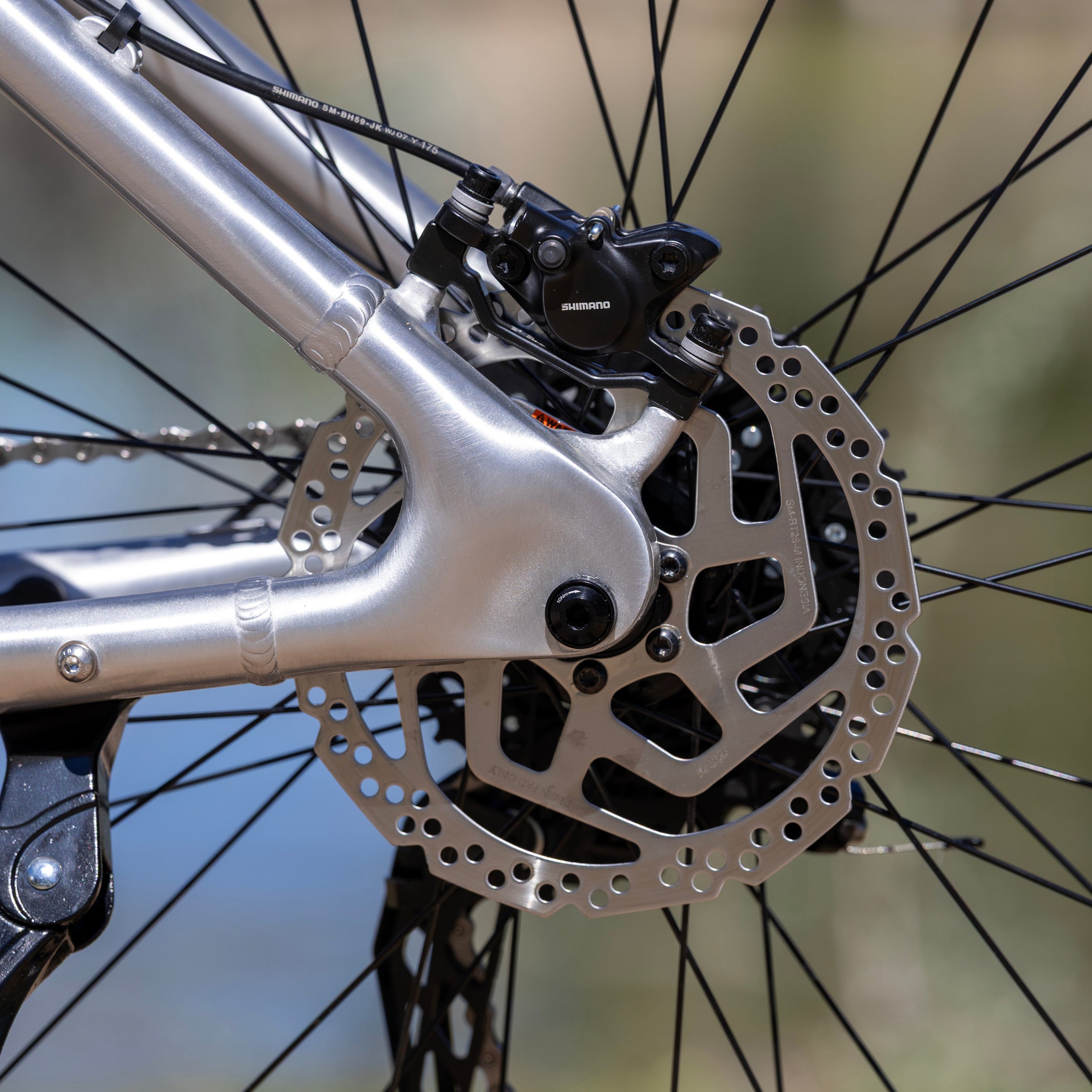

Brakeset Shimano MT200, Hydraulic Disc, Mineral Oil, One Way Bleeding, 180mm rotors
Brake Levers Shimano MT200, 3-Finger Lever, Funnel Bleeding
Headset Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset
Handlebar Big Honkin' Cr-Mo Cruiser Bar, 30" x 8.25", 12° Backsweep, 1° Upsweep
Stem SE Retro Alloy Top-Load, 55mm Reach
Grips SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs
Seat Mega Flyer Seat w/ Custom SE Bottle Opener Brace
Seatpost Micro-Adjust Alloy, 31.6mm
Seat Clamp Quick Release Seat Clamp, Alloy, 35mm Inner Diameter
Accessories Alloy Kickstand, Motor Bash Guard, Alloy Valve Caps, Water Bottle Mounts

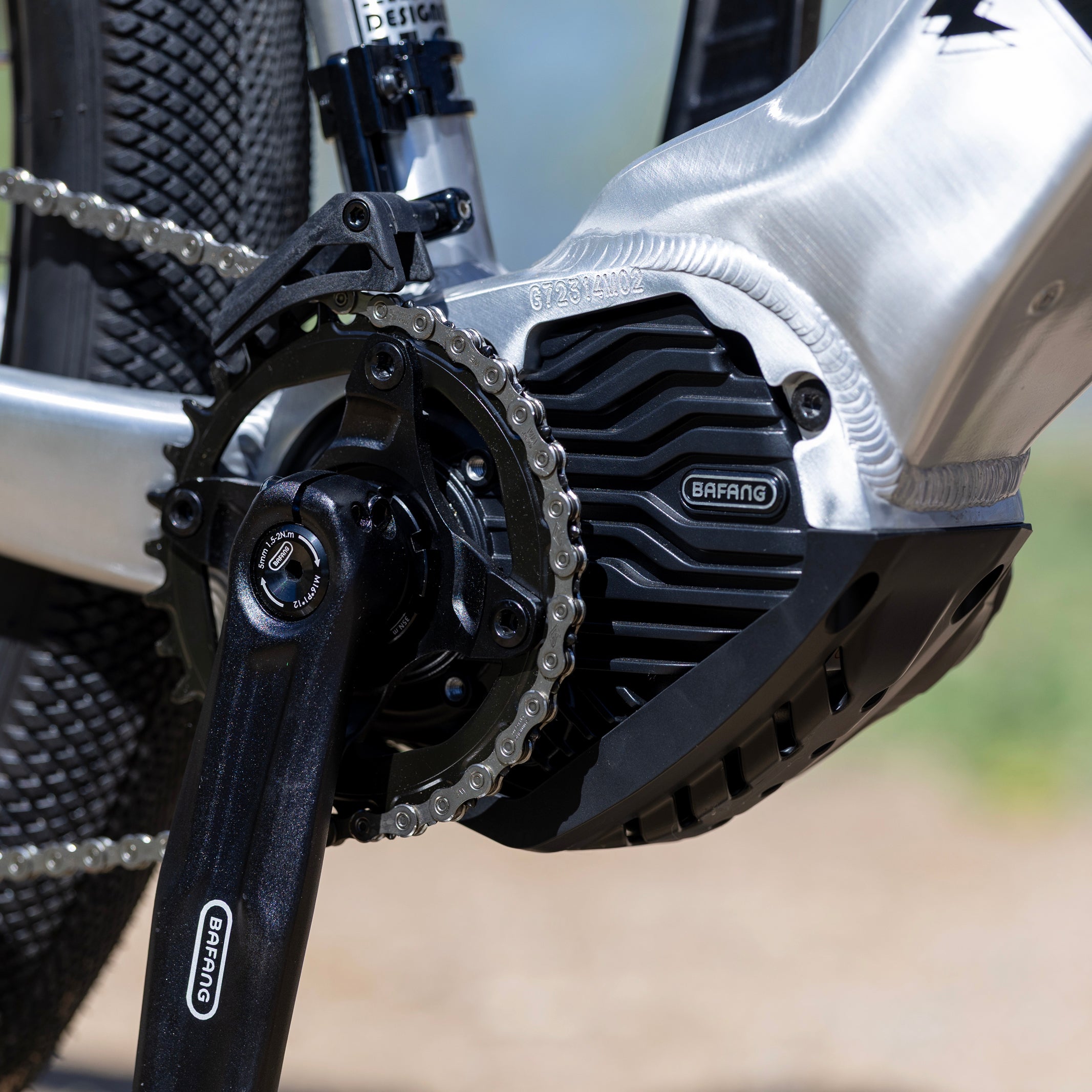

Motor Bafang M560, 500W Mid Drive, 950W Peak Power, 48V, 140Nm Torque, 28mph
Battery Bafang Lockable Removeable Internal, 48V, 15Ah, 720Wh, UL2271 Compliant

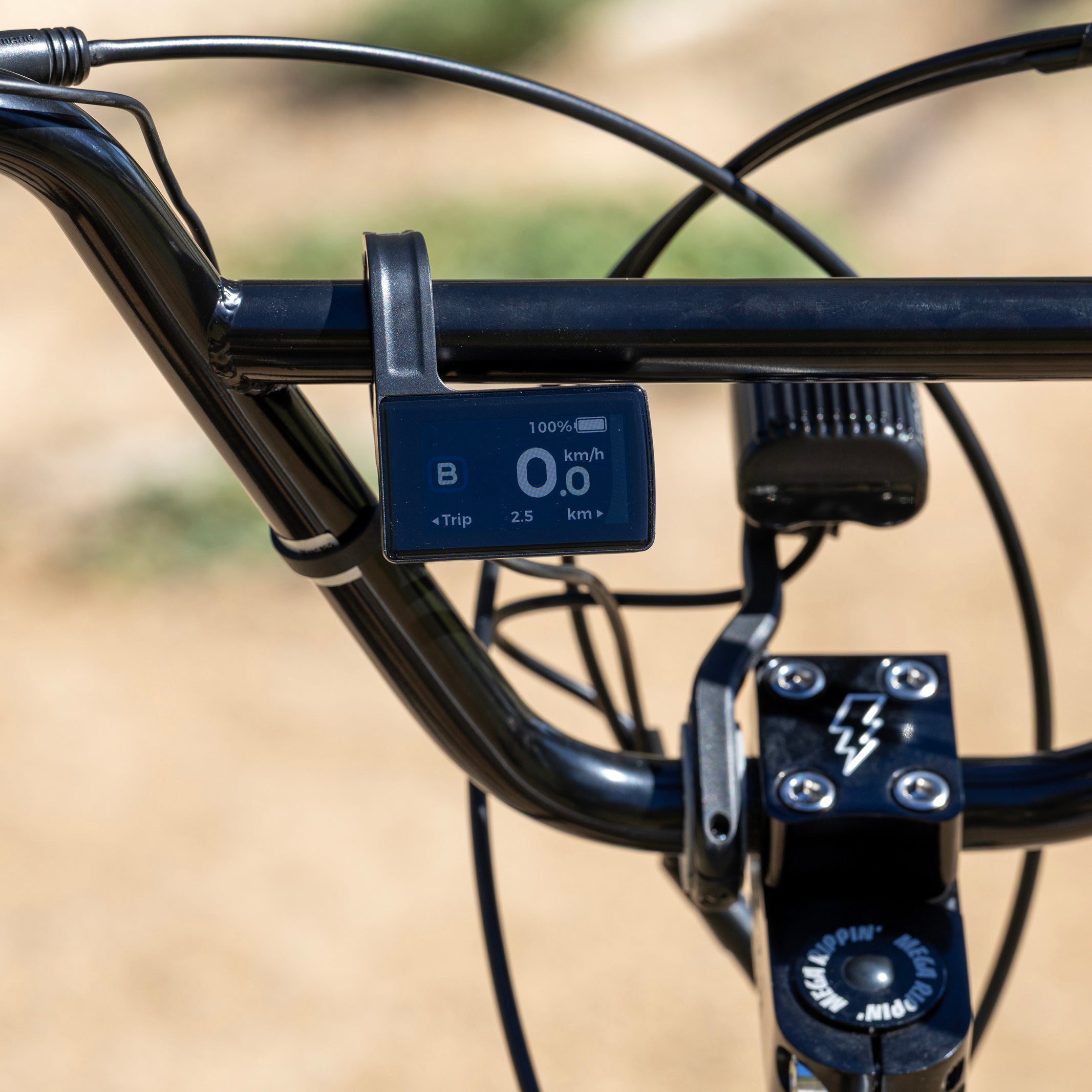

Display Bafang DP C245, TFT LCD, 6 Modes, Walk Assist, USB C Charging, Bluetooth 5.0
Battery Charger Bafang , 54.6V, 2A
Headlight Lezyne StZVO E300, LED, 300 Lumens, 100 Lux, 6-12V, Water Resistant
Rear Light Trelock LS 740 I-GO Vector, 20 Lux, 500 Meter Visibiity, Brake Light Function
Range Up to 50 miles
Charge Time 4 hours
Maximum Permissible Weight 300 lbs Including Rider, Bicycle, and Extra Baggage
Certifications / Use Condition Class 3 E-Bike, Use Condition 3, Full Electrical System UL2849 Compliant
Weight 59 lbs / 26.76 kgs
Wheel Size 29"

Specifications subject to change without notice.
GEOMETRY
A Top Tube, Actual 24.1"
A1 Top Tube, Effective 25.5"
B Seat Tube, Center To Top 16.9"
C Seat Tube Angle 71°
D Head Tube Angle 71°
E Chainstay Length 18.8"
F Wheelbase 44.3"
G Bottom Bracket Height 13.7"
H Standover 32.7"
Stem 55mm
Handlebar Width 29.8"
Crank 170mm
Wheel Size 28"
Seat Post Diameter 31.6mm

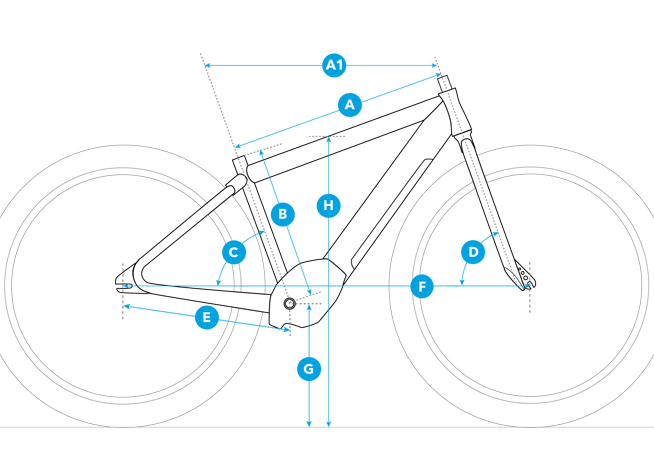

Geometry diagram
