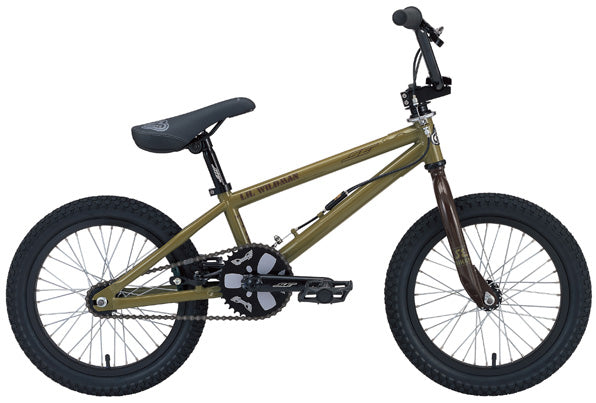

LiL' Wildman 16" (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Todd Lyons Signature Model 16", Hi-Ten, 6mm Dropouts, USA BB, Gyro Mounts |
| Fork | 1-1/8" Landing Gear |
| Crankset | SE 3-pc Tubular CR-MO, 140mm; SE 36T Sprocket; Cr-Mo spindle, 8-Spline, Loose USA |
| Pedals | Wellgo Alloy Platform, CR-MO Axle |
| Cassette | 16T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 36H Aluminum; SE Alloy, 36H 3/8 Axle Front Hub; SE Alloy, 36H 3/8 Axle Rear Hub; 14 Ga. Spokes |
| Tires | Kenda K-Rad 16 x 2.125 Front & Rear |
| Brakeset | Tektro 907A U Brake, Linear Pull, Soft Compound Shoes (Rear only) |
| Brake Levers | Tektro 317AC |
| Headset | VP 1-1/8" Threadless |
| Handlebar | SE, 20.5" X 6" |
| Stem | SE , Top Load 1-1/8" Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 25.4 |
| Seat Clamp | SE Alloy |
| Accessories | Driving Force detangler |
| Wheel Size | 16" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 74.5° |
| E | Chainstay Length | 12" |
| G | Bottom Bracket Height | 9.7" |
| Seat Tube Length | 7.5" | |
| Wheel Size | 16" |
