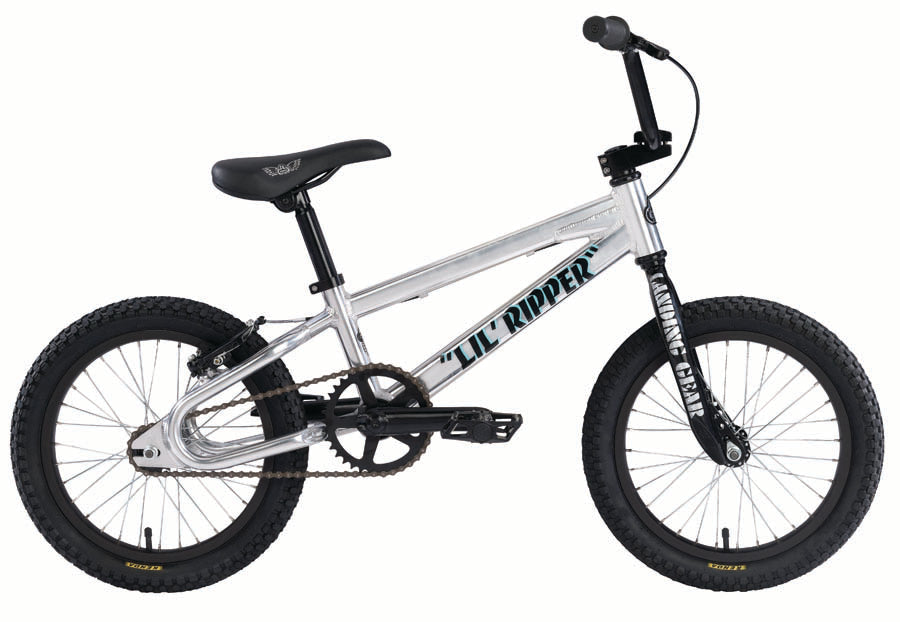

LiL' Ripper 16" (2008)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum RETRO Floval Tubing, Looptail Rear End, USA BB |
| Fork | LiL ' Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 140mm, American Ball Bearing, 36T |
| Pedals | Wellgo Alloy Mini Platform, CR-MO Axle |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 32H Aluminum w/ 14 Ga. Spokes; SE Racing Alloy Front Hub; SE Racing Alloy w/ 16T Freewheel Rear Hub |
| Tires | Kenda K-Rad 16 x 2.125" Front & Rear |
| Brakeset | Tektro 918ALMini V-Brake, Slick Cable |
| Brake Levers | Tektro 317A, 2 Finger Alloy |
| Headset | VP 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 20.5" X 6" |
| Stem | SE , Top Load 1-1/8" Alloy |
| Grips | Mini Size Kraton Rubber |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 25.4 |
| Seat Clamp | SE Alloy |
| Accessories | Race Plate |
| Wheel Size | 16" |
| Weight | 20.8 lbs. |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 12" |
| G | Bottom Bracket Height | 9.7" |
| Seat Tube Length | 7.5" | |
| Wheel Size | 16" |
