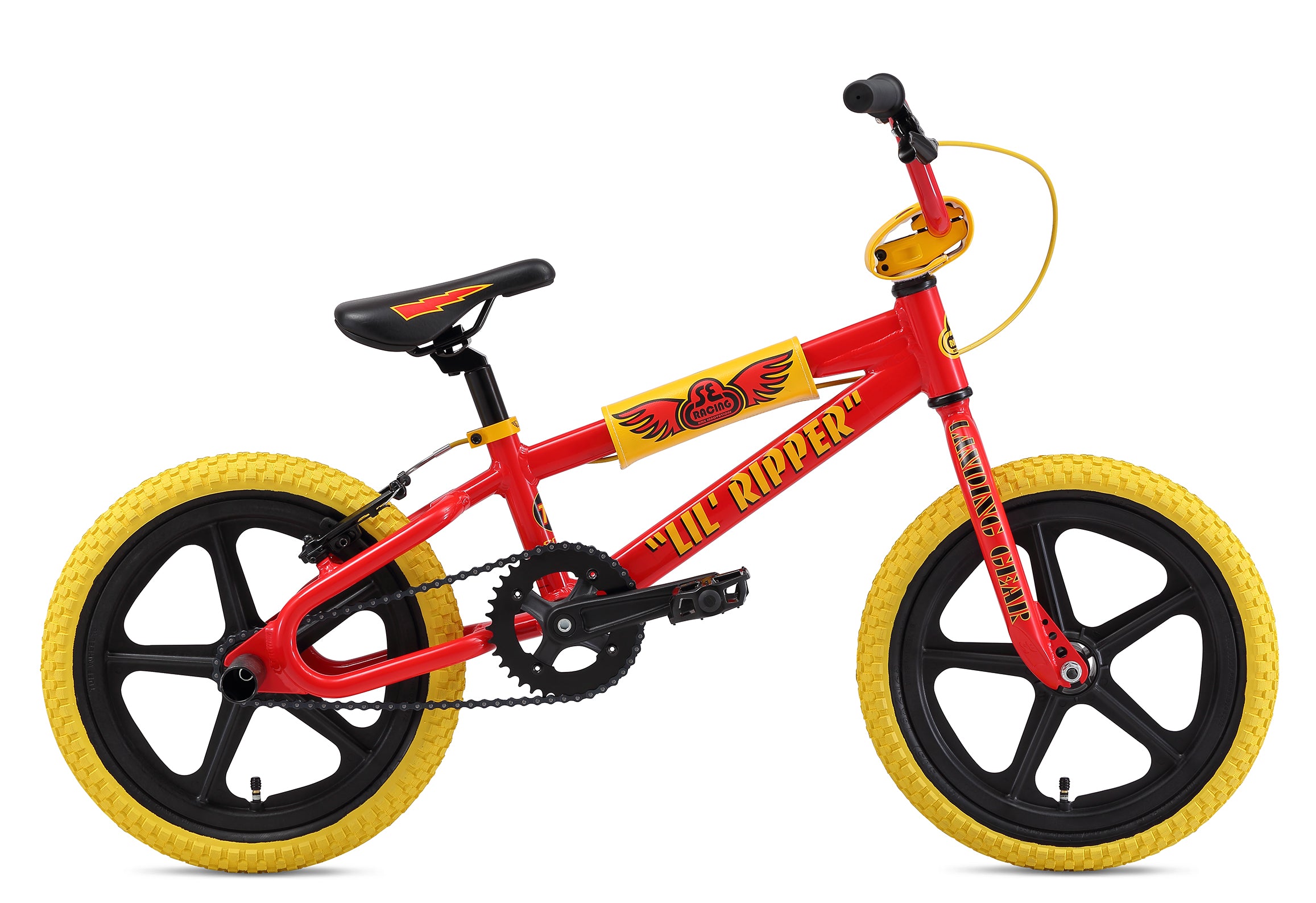

LiL' Ripper 16" (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, 68mm Euro Bottom Bracket, Looptail Rear End |
| Fork | LiL' Landing Gear |
| Crankset | SE 3-pc 6061 Alloy, 140mm, Euro-Sealed Bearing Bottom Bracket, 117.5mm Spindle Length, 36T Chainring |
| Pedals | FPD Alloy Platform, Cr-Mo Axle |
| Chain | KMC S1 |
| Wheelset | Skyway Tuffwheels, Sealed Bearings, Made in USA, 16T Freewheel |
| Tires | Kenda K-Rad, 16" x 2.125" Front & Rear |
| Brakeset | Promax Mini V-Brake |
| Brake Levers | Promax 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 22" x 5.5", 10° Backsweep, 2° Upsweep |
| Stem | SE Racing Top-Load Alloy w/ Weight-Saving Cutouts, Hidden Top Cap, 40mm Reach |
| Grips | Mini Grips |
| Seat | SE Racing Mini Lightning Bolt |
| Seatpost | Race Rocker Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | SE Racing Rad Number Plate, SE Racing Wing Padset, Alloy Valve Caps, SE Wheelie Pegs |
| Wheel Size | 16" |
| Weight | 20.8 lbs / 9.43 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| Seat Tube, Center To Top | 7.7" | |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 11.9" |
| Wheelbase | 30.6" | |
| G | Bottom Bracket Height | 9.8" |
| Standover | 18.9" | |
| Stem | 40mm | |
| Handlebar Width | 22" | |
| Crank | 140mm | |
| Wheel Size | 16" | |
| Seatpost Diameter | 27.2mm |
