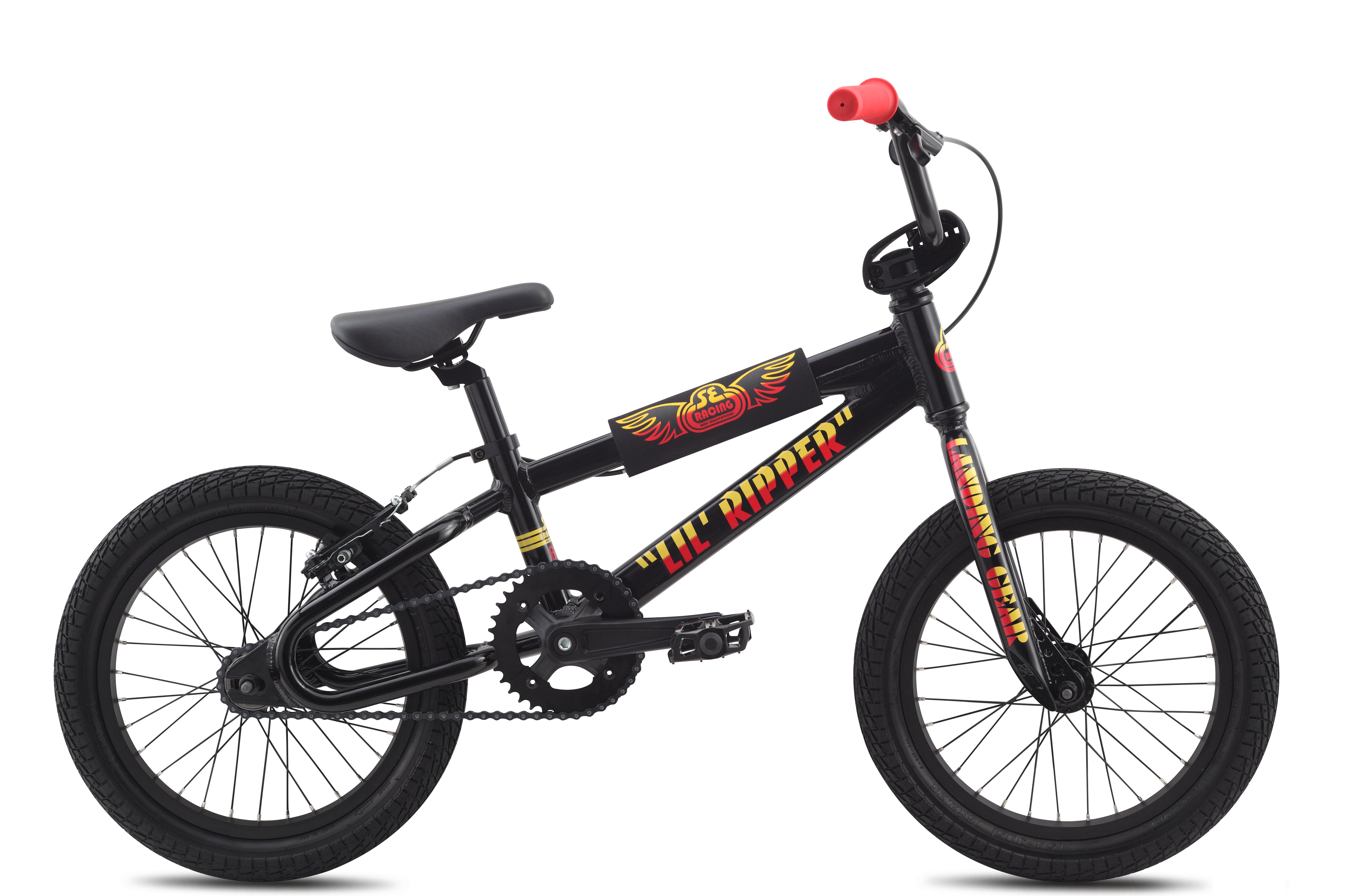

LiL' Ripper 16" (2015)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Euro Bottom Bracket, Looptail Rear End |
| Fork | LiL' Landing Gear |
| Crankset | SE 3-pc 6061 Alloy, 140mm Euro-Sealed Bearing, 36T |
| Pedals | FPD Alloy Platform, Cr-Mo Axle |
| Chain | KMC Z410A |
| Wheelset | SE Racing Alloy 32H Hubs w/ Alex C1000 rims, 16T Freewheel |
| Tires | Kenda K-Rad 16" x 2.125" F & R |
| Brakeset | Promax Mini V-Brake |
| Brake Levers | Promax 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 21" x 5.5" |
| Stem | SE Racing Top-Load Alloy w/ Weight-Saving Cutouts |
| Grips | Mini Grip |
| Seat | SE Slim Seat w/ Custom Cover |
| Seatpost | Race Rocker Micro-Adjust Alloy, 27.2mm |
| Accessories | Race Plate, Pads |
| Wheel Size | 16" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| Seat Tube, Center To Top | 7.7" | |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 11.9" |
| Wheelbase | 30.6" | |
| G | Bottom Bracket Height | 9.8" |
| Seat Post Diameter | 27.2mm | |
| Standover | 18.9" |
