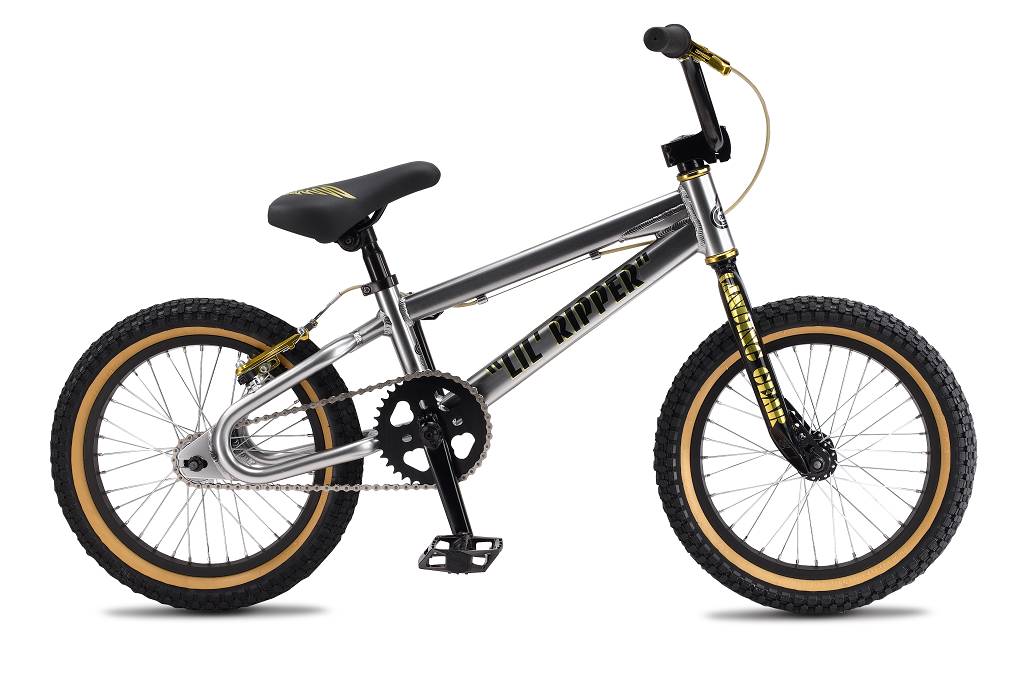

LiL' Ripper 16" (2011)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Looptail Rear End |
| Fork | LiL ' Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 140mm Euro Sealed Bearing, 36T Bubble Sprocket |
| Pedals | FPD Alloy Platform, Cr-Mo Axle |
| Chain | KMC Z410 |
| Wheelset | SE Racing Alloy36H hubs w/Alex C1000 rims, 16T Freewheel |
| Tires | Kenda K-Rad 2.125" F&R |
| Brakeset | Rush Mini V-Brake |
| Brake Levers | Rush 2 Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 20.5x6" |
| Stem | SE Racing Front Load Alloy |
| Grips | Mini Grip |
| Seat | SE Slim Seat w/Custom Cover |
| Seatpost | SE Straight Post, 27.2 |
| Accessories | Race Plate |
| Wheel Size | 16" |
| Weight | 9.30kg / 20.50lb |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| Seat Tube, Center To Top | 7.7" | |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 11.9" |
| Wheelbase | 30.6" | |
| G | Bottom Bracket Height | 9.7" |
| Seat Post Diameter | 27.2mm |
