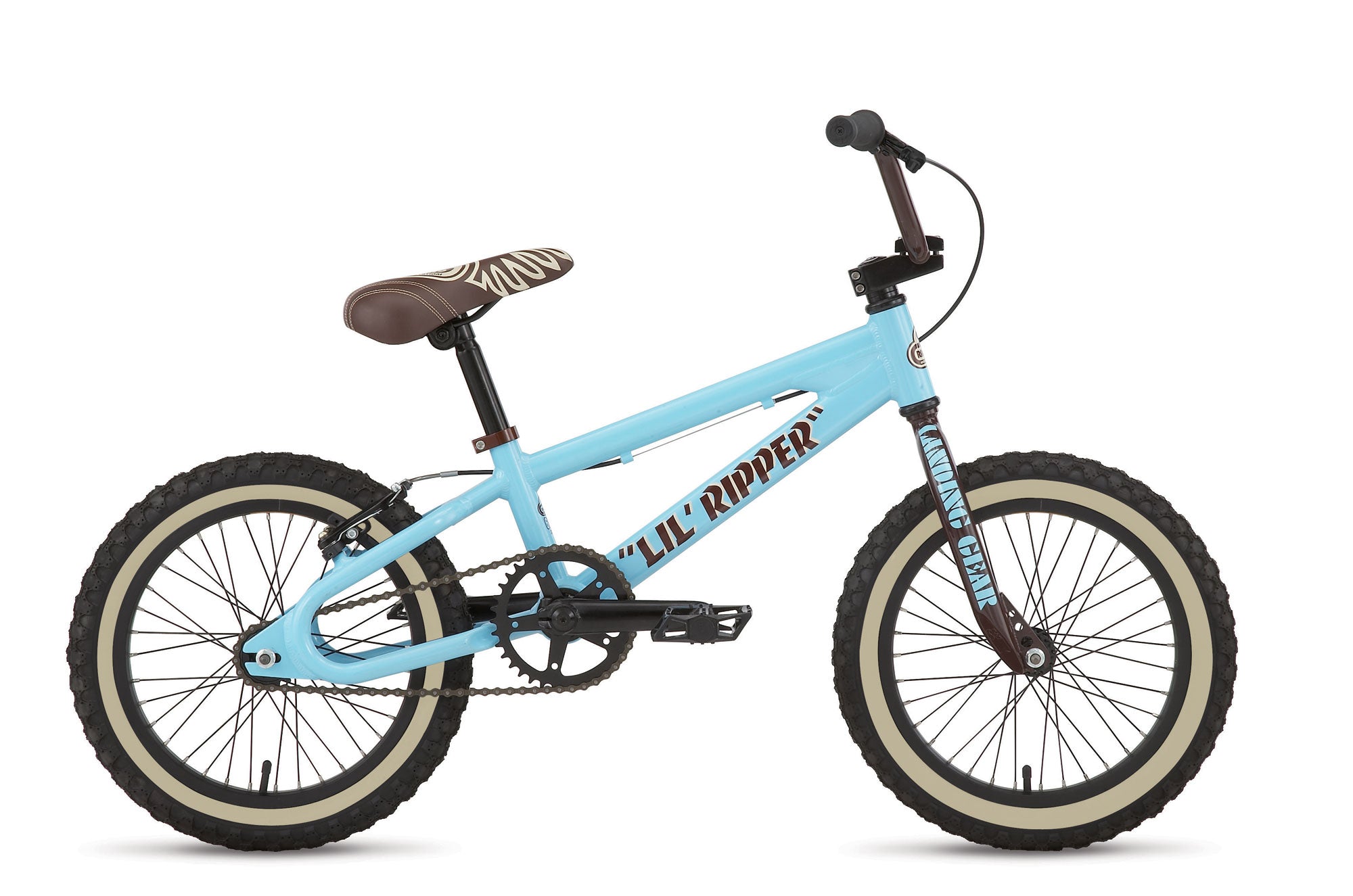

LiL' Ripper 16" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Looptail Rear End |
| Fork | LiL ' Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 140mm, American Ball Bearing, 36T |
| Pedals | FPD Alloy Platform, CR-MO Axle |
| Chain | KMC Z410 |
| Wheelset | Weinmann ZAC30, 32H Aluminum w/ 14 Ga. Spokes; SE Racing Alloy Front Hub; SE Racing Alloy w/ 16T Freewheel Rear Hub |
| Tires | 16" x 2.125" F & R |
| Brakeset | C-Star Mini V-Brake |
| Brake Levers | C-Star 2 Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 20.5" X 6" |
| Stem | SE , Top Load 1-1/8" Alloy |
| Grips | Mini Grip |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | SE Straight Post 27.2 |
| Accessories | Race Pads, Race Plate, SE Plastic Grip End Caps |
| Wheel Size | 16" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 12" |
| G | Bottom Bracket Height | 9.7" |
| Wheel Size | 16" |
