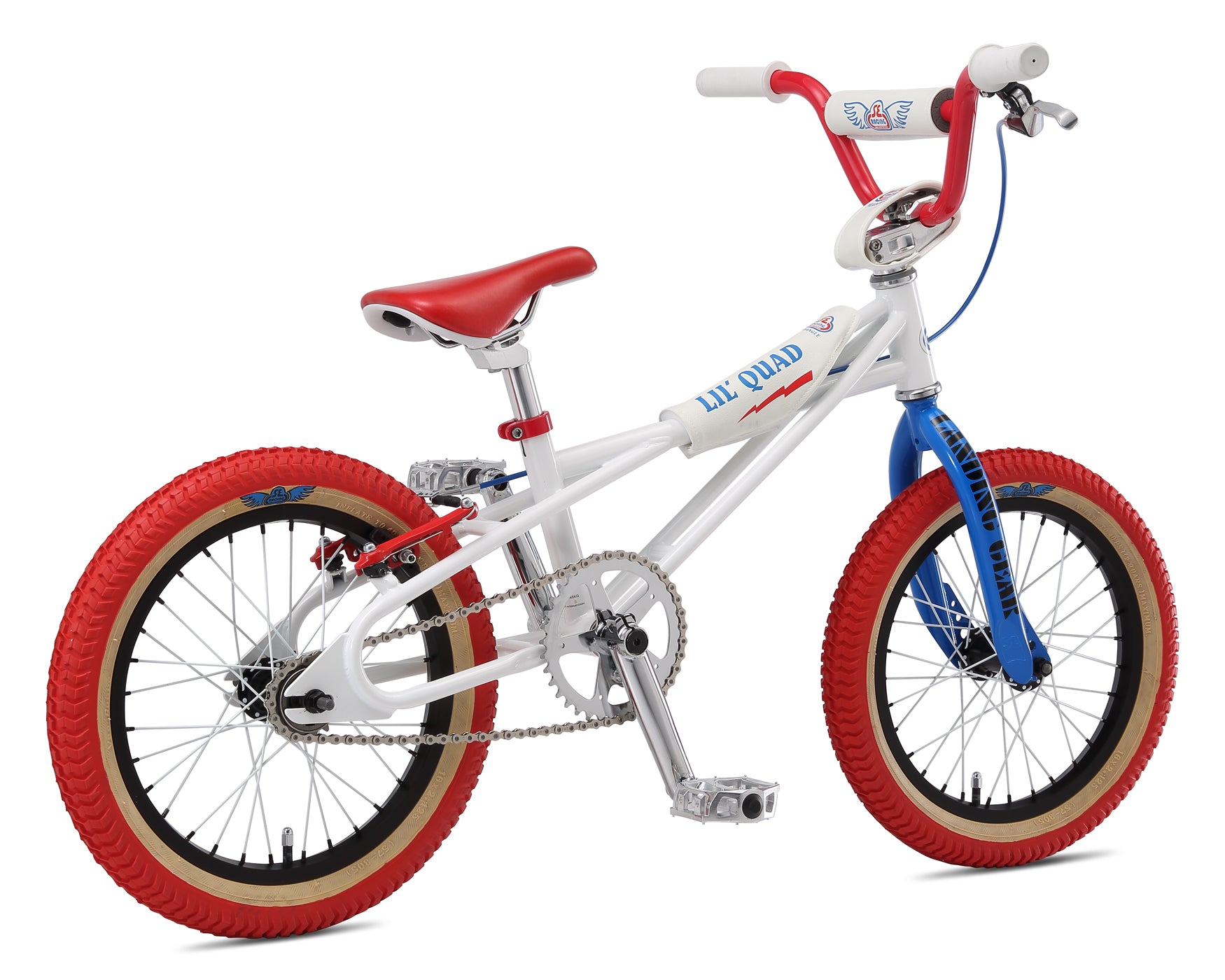

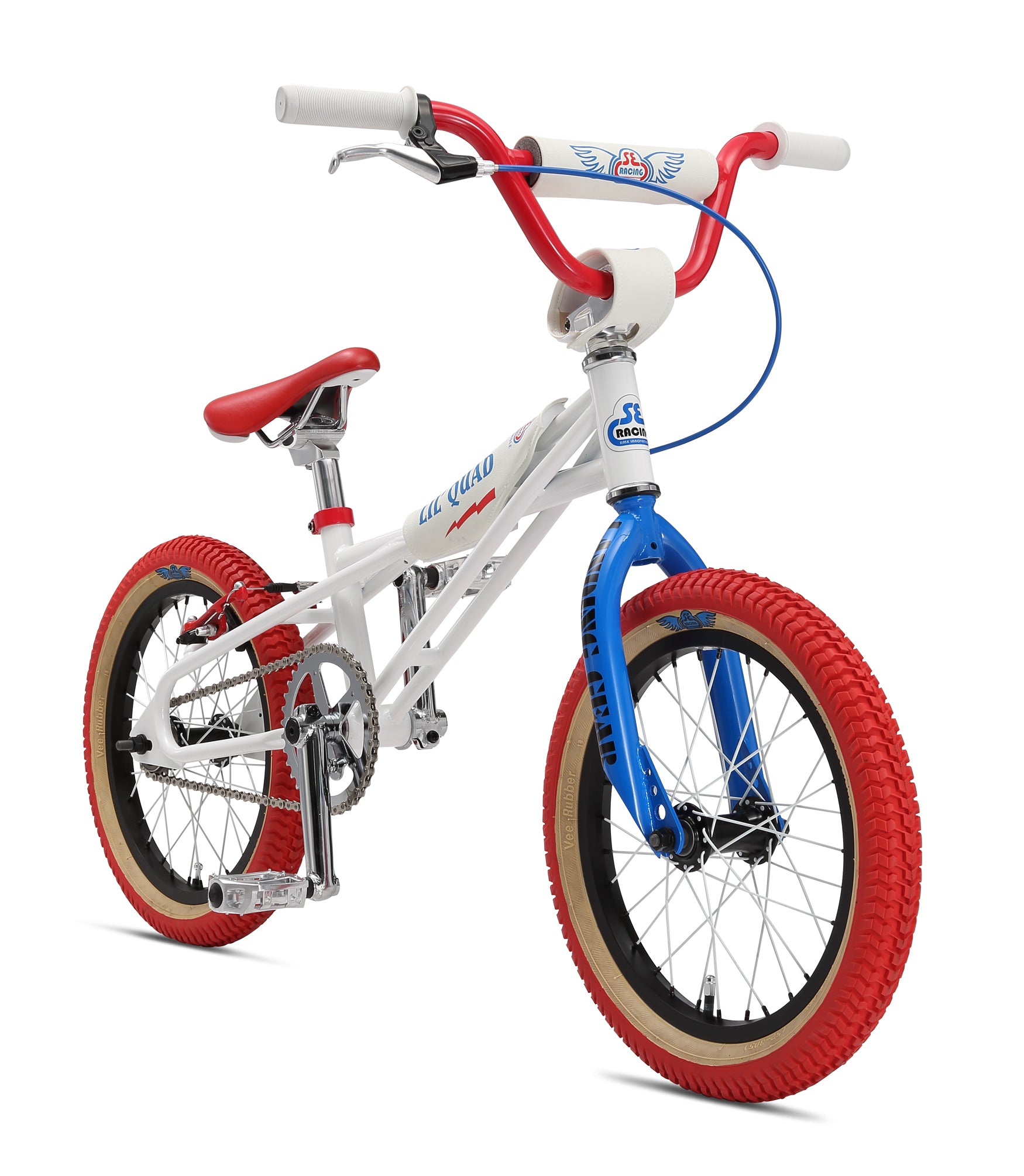

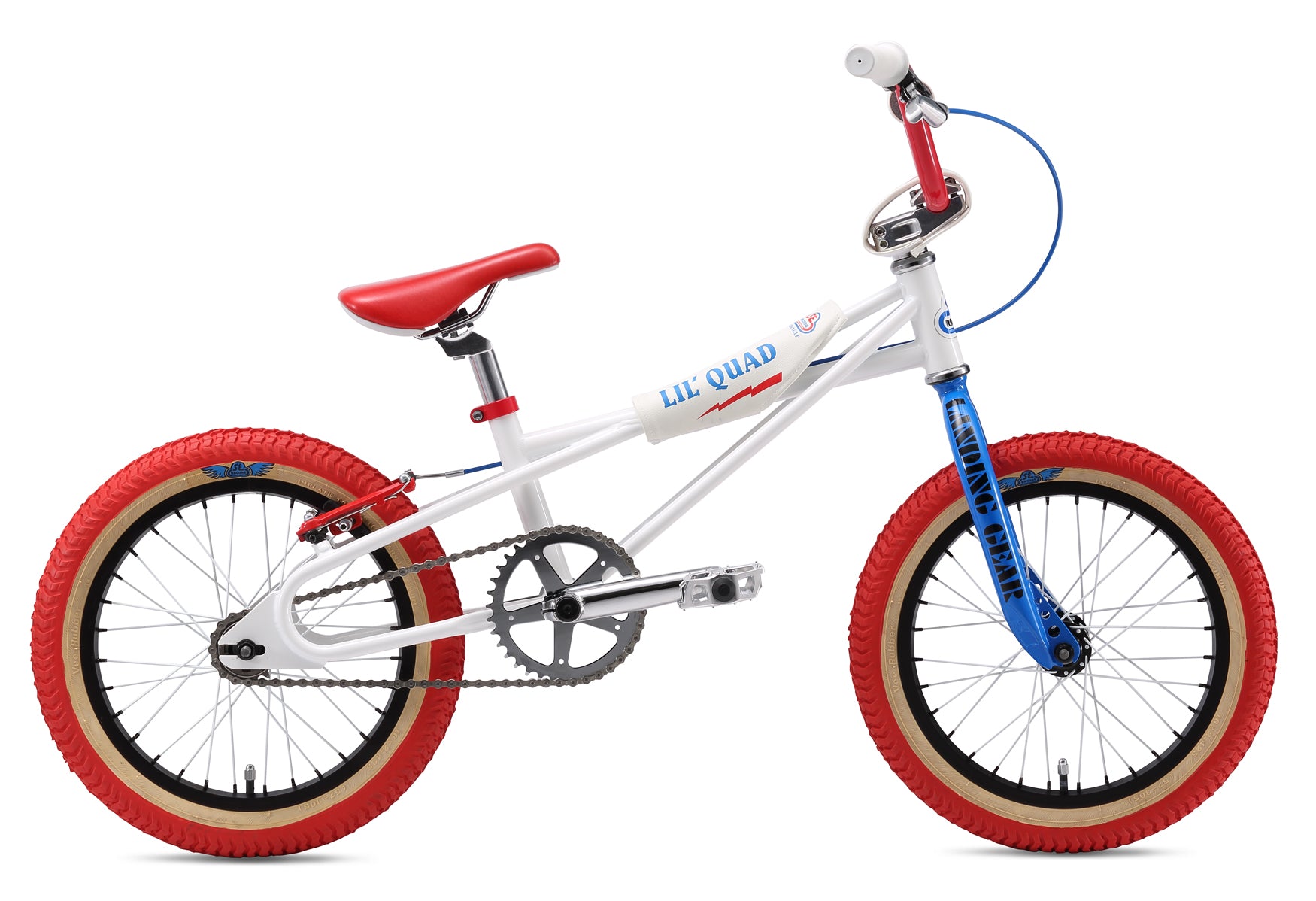

LiL Quad 16" (2018)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Classic Double Downtube, Looptail Rear End, Euro Bottom Bracket, Retro Dropouts |
| Fork | LiL' Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 140mm, Euro-Sealed Bearing Bottom Bracket, 36T Chainring |
| Pedals | FPD Alloy Platform, Cr-Mo Axle |
| Chain | KMC Z410A |
| Wheelset | SE Racing Alloy 32H Hubs w/ Alex C1000 rims, 16T Freewheel |
| Tires | Vee Tire Co VRB025 16" x 2.125" Front & Rear |
| Brakeset | Promax Mini V-Brake |
| Brake Levers | Promax 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 23" x 5.5" |
| Stem | SE Racing Top-Load Alloy w/ Weight-Saving Cutouts, Hidden Top Cap, 40mm Reach |
| Grips | Mini Grips |
| Seat | SE Racing Mini Seat |
| Seatpost | Race Rocker Micro-Adjust Alloy, 25.4mm |
| Accessories | LiL' Quad Padset, Alloy Valve Caps, SE Wheelie Pegs |
| Wheel Size | 16" |
| Weight | 20 lbs / 9.07 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 16.5" |
| B | Seat Tube, Center To Top | 7.9 |
| C | Seat Tube Angle | 70° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 11.9" |
| F | Wheelbase30.6" | |
| G | Bottom Bracket Height | 9.8" |
| H | Standover | 18.4" |
| Stem 40mm | ||
| Handlebar Width | 23" | |
| Crank | 140mm | |
| Wheel Size | 16" | |
| Seat Post Diameter | 25.4mm |
