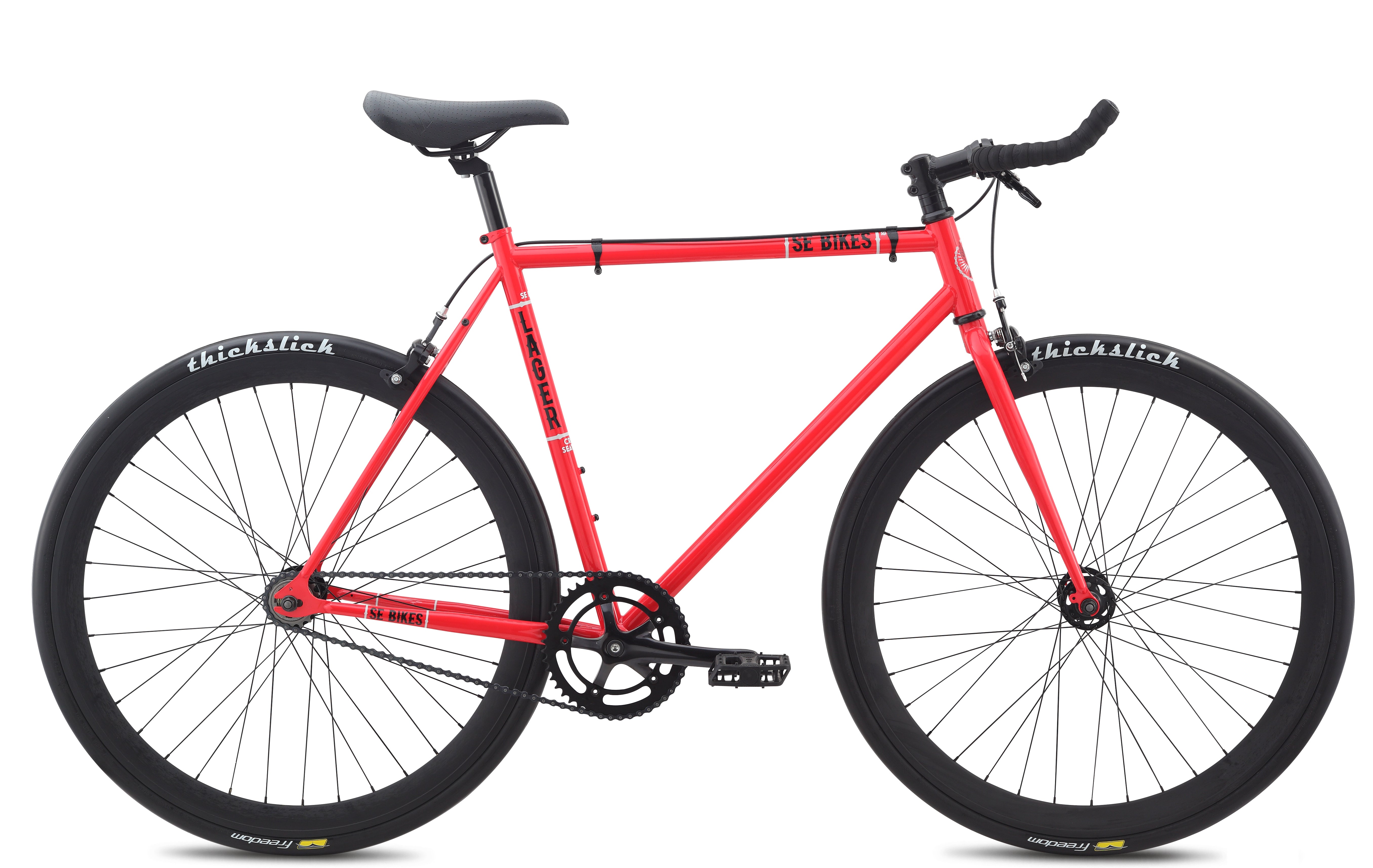

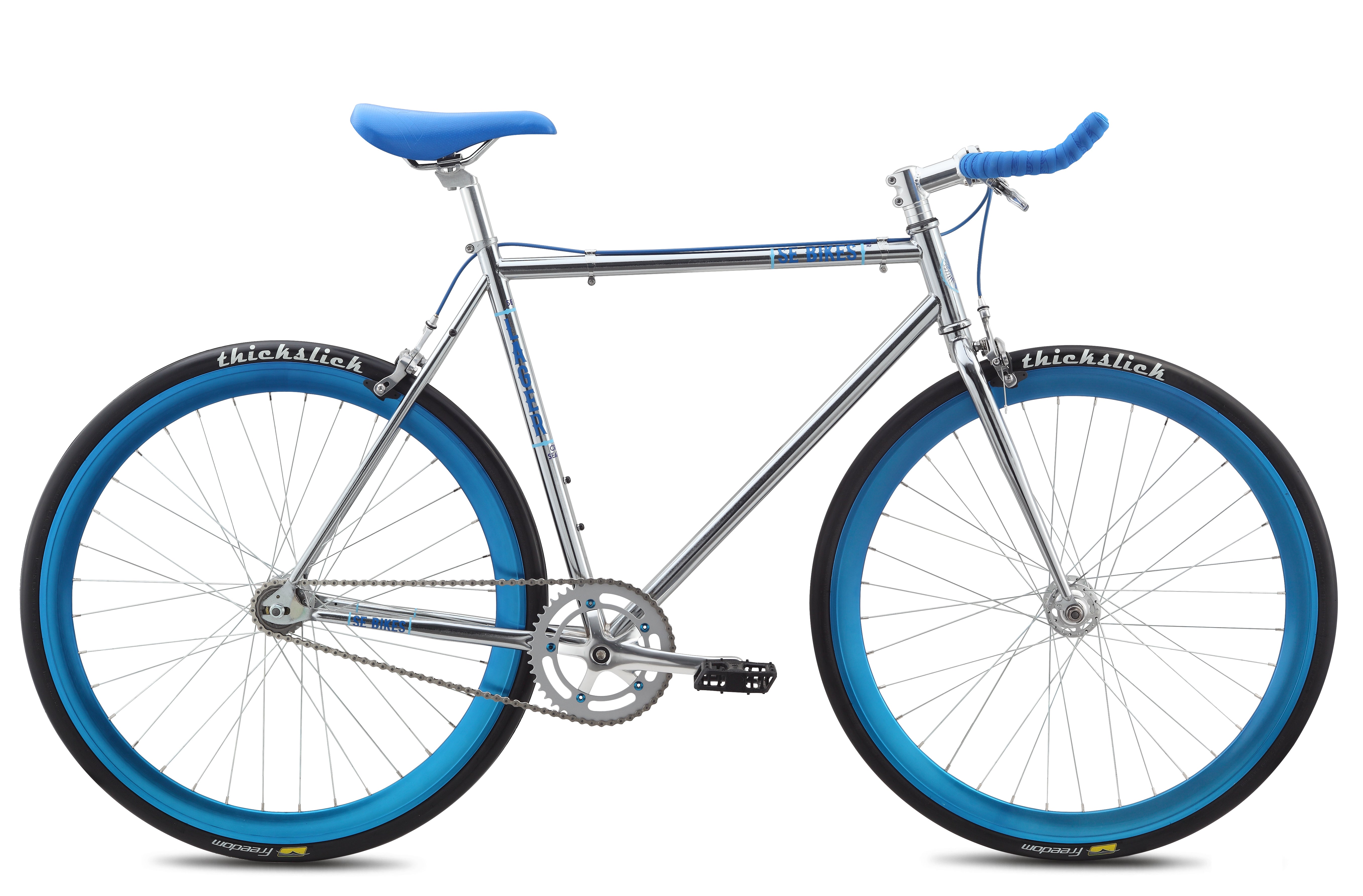

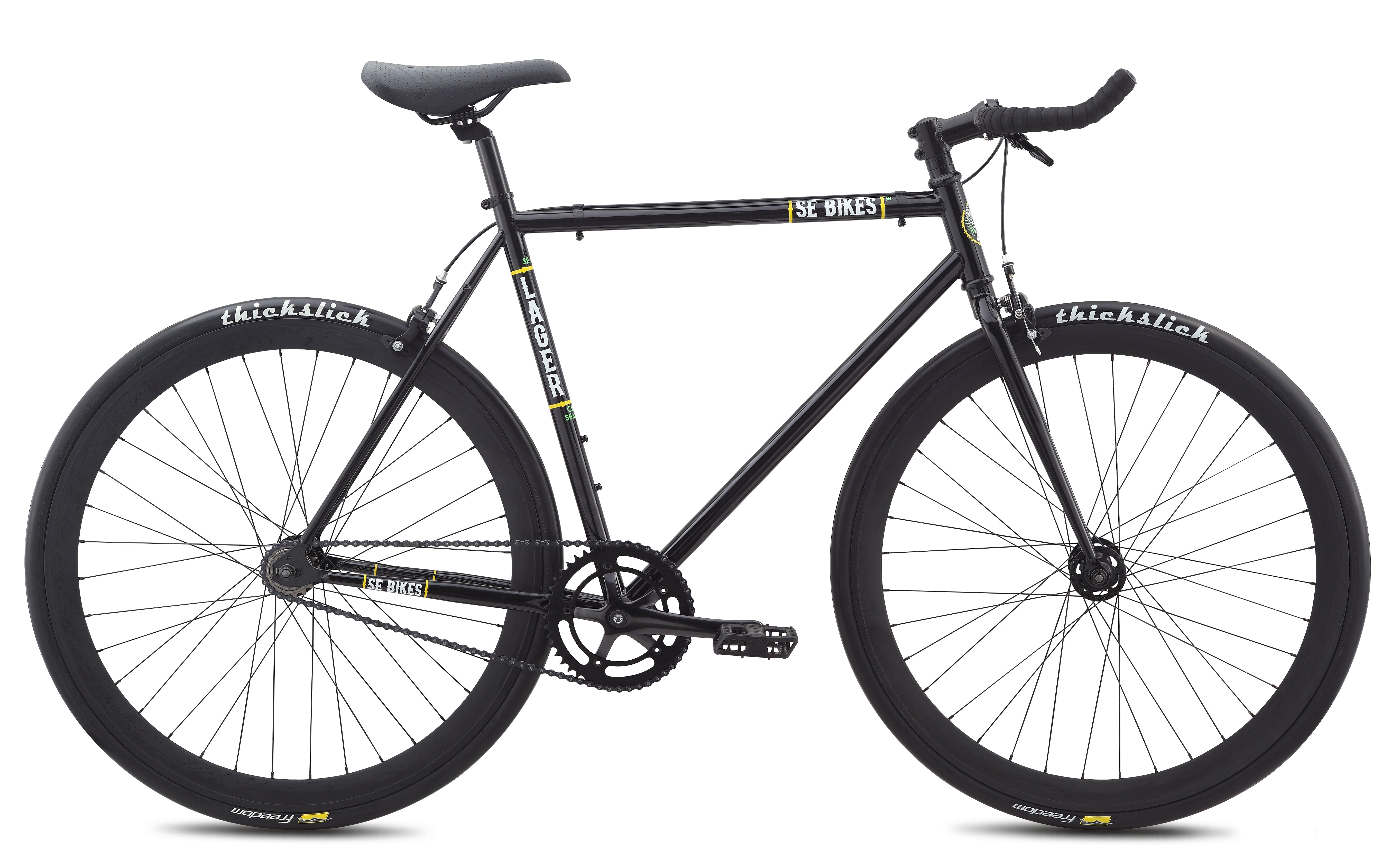

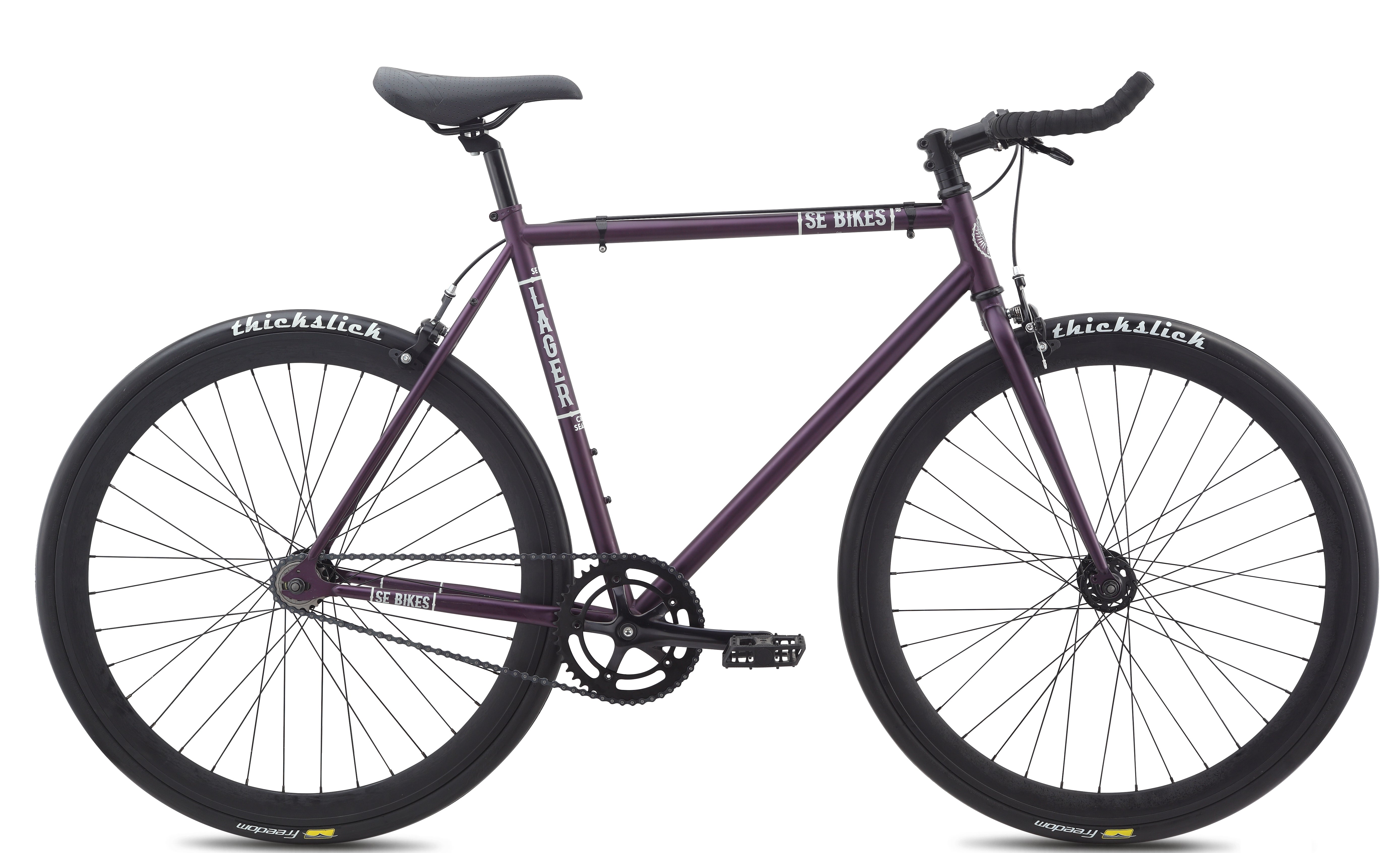

Lager 650/700c (2015)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Butted Top Tube and Down Tube, Cr-Mo Seat Tube, Integrated Seat Clamp, Water Bottle & Fender Mounts, Wide Tire Clearance |
| Fork | SE straight Leg Hi-T en w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Alloy, Euro Cartridge Sealed Bearing w/ Alloy Cups, 46T |
| Pedals | SE Resin Platform |
| Chain | KMC Z410A |
| Wheelset | SE High-flange Alloy Fixed/Free 36H Hubs w/ Extra High-profile Double-wall Rims, 17T Freewheel & 17T Fixed Cog |
| Tires | Freedom Thick Slick Sport 700 x 28c (43cm Bike: Kenda Kriterium 650 x 28c) |
| Brakeset | Promax RC-469 Dual Pivot Caliper w/ Quick-Release F & R |
| Brake Levers | Winzip WL -207A F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Alloy Bullhorn, 400mm Wide |
| Stem | SE Alloy, Zero Degree Drop, 25.4mm Clamp |
| Grips | SE Logo Tape |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy, 27.2mm |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 26.30lbs / 11.92kgs (55cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 43cm (650c), 49cm, 52cm, 55cm, 58cm | |
| Top Tube, Effective | 513, 553, 562, 573, 580 | |
| Head Tube | 90, 90, 95, 125, 155 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 390, 420, 420, 420, 420 |
| Wheelbase | 943, 1006, 1016, 1028, 1036 | |
| G | Bottom Bracket Height | 280, 282, 282, 282, 282 |
| Seat Post Diameter | 27.2, 27.2, 27.2, 27.2, 27.2 | |
| Standover | 703, 758, 775, 802, 833 | |
| Stem | 65, 65, 65, 80, 90 | |
| Handlebar Width | 400, 400, 400, 400, 400 | |
| Crank | 165, 165, 165, 170, 170 |
