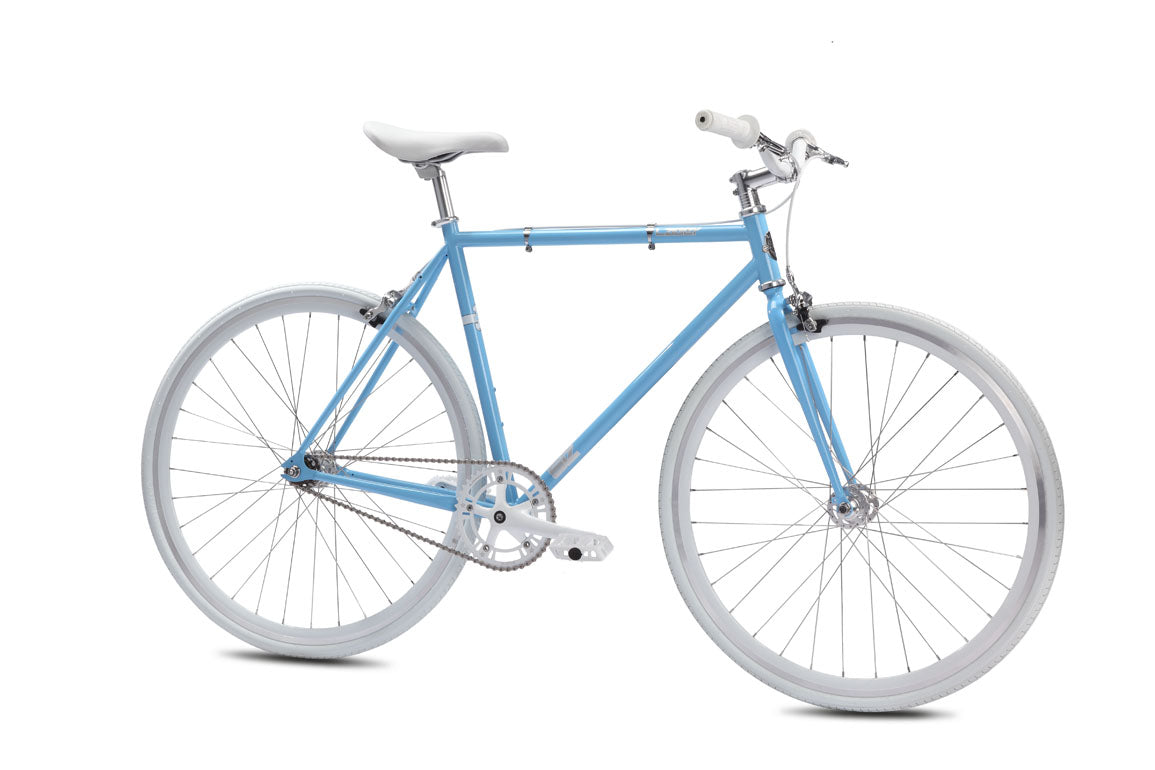

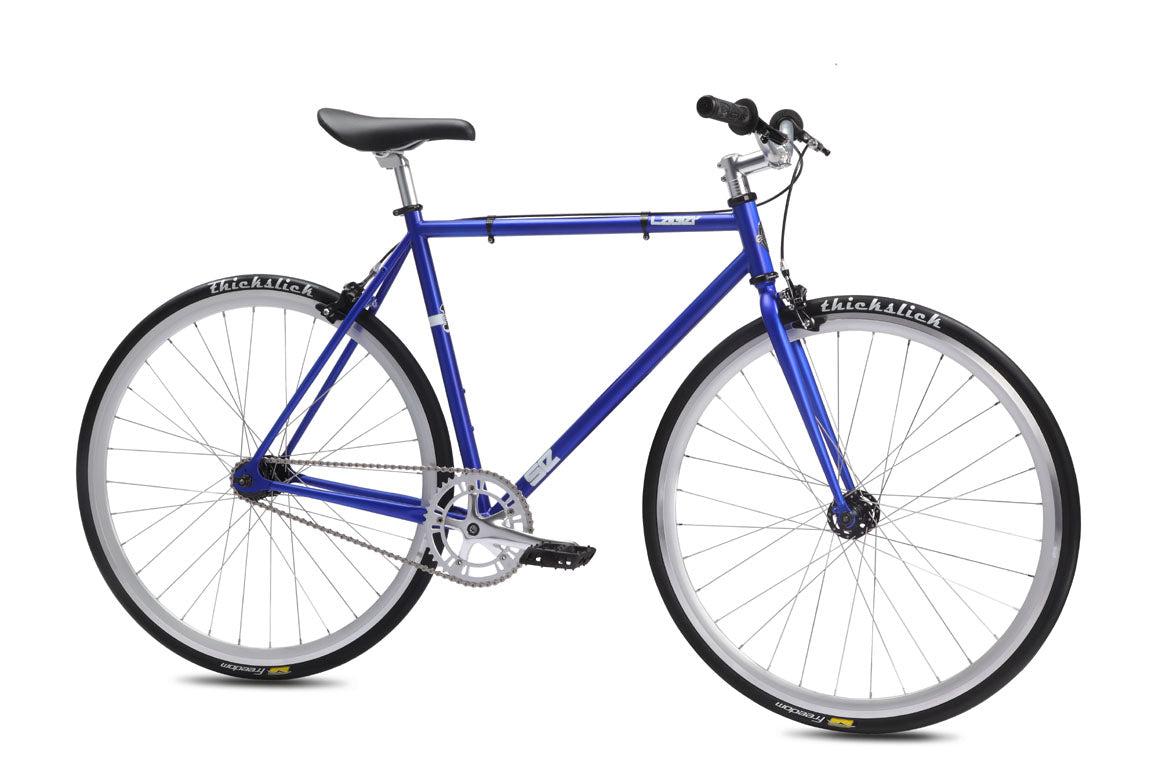

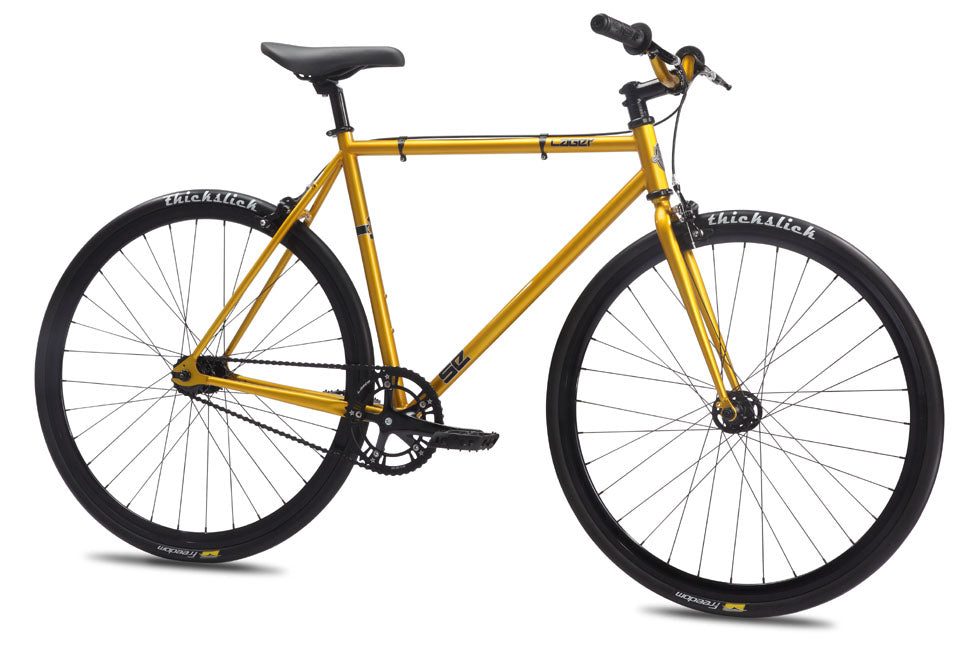

Lager 650/700c (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, 100% Cr-Mo, Water Bottle & Fender Mounts, All Sizes Can Barspin |
| Fork | Cr-Mo Straight Leg w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Alloy, Euro Cartridge Sealed Bearing w/ Alloy Cups, 46T |
| Pedals | Odyssey Twisted Plastic Composite |
| Chain | KMC Z410 |
| Wheelset | SE Sealed Bearing High Flange Alloy Hubs, 32H, Fixed/Free w/ High Profile Double Wall Rims, 17T Freewheel & 17T Fixed Cog |
| Tires | Freedom Thick Slick, 700x28c; 43cm bike: Kenda Kriterium 650x28c |
| Brakeset | Tektro 317 Dual Pivot Caliper F & R |
| Brake Levers | Tektro RX1.0 2-Finger F & R |
| Headset | Tange Alloy DX4, 1 -1/8" Threadless |
| Handlebar | SE Alloy, 23 x 2.5" Riser Bar |
| Stem | SE 3D Forged Alloy, Zero Degree Drop, 25.4mm Clamp |
| Grips | SE Racing Wing Grip w/ SE Rubber End Plugs |
| Seat | SE Boss Seat w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy, 27.2 |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 24lbs / 10.90kgs (54cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 43cm, 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| Top Tube, Effective | 499, 537, 548, 556, 566, 570, 574, 580 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 394, 408, 408, 408, 408, 408, 408, 408 |
| Wheelbase | 949, 996, 1002, 1003, 1013, 1018, 1023, 1031 | |
| Head Tube Length | 90, 90, 90, 95, 115, 135, 155, 185 | |
| Handlebar Width | 580, 580, 580, 580, 580, 580, 580, 580 | |
| Standover | 702, 748, 746, 774, 794, 813, 821, 848 | |
| Crank | 165, 165, 165, 165, 170, 170, 170, 170 | |
| Stem | 50, 50, 50, 60, 75, 75, 90, 90 |
