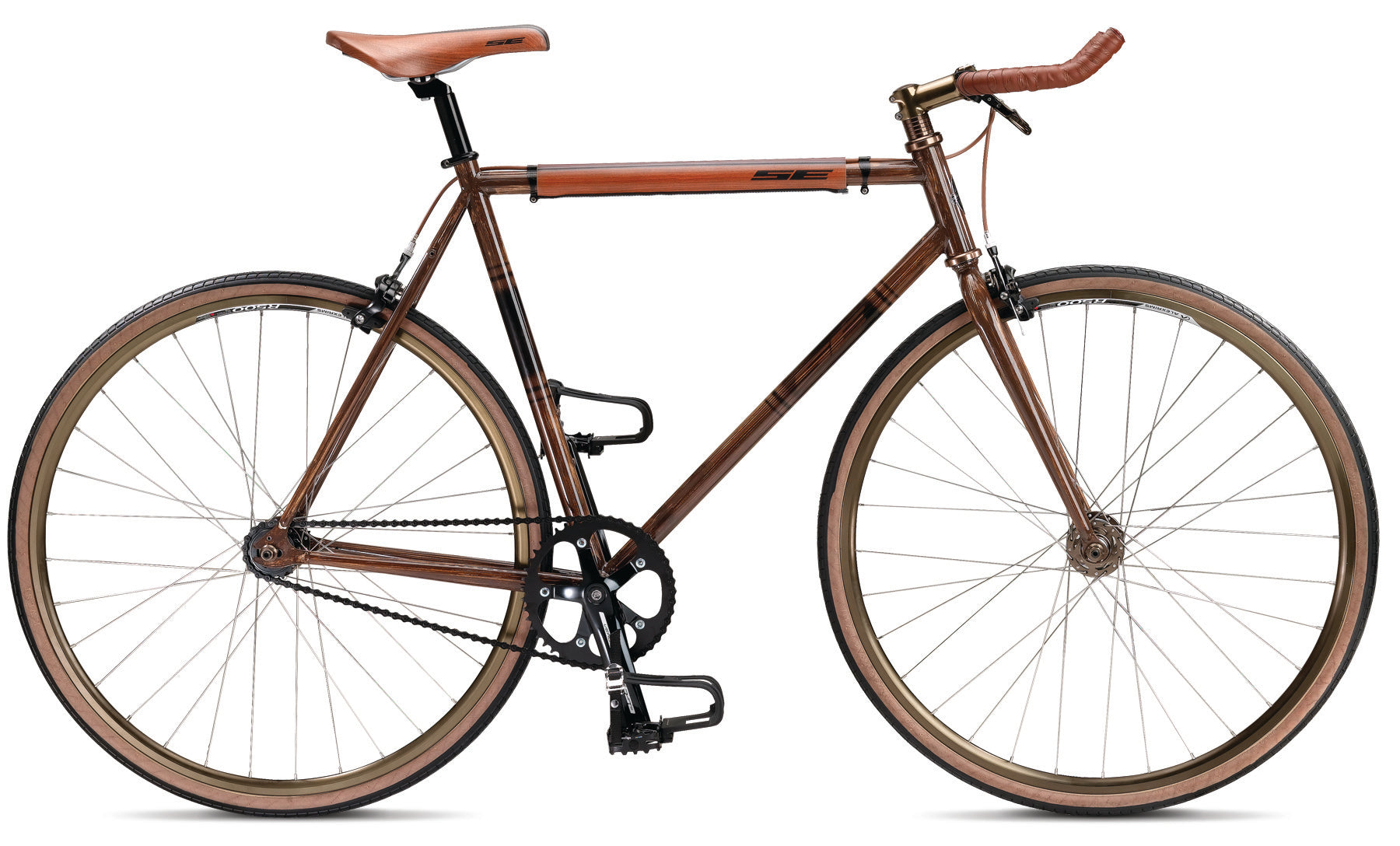

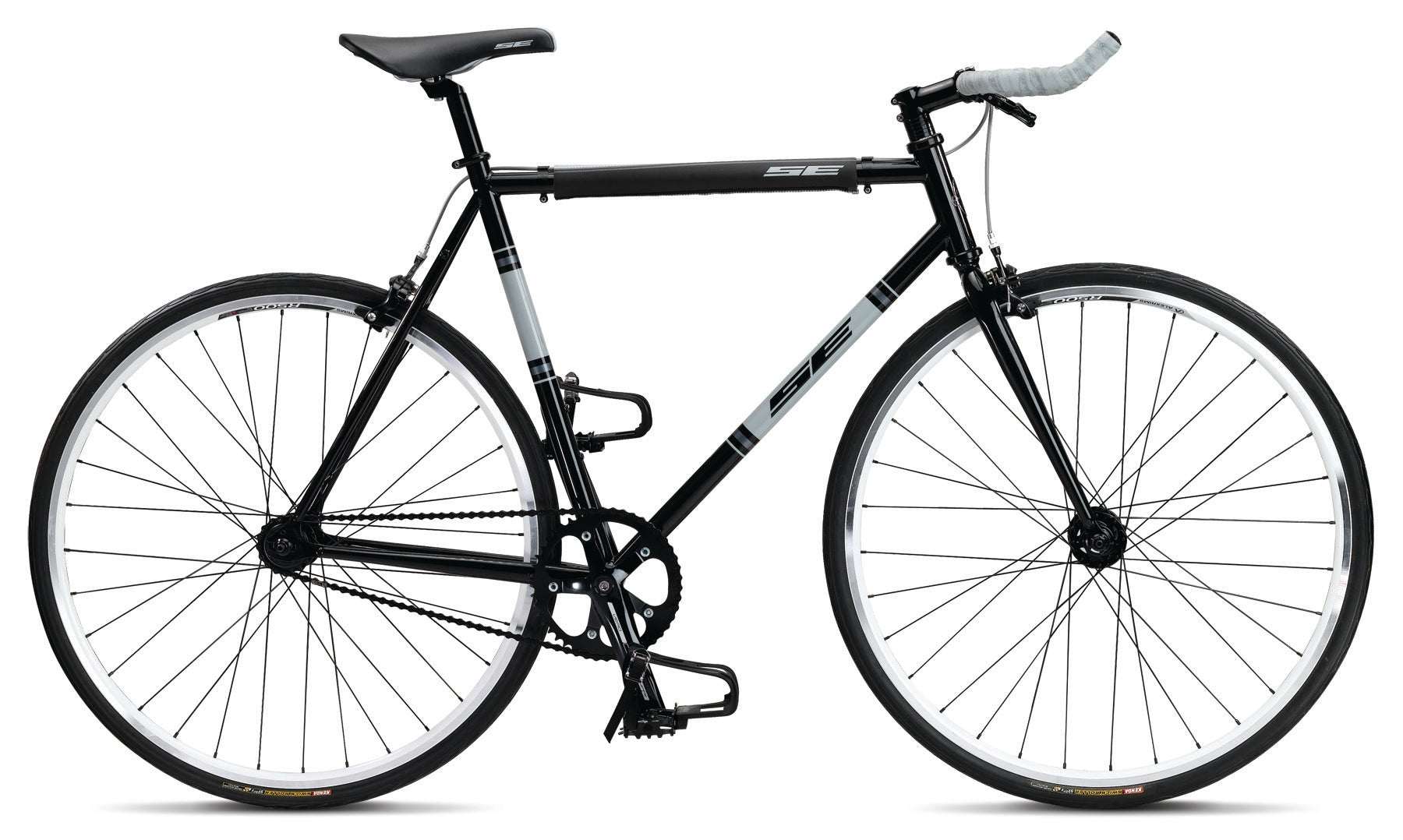

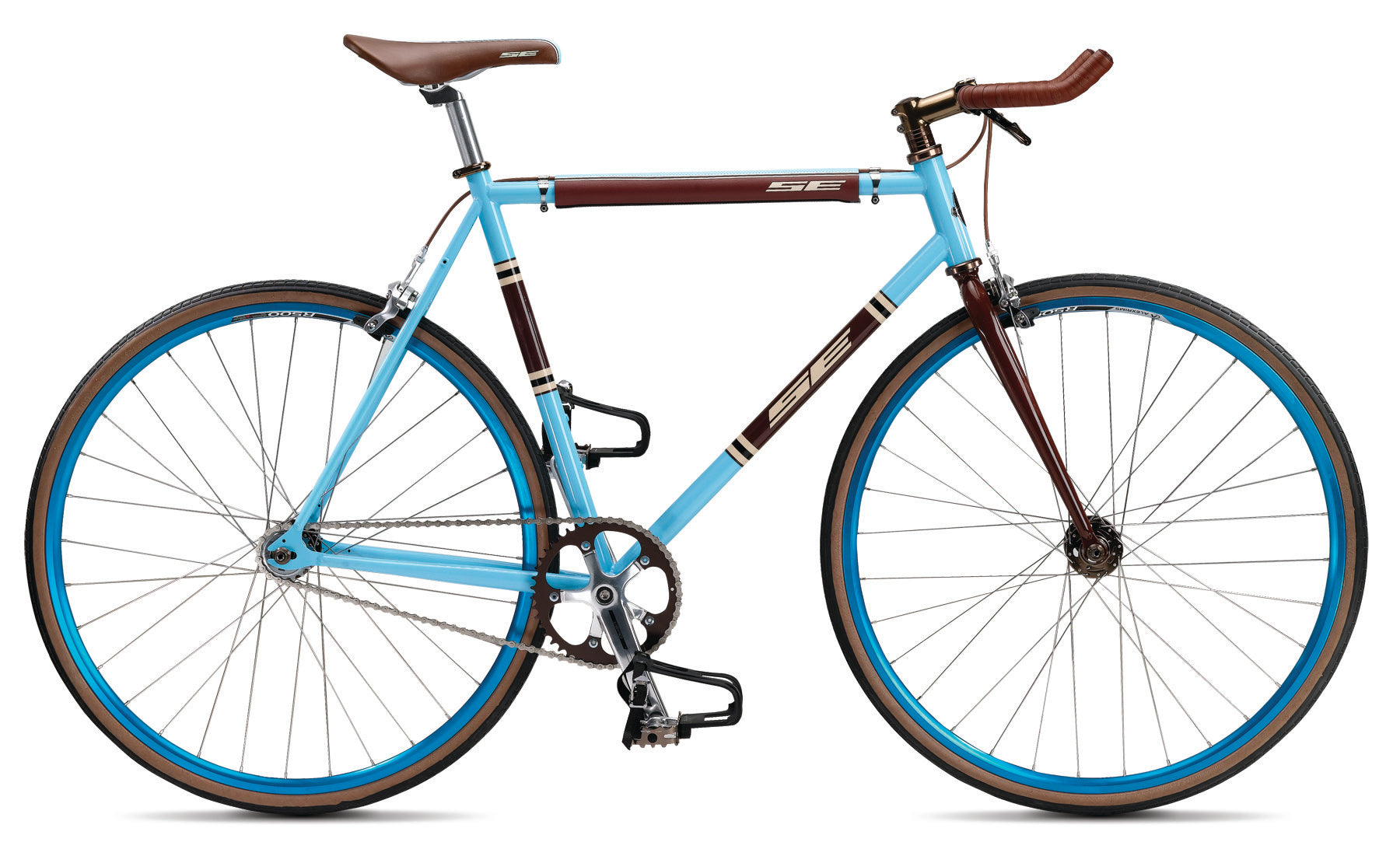

Lager 700c (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, 100% Cr-Mo, Water Bottle & Fender Mounts, All Sizes Can Barspin |
| Fork | Cr-Mo Straight Leg w/ Fender Mounts |
| Crankset | FSA Vero3-pc Alloy, Euro Sealed Bearing, 46T Alloy |
| Pedals | Wellgo Alloy w/ Cage & Toe Clips |
| Chain | KMC Z410 |
| Wheelset | Alex R500, 32H, Double Wall w/ CNC Sidewalls, Stainless Spokes; SE High Flange Alloy, 32H, 3/8" Hollow Axle, Sealed Bearing, Nutted Front Hub; SE High Flange Fixed/Free Alloy, 32H, 3/8" Hollow Axle, Sealed Bearing, Nutted, 17T Freewheel & 17T Cog Rear Hub |
| Tires | Kenda Kwick Roller Sport 700 x 28c |
| Brakeset | Tektro 316 Dual Pivot Caliper F&R |
| Brake Levers | Tektro RL -570, Alloy, F&R |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | Alloy Bullhorn, 400mm Wide |
| Stem | SE 3D Forged Alloy, 0 Degree Drop |
| Grips | SE Logo Cushion Wrap Foam |
| Seat | SE Super Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy 27.2mm |
| Accessories | Zipper T op Tube Pad, Alloy Axle Nuts, Removable SE Brake Cable Clips, SE Plastic Grip End Caps |
| Weight | 21.5 lbs (56cm) |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 540, 549, 556, 565, 569, 573, 580 |
| Top Tube, Effective | 550, 556, 557, 566, 570, 575, 582 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 409, 409, 409, 409, 409, 409, 409 |
| G | Bottom Bracket Height | 282, 282, 282, 282, 282, 282, 282 |
| Wheel Base | 991, 996, 996, 1006, 1011, 1016, 1024 | |
| Fork Rake | 35, 35, 35, 35, 35, 35, 35 | |
| Headtube | 90, 90, 95, 115, 135, 155, 185 | |
| Standover | 736, 746, 762, 782, 800, 820, 848 |
