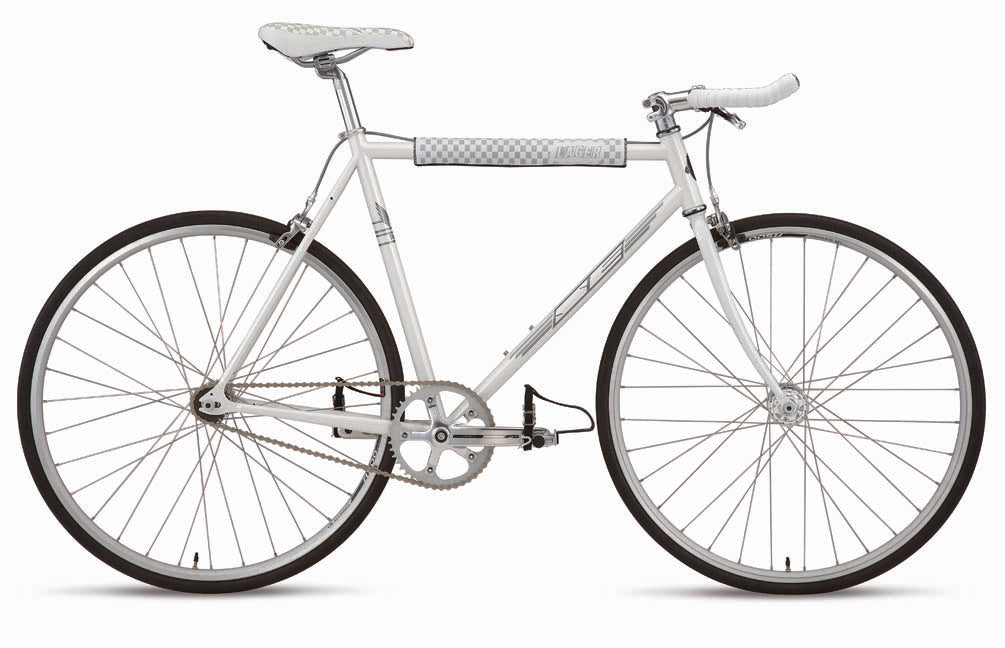

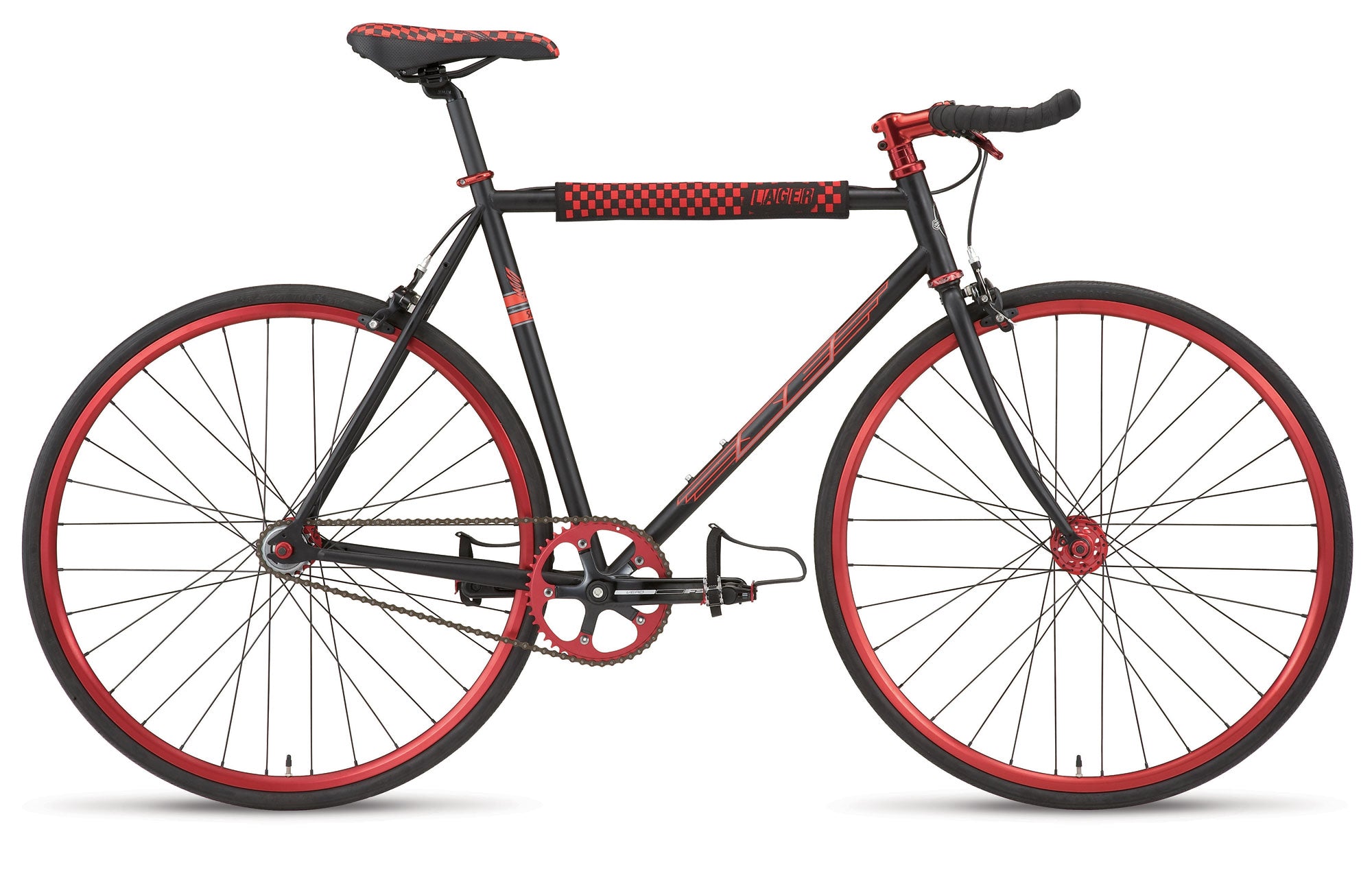

Lager 700c (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, 100% Cr-Mo, Water Bottle & Fender Mounts |
| Fork | Triple Butted 100% Cr-Mo w/ Fender Mounts |
| Crankset | FSA Vero3-pc Alloy, Euro Sealed Bearing, 46T Alloy |
| Pedals | Wellgo Alloy w/ Cage & Toe Clips |
| Chain | KMC Z410 |
| Wheelset | Alex R500, 32H, Double Wall w/ CNC Sidewalls, Stainless Spokes; SE High Flange Alloy, 32H, Hollow Axle, Sealed Bearing, Nutted Front Hub; SE High Flange Fixed Free Alloy, 32H, Hollow Axle, Sealed Bearing, Nutted, 17T Freewheel & 16T Cog Rear Hub |
| Tires | Kenda K176, 700 X 28c |
| Brakeset | Tektro 316 Dual Pivot Caliper F&R |
| Brake Levers | Tektro RL-570, Alloy, F&R |
| Headset | Tange Alloy DX4, 1-1/8" Threadless |
| Handlebar | Alloy Bullhorn, 400mm Wide |
| Stem | SE 3D Forged Alloy, 7 Degree Drop |
| Grips | SE Logo Cushion Wrap Foam |
| Seat | SE Checkerboard Super Light w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy 27.2 |
| Accessories | Checkerboard Top Tube Pad, Alloy Axle Nuts, Removable SE Brake Cable Clips |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 550, 556, 557, 566, 570, 575, 582 |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74 |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72 |
| E | Chainstay Length | 409, 409, 409, 409, 409, 409, 409 |
| G | Bottom Bracket Height | 282, 282, 282, 282, 282, 282, 282 |
| Wheel Size | 700c |
