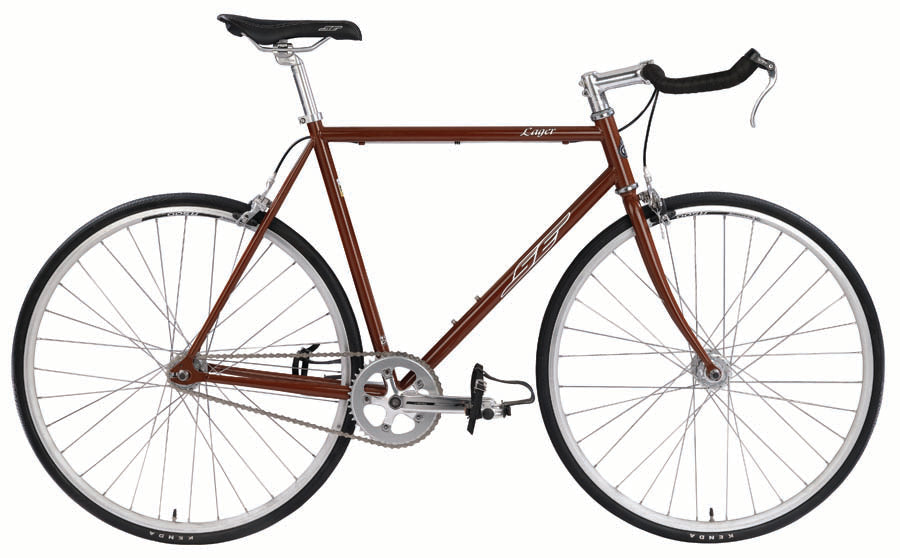

Lager 700c (2008)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo, Euro Bottom Bracket, Water Bottle Mount |
| Fork | Triple Butted 100% Cr-Mo w/ Fender Mounts |
| Crankset | FSA Vero3-pc Alloy, 170mm, Euro Sealed Bearing, 46T Alloy; |
| Pedals | Wellgo Alloy w/ Cage & Toe Clips |
| Chain | KMC Z410 Silver |
| Wheelset | Alex R500, 32H, Double Wall w/ CNC Sidewalls, w/ Stainless 14Ga. Spokes; Formula High Flange Alloy, 32H, Sealed Bearing, Nutted Front Hub; Formula High Flange Alloy, 32H, Sealed Bearing Nutted, 16T Freewheel/Fixed Flip Flop Rear Hub |
| Tires | Kenda K176, 700 X 28c |
| Brakeset | Tektro 510A Dual Pivot Caliper F&R |
| Brake Levers | Tektro RX4.1, Alloy, F&R |
| Headset | Ritchey 1-1/8" Threadless |
| Handlebar | Alloy Bullhorn |
| Stem | SE 3D Forged Alloy, 7 Degree Sweep |
| Grips | Velo Cushion Wrap Foam |
| Seat | SE Super Light w/ Custom Cover |
| Seatpost | SE Micro Adjust Alloy 27.2 |
| Seat Clamp | SE Alloy |
| Accessories | Front & Rear Fender Mounts |
| Weight | 21.5 lbs. |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 539, 545, 555, 559, 563, 570 |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 409, 409, 409, 409, 409, 409 |
| G | Bottom Bracket Height | 282, 282, 282, 282, 282, 282 |
| Wheel Size | 700c |
