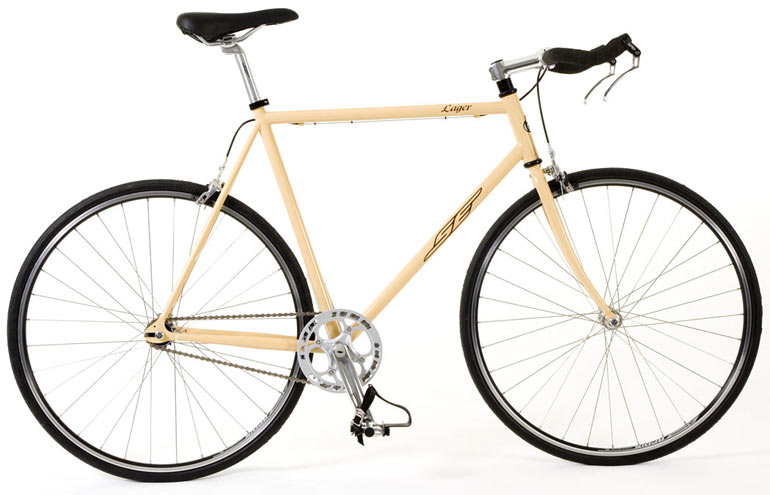

Lager 700c (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo |
| Fork | Triple Butted 100% Cr-Mo |
| Crankset | FSA Alloy 3-pc, 170mm; 42T w/Chain Cover Sprocket; Sealed Cartridge Bearings |
| Pedals | Wellgo Alloy w/ Cage & Toe Clips |
| Cassette | 16T |
| Chain | KMC Z410 |
| Wheelset | Alex PRD15 w/ CNC Sidewalls; Formula Alloy, 32H, Sealed Bearing, Nutted Front Hub; Formula Alloy, 32H, Sealed Bearing Nutted, Freewheel/Fixed Flip Flop Rear Hub; 14g Stainless Spokes |
| Tires | Kenda K176, 700 X 28c |
| Brakeset | Tektro Dual Pivot Caliper |
| Brake Levers | Tektro Alloy |
| Headset | Ritchey 1-1/8" Threadless |
| Handlebar | Alloy Bullhorn |
| Stem | Alloy |
| Grips | Velo Cushion Wrap Foam |
| Seat | SE Padded |
| Seatpost | SE Micro Adjust 27.2 |
| Seat Clamp | Alloy |
| Accessories | Front & Rear Fender Mounts |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 539, 545, 555, 559, 563, 570 |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay Length | 409, 409, 409, 409 |
| G | Bottom Bracket Height | 282, 282, 282, 282 |
| Wheel Size | 700c |
