Killer Quad 27.5"
Killer Quad 27.5"
Killer Quad 27.5"

Killer Quad 27.5"

$1,199.99
Description

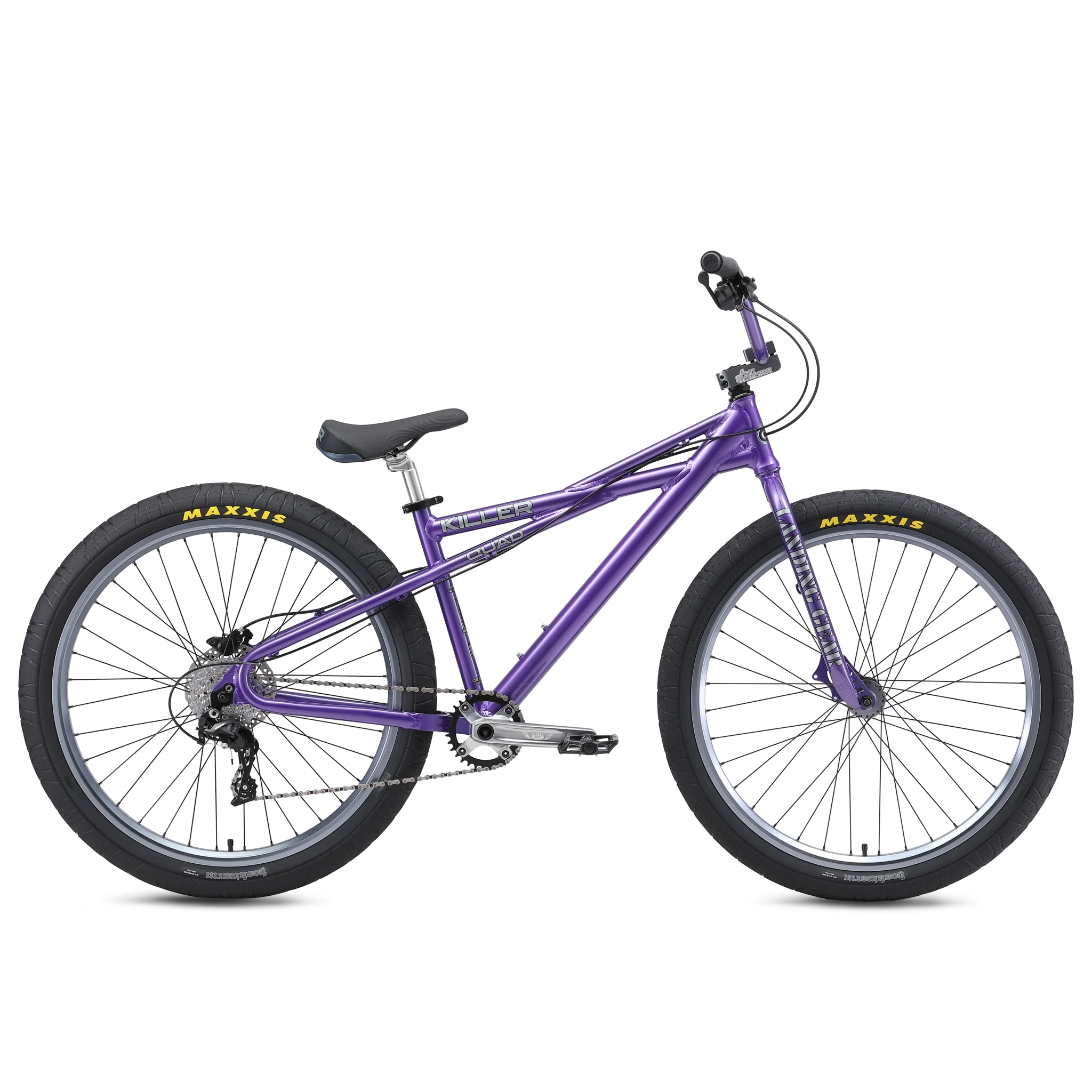

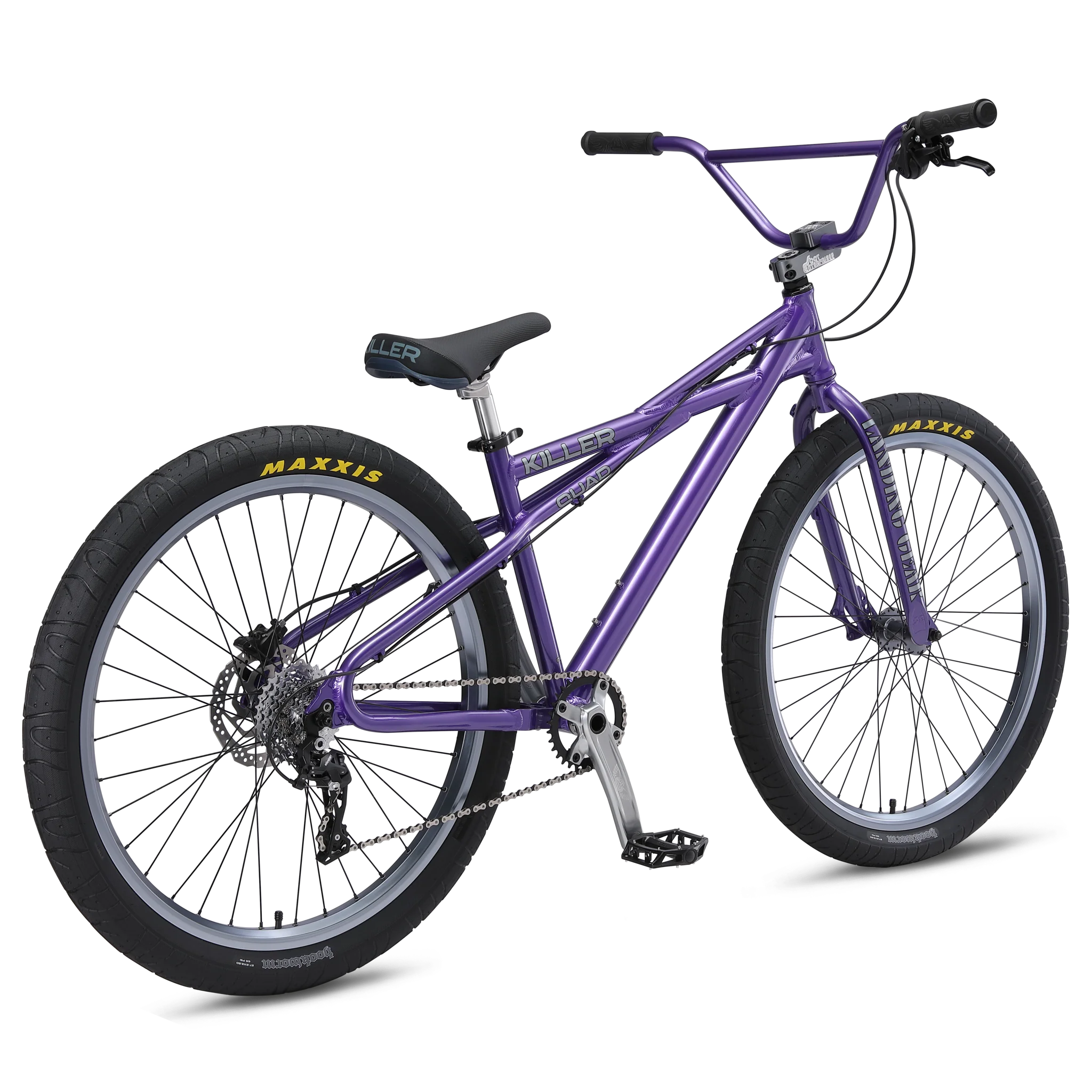

The 27.5" Killer Quad is back, and it's a testament to a legendary SE Quadangle frame design. The Killer Quad is equipped with a smooth Microshift 1x10 drivetrain, giving you a wide range of gears for every session. The Shimano MT200 hydraulic disc brakes provide all the stopping power you need. New for this year, the double-wall rims and sealed bearing hubs roll on 27.5" x 2.5" Maxxis Hookworm tires for a secure grip and smooth roll. The flangeless Mushroom Wing grips will keep your hands comfortable, and the new SE Captive seat provides a secure and comfortable feel. The bike is finished off with a quick-release seat clamp for easy adjustments, and water bottle mounts were also added to the frame this year.
ColorPurple Majesty
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • 6061 Aluminum Killer Quad frame with oversized downtube, integrated headset, water bottle mounts, and looptail rear end 
  • Full Cr-Mo Landing Gear forks 
  • SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring 
  • FSA Orbit CE integrated sealed bearing headset 

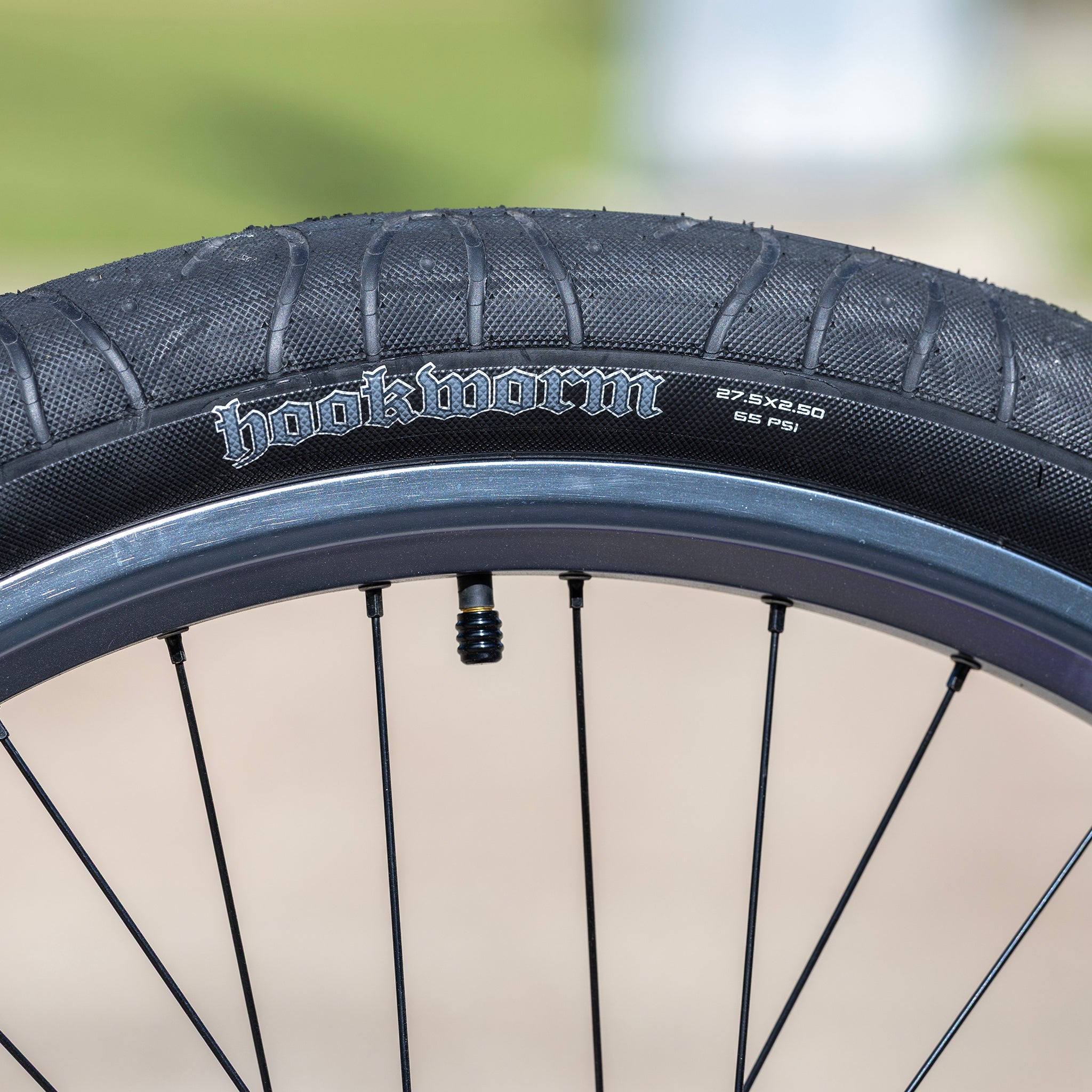

  • Maxxis Hookworm 27.5" x 2.5" tires 
  • MicroShift XLE RD-M61S 1x10 short-cage derailleur 
  • Sealed-bearing rear alloy hub with double-wall rims and MicroShift 11-32T 10-speed cassette 
  • Shimano MT200 hydraulic disc brake, dual piston, 160mm rotor
  • NEW SE Captive Seat with concave design for ultimate hold and comfort
SPECIFICATIONS
Frame 6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, Water Bottle Mounts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger
Fork Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts

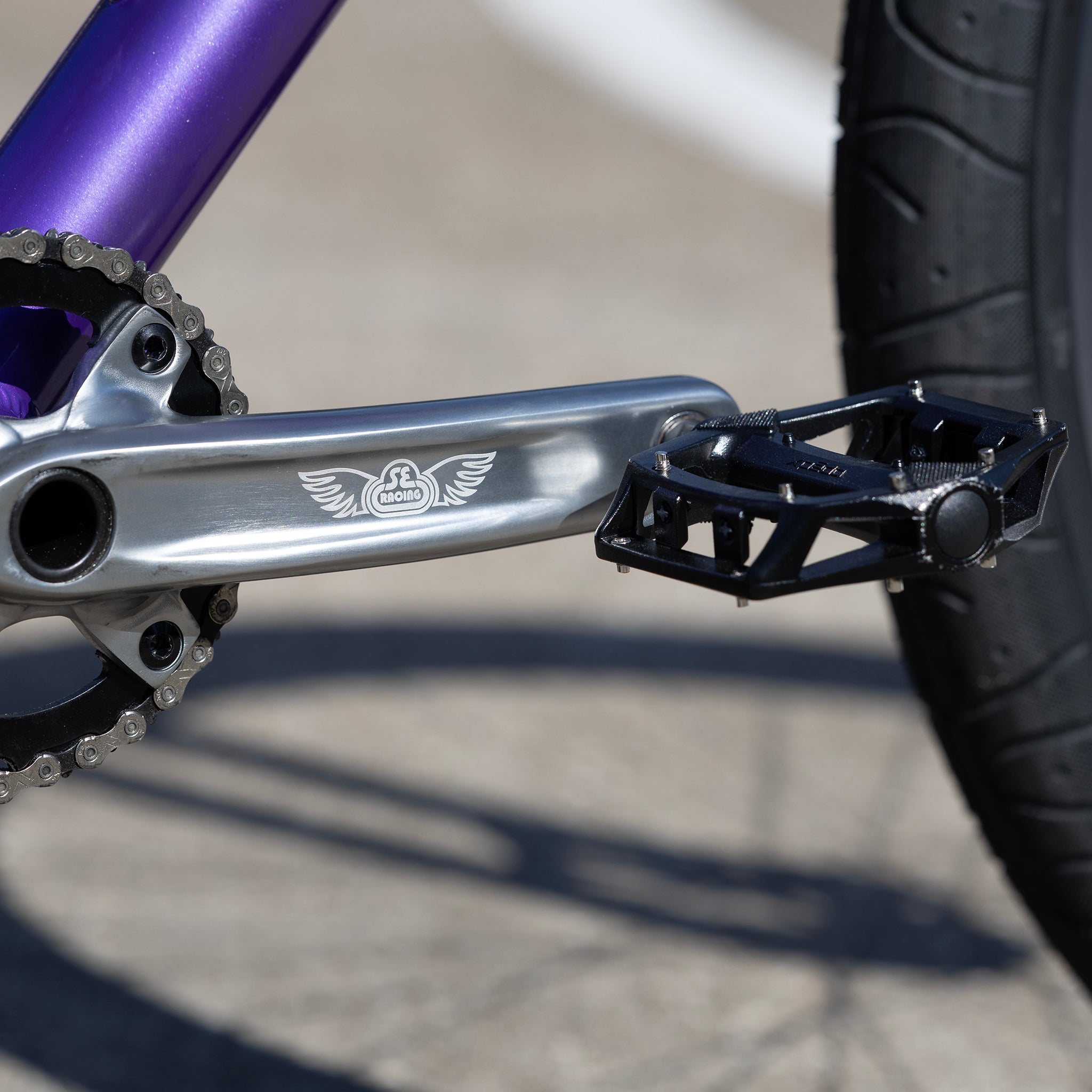

Crankset SE Racing 170mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, 32T Narrow/Wide Alloy Chainring, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Shifters MicroShift XLE Xpress SL-M850-R, 1x10, Sealed Bearing, Alloy Lever
Cassette MicroShift XLE CS-H100, 10-speed, 11-32T
Chain KMC X10
Wheelset Sealed Bearing Alloy 36H Nutted Hubs, 135mm Rear Hub, 110mm Front Hub, Double-wall Rims w/ Eyelets, 11-32T 10-speed Cassette, Stainless Spokes
Tires Maxxis Hookworm, 60TPI, 27.5" x 2.5" Front & Rear

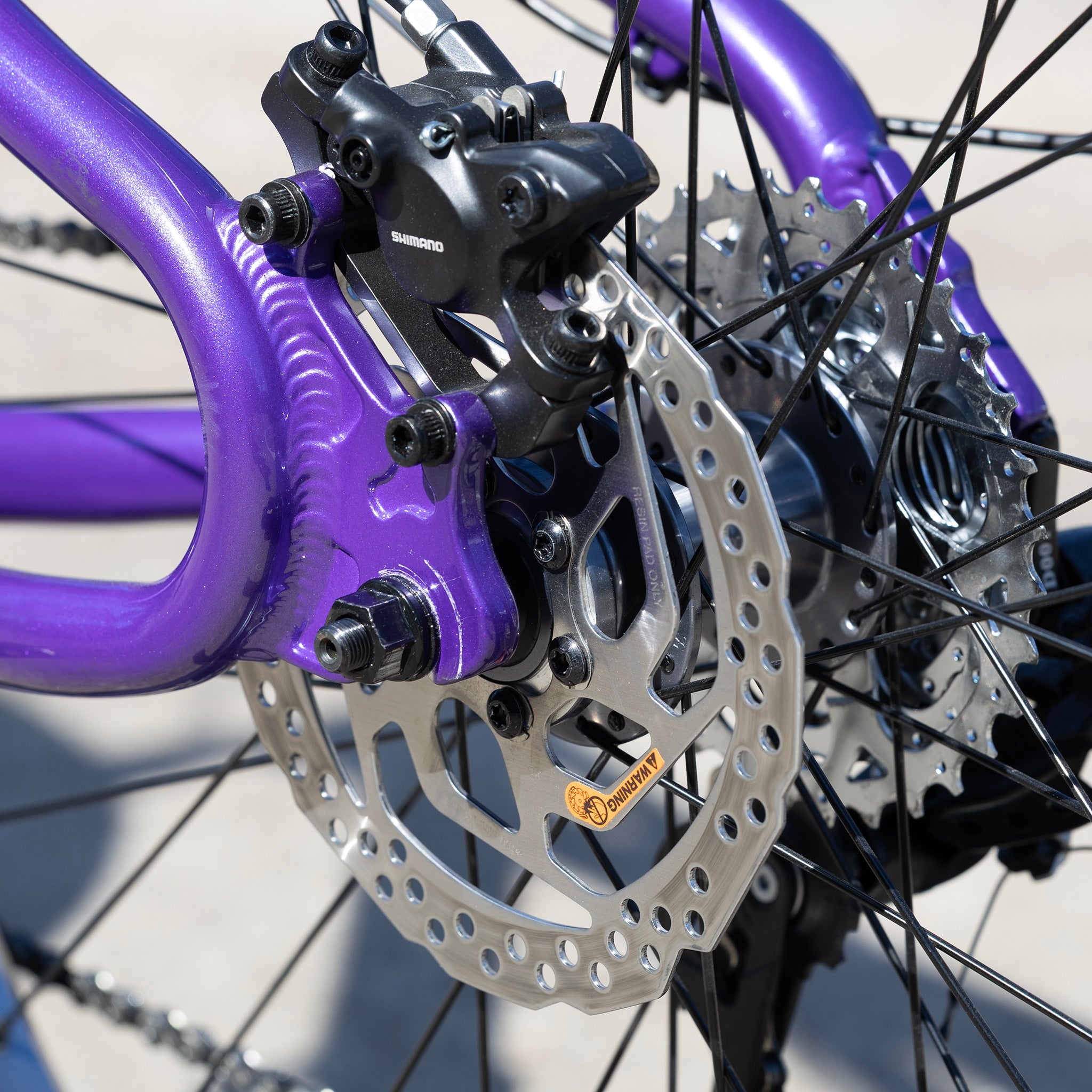

Brakeset Shimano MT200, Hydraulic Disc, Dual Piston, One Way Bleeding, 160mm Rotor, Rear Only
Headset FSA Sealed Bearing, Integrated, Orbit CE, 1-1/8"
Handlebar Big Honkin' Cr-Mo Cruiser Bar, 31" x 7", 12° Backsweep, 2° Upsweep
Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach

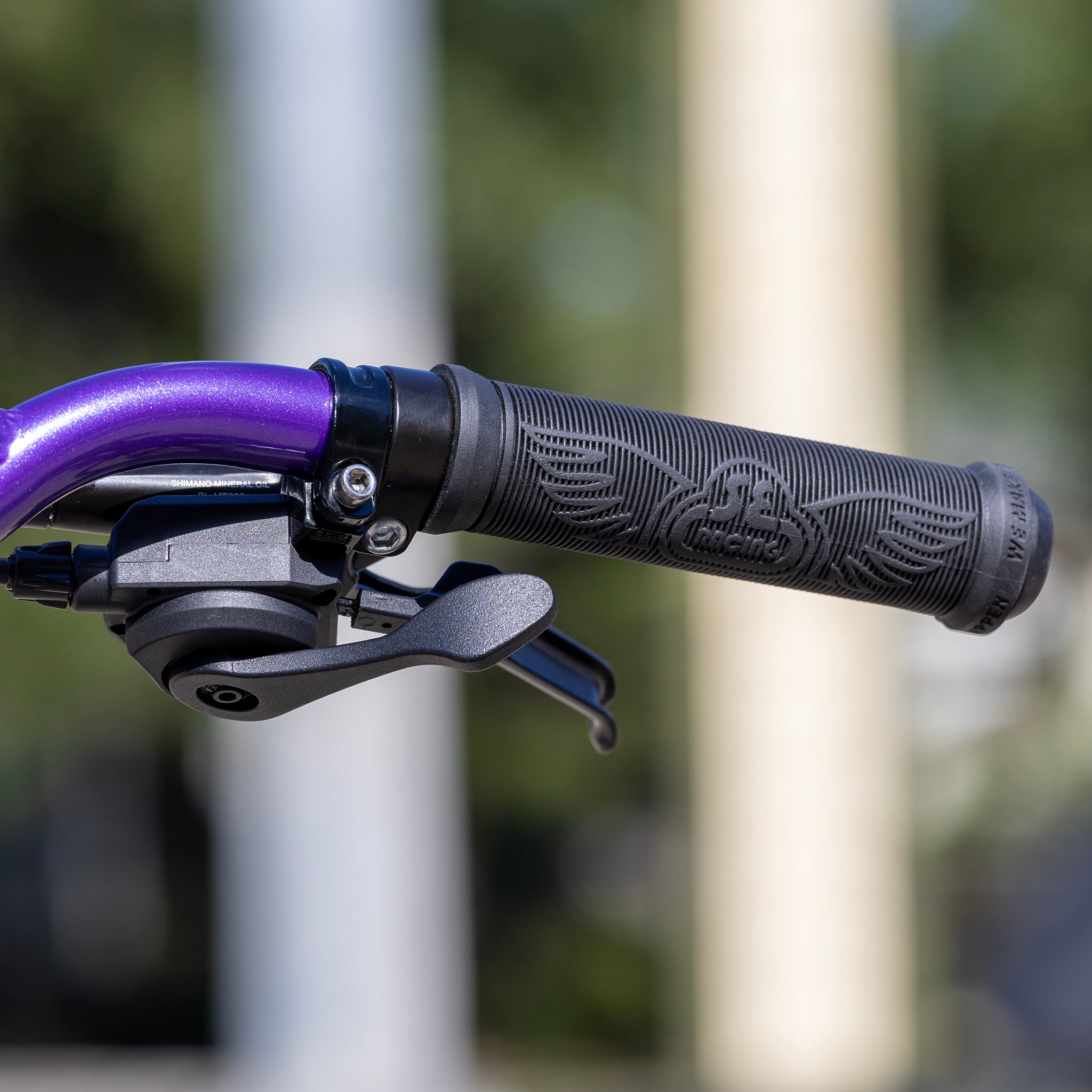

Grips SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs

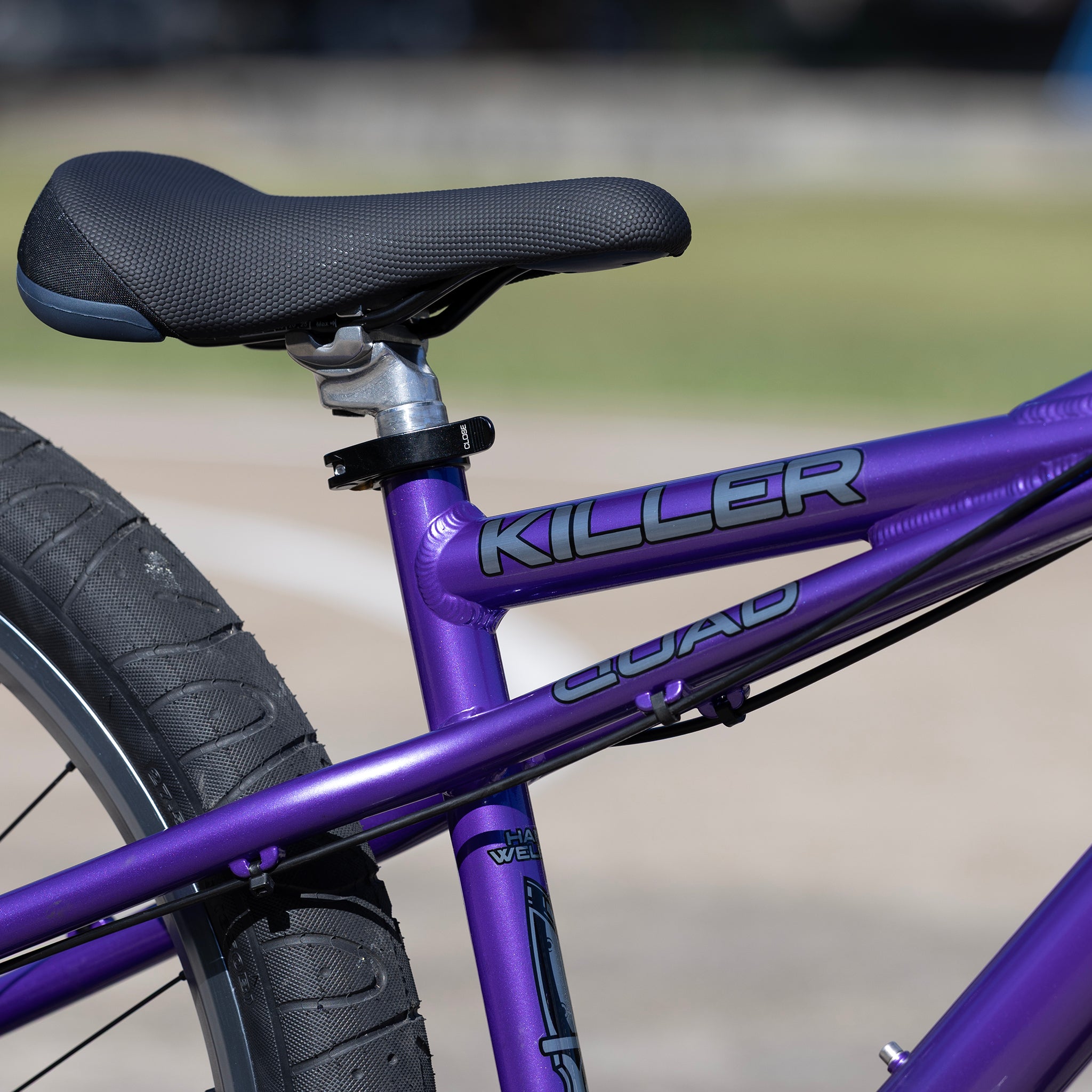

Seat New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost Micro-Adjust Alloy, 27.2mm
Accessories Alloy Valve Caps, Water Bottle Mounts, Removable Derailleur Hanger

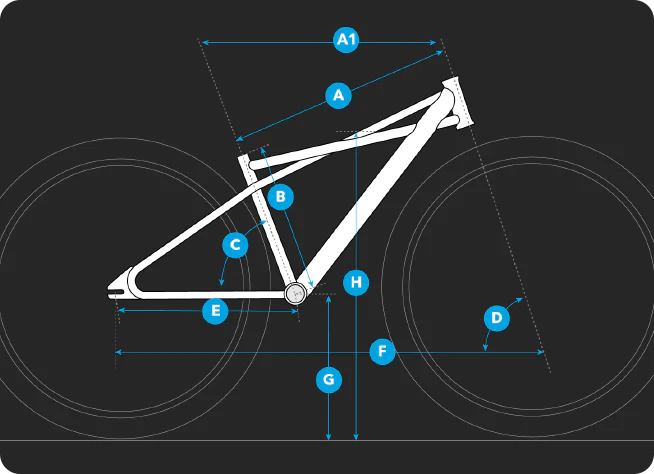

GEOMETRY
A Top Tube, Actual 22.8"
B Seat Tube, Center To Top 15.7"
C Seat Tube Angle 73°
D Head Tube Angle 71°
E Chainstay Length 17.4"
F Wheelbase 42.3"
G Bottom Bracket Height 11.9"
H Standover 28.2"
Stem 55mm
Handlebar Width 31"
Crank 170mm
Wheel Size 27.5"
Seat Post Diameter 27.2mm
Geometry diagram
