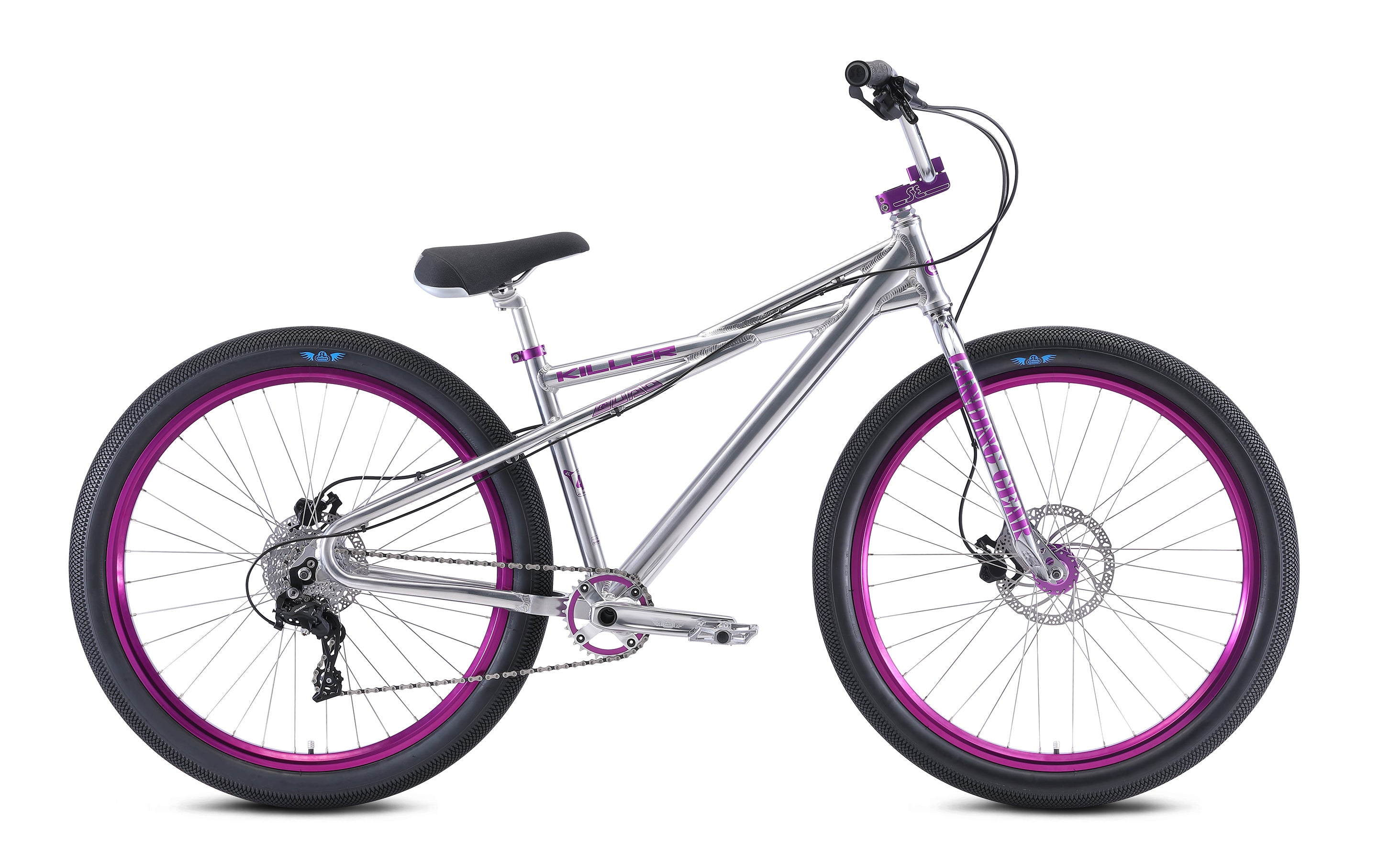

Killer Quad 27.5" (2022)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger |
| Fork | Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 32T Alloy Chainring |
| Pedals | Wellgo Low-profile Platform |
| Rear Derailleur | MicroShift XLE RD-M61S, 1x10, Short Cage |
| Shifters | MicroShift XLE Xpress SL -M850-R, 1x10, Sealed Bearing, Alloy Lever |
| Cassette | MicroShift XLE CS-H100, 10-speed, 11-32T |
| Chain | KMC S1 |
| Wheelset | Alloy 36H Nutted Hubs, 135mm Sealed Rear Hub, 110mm Front Hub, Double-wall Rims, 11-32T 10-speed Cassette, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Speedster, 72TPI, 27.5" x 2.5" Front & Rear |
| Brakeset | Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
| Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
| Headset | FSA Integrated Orbit CE, Sealed 1-1/8" |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 31" x 7", 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat | SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter |
| Accessories | Alloy Valve Caps, Removable Derailleur Hanger |
| Wheel Size | 27.5" |
| Weight | 33.9 lbs / 15.39 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.8" |
| Seat Tube, Center To Top | 15.7" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 71° |
| E | Chainstay | 17.4" |
| Wheelbase | 42.3" | |
| G | Bottom Bracket Height | 11.9" |
| Standover | 28.2" | |
| Stem | 55mm | |
| Handlebar Width | 31" | |
| Crank | 175mm | |
| Wheel Size | 27.5"" | |
| Seat Post Diameter | 27.2mm |
