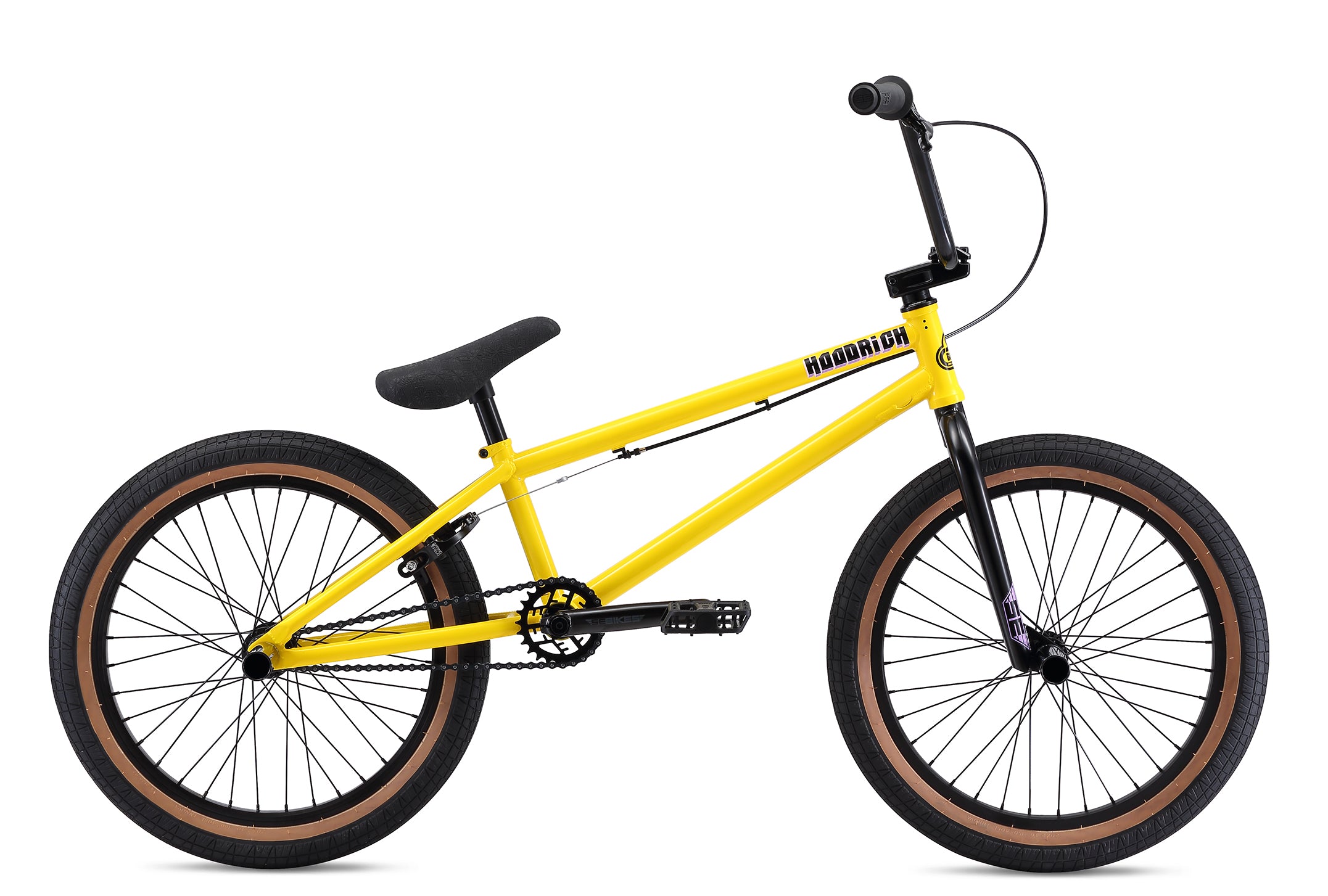

Hoodrich (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Integrated Head Tube, Integrated Seat Clamp, 73mm Mid BB, Removable Cable Guides & Brake Mounts |
| Fork | T apered Legs, 3/8" Dropouts w/ 32mm Offset |
| Crankset | 3-pc Cr-Mo, 170mm, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 25T SE Sprocket |
| Pedals | SE Nylon Fiber |
| Chain | KMC S1 |
| Wheelset | SE Alloy 36H 3/8" Front & 14mm Semi-Sealed Rear Hubs w/ Alex Y303 Front Rim and Alex DM24 Double-wall Rear Rim, 9T Driver |
| Tires | Innova Mimosa, 20" x 2.4" Front & Rear |
| Brakeset | Odyssey Springfield, Odyssey Quick Slic Cable, Clearance For Wide Tires |
| Brake Levers | Odyssey Springfield, 2-Finger Hinged Alloy |
| Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
| Handlebar | SE Powerwing Bar, 28.5" x 8.25" , 10° Backsweep, 1° Upsweep |
| Stem | SE Top-Load Alloy, Lightweight External Cutouts, Hidden Top Cap, 50mm Reach |
| Grips | SE DSP Grips w/ Rubber SE End Plugs |
| Seat | Lightweight SE Seat/Post Combo w/ Padding |
| Seatpost | Integrated Alloy, 25.4mm |
| Seat Clamp | Integrated |
| Accessories | 2 Pegs |
| Wheel Size | 20" |
| Weight | 25 lbs / 11.34 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20.5 |
| Seat Tube, Center To Top | 8.7" | |
| C | Seat Tube Angle | the 70° |
| D | Head Tube Angle | 74.5° |
| E | Chainstay Length | 13.7" |
| Wheelbase | 36.3" | |
| G | Bottom Bracket Height | 11.9"" |
| Standover | 22.7" | |
| Stem | 50mm | |
| Handlebar Width | 28.5" | |
| Crank | 170mm | |
| Wheel Size | 20" | |
| Seatpost Diameter | 25.4mm |
