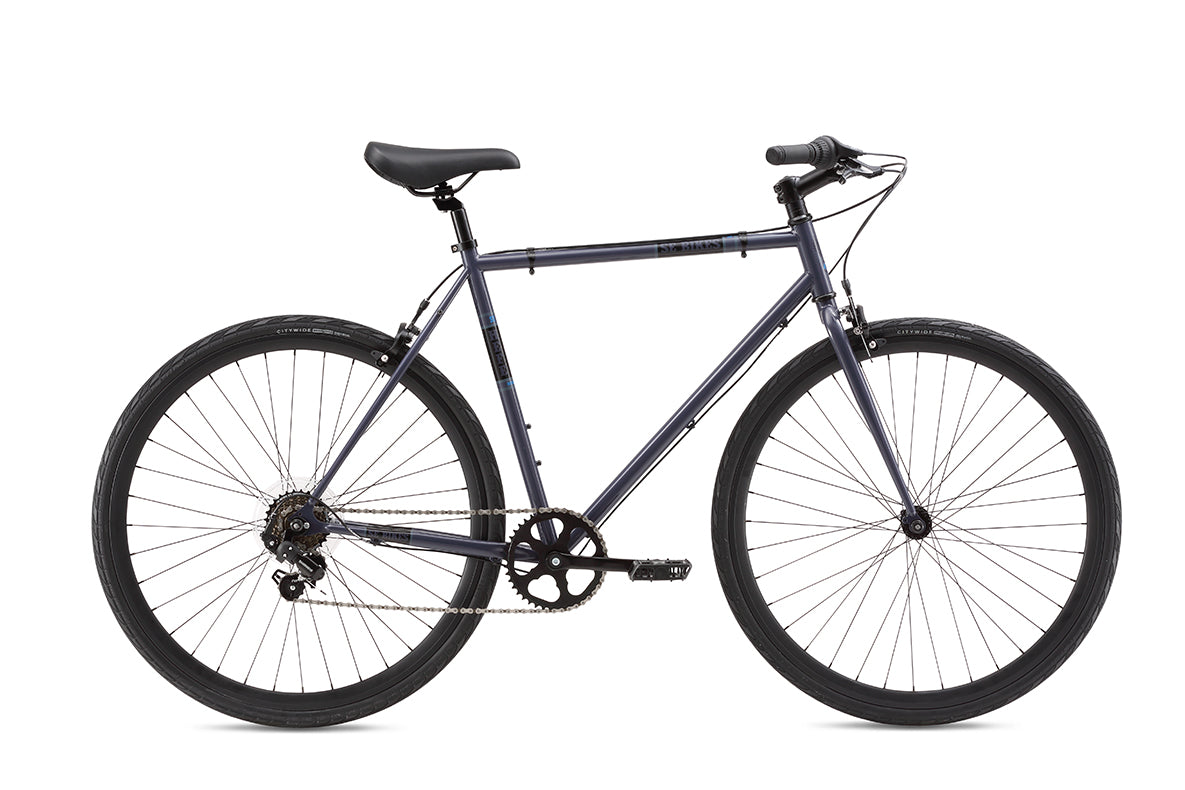

Hefe 700c (2016)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Design, Butted Top Tube and Down Tube, Water Bottle & Fender Mounts, Wide Tire Clearance |
| Fork | SE Straight Leg Hi-Ten w/ Fender Mounts & Wide Tire Clearance |
| Crankset | Steel, 42T, Square Taper Sealed BB |
| Pedals | SE Resin Platform |
| Rear Derailleur | Shimano Tourney |
| Shifters | Shimano Revo Shift, 7-Speed |
| Chain | KMC, 7-Speed |
| Wheelset | SE 36H Hubs, Alex V-1000 Rims, Shimano 14-28T, 7-Speed Freewheel |
| Tires | Kenda Kwest 700 x 32c |
| Brakeset | Alloy Caliper F & R |
| Brake Levers | 2-Finger Alloy F & R |
| Headset | 1-1/8" Threadless |
| Handlebar | SE 24" x 1" Sweep-Back Bar |
| Stem | Alloy, 10° Rise, 25.4mm Clamp |
| Grips | Kraton |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy, 27.2mm |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 29.80lbs / 13.52kgs (55cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 49cm, 52cm, 55cm, 58cm | |
| Top Tube, Effective | 553, 562, 573, 580 | |
| Head Tube Length | 90, 95, 125, 155 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay Length | 430, 430, 430, 430 |
| Wheelbase | 1017, 1026, 1038, 1046 | |
| G | Bottom Bracket Height | 290, 290, 290, 290 |
| Seat Post Diameter | 27.2, 27.2, 27.2, 27.2 | |
| Standover | 777, 794, 822, 850 | |
| Stem | 75, 75, 90, 90 | |
| Handlebar Width | 610, 610, 610, 610 | |
| Crank | 165, 165, 170, 170 |
