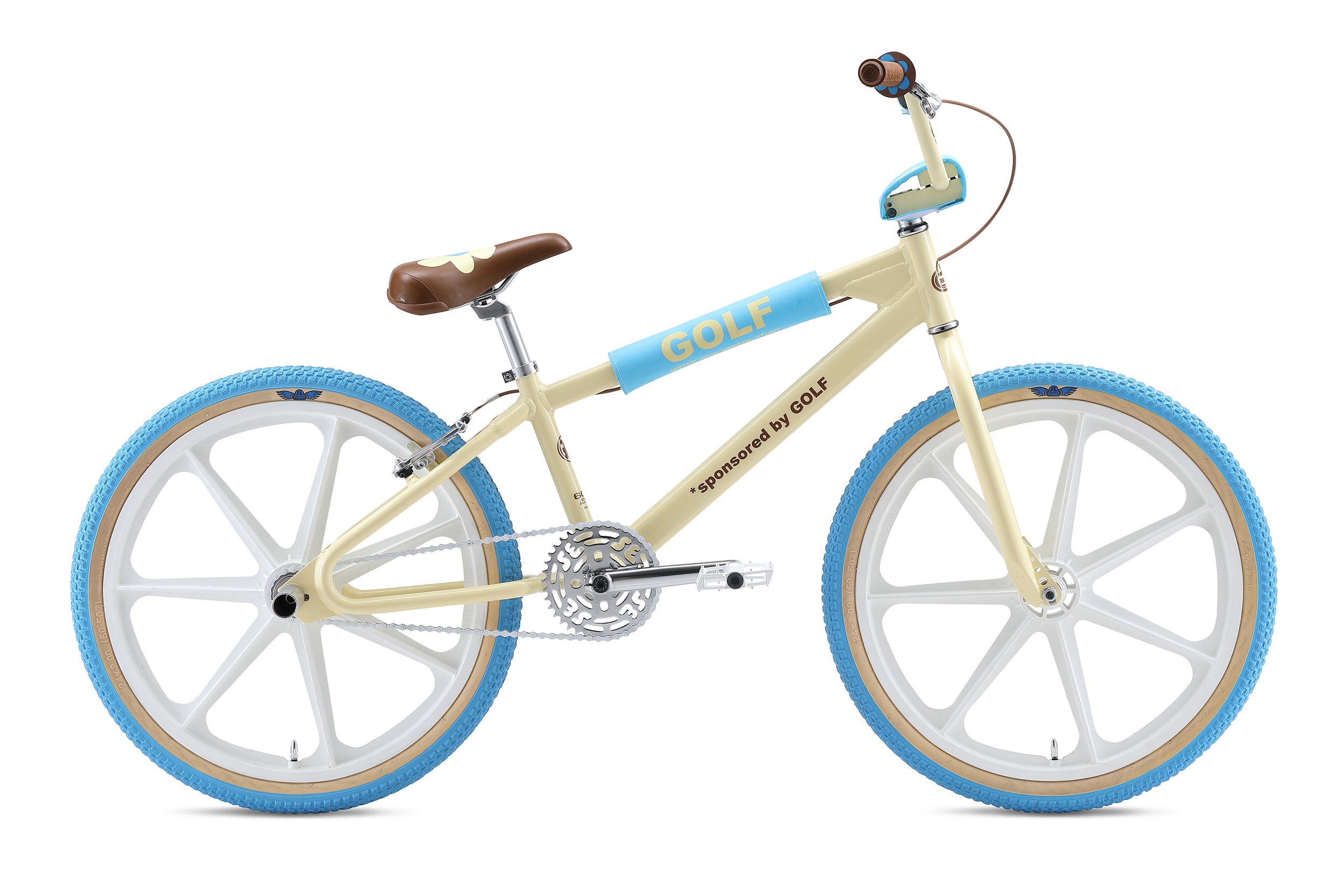

Golf Flyer 24" (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6066 Aluminum Floval Tubing, Looptail Rear End, Seatstays Wrap, Retro Diamond Shape Dropouts, Limited Edition & Individually Numbered on the Inside of the Rear Dropout |
| Fork | Landing Gear |
| Crankset | SE 3-pc Cr-Mo, 180mm, Euro-Sealed Bearing Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 39T SE Sprocket |
| Pedals | FPD Alloy Platform, Cr-Mo Axle |
| Chain | KMC S1 |
| Wheelset | Skyway Tuff II Tuffwheels, Precision Sealed Bearing Hubs, Made in USA, 17T Freewheel |
| Tires | Vee Tire Co x SE Racing Cub, 24" x 2.0" Front & Rear |
| Brakeset | Promax V-Brake |
| Brake Levers | Promax 2-Finger Alloy |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | Power Wing Cruiser Bar, 28.5" x 6.5" , 10° Backsweep, 1° Upsweep |
| Stem | Retro Alloy Top-Load, 55mm Reach |
| Grips | SE Bikes Life Grips w/ SE Rubber End Plugs & Golf le Fleur Donuts |
| Seat | Golf le Fleur Flyer Seat |
| Seatpost | Race Rocker Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | Water Your Garden Padset, Alloy Valve Caps, SE Wheelie Pegs |
| Wheel Size | 24" |
| Weight | 31 lbs / 14.06 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22"" |
| Seat Tube, Center To Top | 12" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 16.4" |
| Wheelbase | 40.1" | |
| G | Bottom Bracket Height | 12" |
| Standover | 25.9" | |
| Stem | 55mm | |
| Handlebar Width | 28" | |
| Crank | 180mm | |
| Wheel Size | 24" | |
| Seatpost Diameter | 27.2mm |
