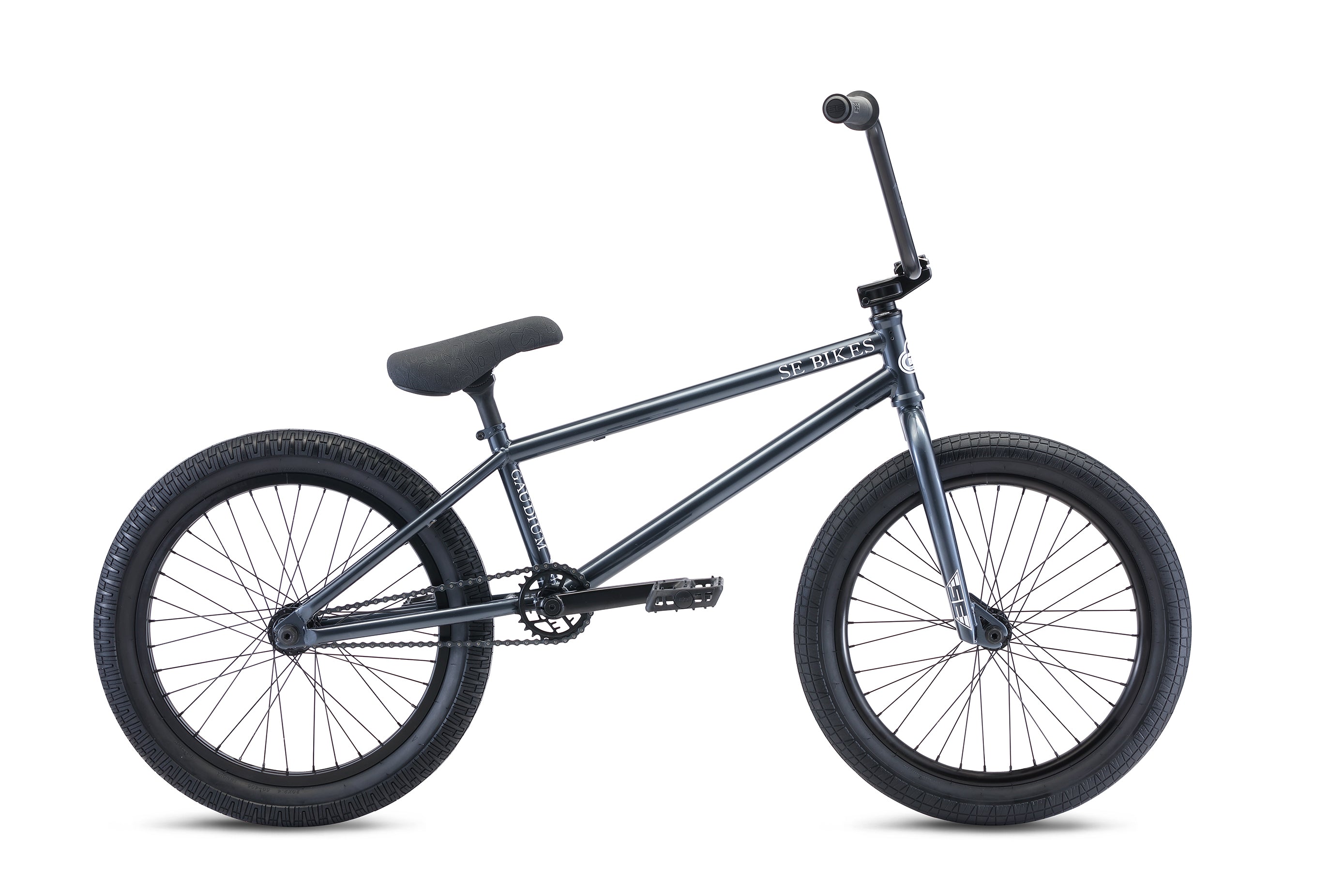

Gaudium (2020)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Kris Fox Signature Model, 100% Cr-Mo, Double-Butted Main Frame, Integrated Seat Clamp, Integrated Head Tube, Externally Machined 73mm Mid BB, Removable Cable Guides & Brake Mounts |
| Fork | Full Cr-Mo, Tapered Legs, 3/8" Dropouts w/ 32mm Offset |
| Crankset | 3-pc Cr-Mo, 175mm, SE V-Ridge Cranks, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Sprocket |
| Pedals | Odyssey Twisted Plastic Composite |
| Chain | KMC S1 |
| Wheelset | SE Alloy 36H 3/8" Sealed Female Front & 14mm 4-Sealed Bearing Female Rear Hubs w/ Alienation Deviant Front & Alienation 440 Rear Double-wall Rims, 9T Driver |
| Tires | Innova Mimosa 20" x 2.4" Front, Innova Big Slick 20" x 2.4" Rear |
| Brakeset | Odyssey Springfield, Odyssey Quick Slic Cable, Clearance For Wide Tires |
| Brake Levers | Odyssey Springfield, 2-Finger Hinged Alloy |
| Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
| Handlebar | Cr-Mo SE Powerwing Bar, 30" x 9" , 10° Backsweep, 1° Upsweep |
| Stem | SE Top-Load Alloy, Lightweight External Cutouts, Hidden Top Cap, 50mm Reach |
| Grips | SE DSP Grips w/ Rubber SE End Plugs |
| Seat | SE Pivotal Seat w/ Padding |
| Seatpost | Pivotal Lightweight Nylon & Fiberglass, 25.4mm |
| Seat Clamp | Integrated |
| Weight | 24.9 lbs / 11.29 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21" |
| Seat Tube, Center To Top | 9.5" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 75° |
| E | Chainstay Length | 13.7" |
| Wheelbase | 36.2" | |
| G | Bottom Bracket Height | 11.5" |
| Standover | 22.7" | |
| Stem | 50mm | |
| Handlebar Width | 28.5" | |
| Crank | 175mm | |
| Wheel Size | 20" | |
| Seat Post Diameter | 25.4 |
