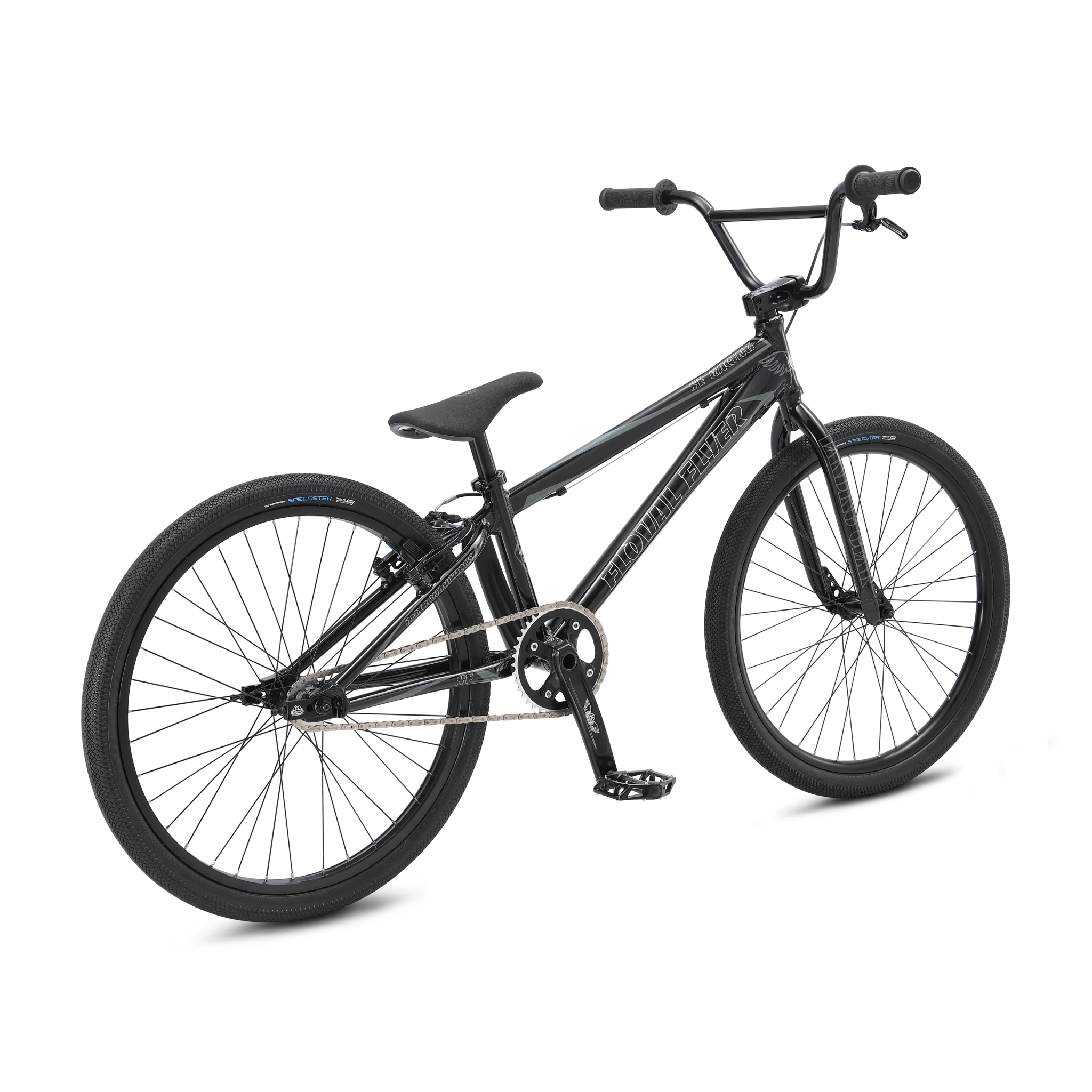

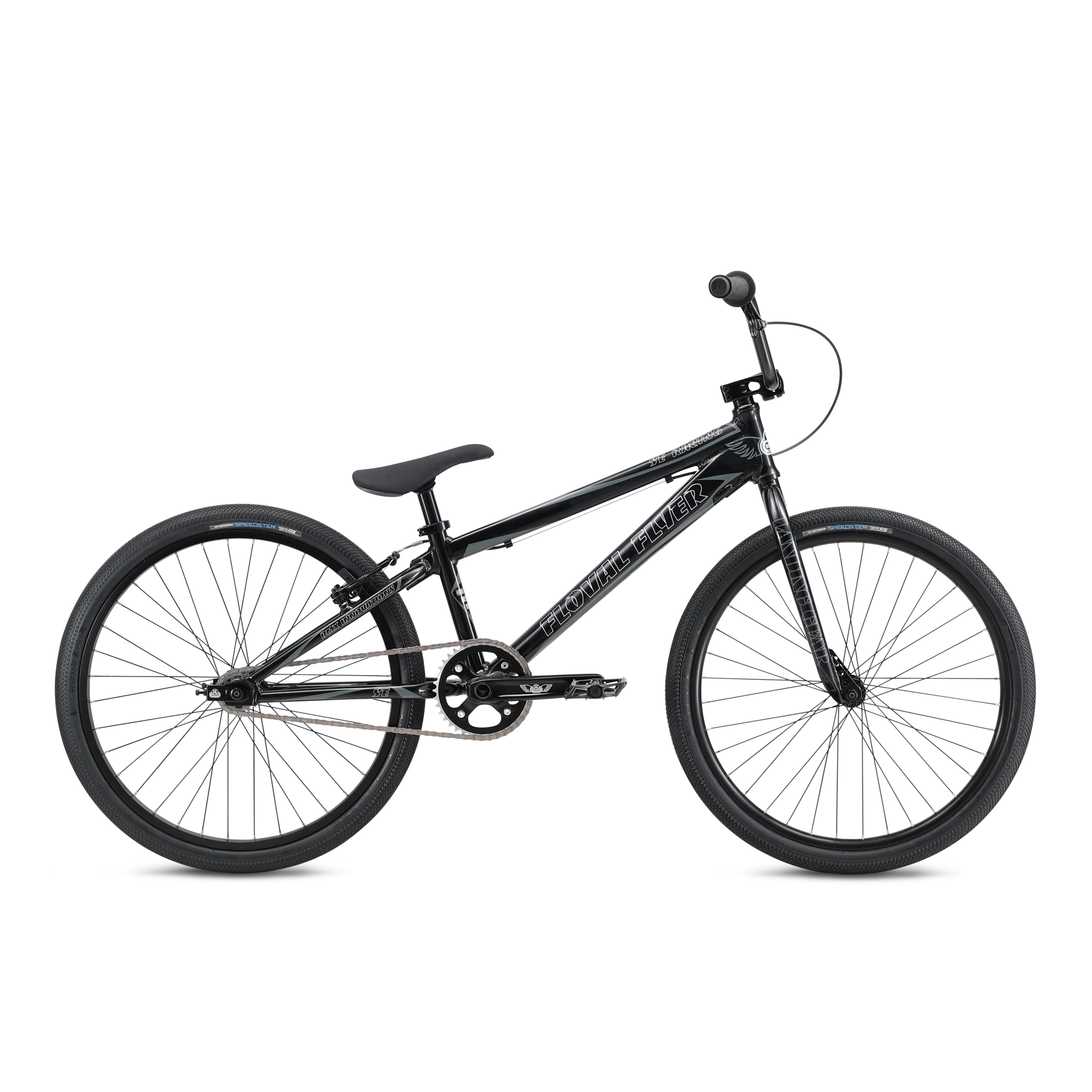

Floval Flyer 24"
Floval Flyer 24"
Floval Flyer 24"

Floval Flyer 24"

$929.99
Description

Year in and year out, the Floval Flyer is one of the fastest 24" cruisers on the track. This years bike is built with a lightweight 6066 aluminum frame featuring a super-stiff bi-oval downtube, internally machined integrated head tube, and 3D-forged dropouts. And the parts lineup is full of top-notch, name-brand parts: Alienation rims, Promax brakes and levers, Promax Impact stem, Vee Speed Booster tires, and an ultra-lightweight Pivotal seat and seatpost. All of this at a featherweight 23.5 pounds!
ColorFast Black
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube and tapered rear stays for maximum stiffness
  • Lightweight Cr-Mo Landing Gear forks with tapered legs
  • Promax Banger 6061-T6 Alloy CNC stem with hidden top cap for a clean look
  • Lightweight 2-piece alloy crankset equipped with 24mm hollow spindle and sealed external bottom bracket
  • SE Pivotal seat and seatpost
  • Alienation Deviant and Black Sheep rims built with sealed cassette hubs with lightweight hollow axles
  • Vee Tire Co MK3 tires for ultra-quick cornering and low rolling resistance
  • 23.5 pounds
SPECIFICATIONS
Frame Lightweight 6066 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Bi-Oval Down Tube, 68mm Wide BB, Tapered Rear Stays, 3D-Forged Dropouts
Fork Landing Gear 2, Full Cr-Mo, Tapered Legs
Crankset SE Racing 180mm Forged Alloy 2-pc Cranks, Outboard Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring,
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Chain KMC Z1
Wheelset Sealed Bearing Hollow Axle Alloy Hubs w/ Alienation Deviant Front & Alienation Black Sheep Rear, 36H Double-Wall Rims, 17T Cassette, Stainless Spokes
Tires Vee Tire Co MK3, 24" x 1.75" Front & Rear
Brakeset Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable
Headset Neco Sealed 1-1/8" Integrated
Handlebar Cr-Mo SE Racing Floval Bar, 28.5" x 6.5", 10° Backsweep, 1° Upsweep
Stem Promax Banger, Front Load, 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 53mm Reach
Grips SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs
Seat SE Racing Pivotal Race Seat
Seatpost Pivotal Alloy, 27.2mm, Promax Quick Release Seat Clamp
Accessories SE Chain Tensioners, Promax Quick Release Seat Clamp

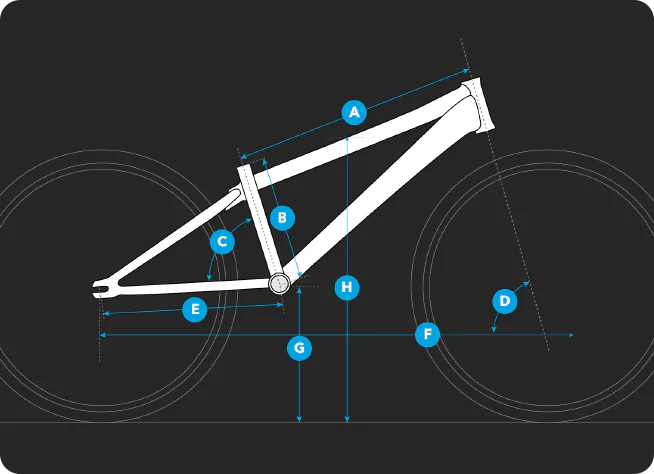

GEOMETRY
A Top Tube, Actual 21.2"
B Seat Tube, Center To Top 10.8"
C Seat Tube Angle 73°
D Head Tube Angle 73.5°
E Chainstay Length 15.4"
F Wheelbase 38.6"
G Bottom Bracket Height 12"
H Standover 25.2"
Suggested Rider Size 5'4"+ (162cm+)
Stem 53mm
Handlebar Width 28"
Crank 180mm
Wheel Size 24"
Seat Post Diameter 27.2mm
Geometry diagram
