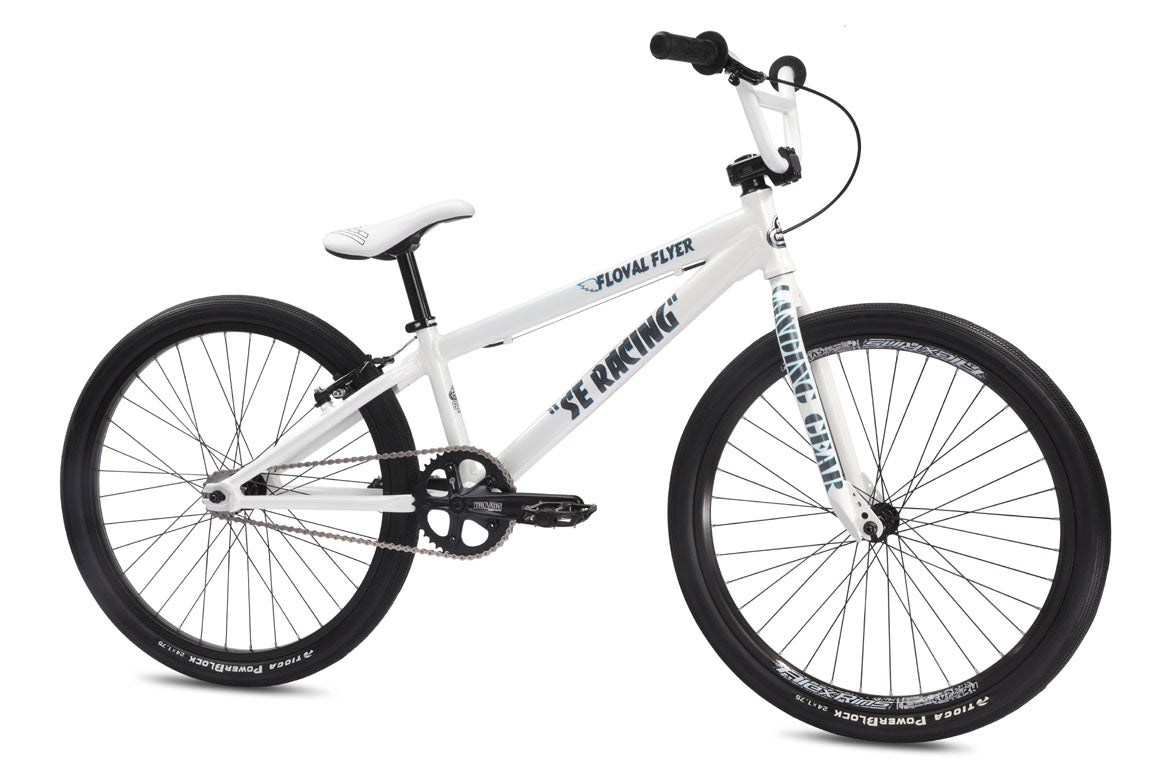

Floval Flyer 24" (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, 3D Forged Dropouts |
| Fork | 100% Cr-Mo Landing Gear, Tapered Legs, w/ Internally Threaded Steerer Tube |
| Crankset | Truvativ Racing XR 180mm Cranks, ISIS Drive Sealed Bearing Gigapipe BB, 39T 7075-T6 Alloy Chain Ring |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z33 |
| Wheelset | Sealed Bearing Hollow Axle Alloy Hubs w/ Alex Supra BH20 F & DM22 R, 36H Double Wall Rims, 17T Cassette |
| Tires | Tioga Power Block, 24 x 1.75" F & R |
| Brakeset | Tektro 930AL V-Brake, Slick Cable |
| Brake Levers | Tektro 316A, 2-Finger Alloy |
| Headset | Tange Sealed 1-1/8" Integrated |
| Handlebar | Cr-Mo SE Racing Floval Bar, 26" x 6" |
| Stem | SE Front Load Alloy, External Cutouts |
| Grips | SE Racing Wing Grip w/ SE Rubber End Plugs |
| Seat | Pivotal Race Seat With Custom Imprinted Cover |
| Seatpost | Pivotal Micro-Adjust Aluminum, 27.2mm |
| Accessories | Race Plate, Touch-up Paint |
| Wheel Size | 24" |
| Weight | 22.30lbs / 10.13kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.2" |
| Seat Tube, Center To Top | 10.8" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 15.4" |
| Wheelbase | 38.6" | |
| Seat Post Diameter | 27.2mm |
