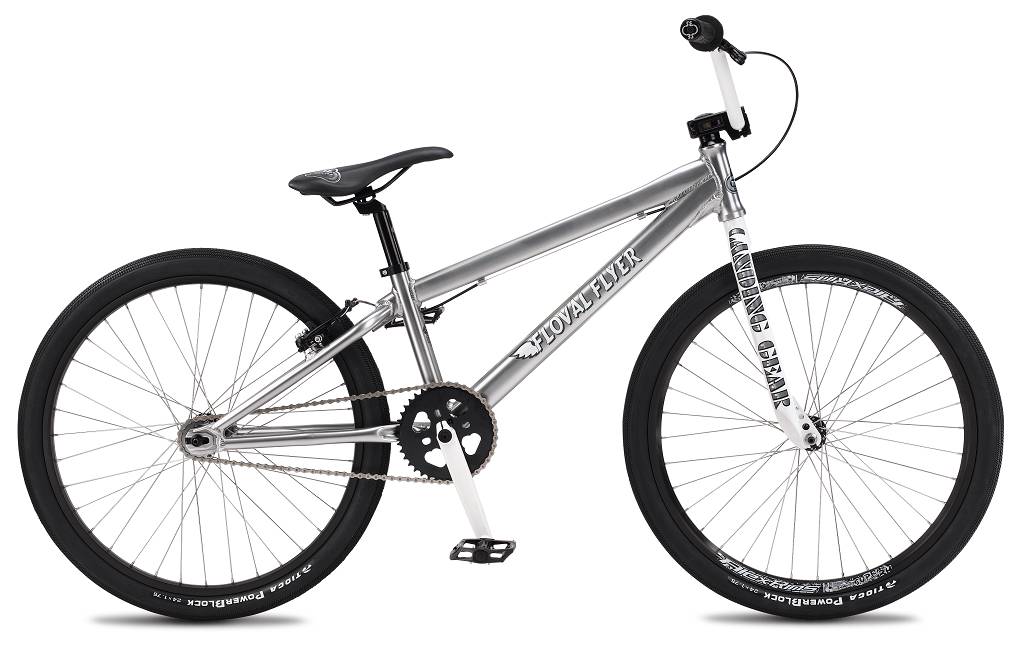

Floval Flyer 24" (2011)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, 3D Forged Dropouts |
| Fork | 100% Cr-Mo Landing Gear |
| Crankset | 3-pc Cr-Mo 180mm, Euro 4 Sealed Bearing w/ Alloy cups, 39T Alloy Bubble Sprocket |
| Pedals | X-Pedo Low Profile Platform w/ Removable Pins |
| Chain | KMC Z30 |
| Wheelset | Sealed Bearing Hollow Axle Alloy Hubs w/Alex Supra BH20 F & DM22 R, 36H Double Wall Rims, 16T Cassette |
| Tires | 24" Tioga Power Block, 1.75" F&R |
| Brakeset | Tektro 839AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange Sealed 1-1/8" Integrated |
| Handlebar | Cr-Mo SE Racing Wing Bar, 26.5x6" |
| Stem | SE Front Load Alloy, External Cut-outs |
| Grips | SE Racing Wing Grip |
| Seat | SE Racing with Custom Imprinted Cover |
| Seatpost | Race Rocker Micro-Adjust Aluminum 27.2 |
| Accessories | SE Alloy End Caps, Race Plate, Touch-up Paint |
| Wheel Size | 24" |
| Weight | 10.50kg / 23.10lb |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.2" |
| Seat Tube, Center To Top | 10.8" | |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 15.4" |
| Wheelbase | 38.6" | |
| G | Bottom Bracket Height | 11.9" |
| Seat Post Diameter | 27.2mm |
