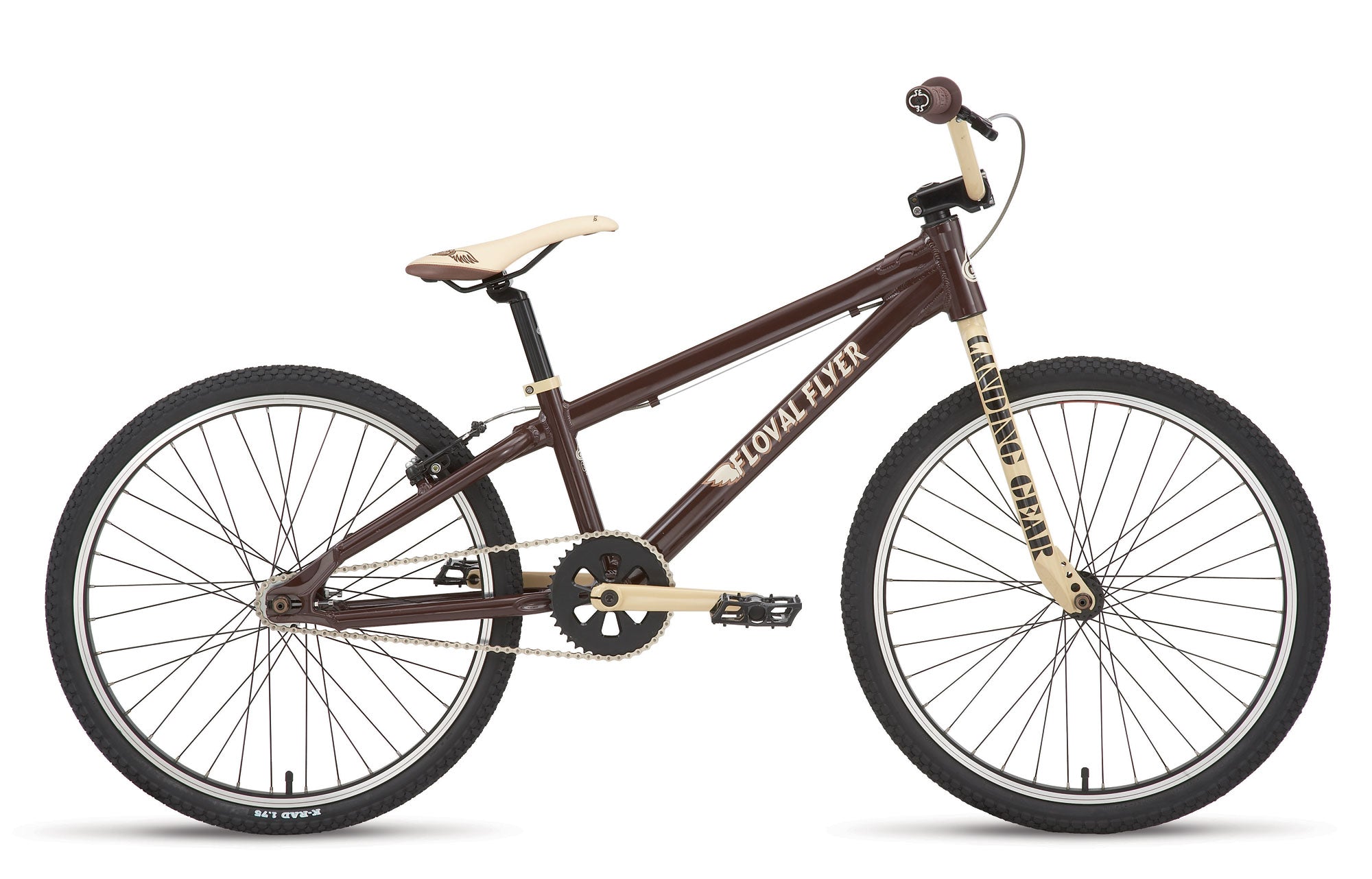

Floval Flyer 24" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Internally Machined Head Tube, Integrated Chain Tensioners |
| Fork | 100% CR-MO Landing Gear |
| Crankset | SE 3-pc CR-MO, 180mm, Euro 4 Sealed Bearing, 39T Alloy |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Chain | KMC Z30 Silver |
| Wheelset | ALEX Supra Dome, 36H Double Wall Aluminum, Welded Joint w/ Stainless 14Ga. Spokes; SE Racing Sealed Bearing 36H Alloy w/ Cr-Mo Hollow Axle Front Hub; SE Racing Cassette, Sealed Bearing 36H Alloy w/ Cr-Mo Hollow Axle, w/ 17T cassette Rear Hub |
| Tires | 24" Kenda K-Rad, 1.95" Front, 1.75" Rear |
| Brakeset | T ektro 839AL V-Brake |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | Tange 1-1/8" Internal Threadless, Cartridge Sealed |
| Handlebar | CR-MO SE Racing Wing Bar, 26.5" X 5.75" |
| Stem | SE Front Load, 1-1/8" Alloy |
| Grips | SE Racing Wing Grip |
| Seat | SE Racing with Custom Imprinted Cover |
| Seatpost | Race Rocker Micro-Adjust Aluminum 27.2 |
| Accessories | Built-in Chain T ensioners, SE Alloy End Caps, Race Pads, Race Plate |
| Wheel Size | 24" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21.25" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 15.75" |
| G | Bottom Bracket Height | 11.9" |
| Wheel Size | 24" |
