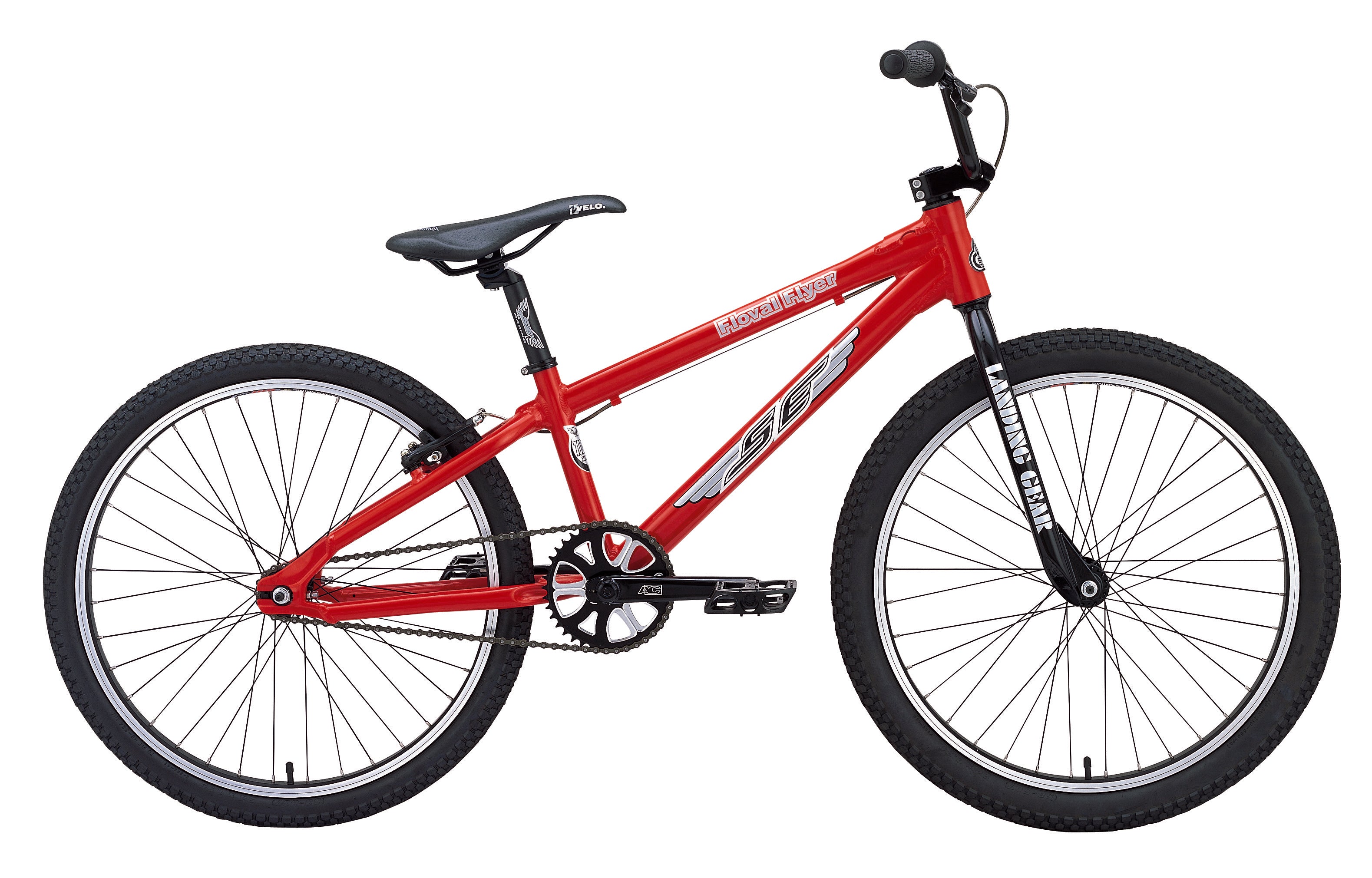

Floval Flyer 24" (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Certified 7005 Aluminum Floval Tubing w/ Integrated Head Tube, Integrated Chain Tensioners |
| Fork | CR-MO 1-1/8" Landing Gear |
| Crankset | AC ProSpeed 001, 3-pc Tubular CR-MO, 180mm; AC AC/DC 39T, Aluminum Sprocket; AC, Euro, 4 Sealed Cartridge Bearings, 10 spline spindle |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Cassette | AC 17T |
| Chain | KMC Z30 |
| Wheelset | Alex DM-24, 36H Double Wall Aluminum w/CNC sidewall; SE Racing Sealed Bearing Alloy Front Hub; SE Racing Sealed Bearing Alloy Rear Hub; Stainless 14 Ga. Spokes |
| Tires | Kenda K-Rad, 24 x 2.3 / 24 x 1.95 |
| Brakeset | Tektro 930AL V-Brake (Rear only) |
| Brake Levers | Tektro 313A, 2 Finger Alloy |
| Headset | VP 1-1/8" Threadless, Press Fit Integrated |
| Handlebar | CR-MO, SE Racing Wing Bar, 25" X 5" |
| Stem | SE, Front Load, 1-1/8" Alloy |
| Grips | SE Racing Custom Kraton Rubber |
| Seat | SE Racing with custom imprinted cover |
| Seatpost | SE Racing Micro-Adjust Aluminum 27.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Chain Tensioners |
| Wheel Size | 24" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 21" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 73.5° |
| E | Chainstay Length | 15.75" |
| G | Bottom Bracket Height | 12" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
