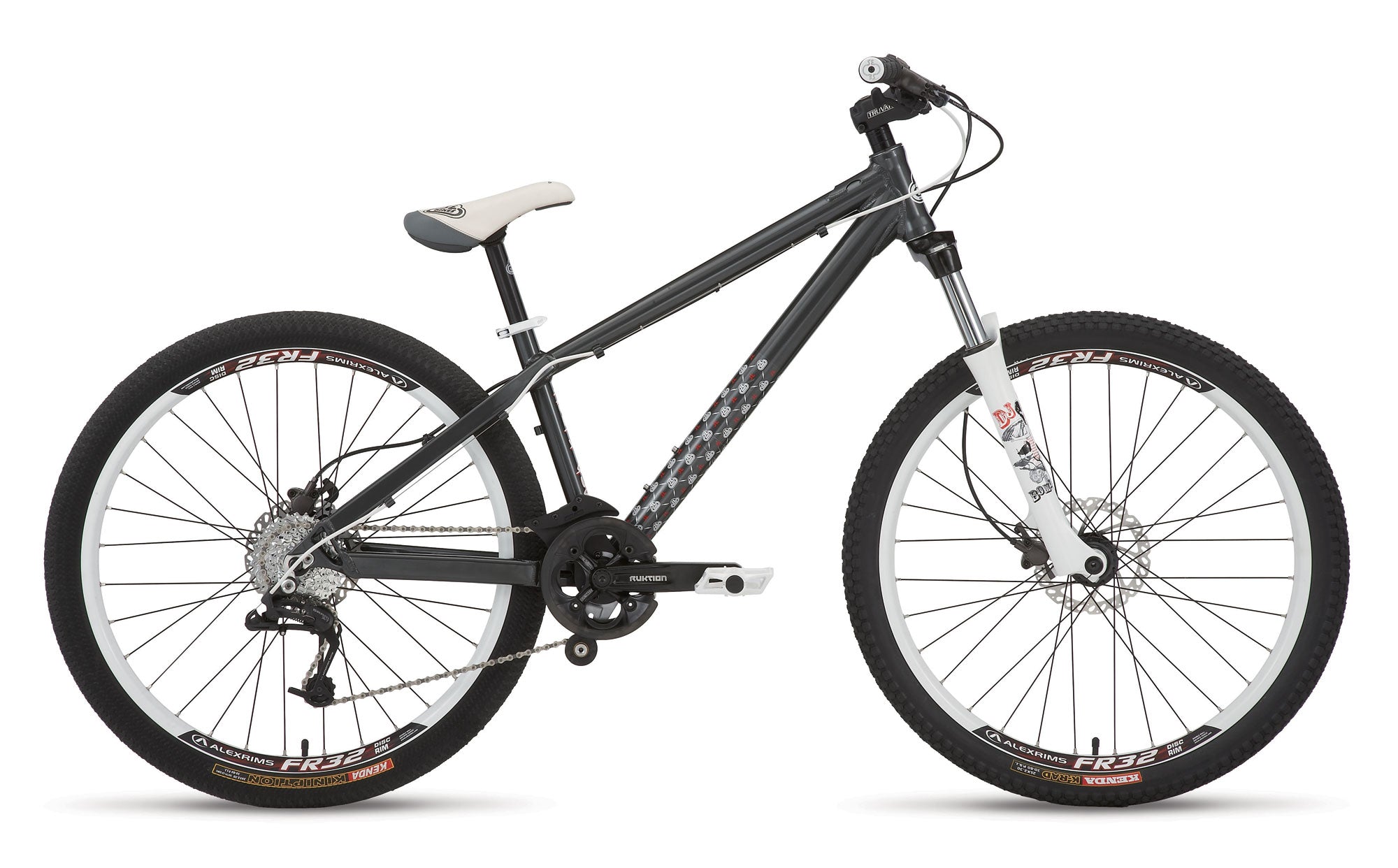

Filth Flyer 26" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061Aluminum, Internally Machined Headtube, Box Chainstays, Water Bottle Mounts |
| Fork | Marzocchi Dirt Jumper 3, 20mm Through Axle, 100mm Travel |
| Crankset | Truvativ Rucktion 1.0RG, Alloy, 175mm, Sealed Euro w/ Howitzer Spindle, 36T Alloy |
| Pedals | Wellgo Alloy Platform, Cr-Mo Axle, Removable Pins |
| Chain | Shimano HG-73 |
| Wheelset | Alex FR-32, 32H, w/ Stainless Steel Eyelets, w/ Black Stainless 14Ga. Spokes; SE Sealed Bearing 32H, Alloy, 20mm Through Axle Front Hub; SE Four Sealed Bearings 32H, Alloy, w/ QR, w/ Sram PG-950 11-32T, 9 Speed Rear Hub |
| Tires | 26" Kenda K-Rad 2.3 F, Kiniption 2.3" R |
| Brakeset | Hayes Stroker Ryde Hydraulic, 160mm Disc F&R |
| Brake Levers | Hayes Stroker Ryde, Hydraulic F&R |
| Headset | Tange 1-1/8" Internal Threadless, Cartridge Sealed |
| Handlebar | SE Alloy, 1" rise, 25.25" Wide |
| Grips | SE Bubble Jump Grip |
| Seat | SE Pivotal w/Custom Cover |
| Seatpost | Pivotal Micro Adjust Aluminum 27.2 |
| Accessories | Sram RX. 7 Rear Derailluer, Sram RX. 7 Trigger Shifters, Truvativ Box Guide, SE Alloy End Caps |
| Wheel Size | 26" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 69° |
| E | Chainstay Length | 16" |
| G | Bottom Bracket Height | 12.2" |
| Seat Tube Length | 14" | |
| Wheel Size | 26" |
