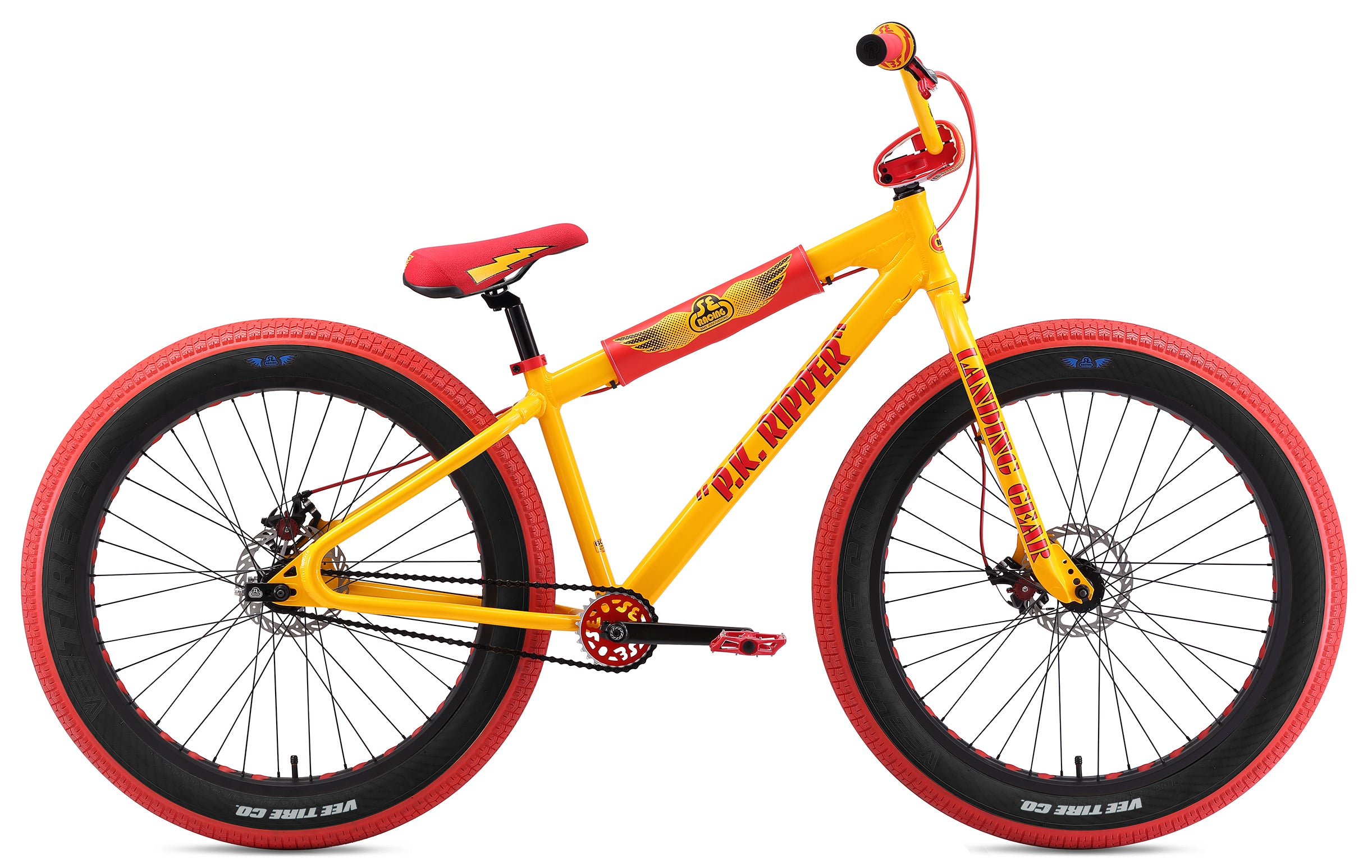

Fat Ripper 26" (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6066 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Symmetrical Looptail Rear End, Seatstays Wrap, Disc Brake Tabs, 100mm Euro Bottom Bracket, 170mm Spaced Dropouts |
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 135mm Spaced Dropouts |
| Crankset | SE V-Ridge 3-pc Cr-Mo, Cranks,175mm, External Sealed Bearing Euro Bottom Bracket, 200mm Spindle length, 19mm Spindle Diameter, 27T Alloy SE Racing Sprocket |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC S1 |
| Wheelset | Alloy 36H Hubs, Sealed Rear, 135mm Front Hub & 170mm Rear Hub, w/ SE Bubble Fat 65mm Rims, 14T Cassette, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Chicane, 26" x 3.50", 72TPI, Front & Rear |
| Brakeset | Avid BB5, Mechanical Disc, Easy to Adjust w/ Tri-Align Caliper Positioning System, 160mm Rotor, Front & Rear |
| Brake Levers | Tektro MT2.1, 2-Finger Alloy Front & Rear |
| Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 6" , 10° Backsweep, 1° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts |
| Seat | SE Flyer Seat, Cr-Mo Rails w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | SE Racing Rad Number Plate, SE Racing Wing Padset, SE Chain Tensioners, Alloy Valve Caps |
| Wheel Size | 26" |
| Weight | 36.2 lbs / 16.42 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 23" |
| A | Top Tube, Effective | 23.2" |
| Seat Tube, Center To Top | 15" | |
| C | Seat Tube Angle | 72° |
| D | Head Tube Angle | 70° |
| E | Chainstay Length | 17.8" |
| Wheelbase | 42.6" | |
| G | Bottom Bracket Height | 12.4" |
| Standover | 30.4" | |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 175mm | |
| Wheel Size | 26" | |
| Seatpost Diameter | 27.2mm |
