Fat Ripper 26"
Fat Ripper 26"
Fat Ripper 26"

Fat Ripper 26"

$1,199.99

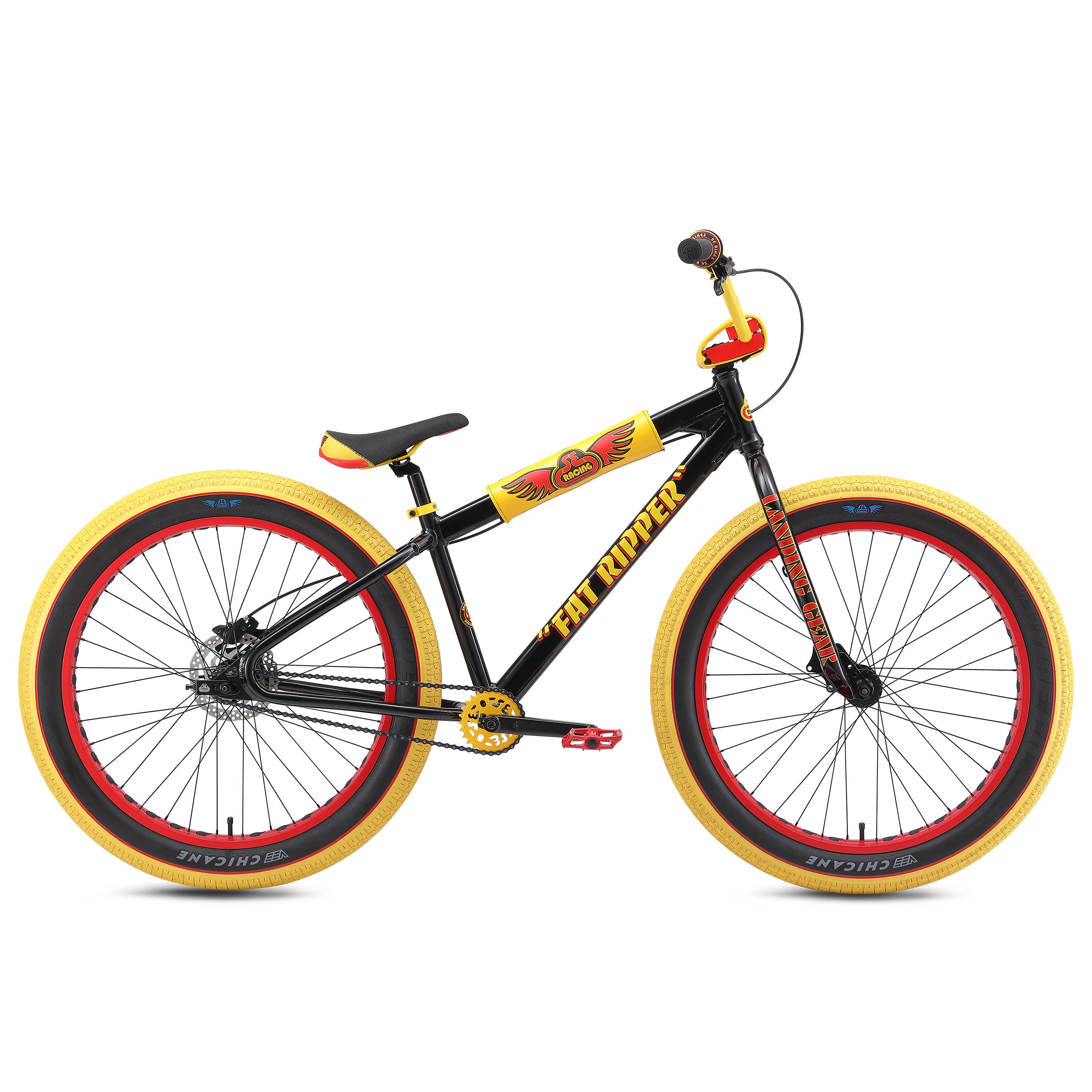

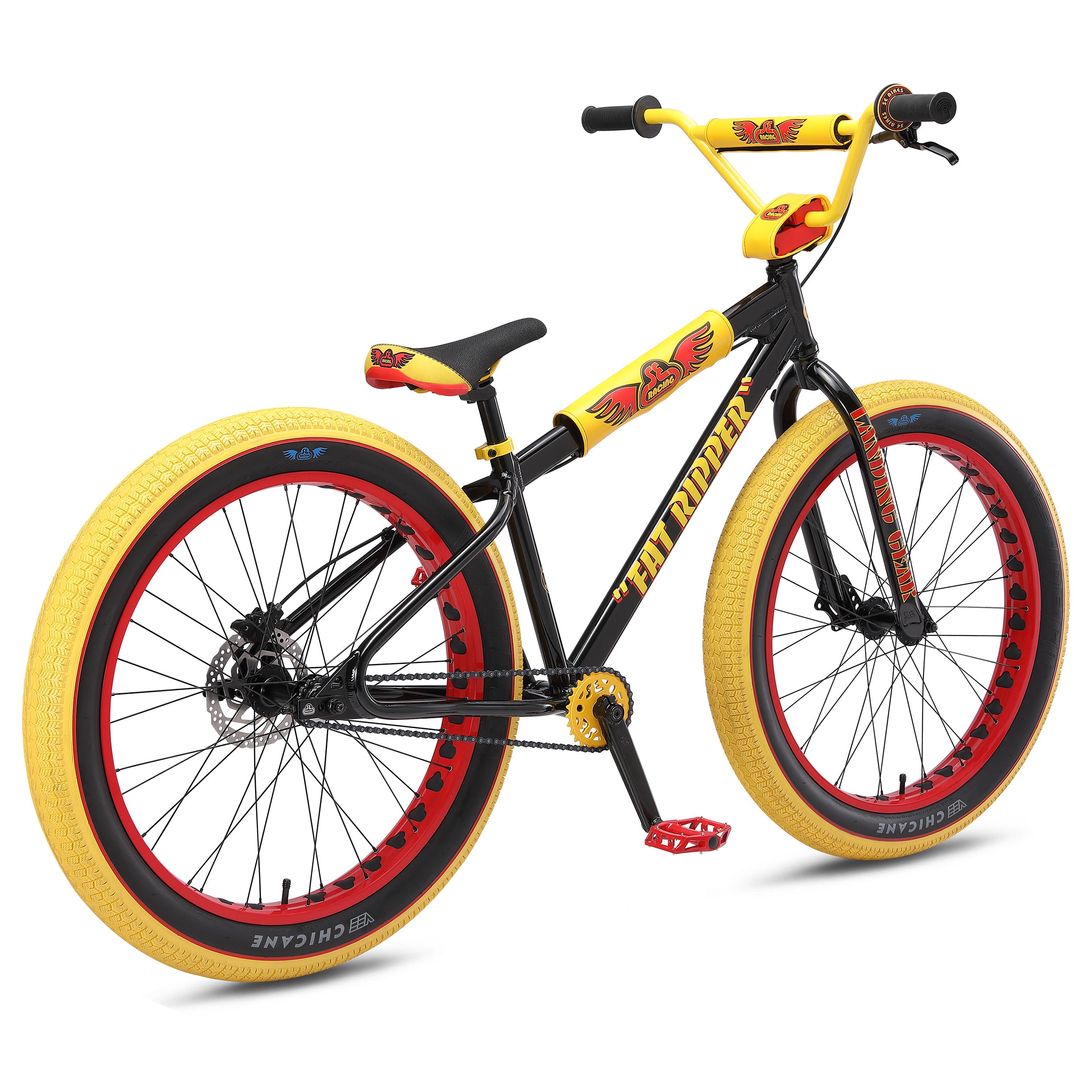

The 26" Fat Ripper is a bike with some serious attitude. Its 6061 aluminum Floval tubing frame is built for action, and the bike rolls on huge 26" x 3.5" Chicane tires, which provide incredible stability and grip. The wheelset features 65mm wide Bubble Fat rims and sealed bearing hubs for a smooth ride. The Shimano MT200 hydraulic disc brakes are easy to adjust, and they provide all the stopping power and brake control that you need. The Bike Life grips give you a secure feel, and the new SE Captive seat was designed specifically for a secure and comfortable seat for long rides and heavy combos. 
Color:Bombus Black
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES
  • 6066 aluminum Floval tubing frame, internally-machined integrated head tube, symmetrical Looptail rear end, seatstays wrap, 100mm bottom bracket, external BB, and 170mm-spaced rear dropouts 
  • Full Cr-Mo Landing Gear forks with 135mm-spaced dropouts 
  • Chicane 26" x 3.50" tires run fast and smooth at 30psi 

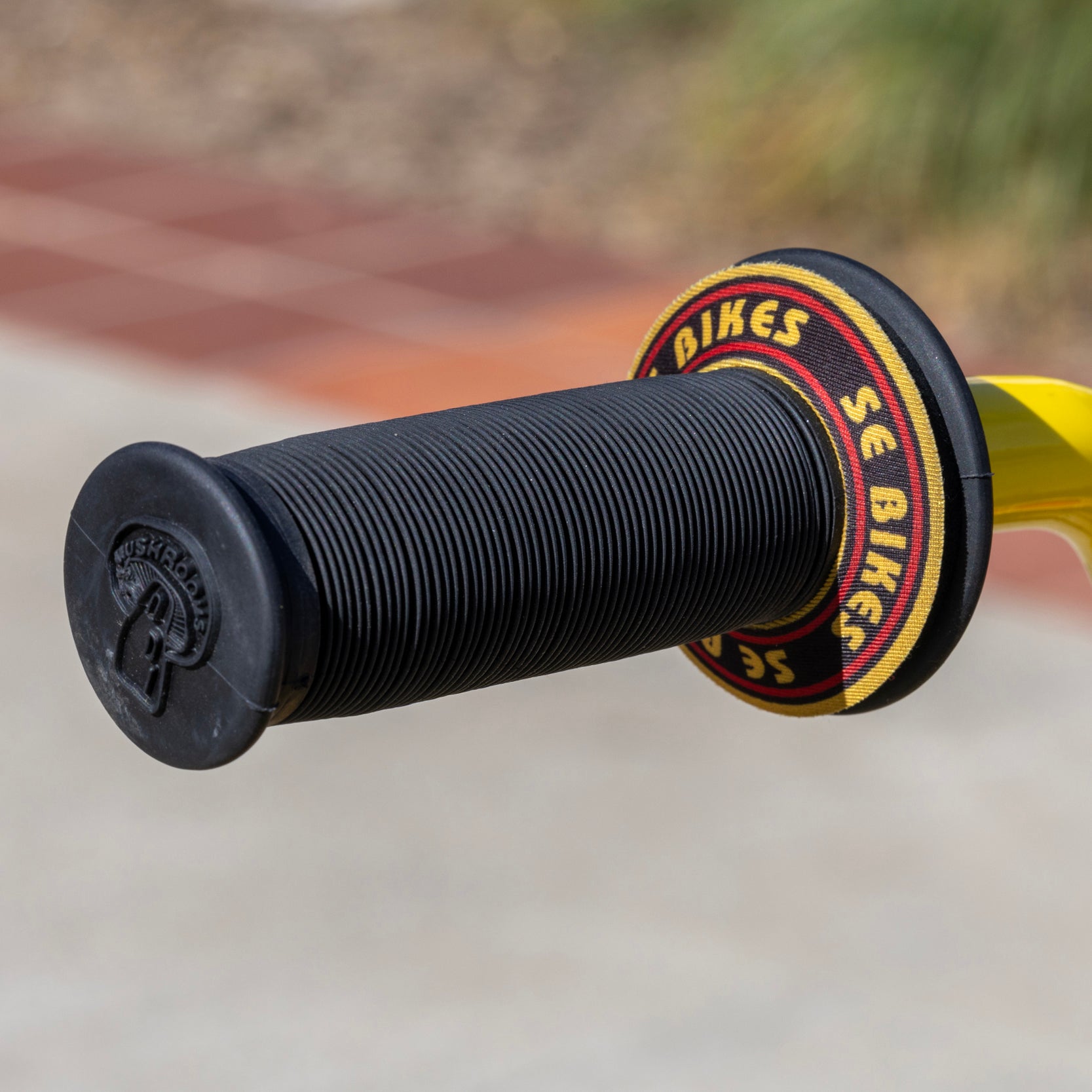

  • Authentic ODI Mushroom II grips with SE donuts 
  • FSA Orbit CE integrated sealed bearing headset 

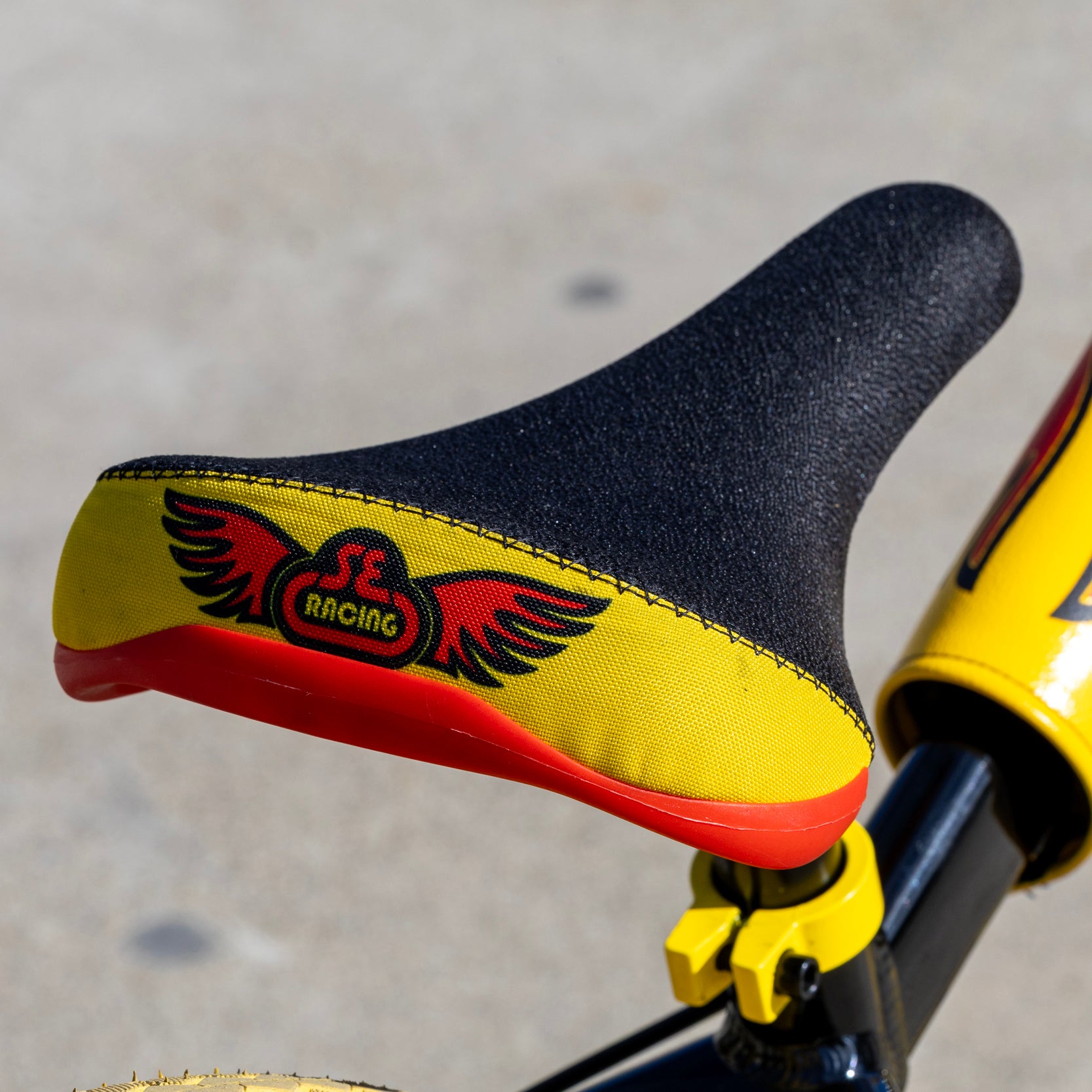

  • Captive Seat with concave design for ultimate hold and comfort
  • Shimano MT200 hydraulic disc brake, dual piston, 160mm rotor
  • SE padset
SPECIFICATIONS
Frame 6066 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Symmetrical Looptail Rear End, Seatstays Wrap, Disc Brake Tabs, 100mm Euro Bottom Bracket, 170mm Spaced Dropouts
Fork Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 135mm Spaced Dropouts

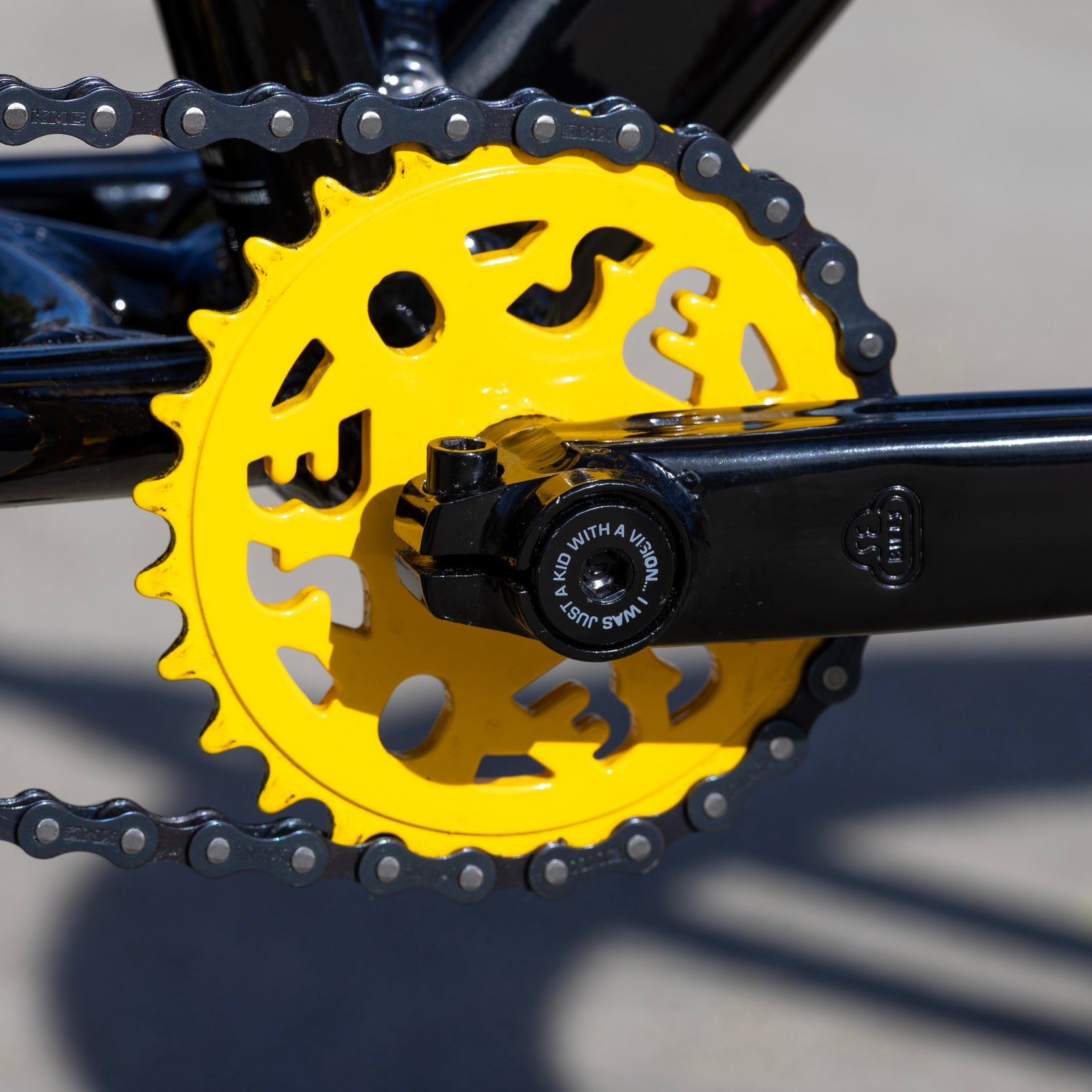

Crankset SE V-Ridge 3-pc Cr-Mo Cranks,170mm, External Sealed Bearing Euro Bottom Bracket, 200mm Spindle length, 19mm Spindle Diameter, 27T Alloy SE Racing Sprocket
Pedals Wellgo Low-profile Platform
Chain KMC S1
Wheelset Alloy 36H Hubs, Sealed Rear, 135mm Front Hub & 170mm Rear Hub, SE Bubble Fat 65mm Rims w/ Eyelets, 14T Cassette, Stainless Spokes
Tires SE x Vee Tire Co Chicane, 26" x 3.5", 72TPI, Front & Rear

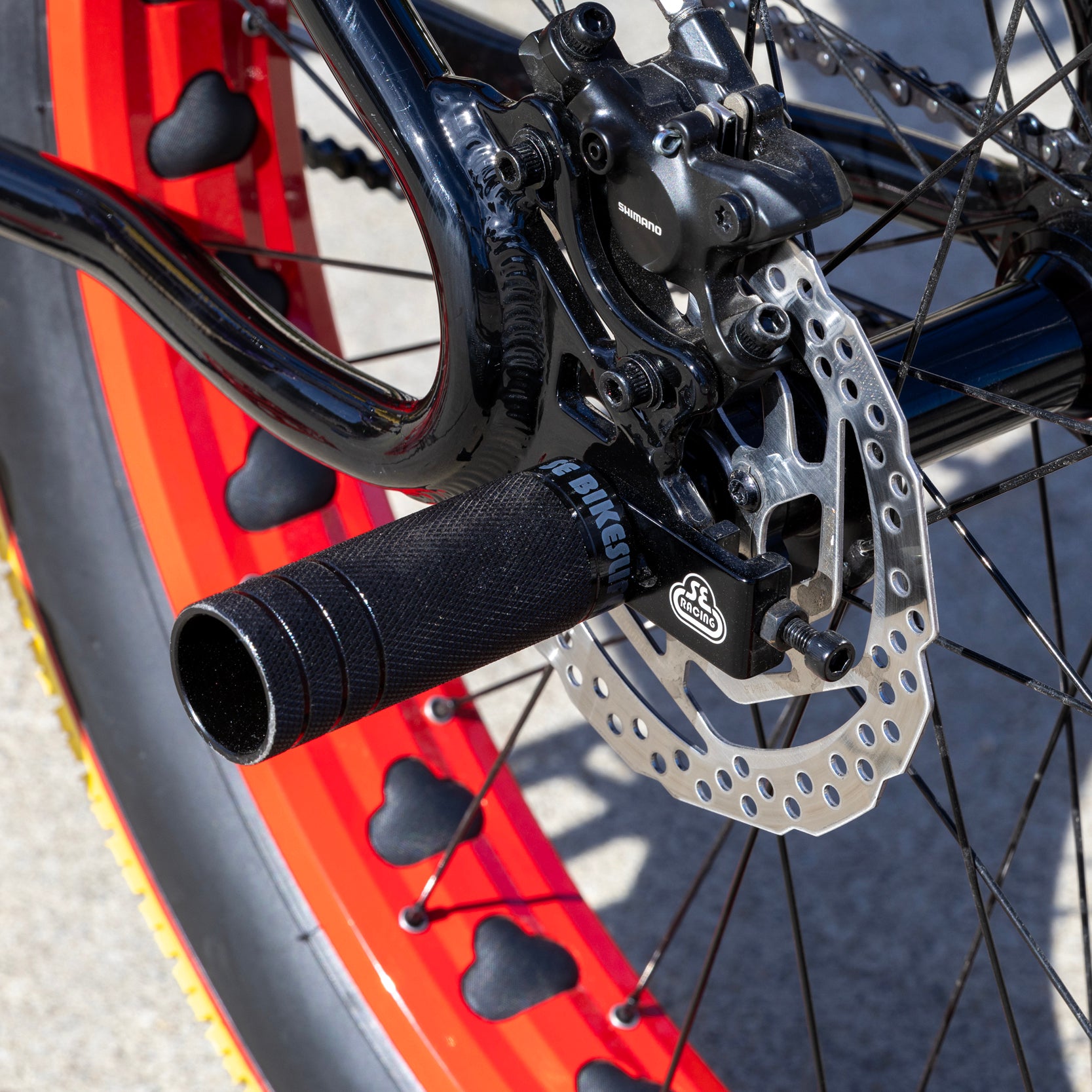

Brakeset Shimano MT200, Hydraulic Disc, Dual Piston, One Way Bleeding, 160mm Rotor
Brake Levers Shimano MT200, 2/3-Finger, Mineral Oil, Funnel Bleeding, Rear Only
Headset FSA Integrated Orbit CE, Sealed 1-1/8"
Handlebar Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep
Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
Grips Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts
Seat New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost Micro-Adjust Alloy, 27.2mm
Seat Clamp Alloy, 31.8mm Inner Diameter
Accessories SE Wing Padset, Alloy Valve Caps, SE Chain Tensioners
Wheel Size 26"
GEOMETRY
A Top Tube, Actual 22.3"
B Seat Tube, Center To Top 15"
C Seat Tube Angle 72°
D Head Tube Angle 70°
E Chainstay Length 17.8"
F Wheelbase 42.6"
G Bottom Bracket Height 12.4
H Standover 30.4"
Stem 55mm
Handlebar Width 29"
Crank 170mm
Wheel Size 26"
Seat Post Diameter 27.2mm
