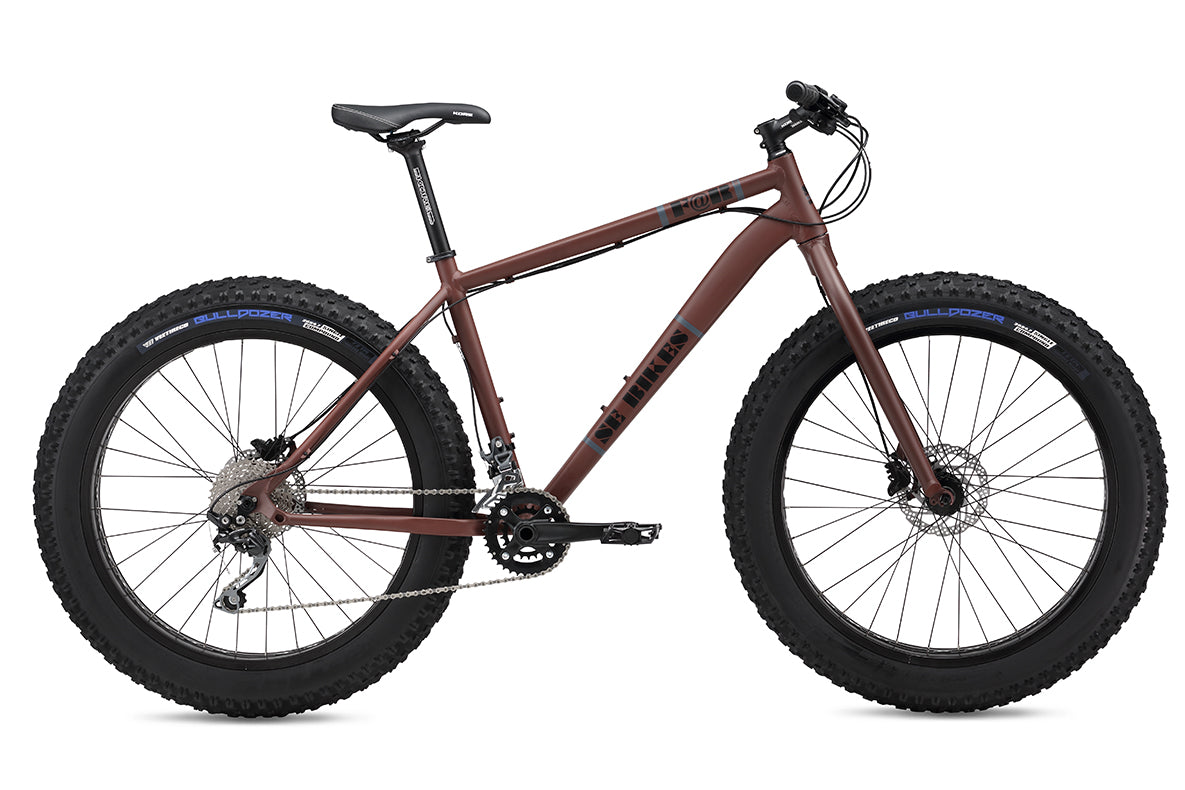

F@R 26" (2016)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Custom-Tapered 6061 Alloy, 100mm BB, Semi-Integrated Headset, Tapered Head Tube, Oversized Seat Tube, Water Bottle Mounts, Replaceable Hanger, 197mm Symmetric Rear Stays |
| Fork | SE Alloy Rigid Fork, Tapered Steerer |
| Crankset | Samox 36/22T, 10-Speed, Sealed External Cups Bottom Bracket |
| Pedals | Alloy Platform |
| Rear Derailleur | Shimano Deore F &R |
| Shifters | Shimano Deore, 20-Speed |
| Cassette | Shimano Cassette, 11-36T, 10-Speed |
| Chain | KMC, X10, 10-Speed |
| Wheelset | Weinmann HL -102 Double-Wall Alloy 32H Rims, Front Hub:135mm Sealed w/ Quick Release; Rear Hub: 197mm Sealed w/12mm Thru-Axle, Black Stainless Spokes |
| Tires | Vee Tire Co, Bulldozer 26" x 4.7 , Folding |
| Brakeset | Shimano Hydraulic Disc, 160mm Rotors |
| Brake Levers | Shimano Alloy for Hydraulic Disc |
| Headset | 1-1/8"-1-1/2" Threadless |
| Handlebar | Kore XCD Alloy, 18mm Rise, 31.8mm |
| Stem | Kore XCD Alloy, 6° Rise, 31.8mm |
| Grips | SE Kraton |
| Seat | Kore Koza, Steel rails |
| Seatpost | Kore XCD 2-Bolt Micro-Adjust, 30.9mm |
| Wheel Size | 26" |
| Weight | 35.82 lbs / 16.28 kg |
Specifications subject to change without notice.
GEOMETRY
| Size | (S)15", (M)17", (L)19", (XL)21" | |
| Seat Tube, Center To Top | 381, 432, 483, 533 | |
| Top Tube, Effective | 571, 580, 593, 633 | |
| Head Tube Length | 125, 135, 145, 155 | |
| C | Seat Tube Angle | 73°, 73°, 73°, 73° |
| D | Head Tube Angle | 69.5°, 69.5°, 69.5°, 69.5° |
| E | Chainstay Length | 467, 467, 467, 467 |
| Wheelbase | 1126, 1141, 1157, 1173 | |
| Bottom Bracket Drop | 54, 54, 54, 54 | |
| Fork Offset | 50, 50, 50, 50 | |
| Stack | 594, 604, 613, 634 | |
| Reach | 406, 419, 431, 439 | |
| Standover | 782, 811, 840, 965 |
