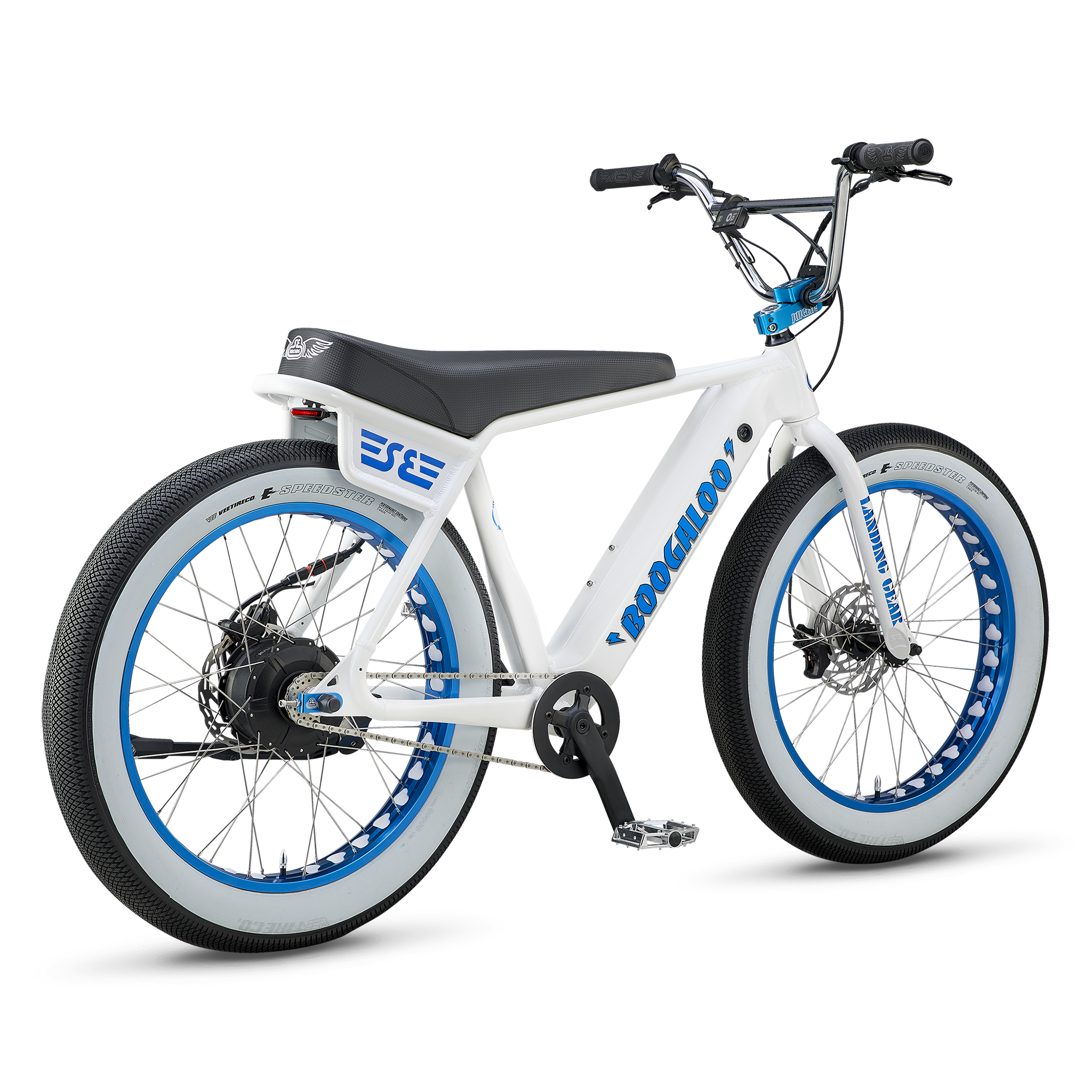

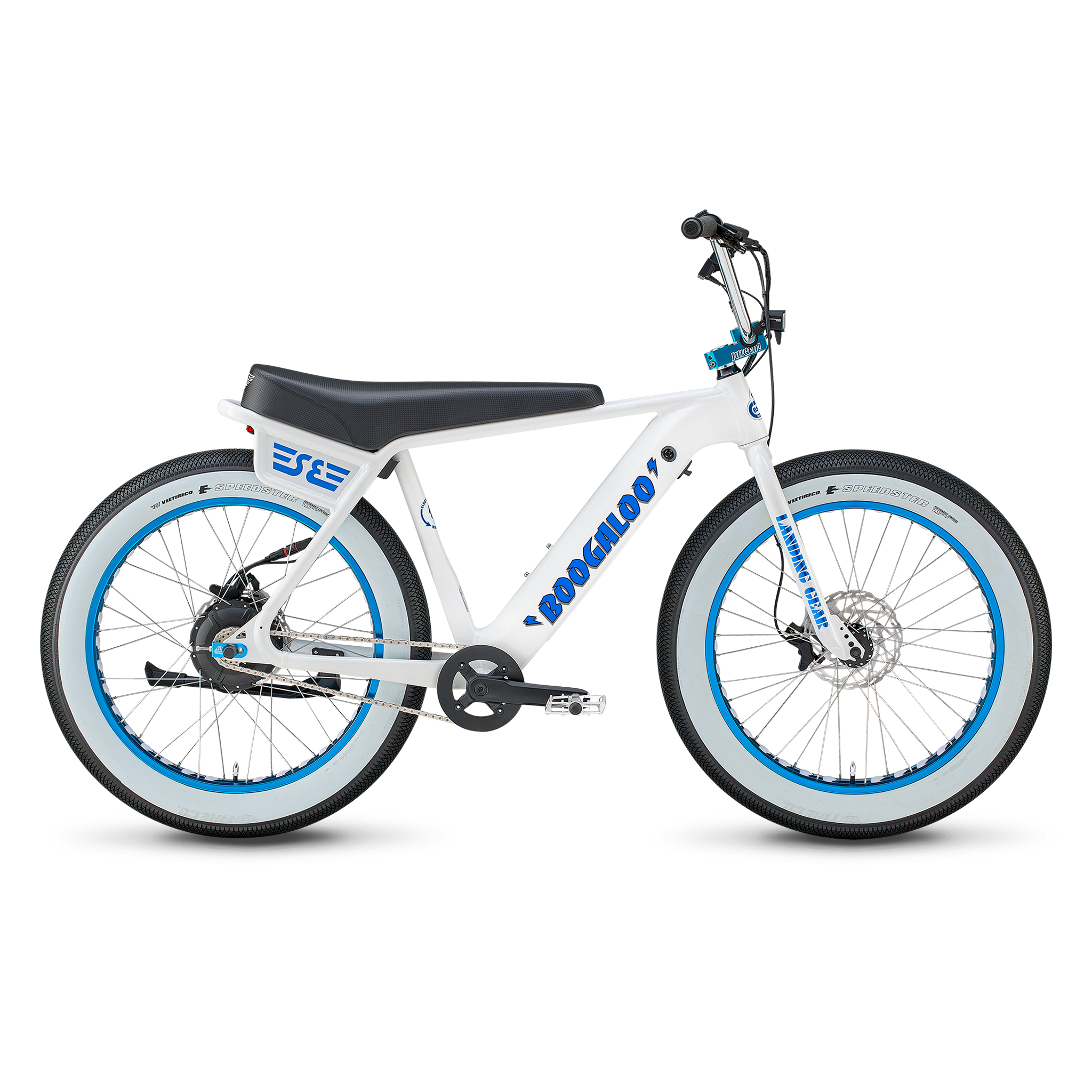

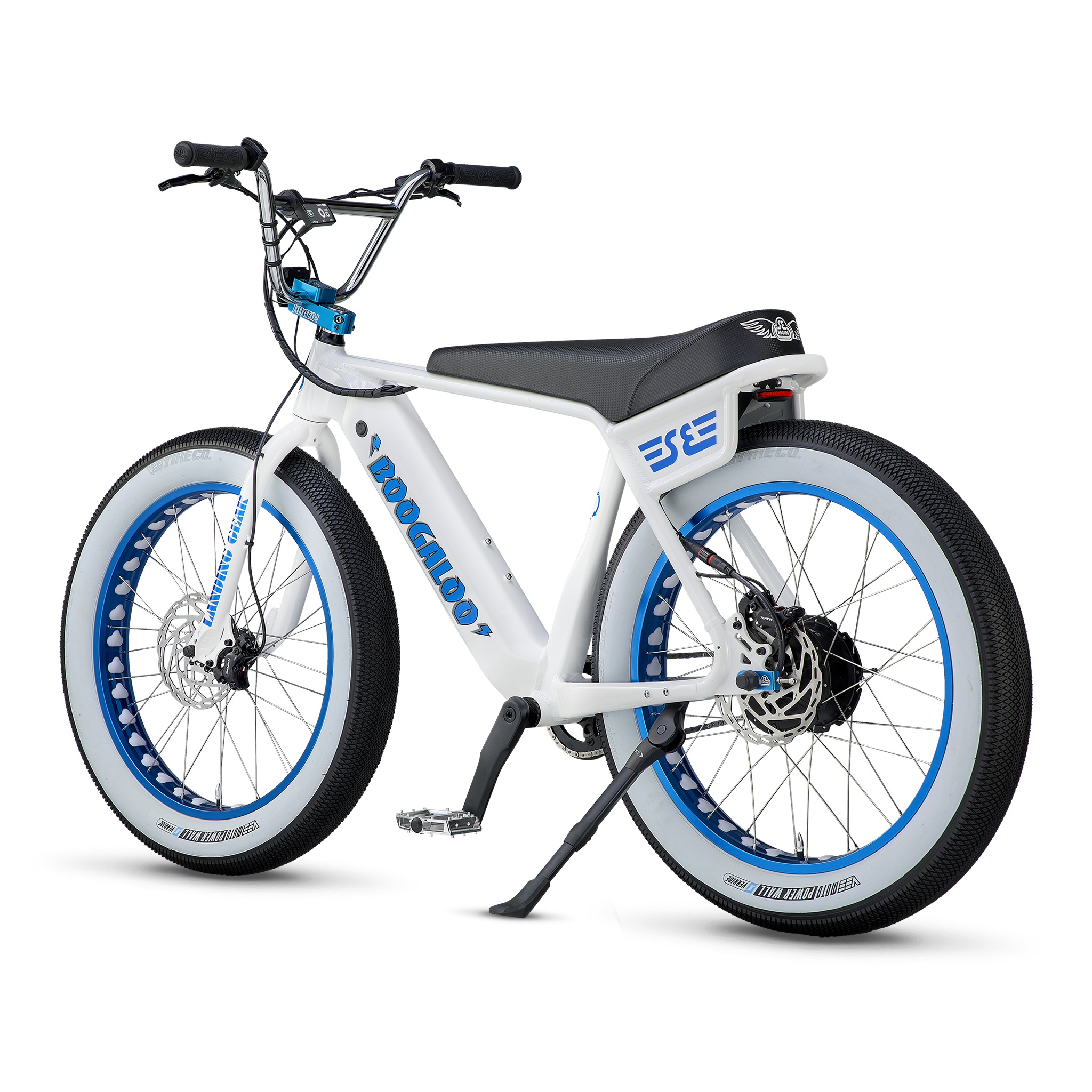

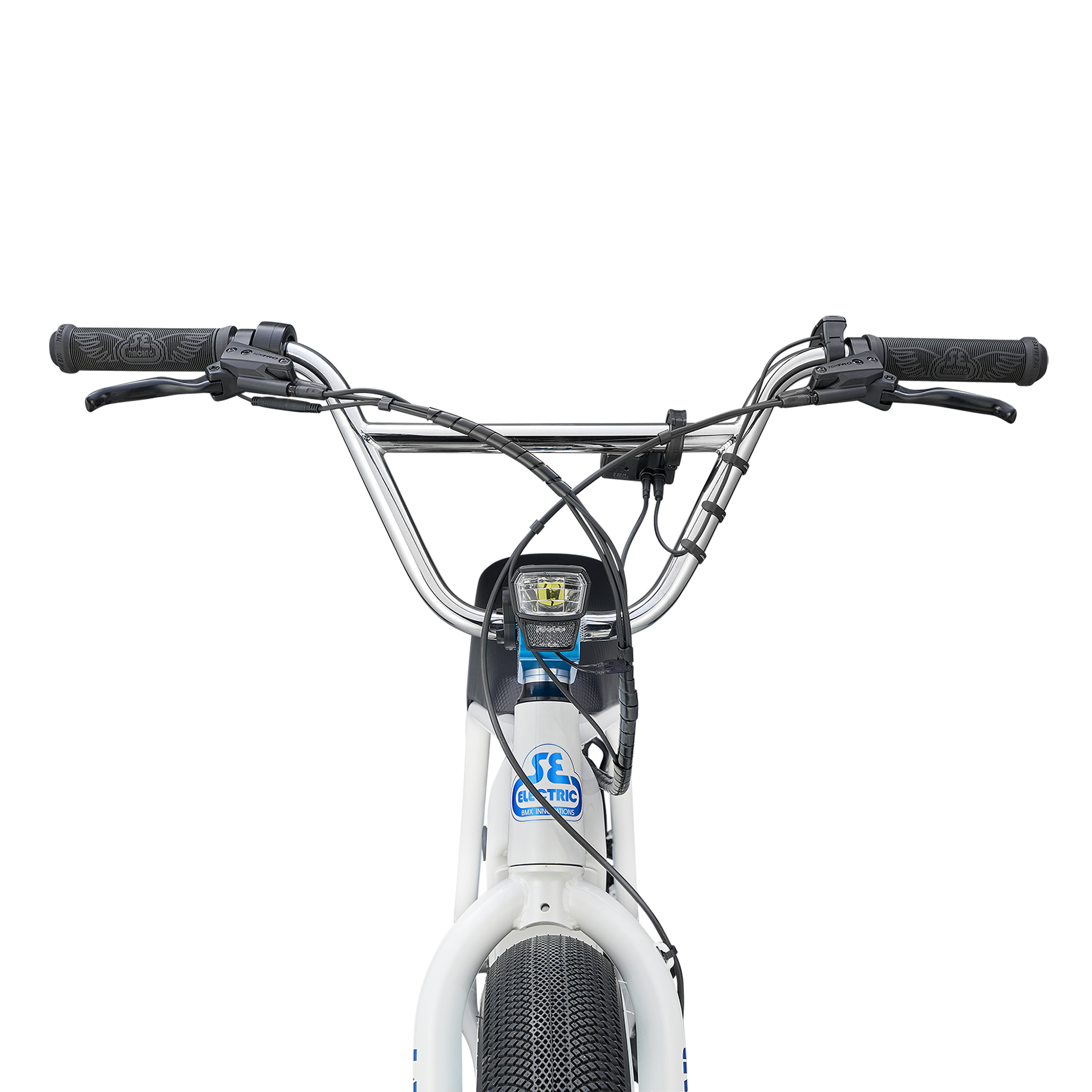

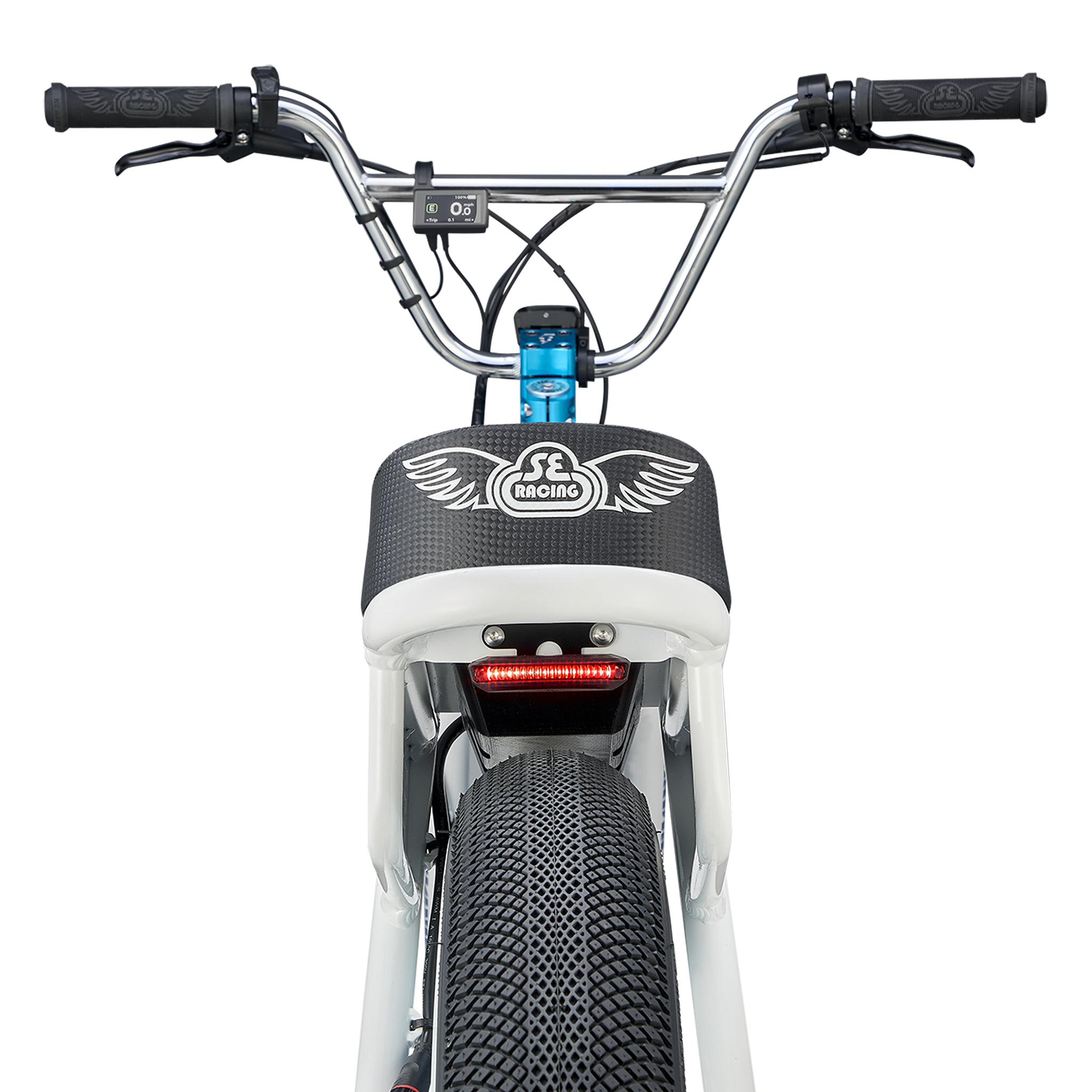

Electric Boogaloo 24"

$2,399.99

The SE Bikes Electric Boogaloo is here to bring a new kind of energy to the streets. ⚡️ Built around a Bafang 48V 750W rear hub motor, this Class 2 e-bike delivers instant acceleration and a smooth, effortless ride via pedal assist or use of the thumb throttle. With a removable, internal 15AH 720WH battery, clean integration, and that unmistakable SE style, the 24” Electric Boogaloo keeps things simple, fast, and seriously fun. This is the kind of e-bike that’s built to raise it up!

Hit the links below for more information on the electrical components that come with the Electric Boogaloo.

Bafang H720 Motor
Bafang Battery
Bafang Display
Bafang Controller
Bafang system FAQ's and troubleshooting

Lezyne Front Light
Trelock Rear Light

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video

Custom SE Electric Boogaloo frame with hidden, removable battery, integrated charging port, and internal cable routing
Class 2 pedal assist with thumb throttle and pedal assist
Full electrical system is UL2849 Compliant

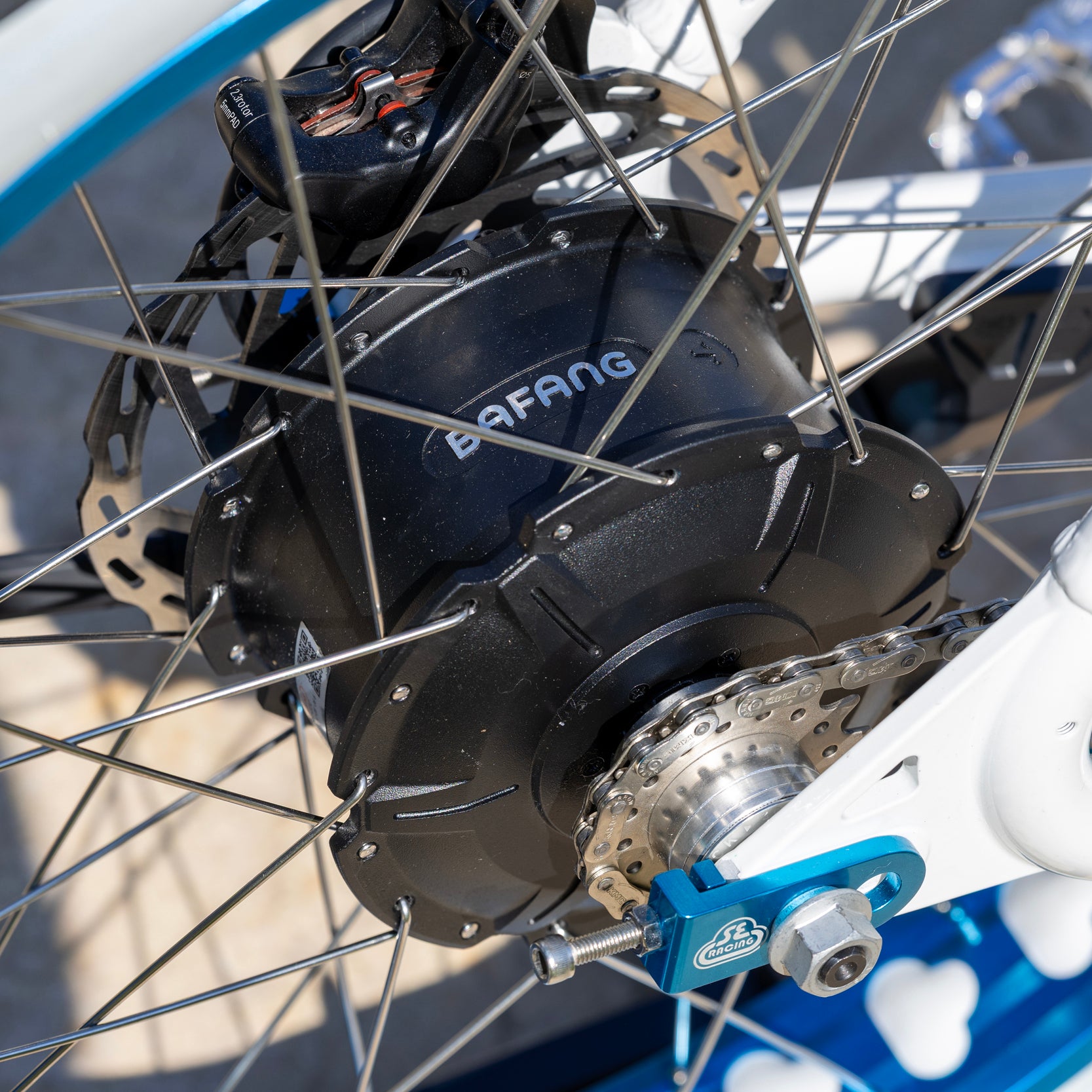

Bafang 750-watt, 48-volt rear hub drive
950-watts of peak power, 20mph top speed
Bafang battery, 48V 15-amp hour, 720-watt hour, 45-mile range
LCD display with 6 modes

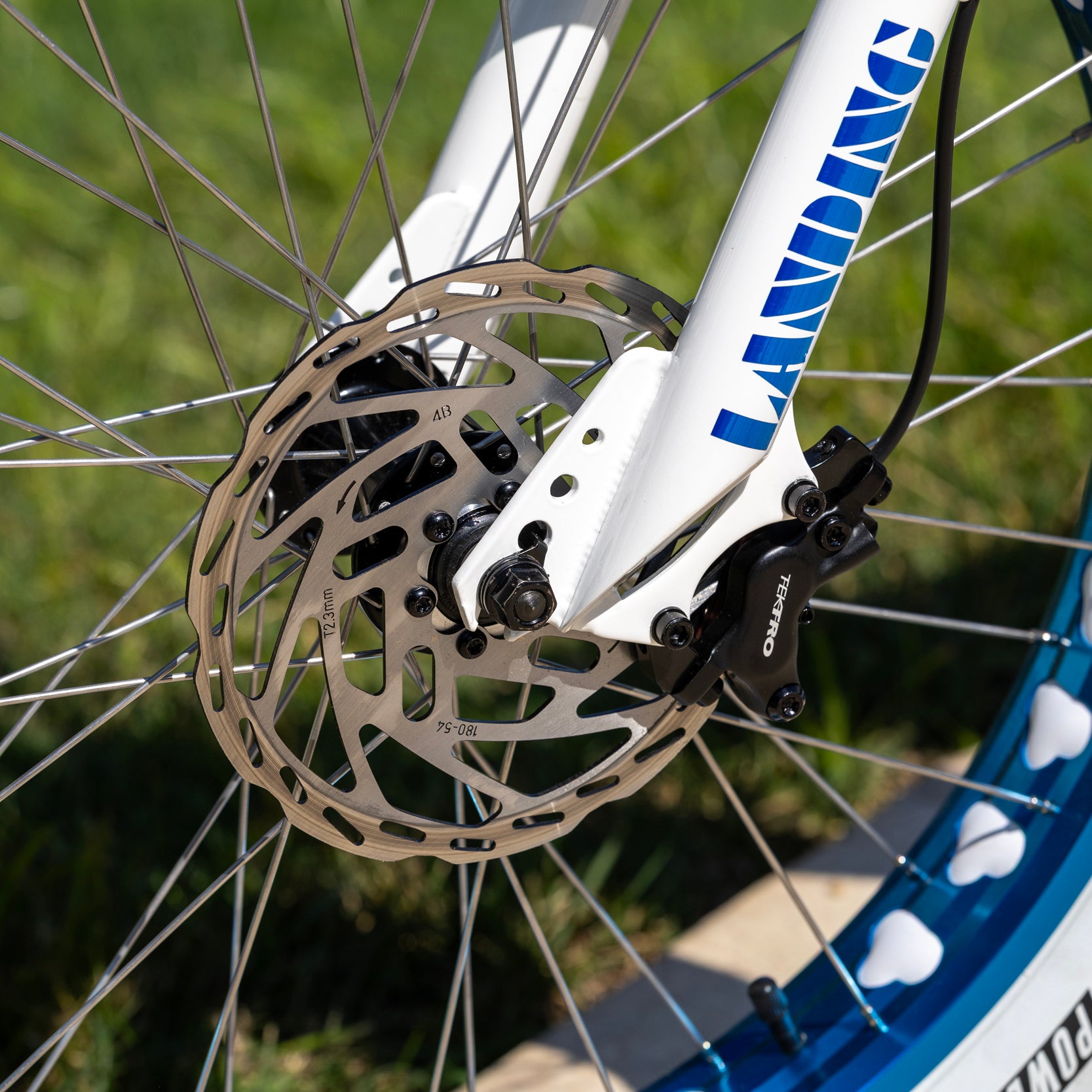

Four piston Tektro hydraulic brakes, front and rear, with 180mm rotors
24” x 3.5” E-Speedster tires
SE elongated seat with unique shape for wheelies and comfort
Chain tensioners, water bottle mounts, and alloy kickstand included

Frame	6061 Aluminum, Double Top Tube, Removeable Internal Battery, SE Seat Brace w/ Built-In Grab Handle, Controller Hidden Beneath Seat, Internally-machined Tapered Integrated Head Tube, Tapered Seat Tube, Looptail Rear End w/ 175mm Spaced Dropouts, Disc Brake Tabs
Fork	Landing Gear, Full Cr-Mo, Disc Tabs, Tapered Steerer Tube, 402mm Axle to Crown, 50mm Offset, 135mm Spaced Dropouts
Crankset	Samox Aluminum, 165mm, 34T Steel Chainring with Chainguard
Pedals	FPD Low-profile Platform
Chain	KMC Z1eHX
Wheelset	Alloy 36H Nutted Sealed Front Hub, Bafang H550 Rear Hub, 135mm Front Hub & 175mm Rear Hub, w/ 66mm SE Bubble Fat Rims, 16T Freewheel, Stainless Spokes

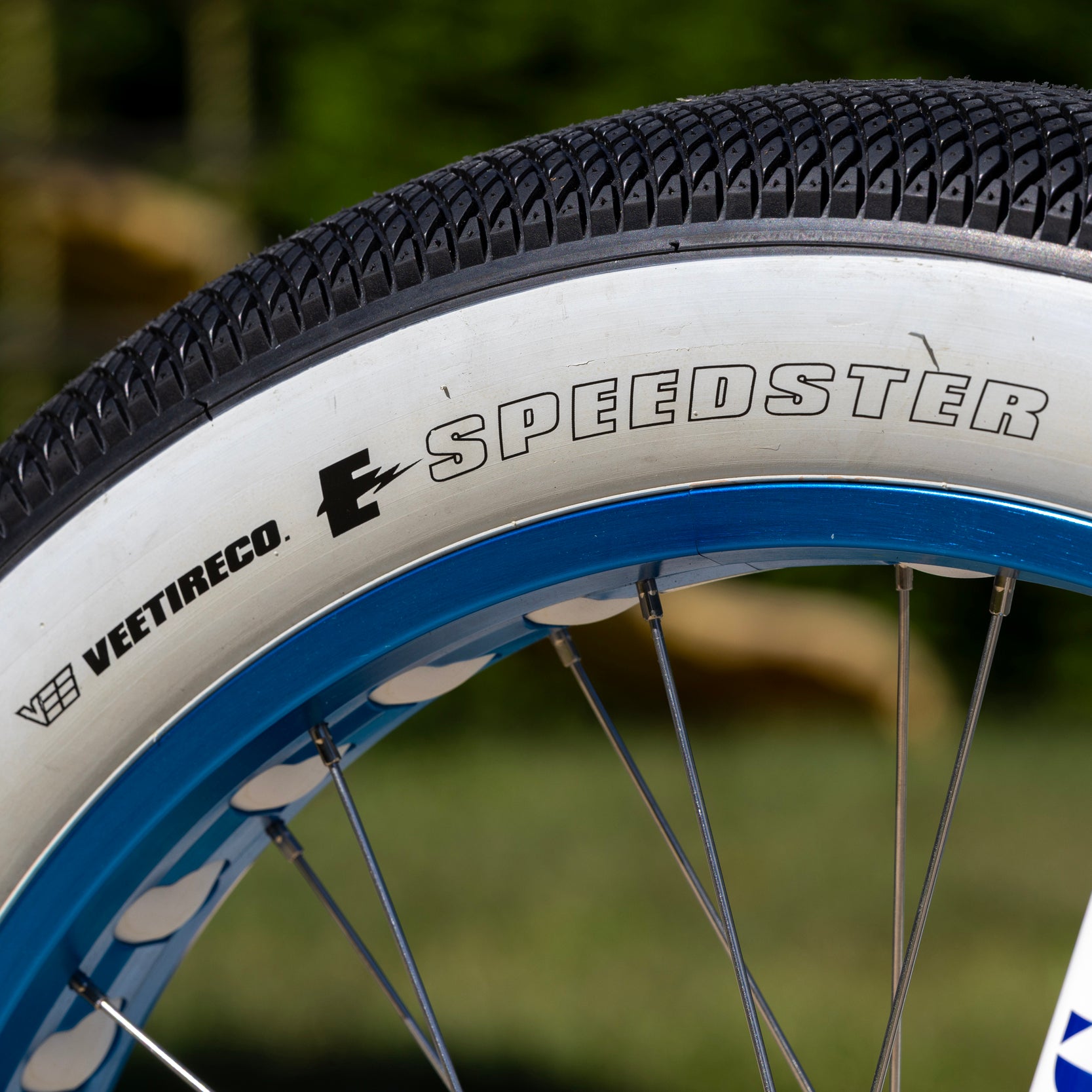

Tires	Vee Tire Co x SE Racing Speedster, Performance Compound, Override Core, E-25, 24" x 3.5" Front & Rear
Brakeset	Tektro HD-E3940, Hydraulic Disc, 4-Piston, Formulated Mineral Oil, Resin Pads, 180mm Rotors
Brake Levers	Tektro HD-E3940, 3-Finger Lever, New Reservoir Cap
Headset	Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset

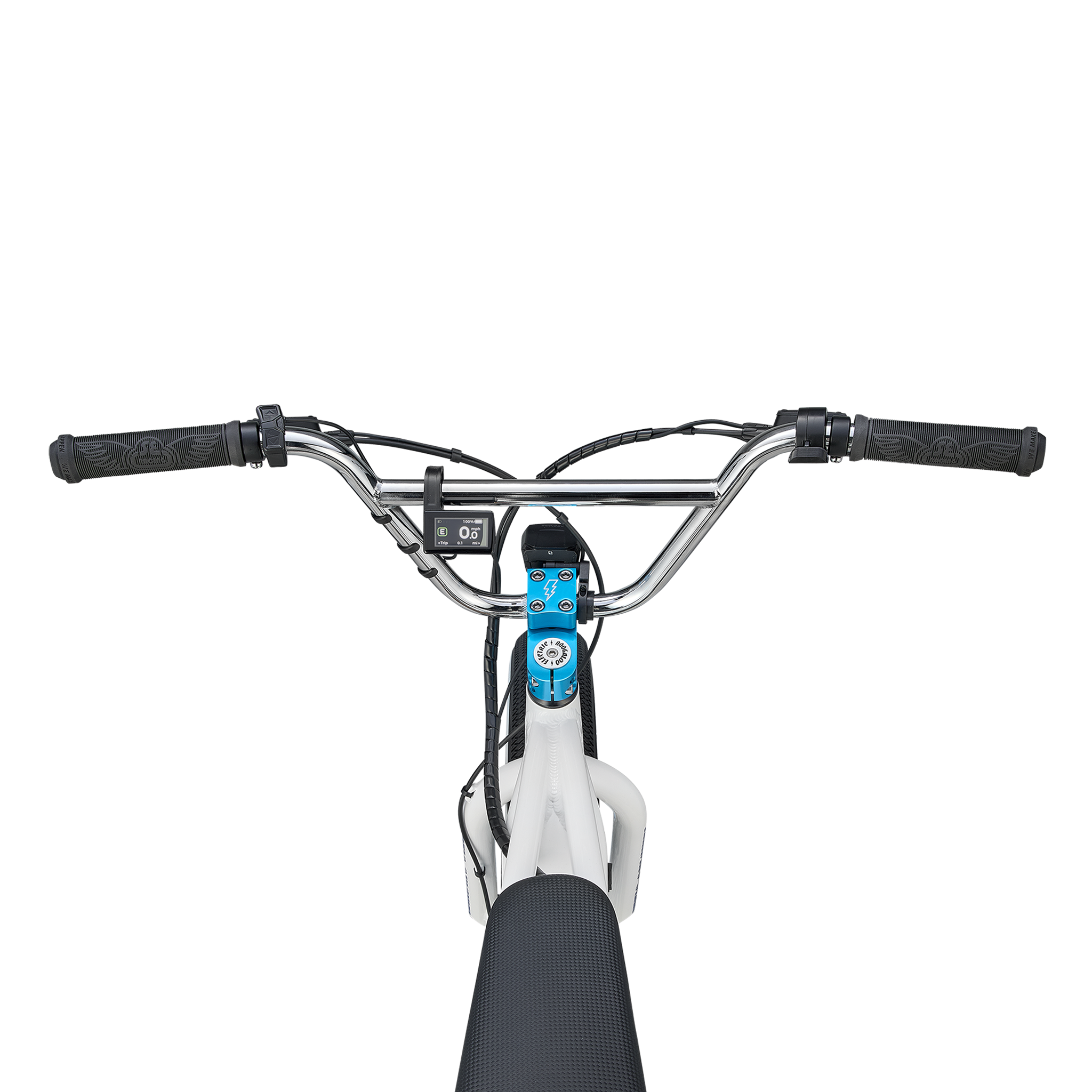

Handlebar	Power Wing Bar, 28.5" x 8.25", 12° Backsweep, 2° Upsweep
Stem	SE Retro Alloy Top-Load, 55mm Reach
Grips	SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs
Seat	Elongated SE Seat w/ Grippy Cover
Accessories	Alloy Kickstand, Alloy Valve Caps, Water Bottle Mounts
Wheel Size	24"
Motor	Bafang H720, 750W Rear Hub Motor, 950W Peak Power, 48V, 85Nm Torque, 20mph
Battery	Bafang Lockable Removeable Internal, 48V, 15Ah, 720Wh, UL2271 Compliant

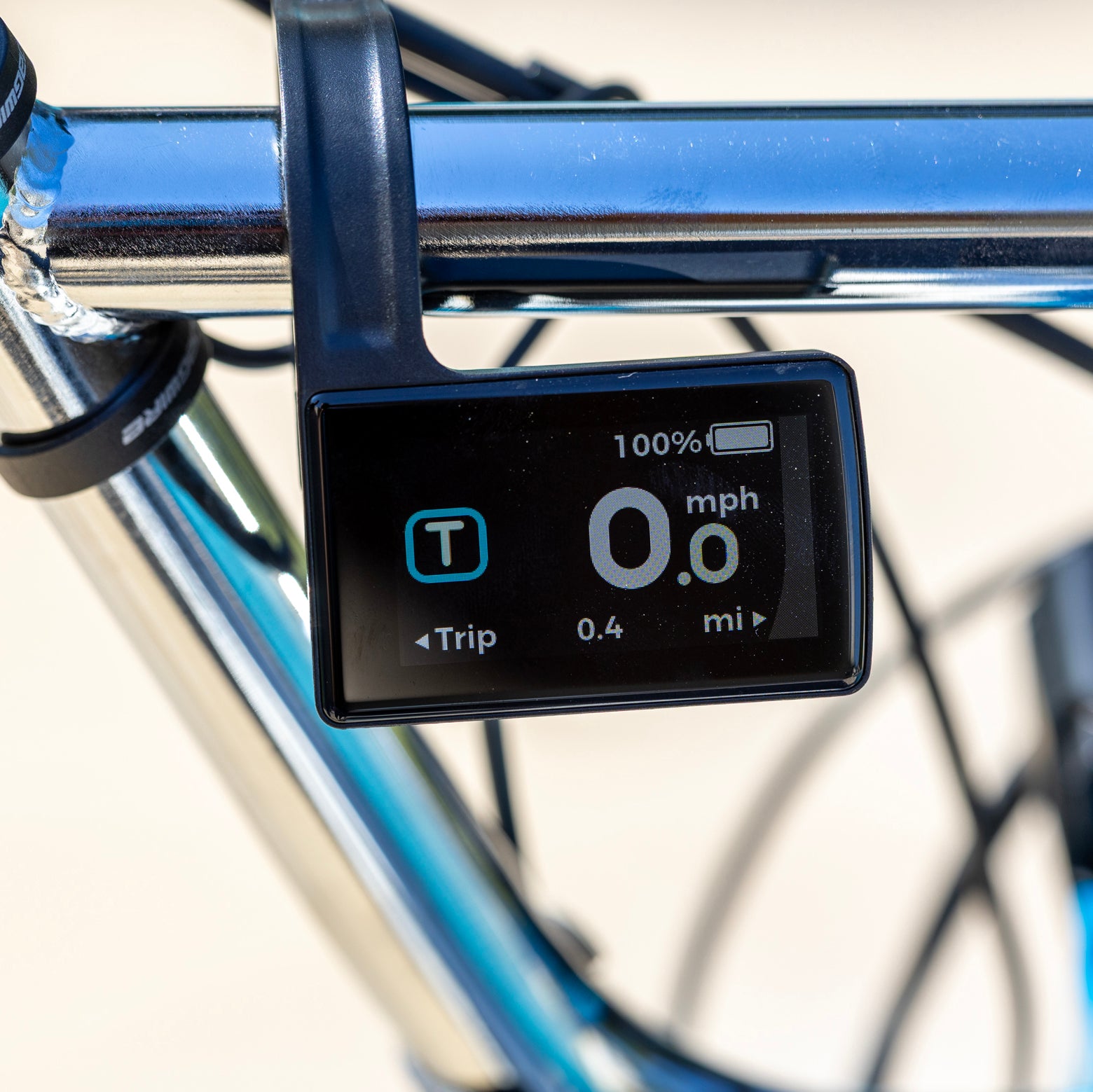

Display	Bafang DP C245, TFT LCD, 6 Modes, Walk Assist, USB C Charging, Bluetooth 5.0

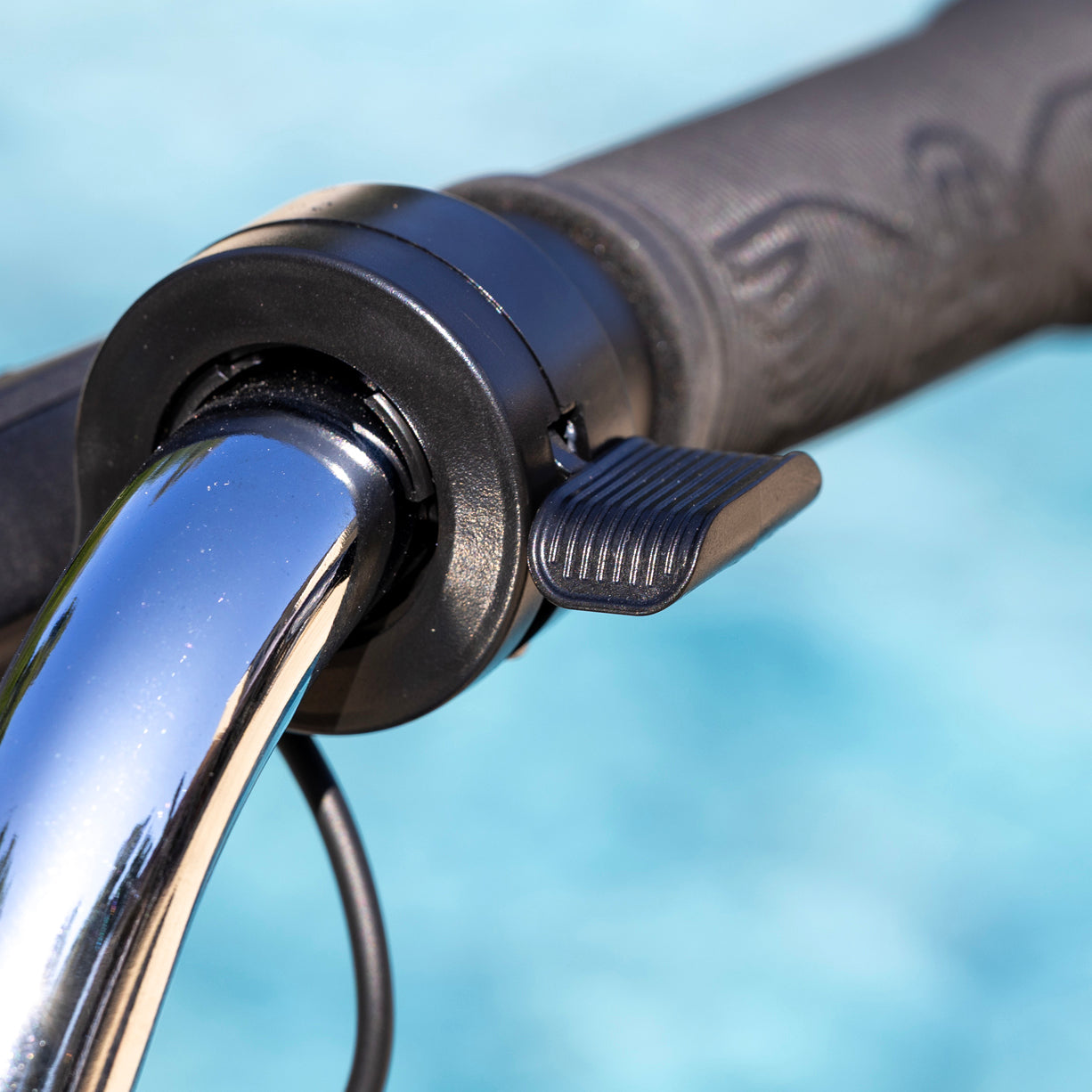

Throttle	Bafang Thumb Throttle
Battery Charger	Bafang , 54.6V, 2.0A, DC Output Port
Weight	68 lbs / 30.84 kgs
Headlight	Lezyne StZVO E300, LED, 300 Lumens, 100 Lux, 6-12V, Water Resistant
Rear Light	Trelock COB Line LS 65x, Start Up Sequence, 600 Meter Visibility, Brake Light Function
Range	Up to 45 miles
Charge Time	4 hours
Maximum Permissible Weight	300 lbs Including Rider, Bicycle, and Luggage
Certifications / Use Condition	Class 2 E-Bike, Use Condition 3, Full Electrical System UL2849 Compliant

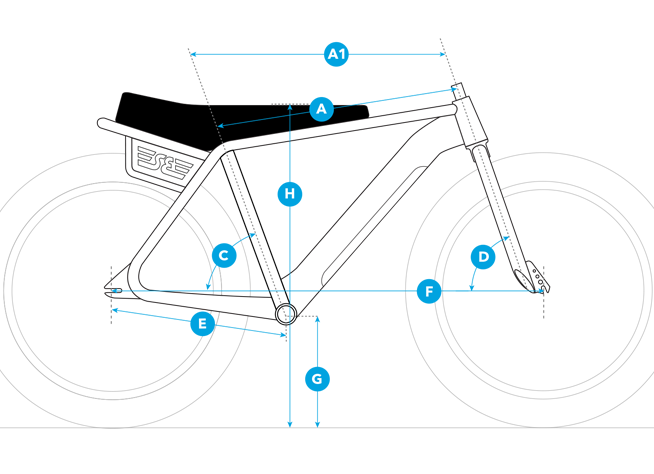

A	Top Tube, Actual	24.7"
B	Seat Tube, Center To Top	16.9"
C	Seat Tube Angle	71°
D	Head Tube Angle	70°
E	Chainstay Length	19.7"
F	Wheelbase	46.8"
G	Bottom Bracket Height	13.7"
H	Standover	32.1"
	Stem	55mm
	Handlebar Width	28.5"
	Crank	170mm
	Wheel Size	24"
	Seat Post Diameter	27.2mm
