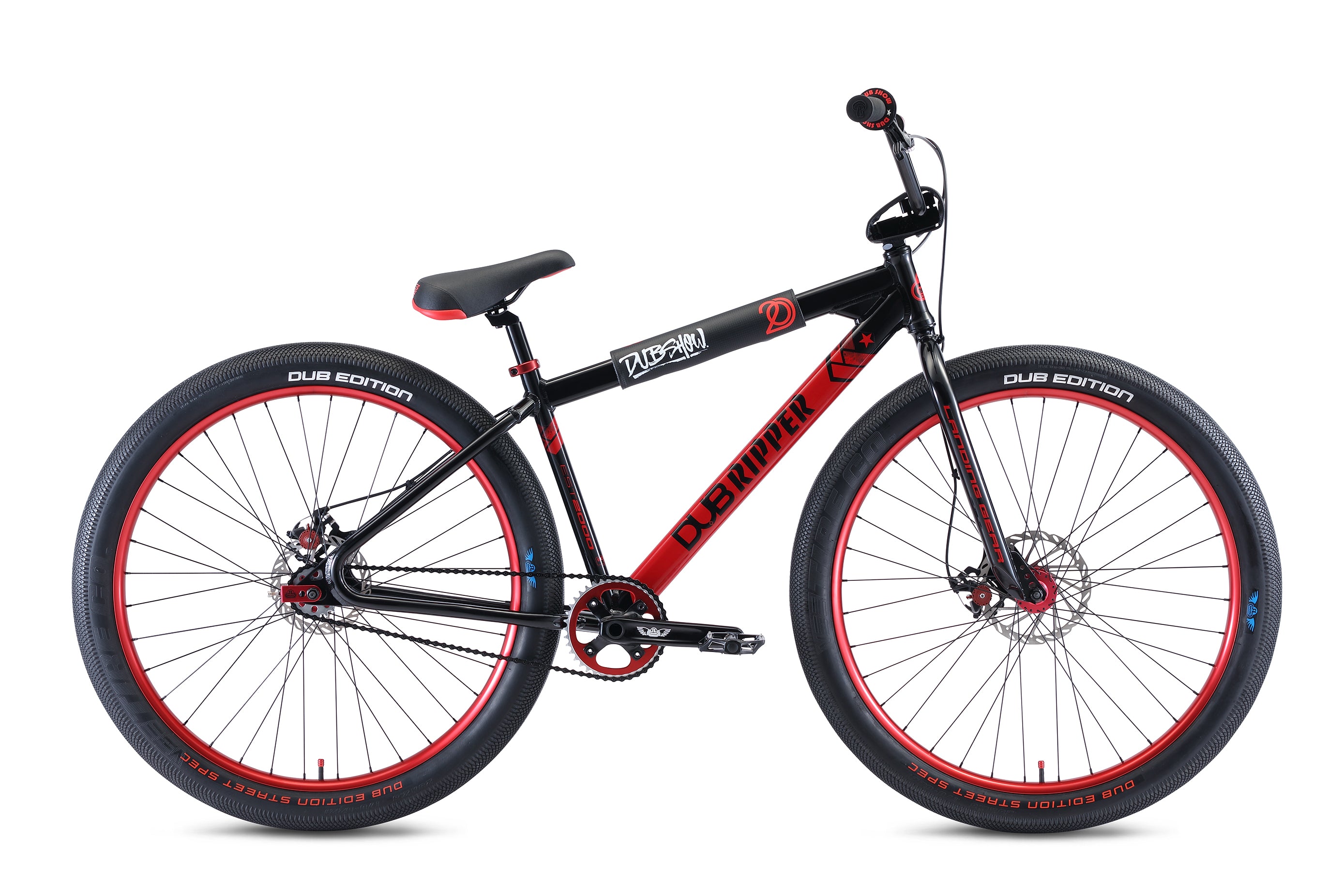

DUB Ripper 29"+ (2020)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs |
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC 51 |
| Wheelset | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes |
| Tires | Vee Tire Co x DUB Edition SE Racing Speedster, 29" x 2.8" Front & Rear |
| Brakeset | Avid BB5, Mechanical Disc, Easy to Adjust w/ Tri-Align Caliper Positioning System, 180mm Front Rotor, 160mm Rear Rotor |
| Brake Levers | Tektro MT2.1, 2-Finger Alloy, Front & Rear |
| Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7" , 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on T op & Sides, 55mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ DUB Edition Donuts |
| Seat | DUB Edition Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | Dub Edition Padset, Custom Dub Edition Sticker Sheet, Alloy Valve Caps, SE Chain Tensioners |
| Weight | 33.3 lbs / 15.10 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 23.5" |
| Seat Tube, Center To Top | 17" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 71° |
| E | Chainstay Length | 18.5" |
| Wheelbase | 44.1" | |
| G | Bottom Bracket Height | 12.8" |
| Standover | 31" | |
| Stem | 55mm | |
| Handlebar Width | 29" | |
| Crank | 175mm | |
| Wheel Size | 29" | |
| Seat Post Diameter | 27.2mm |
