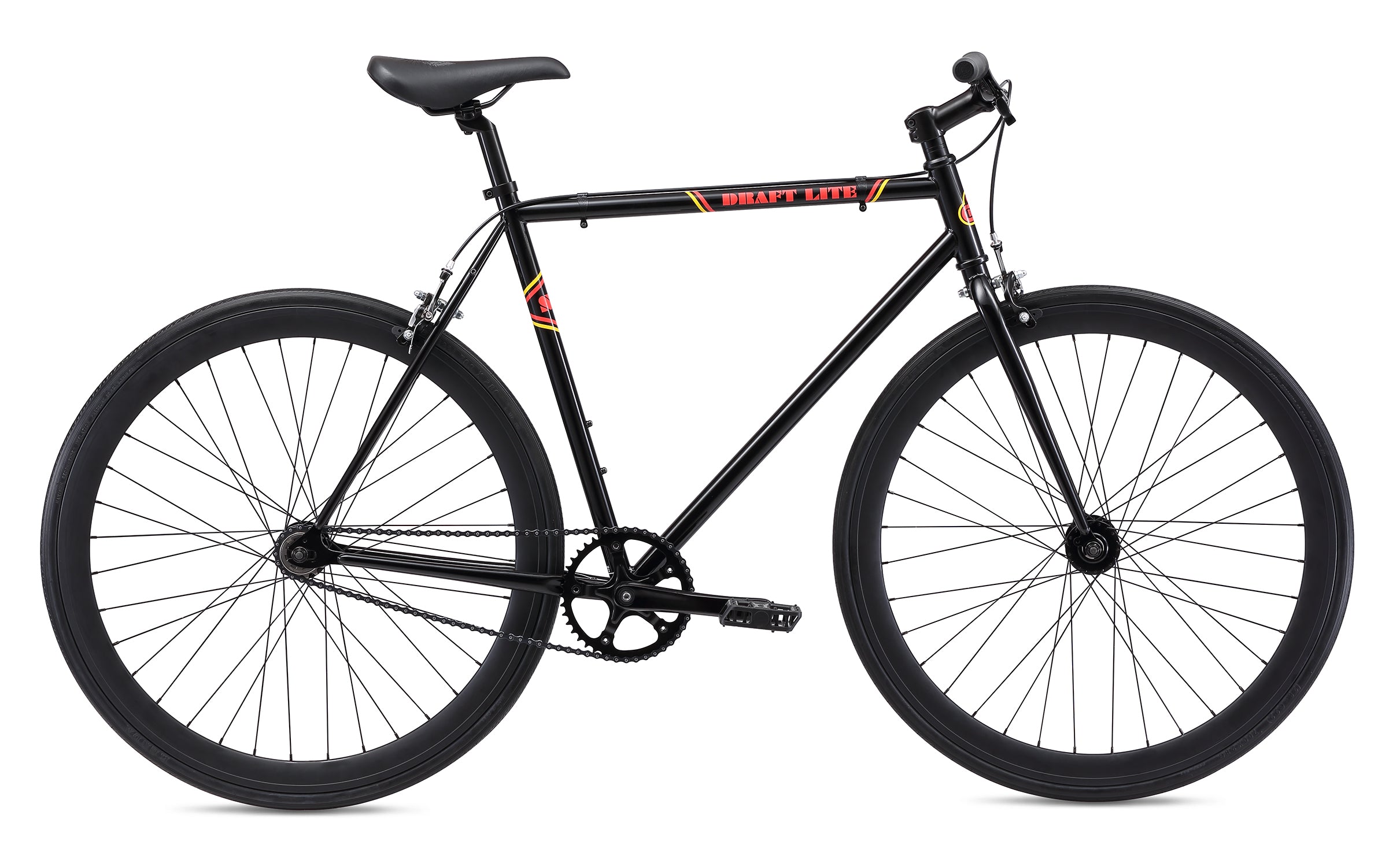

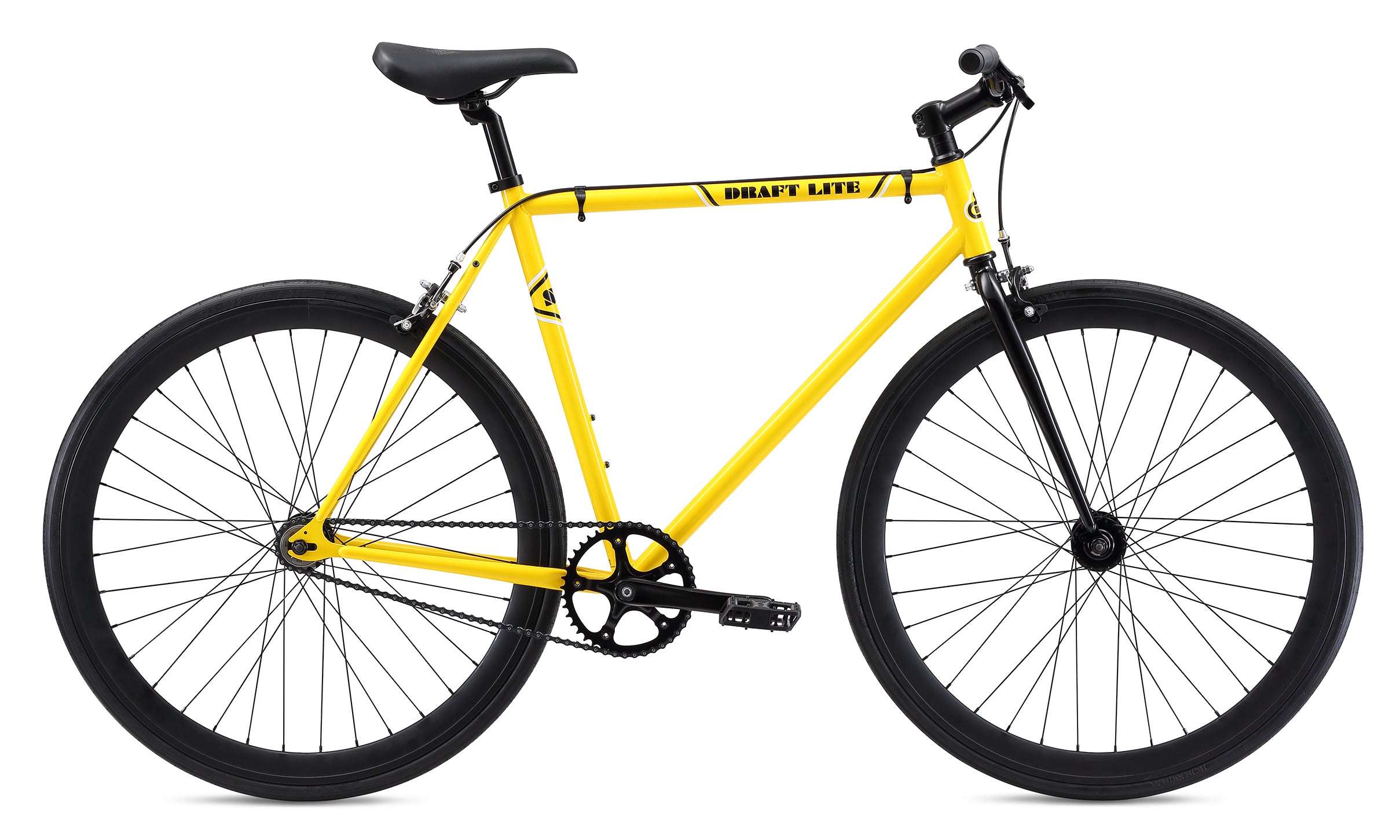

Draft Lite 700c (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Hi-Ten Urban Single Speed, Butted Top Tube and Down Tube, Water Bottle & Fender Mounts |
| Fork | Hi-Ten SE Straight Leg w/ Fender Mounts |
| Crankset | SE Alloy, Cartridge BB, 42T Chainring |
| Pedals | Resin Platform |
| Chain | KMC Z410A |
| Wheelset | SE High-flange Alloy Fixed/Free 36H Hubs w/ High-profile Double-wall Rims, 16T Freewheel / 16T Fixed Cog |
| Tires | Kenda 700 x 28c |
| Brakeset | Alloy Caliper Front & Rear |
| Brake Levers | 2-Finger Alloy Lever Front & Rear |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Riser, 580mm Wide |
| Stem | SE Alloy, 10 Degree Rise, 25.4mm Clamp |
| Grips | SE Urban Mushroom Grips w/ SE Rubber End Plugs |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Micro Adjust Alloy, 27.2mm |
| Accessories | SE Cable Clips |
| Weight | 26.80 lbs / 12.15 kgs |
Specifications subject to change without notice.
GEOMETRY
| Bike Size | 49cm, 52cm, 55cm, 58cm | |
| Size | XS, S, M, L | |
| Seat Tube, Center To Top | 490, 520, 550, 580 | |
| Top Tube, Effective | 553, 562, 573, 580 | |
| Head Tube Length | 90, 95, 125, 155 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay Length | 420, 420, 420, 420 |
| Wheelbase | 1006, 1016, 1028, 1036 | |
| G | Bottom Bracket Drop | 58, 58, 58, 58 |
| Standover | 758, 775, 802, 833 | |
| Stem | 75, 75, 90, 90 | |
| Handlebar Width | 580, 580, 580, 580 | |
| Crank | 165, 165, 170, 170 | |
| Wheel Size | 700c, 700c, 700c, 700c | |
| Seatpost Diameter | 27.2, 27.2, 27.2, 27.2 |
