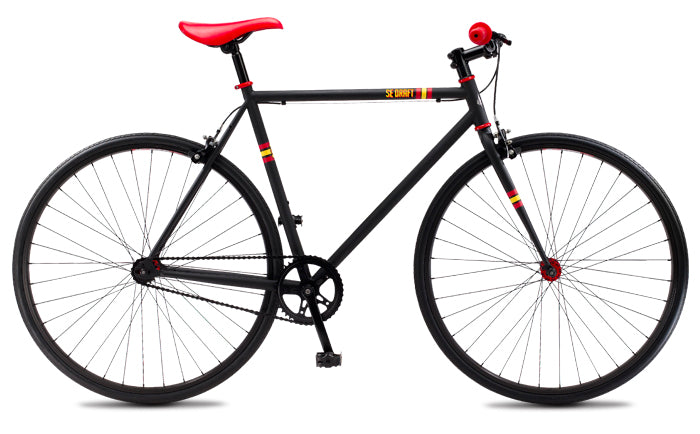

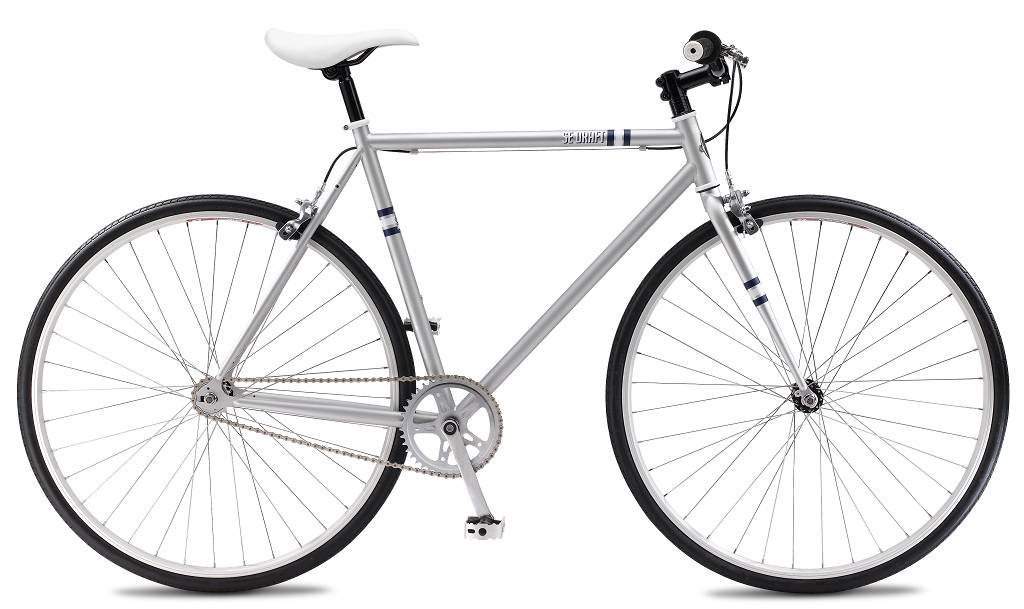

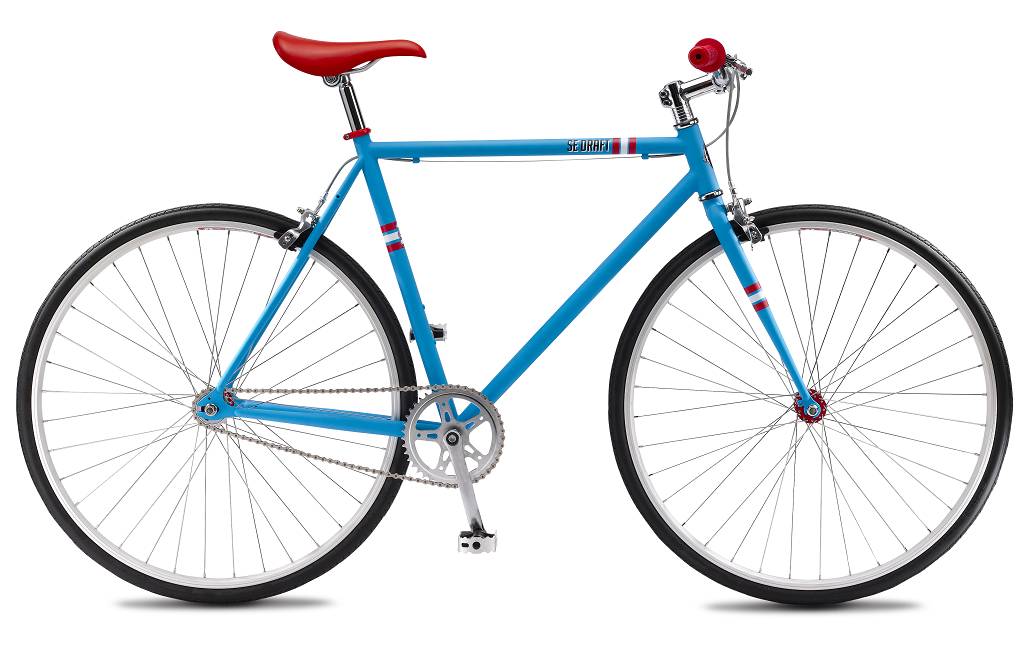

Draft Lite 700c (2011)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts, All Sizes Can Barspin |
| Fork | Hi-Ten Straight Leg w/ Fender Mounts |
| Crankset | SE Alloy, Euro Cartridge BB, 42T |
| Pedals | FPD Resin w/ Alloy Cage |
| Chain | KMC Z410 |
| Wheelset | SE High Flange Alloy Fixed/Free 36H hubs w/Alex DC-25 Double Wall rims, 16T Freewheel & 15T Fixed Cog |
| Tires | Kenda Kwest, 700x28c |
| Brakeset | Radius Alloy Dual Pivot Caliper w/Quick Release |
| Brake Levers | Radius 2 Finger Alloy, F&R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 40mm Riser Bar |
| Stem | SE Alloy, Zero Degree Drop |
| Grips | SE Racing Wing Grip |
| Seat | SE Classic |
| Seatpost | SE Alloy Straight Post, 27.2 |
| Accessories | Removable SE Brake Cable Clips, SE Plastic Grip End Caps |
| Weight | 12.30kg / 27.20lb |
Specifications subject to change without notice.
GEOMETRY
| Size | 43cm, 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| Top Tube, Effective | 503, 545, 551, 551, 561, 564, 569, 576 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 395, 410, 410, 410, 410, 410, 410, 410 |
| Wheelbase | 951, 999, 1005, 1006, 1016, 1021, 1026, 1034 | |
| Head Tube Length | 90, 90, 90, 95, 115, 135, 155, 185 | |
| G | Bottom Bracket Height | 280, 282, 282, 282, 282, 282, 282, 282 |
| Standover | 703, 749, 758, 774, 793, 812, 831, 860 | |
| Crank | 165, 165, 165, 165, 170, 170, 170, 170 | |
| Stem | 75, 75, 75, 75, 90, 90, 90, 90 | |
| Handlebar Width | 580, 580, 580, 580, 580, 580, 580, 580 |
