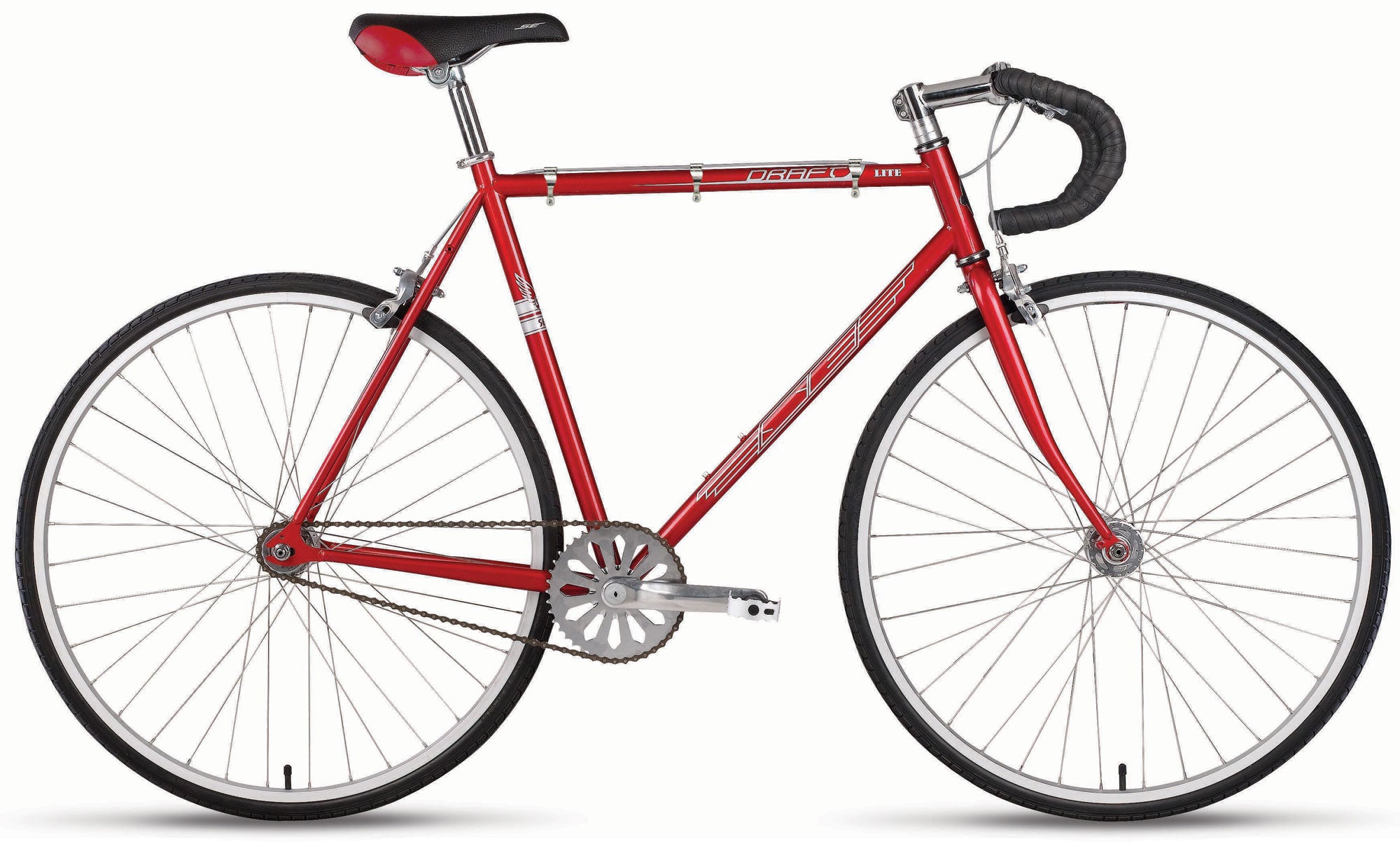

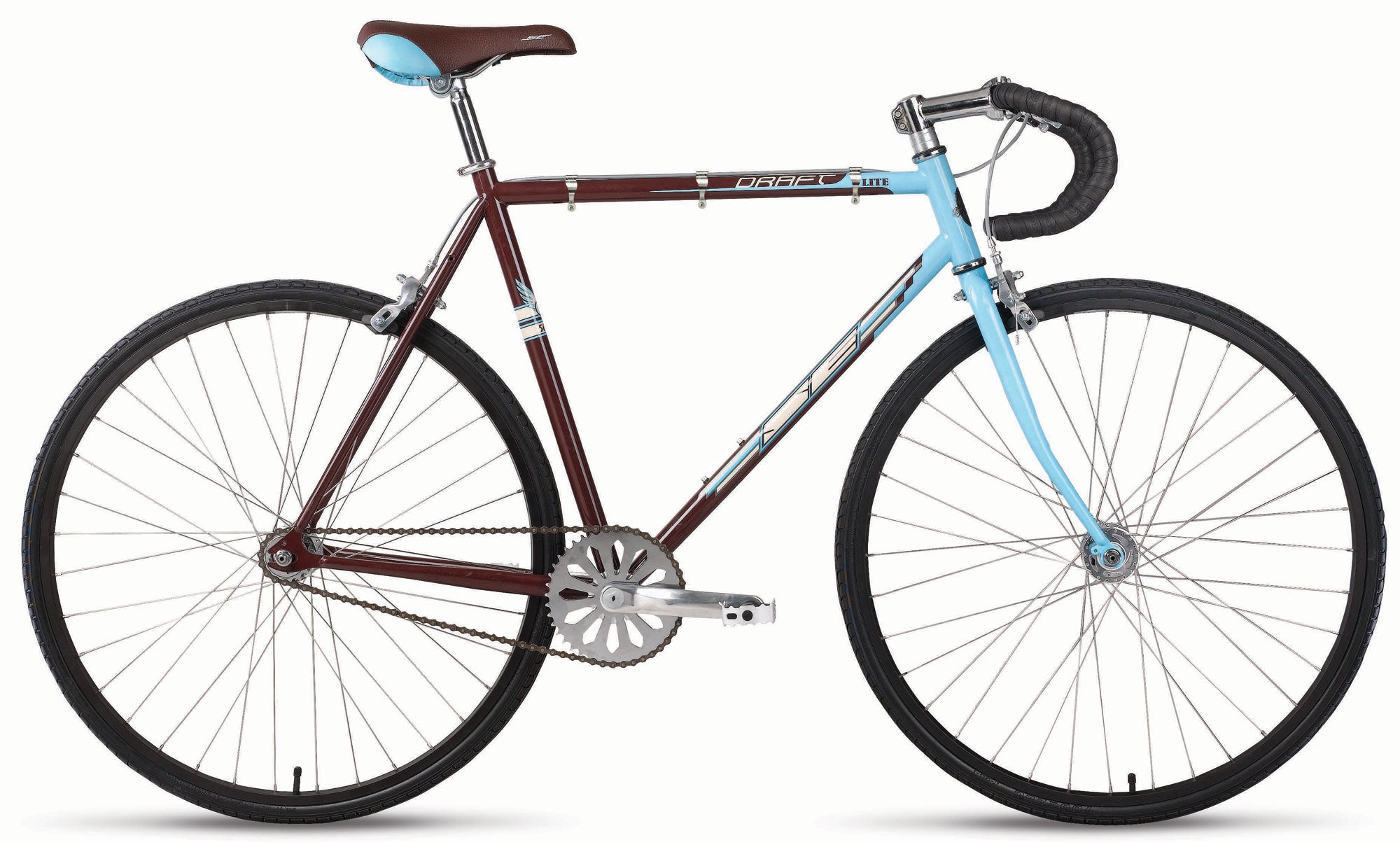

Draft Lite 700c (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts |
| Fork | Hi-Ten w/ Fender Mounts |
| Crankset | 3-pc Alloy, Euro Cartridge BB, 42T |
| Pedals | FPD Resin w/ Alloy Cage |
| Chain | KMC Z410 |
| Wheelset | Alex DC25, Double Wall, 36H, Stainless Spokes; SE High Flange Alloy, 36H, Nutted Front Hub; Rear Hub |
| Tires | 700 X 28c |
| Brakeset | Radius Alloy Caliper F & R |
| Brake Levers | Radius 2 Finger Alloy, F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Drop Bar |
| Stem | SE, 10 Degree Drop |
| Grips | SE Logo Cushion Wrap Foam |
| Seat | SE Super Light |
| Seatpost | SE Straight Post 27.2 |
| Accessories | Front & Rear Fender Mounts, Removable SE Brake Cable Clips |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 530, 539, 546, 555, 560, 563, 570 |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74 |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72 |
| E | Chainstay Length | 409, 409, 409, 409, 409, 409, 409 |
| G | Bottom Bracket Height | 282, 282, 282, 282, 282, 282, 282 |
| Wheel Size | 700c |
