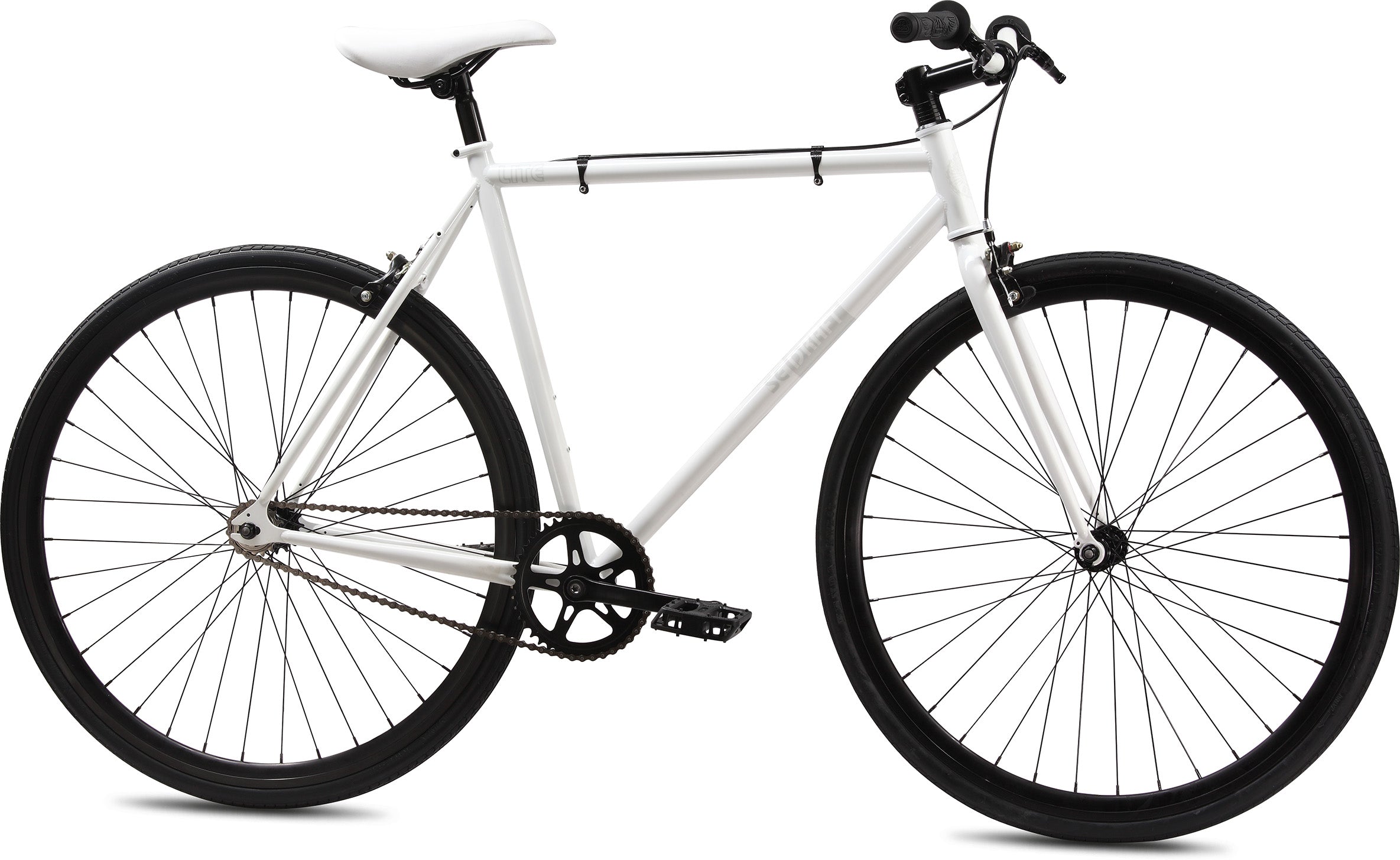

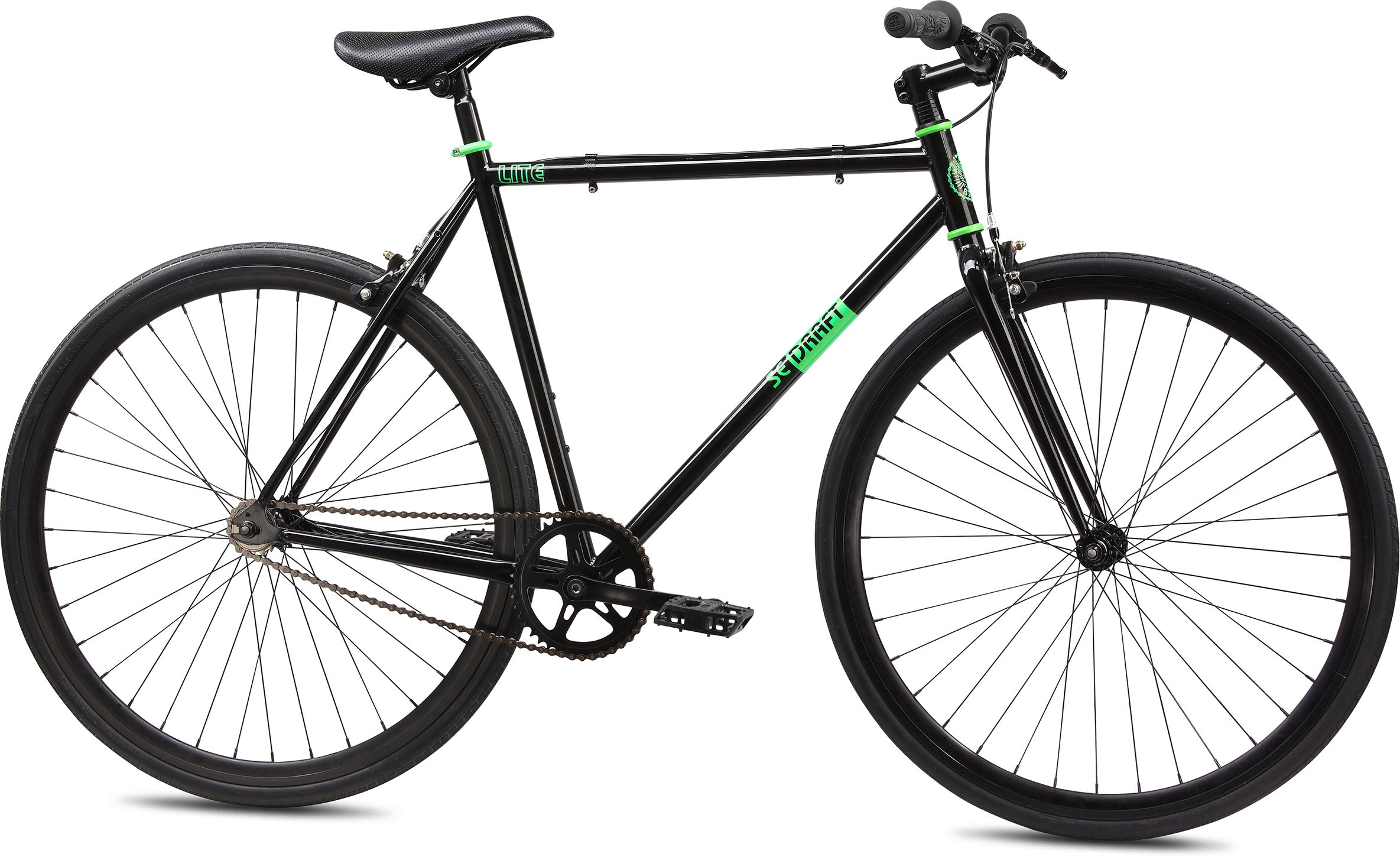

Draft Lite 650/700c (2013)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts, Wide Tire Clearance, All Sizes Can Barspin |
| Fork | Straight Leg Hi-Ten w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Steel, Euro Cartridge BB, 42T |
| Pedals | SE Resin Platform |
| Chain | KMC Z410A |
| Wheelset | SE Alloy Fixed/Free 36H Hubs w/ High-profile Double-wall Rims, 16T Freewheel & 16T Fixed Cog |
| Tires | Kenda Kwest 700 x 28c; 43cm Bike: Kenda Kriterium 650x28c |
| Brakeset | Promax Alloy Caliper w/ Quick-Release F & R |
| Brake Levers | Tektro 289A 2-Finger Alloy F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 23" x 1.5" Riser Bar |
| Stem | Zero Degree Drop, 25.4mm Clamp |
| Grips | SE Racing Wing Grip w/ Rubber SE End Plugs |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Straight Post, 27.2mm |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 27.20lbs / 12.33kgs (55cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 43cm (650c), 49cm, 52cm, 55cm, 58cm | |
| Top Tube, Effective | 503mm, 551mm, 551mm, 563mm, 569mm | |
| Head Tube | 90mm, 90mm, 95mm, 125mm, 155mm | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 390mm, 410mm, 410mm, 410mm, 410mm |
| Wheelbase | 946mm, 1005mm, 1006mm, 1018mm, 1026mm | |
| G | Bottom Bracket Height | 280mm, 282mm, 282mm, 282mm, 282mm |
| Seat Post Diameter | 27.2mm, 27.2mm, 27.2mm, 27.2mm, 27.2mm | |
| Standover | 703mm, 758mm, 774mm, 801mm, 831mm | |
| Stem | 65mm, 65mm, 65mm, 80mm, 90mm | |
| Handlebar Width | 580mm, 580mm, 580mm, 580mm, 580mm | |
| Crank | 165mm, 165mm, 165mm, 170mm, 170mm |
