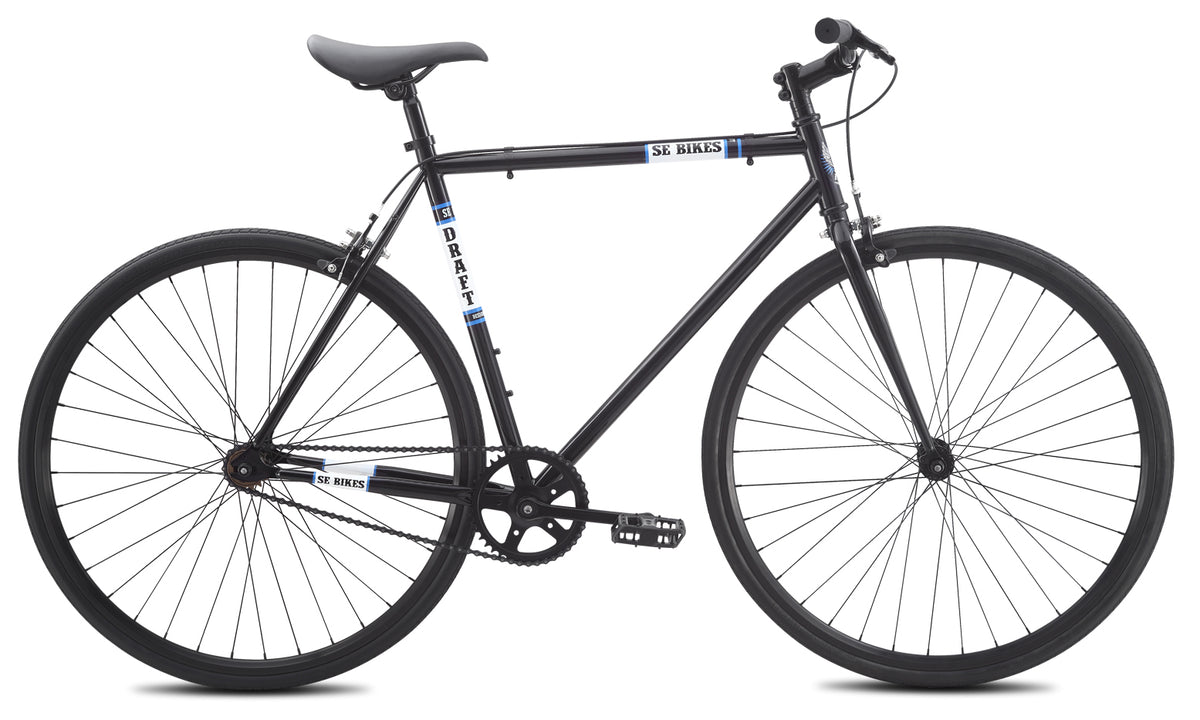

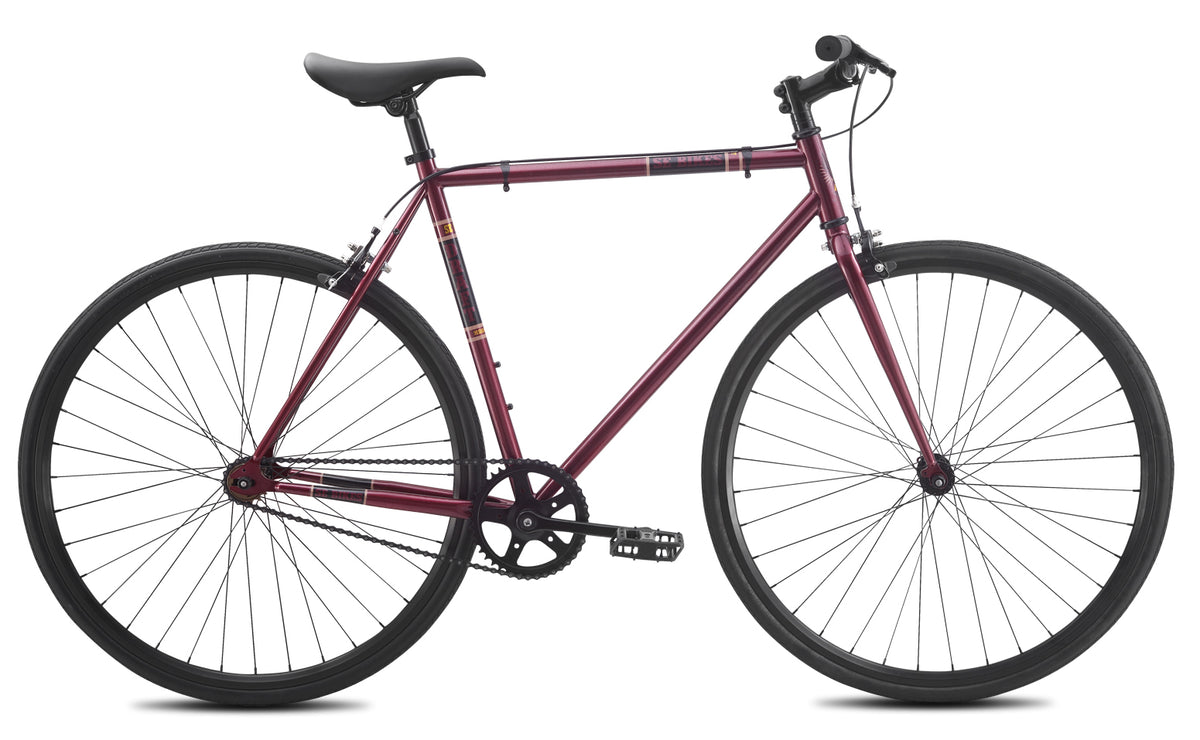

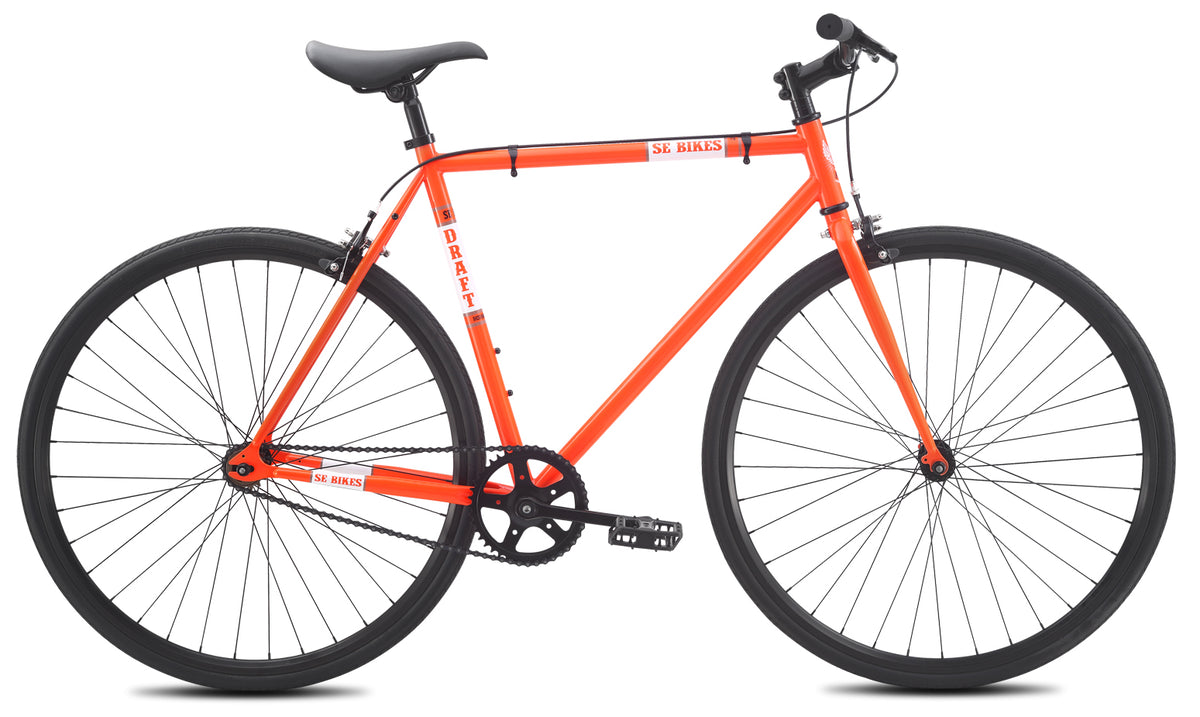

Draft 700c (2016)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Water Bottle & Fender Mounts, Wide Tire Clearance |
| Fork | SE Straight Leg Hi-Ten w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Steel, 42T |
| Pedals | SE Resin Platform |
| Chain | KMC HV410 |
| Wheelset | SE 36H Hubs w/ Medium-profile Double-wall Rims, 16T Freewheel |
| Tires | Kenda Kwest 700 x 28c |
| Brakeset | Alloy Caliper F & R |
| Brake Levers | 2-Finger Alloy Lever F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 23" x 1.5" Riser Bar |
| Stem | Steel, 25.4mm Clamp |
| Grips | Urban Grips, Closed End |
| Seat | Classic Style |
| Seatpost | Steel Straight Post, 27.2mm |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 27.10lbs / 12.3kgs (55cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 49cm, 52cm, 55cm, 58cm | |
| Top Tube, Effective | 550, 552, 563, 569 | |
| Head Tube Length | 90, 95, 125, 155 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay | 410, 410, 410, 410 |
| Wheelbase | 994, 995, 1008, 1015 | |
| G | Bottom Bracket Height | 282, 282, 282, 282 |
| Seat Post Diameter | 27.2, 27.2, 27.2, 27.2 | |
| Standover | 766, 783, 810, 839 | |
| Stem | 65, 65, 80, 80 | |
| Handlebar Width | 580, 580, 580, 580 | |
| Crank | 165, 165, 170, 170 |
