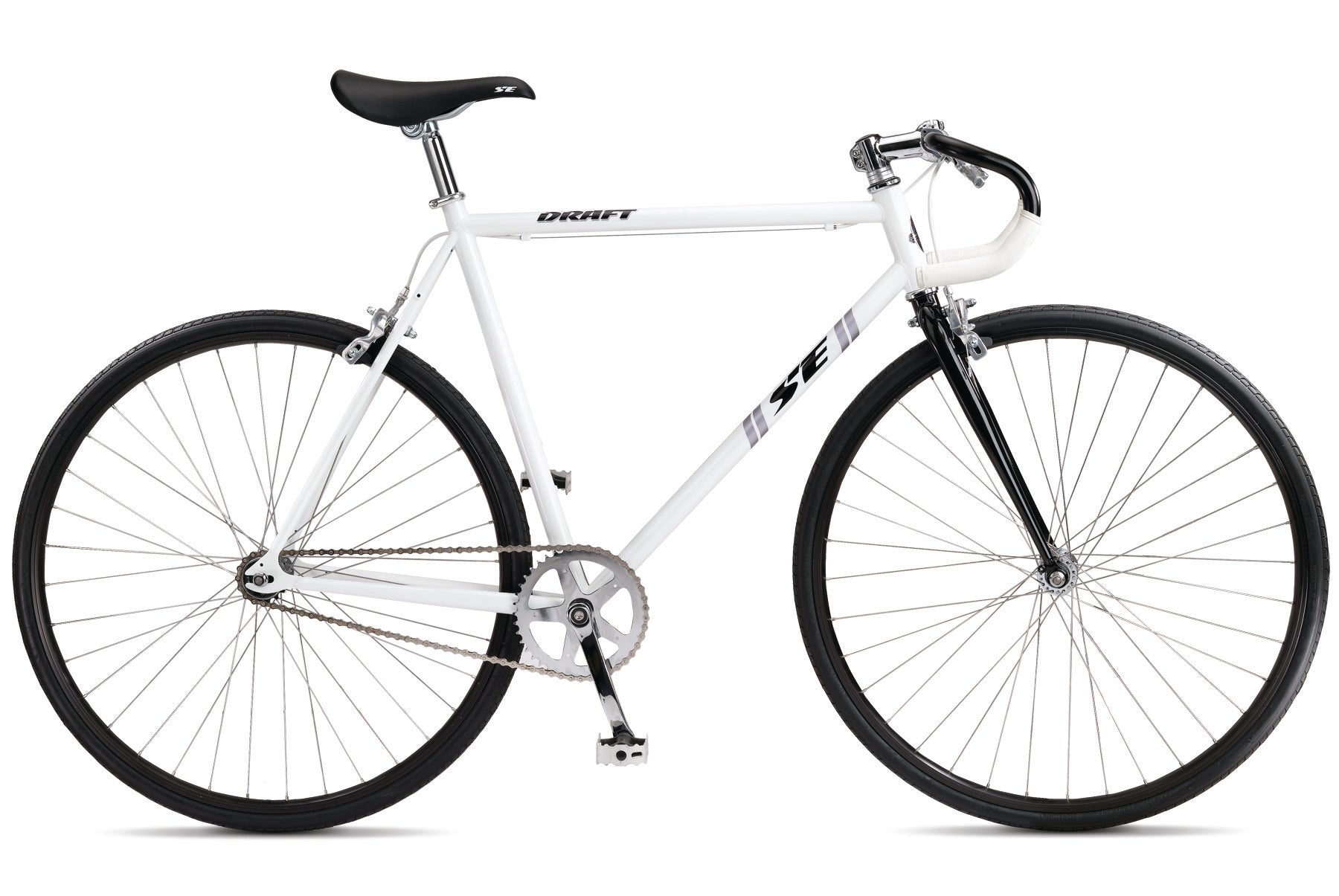

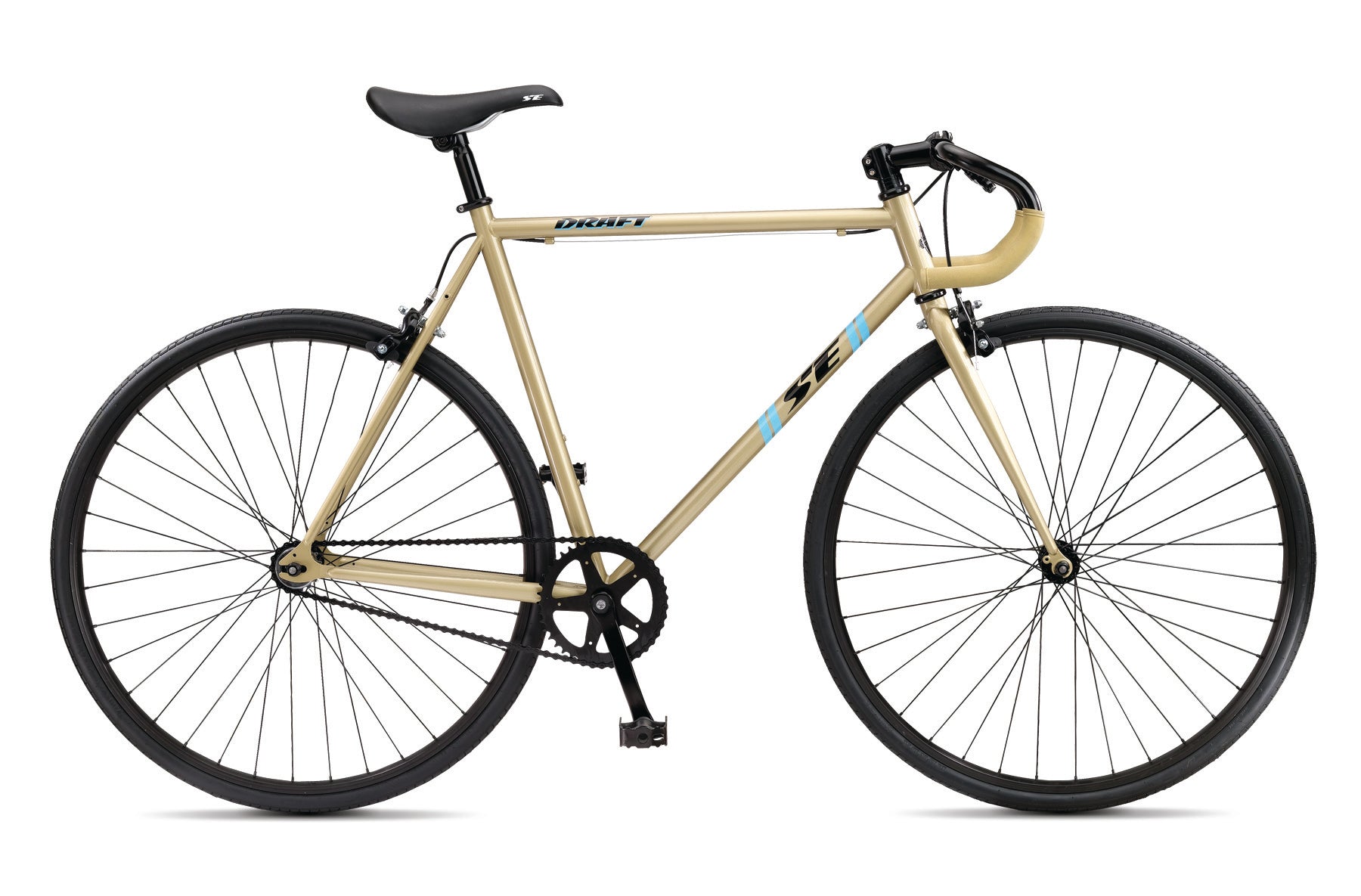

Draft 700c (2010)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts, All Sizes Can Barspin |
| Fork | Hi-Ten Straight Leg w/ Fender Mounts |
| Crankset | 3-pc Steel, Euro Cartridge BB, 42T |
| Pedals | FPD Resin w/ Alloy Cage |
| Chain | KMC Z410 |
| Wheelset | Alex DC25, Double Wall, 36H, Stainless Spokes; SE 36H, Nutted Front Hub; SE Single Speed 36H, Nutted, w/ 16T Freewheel Rear Hub |
| Tires | Kenda Kwest 700 x 28C |
| Brakeset | Radius Alloy Caliper F & R |
| Brake Levers | Radius, 2 Finger Alloy, F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE Drop Bar |
| Stem | SE, 10 Degree Drop |
| Grips | SE Logo Cushion Wrap Foam |
| Seat | SE Classic |
| Seatpost | SE Straight Post 27.2mm |
| Accessories | Front & Rear Fender Mounts, SE Plastic Grip End Caps |
| Weight | 27.4 lbs (56cm) |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 530, 539, 546, 555, 560, 563, 570 |
| A | Top Tube, Effective | 540, 545, 547, 556, 561, 565, 572 |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 410, 410, 410, 410, 410, 410, 410 |
| G | Bottom Bracket Height | 282, 282, 282, 282, 282, 282, 282 |
| Wheel Base | 993, 998, 998, 1008, 1013, 1018, 1026 | |
| Fork Rake | 45, 45, 45, 45, 45, 45, 45 | |
| Headtube | 90, 90, 95, 115, 135, 155, 185 | |
| Standover | 736, 745, 762, 781, 800, 819, 848 |
