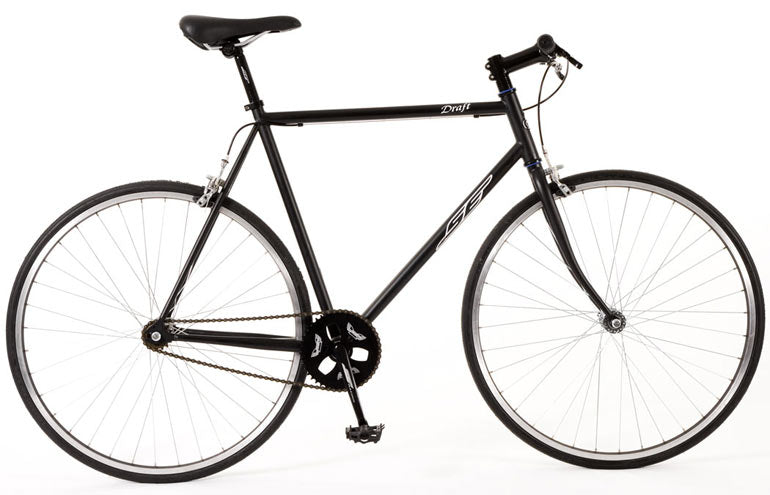

Draft 700c (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Hi-Ten |
| Fork | Hi-Ten |
| Crankset | 1-pc, 170mm; 42T Sprocket; Steel Waterproof Bottom Bracket |
| Pedals | Wellgo Plastic w/ Alloy Cage |
| Cassette | 16T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex Z1000 w/ Ground Sidewalls; 36H, Nutted Front Hub; Single Speed 36H, Nutted Rear Hub; 14g Stainless Spokes |
| Tires | Kenda K176, 700 X 28c |
| Brakeset | Tektro Alloy Caliper |
| Brake Levers | Tektro 2 Finger Alloy |
| Headset | Ritchey 1-1/8" Threadless |
| Handlebar | Steel Flatbar 22" wide |
| Stem | Steel |
| Grips | SE Kraton Rubber |
| Seat | SE Padded |
| Seatpost | SE Straight Post 27.2 |
| Seat Clamp | Alloy |
| Accessories | Front & Rear Fender Mounts |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 49cm, 54cm, 58cm, 61cm | |
| A | Top Tube, Actual | 539, 555, 563, 570 |
| C | Seat Tube Angle | 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay Length | 409, 409, 409, 409 |
| G | Bottom Bracket Height | 282, 282, 282, 282 |
| Wheel Size | 700c |
