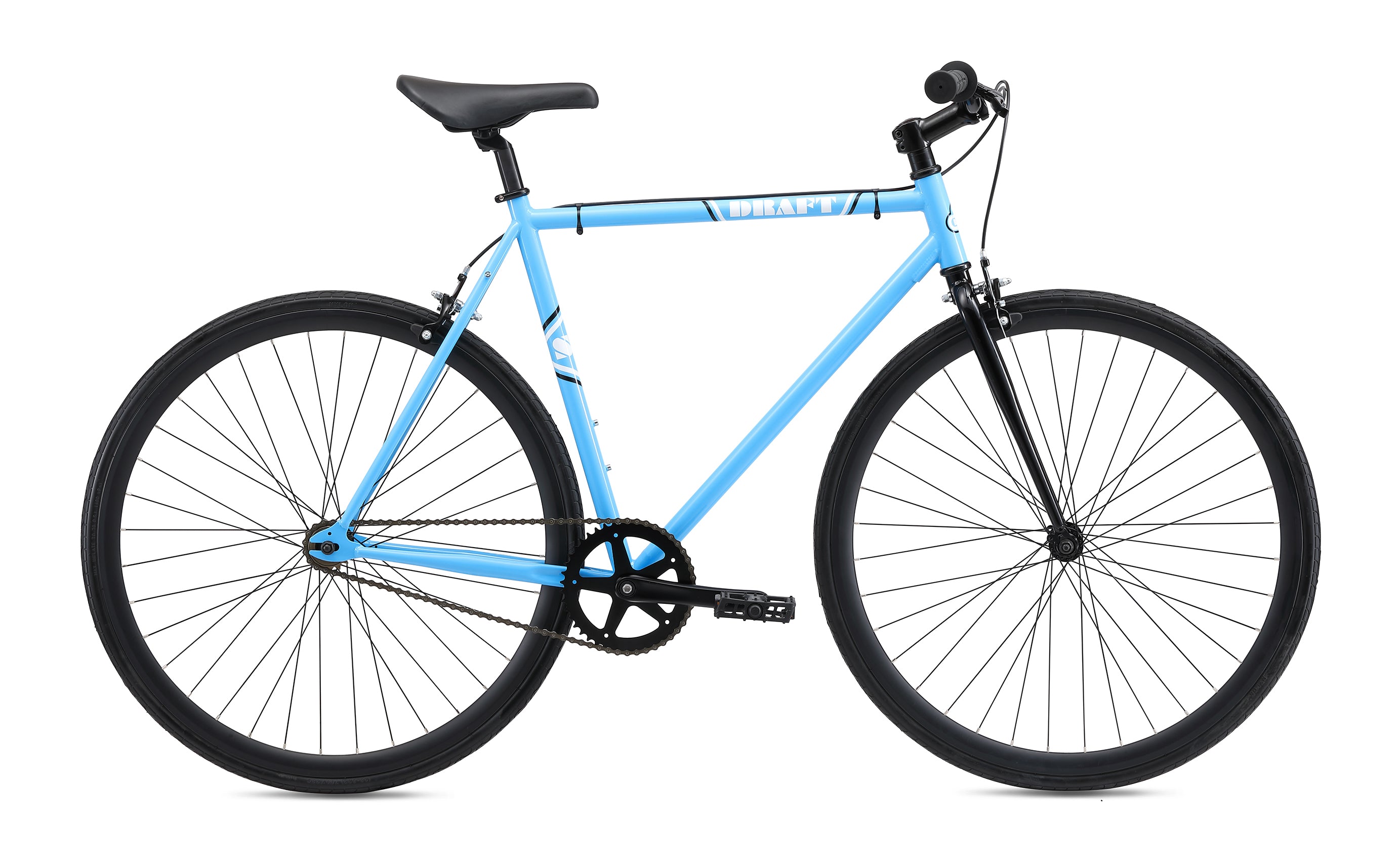

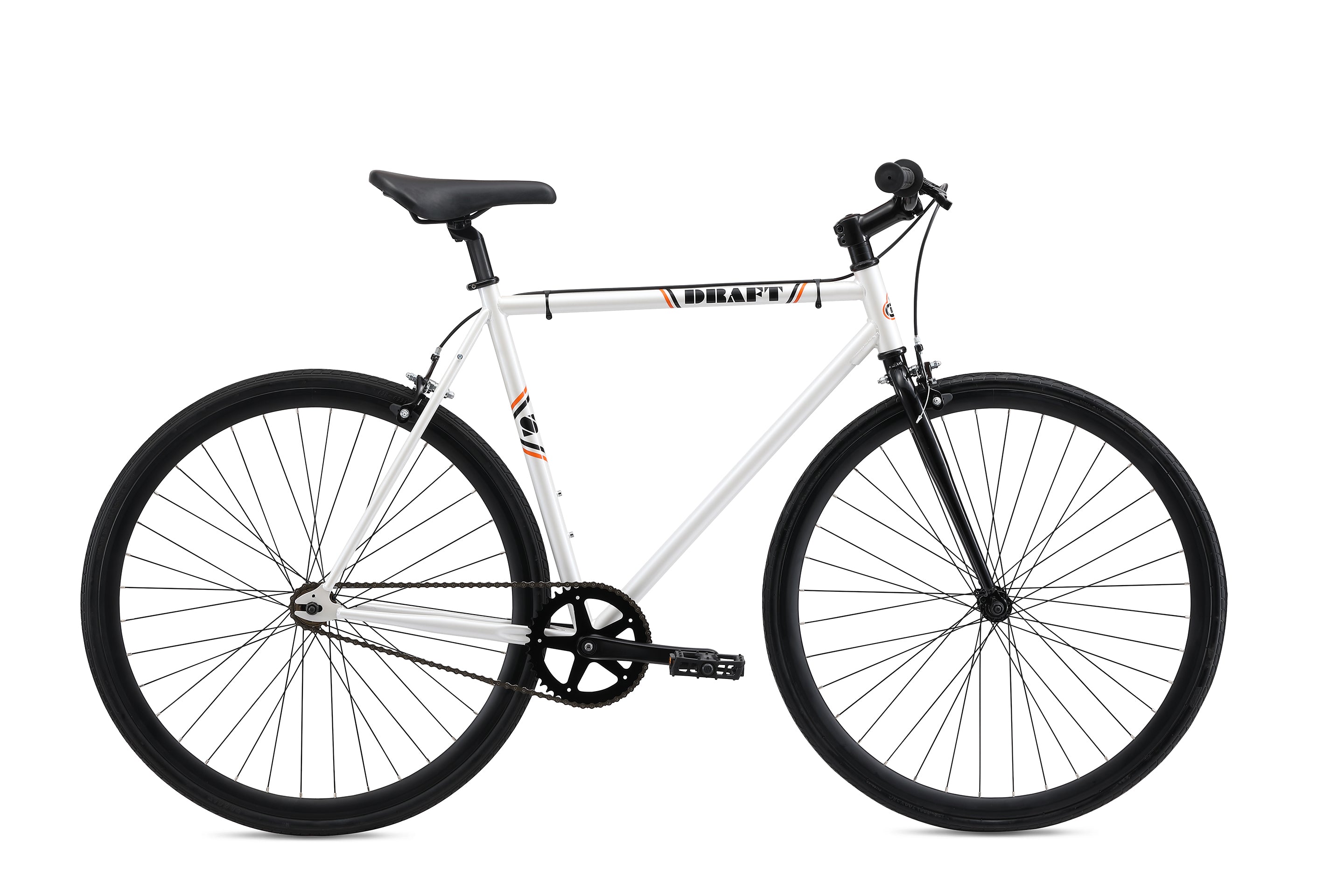

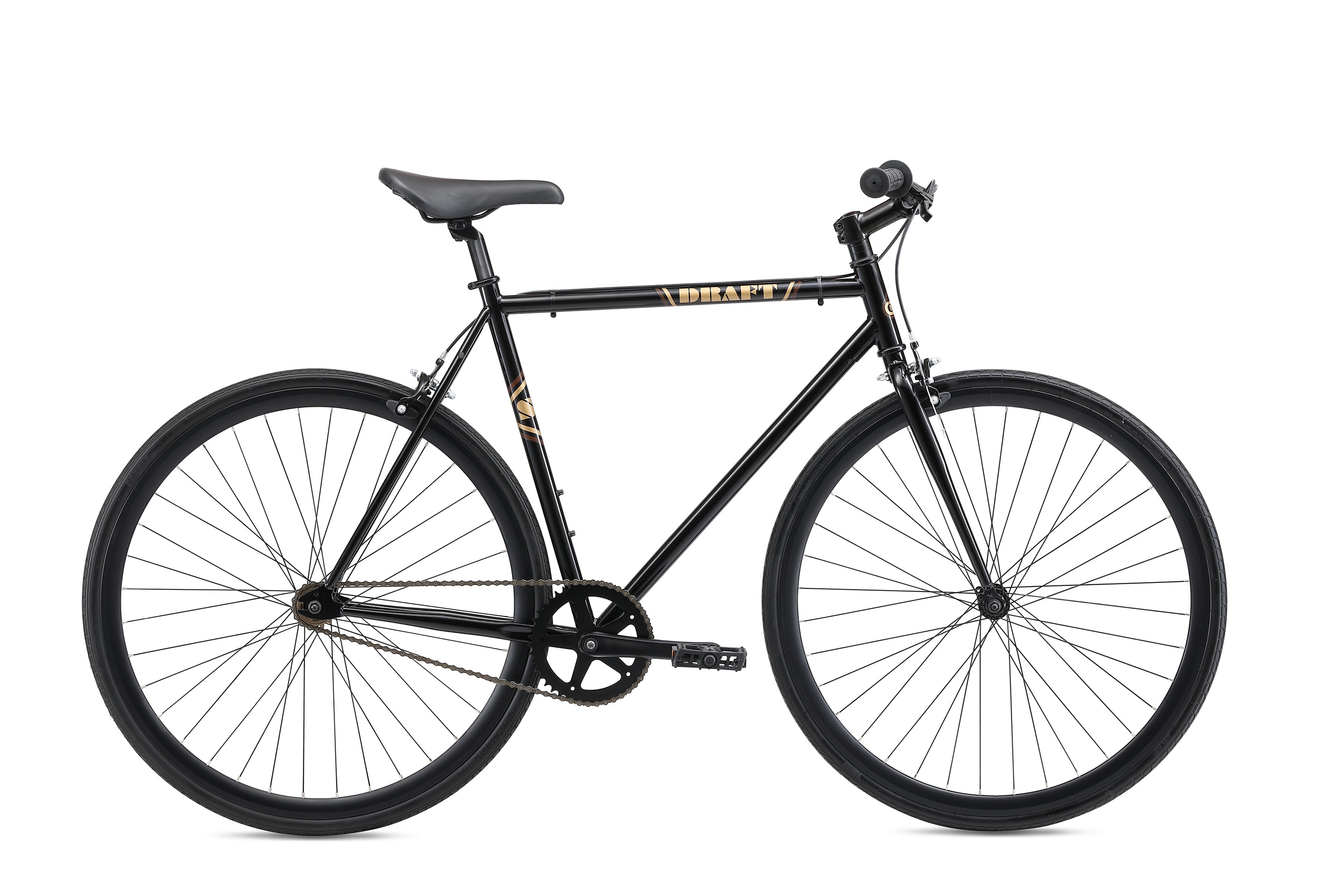

Draft 700c (2019)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Hi-Ten Urban Single Speed, Water Bottle & Fender Mounts |
| Fork | Hi-Ten SE Straight Leg w/ Fender Mounts |
| Crankset | SE Alloy, 44T Chainring |
| Pedals | Resin Platform |
| Chain | KMC HV410A |
| Wheelset | 36H Hubs w/ Double-wall Rims, 16T Freewheel |
| Tires | 700 x 28c |
| Brakeset | Alloy Caliper Front & Rear |
| Brake Levers | 2-Finger Alloy Lever Front & Rear |
| Headset | 1-1/8" Threadless |
| Handlebar | SE Riser, 580mm wide |
| Stem | SE Alloy, 10 Degree Rise, 25.4mm Clamp |
| Grips | Urban Grips, Closed End |
| Seat | Urban |
| Seatpost | SE Micro Adjust Alloy, 27.2mm |
| Seat Clamp | Cable Clips |
| Maximum Permissible Weight | 27.10 lbs / 12.30 kgs |
Specifications subject to change without notice.
GEOMETRY
| Bike Size | 49cm, 52cm, 55cm, 58cm | |
| Size | XS, S, M, L | |
| A | Top Tube, Actual | 490, 520, 550, 580 |
| Top Tube, Effective | 550, 552, 563, 569 | |
| Seat Tube, Center To Top | 74°, 74°, 74°, 74° | |
| D | Head Tube Angle | 72°, 72°, 72°, 72° |
| E | Chainstay Length | 404, 404, 404, 404 |
| Wheelbase | 988, 989, 1002, 1009 | |
| G | Bottom Bracket Height | 58, 58, 58, 58 |
| Standover | 766, 783, 810, 839 | |
| Stem | 65, 65, 80, 80 | |
| Handlebar Width | 580, 580, 580, 580 | |
| Crank | 165, 165, 170, 170 | |
| Wheel Size | 700c, 700c, 700c, 700c | |
| Seatpost Diameter | 27.2, 27.2, 27.2, 27.2 |
