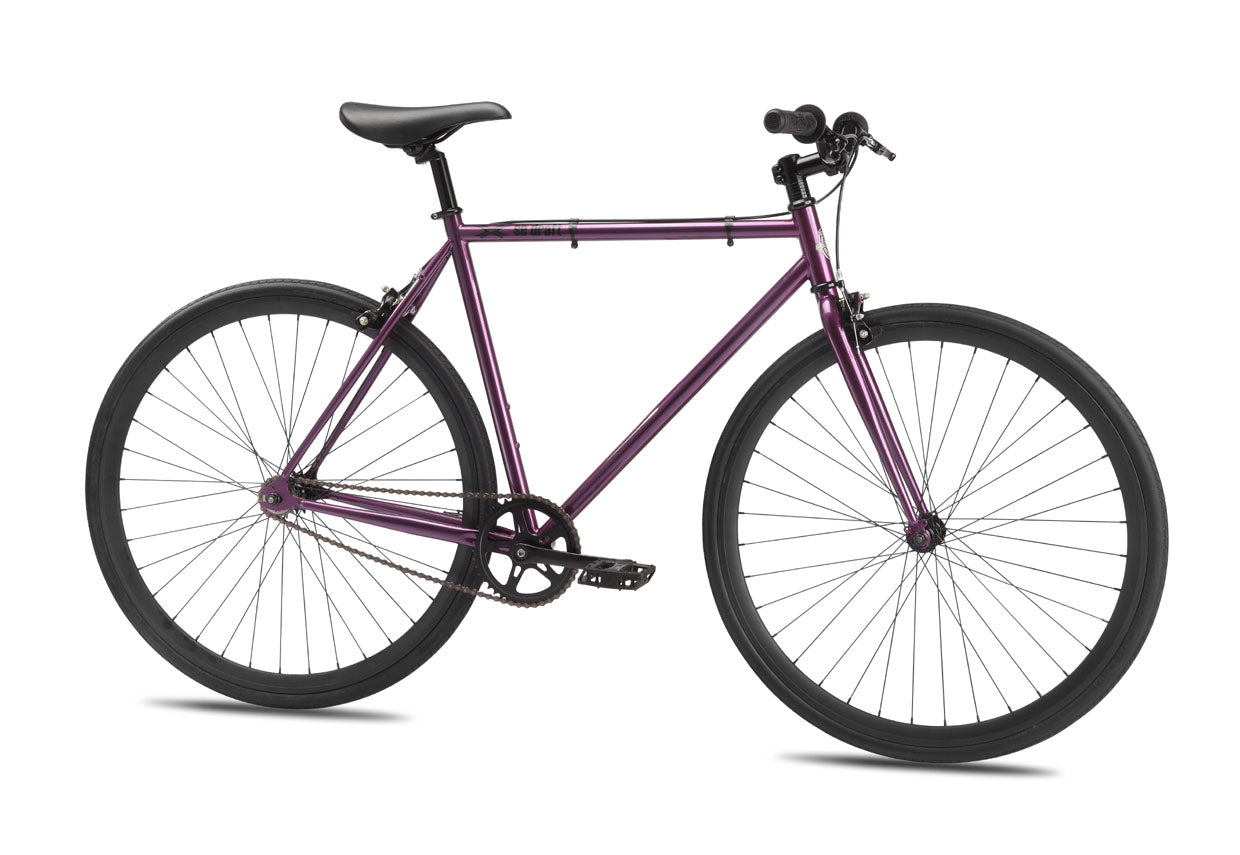

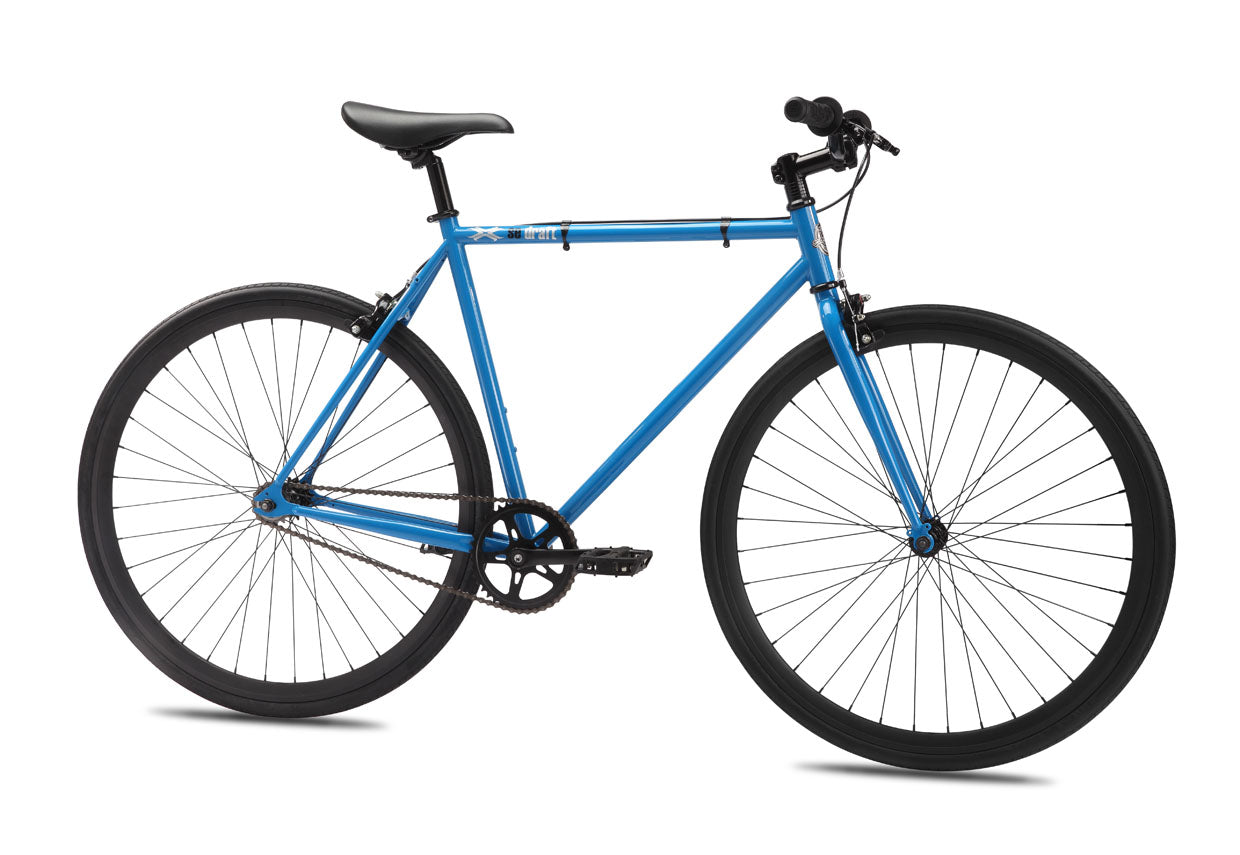

Draft 650/700c (2012)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | Urban Single Speed Design, Hi-Ten, Water Bottle & Fender Mounts, All Sizes Can Barspin |
| Fork | Hi-Ten Straight Leg w/ Fender Mounts & Wide Tire Clearance |
| Crankset | SE Steel, Euro Cartridge BB, 42T |
| Pedals | FPD Resin Platform |
| Chain | KMC Z410 |
| Wheelset | SE Low Flange Alloy, 16T Freewheel, 36H Hubs w/ High Profile Double Wall Rims |
| Tires | Kenda Kwest 700x28c; 43cm bike:Kenda Kriterium 650x28c |
| Brakeset | Radius Alloy Caliper |
| Brake Levers | Radius, 2-Finger Alloy, F & R |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | SE 23 x 1.5" Riser Bar |
| Stem | SE Zero Degree Drop, 25.4mm Clamp |
| Grips | SE Racing Wing Grip w/ Rubber SE End Plugs |
| Seat | SE Classic w/ Bottle Opener |
| Seatpost | SE Straight Post, 27.2 |
| Accessories | Removable SE Brake Cable Clips |
| Weight | 27.40lbs / 12.40kgs (54cm) |
Specifications subject to change without notice.
GEOMETRY
| Size | 43cm, 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| Top Tube, Effective | 503, 545, 551, 551, 561, 565, 569, 576 | |
| C | Seat Tube Angle | 74°, 74°, 74°, 74°, 74°, 74°, 74°, 74° |
| D | Head Tube Angle | 72°, 72°, 72°, 72°, 72°, 72°, 72°, 72° |
| E | Chainstay Length | 390, 410, 410, 410, 410, 410, 410, 410 |
| Wheelbase | 946, 999, 1005, 1006, 1016, 1020, 1026, 1034 | |
| Head Tube Length | 90, 90, 90, 95, 115, 135, 155, 185 | |
| Handlebar Width | 580, 580, 580, 580, 580, 580, 580, 580 | |
| Standover | 703, 749, 758, 774, 793, 812, 831, 860 | |
| Crank | 165, 165, 165, 165, 170, 170, 170, 170 | |
| Stem | 65, 65, 65, 65, 80, 80, 90, 90 |
