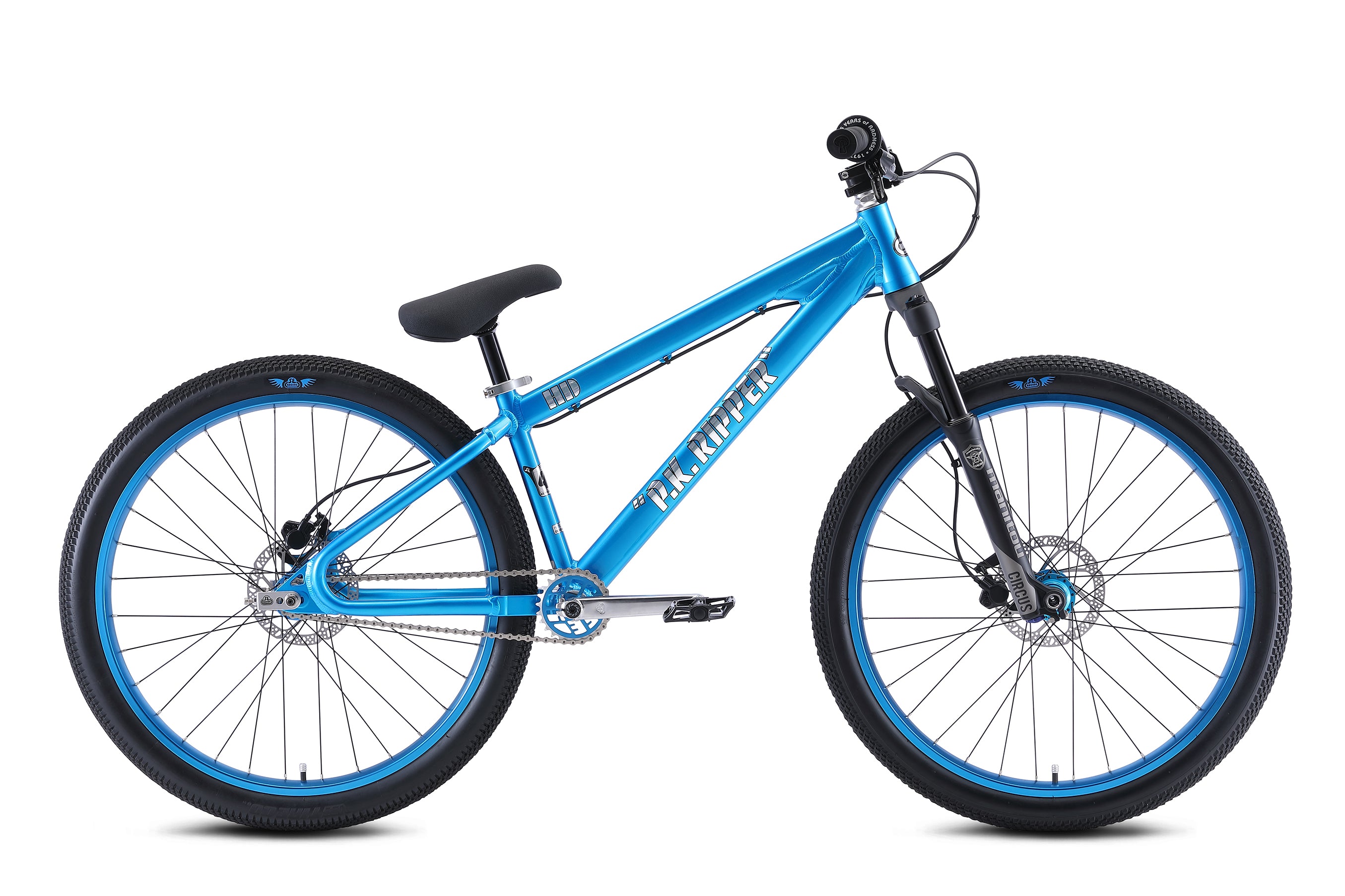

DJ Ripper HD 26" (2022)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Symmetrical Looptail Rear End, 1-1/8"-1.5" Tapered Integrated Head Tube, Seatstays Wrap, Disc Brake Tabs, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts |
| Fork | Manitou Circus Expert, 100mm Travel, 1.5" Tapered Alloy Steerer Tube, Hexlock 20mm Thru Axle, ABS+ Externally Adjustable Compression to Lockout & Rebound, Alloy Stanchions, ACT Air, Internal Shim Stack High Speed Damping |
| Crankset | SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, External Sealed Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Racing Sprocket |
| Pedals | Wellgo Low-profile Platform |
| Chain | KMC S1 |
| Wheelset | Alloy 32H, 20mm Thru Axle 110mm Sealed Front Hub, Nutted 135mmm Sealed Rear Hub, w/ 35mm Double-Wall Rims, 12T Cassette, Stainless Spokes |
| Tires | Vee Tire Co Two Six DJ, 26 x 2.25" Front, 26 x 2.125" Rear |
| Brakeset | Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 160mm Rotors |
| Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
| Headset | Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
| Handlebar | 6061 Aluminum, 29" x 2.5", 10° Backsweep, 1° Upsweep, 31.8mm Clamp Area |
| Stem | Alloy Front Load, Light Weight Cutouts, 31.8mm Clamp, 40mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ 45 Years of Radness SE Donuts |
| Seat | SE Pivotal Seat w/ Padding |
| Seatpost | Pivotal Alloy, 27.2mm |
| Seat Clamp | Quick Release Seat Clamp, Alloy, 31.8mm Inner Diameter |
| Accessories | Alloy Valve Caps, SE Chain Tensioners |
| Wheel Size | 26" |
| Weight | 29.5 lbs / 12.38 kgs |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22.8" |
| Seat Tube, Center To Top | 12.8" | |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 69° |
| E | Chainstay | 15.4" |
| Wheelbase | 41.6" | |
| G | Bottom Bracket Height | 13.2" |
| Standover | 29.5" | |
| Stem | 40mm | |
| Handlebar Width | 29" | |
| Crank | 175mm | |
| Wheel Size | 26" | |
| Seat Post Diameter | 27.2mm |
