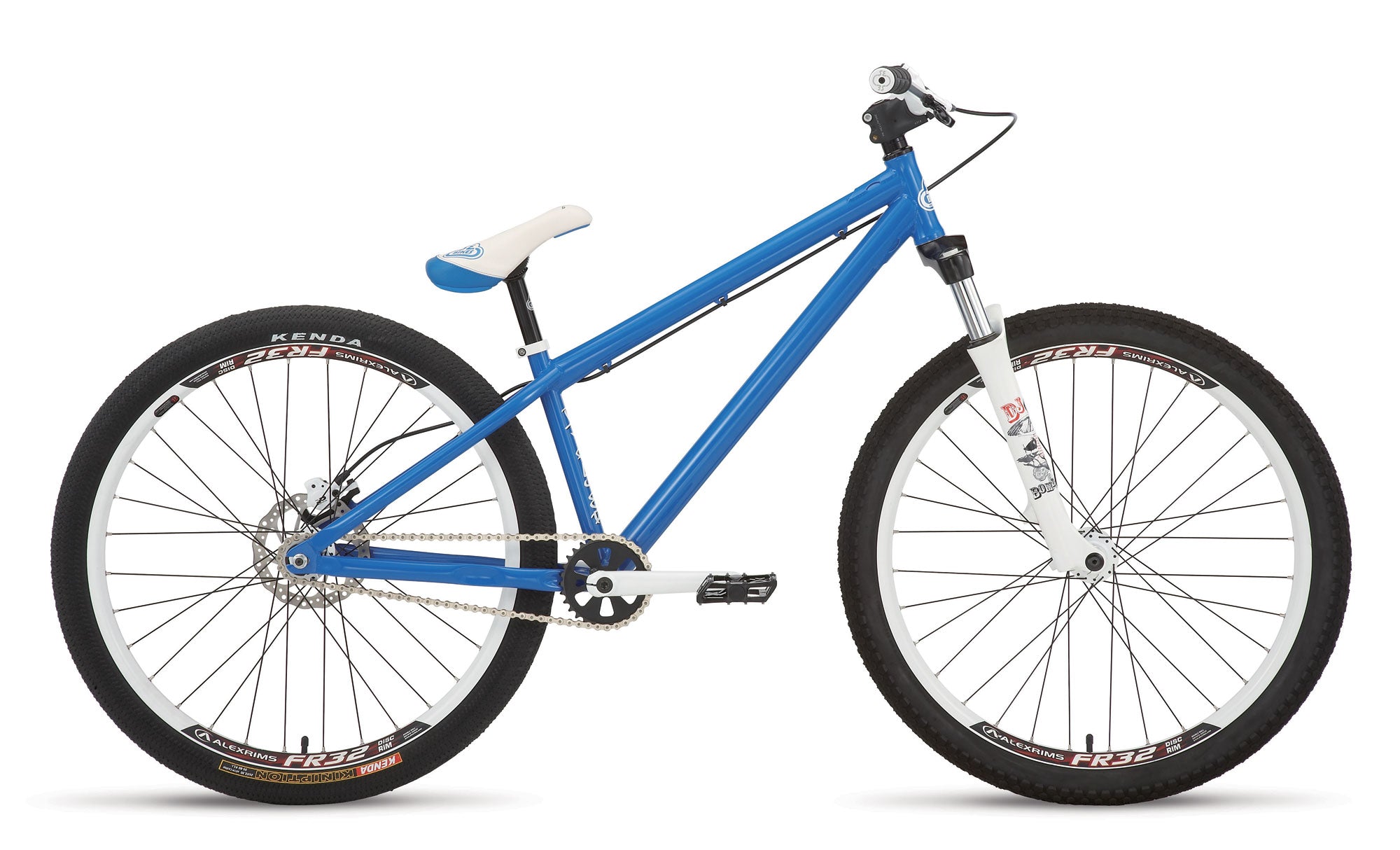

DJ Flyer 26" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 100% Cr-Mo, Integrated Headtube Fillet Gussets |
| Fork | Marzocchi Dirt Jumper 3, 20mm Through Axle, 80mm travel |
| Crankset | SE 3-pc CR-MO, 175mm, Euro 4 Sealed Bearing, 30T Alloy |
| Pedals | X-Pedo MX-6, Aluminum, Cr-Mo Axle, Removable Pins |
| Chain | KMC Z510 Silver |
| Wheelset | Alex FR-32, 36H Double Wall aluminum, With Eyelets, Stainless Spokes; SE Alloy Sealed Bearing Disc, 32H, 20 mmThrough Axle Front Hub; SE Alloy Sealed Bearing Disc, 32H Alloy cassette, Nutted w/ 15T Cog Rear Hub |
| Tires | 26" Kenda K-Rad 2.3 Front, Kenda Kiniption 2.3" Rear |
| Brakeset | Tektro Auriga comp, Hydraulic, 160mm Disc |
| Brake Levers | Tektro Auriga Comp, Hydraulic, Rear Only |
| Headset | Tange 1-1/8" Sealed Integrated |
| Handlebar | SE 1.25" Alloy Riser Bar, 25.5" Wide |
| Stem | SE Front Load Shorty, 1-1/8" Alloy |
| Grips | SE Bubble Jump Grip |
| Seat | SE Pivotal w/Custom Cover |
| Seatpost | Pivotal Micro Adjust Aluminum 25.4 |
| Accessories | SE Alloy End Caps |
| Wheel Size | 26" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 69° |
| E | Chainstay Length | 16" |
| G | Bottom Bracket Height | 12.25" |
| Wheel Size | 26" |
