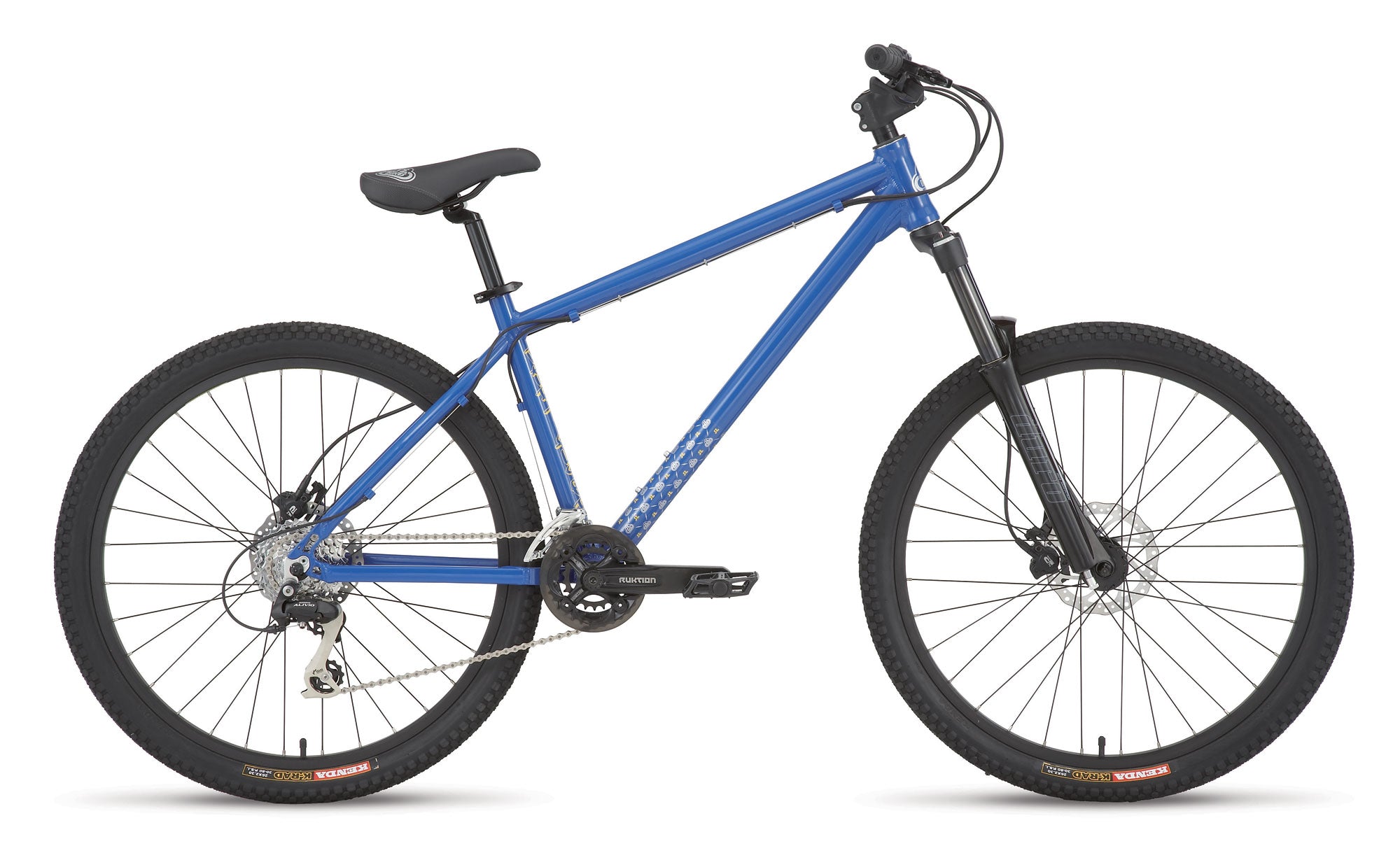

Dirt Flyer 26" (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum, Internally Machined Headtube, Box Chain & Seatstays, Water Bottle Mounts |
| Fork | Suntour SF7 Duro DJ D, 100mm Travel |
| Crankset | Truvativ Ruktion 2, Alloy, 175mm, Sealed Euro, 22T/32T Alloy |
| Pedals | Wellgo Alloy Platform, Cr-Mo Axle |
| Chain | KMC Z-92, Silver |
| Wheelset | Weinmann DM 30, 32H Double Wall Aluminum, w/ Black Stainless 14Ga. Spokes; SE Alloy 32H w/ Quick Release Front Hub; SE Alloy 32H w/Quick Release, w/ Suntour 11-32T, 8 Speed Rear Hub |
| Tires | 26" Kenda K-Rad 2.3" F&R |
| Brakeset | Tektro Auriga comp, Hydraulic, 180mm Disc, F & R |
| Brake Levers | Tektro Auriga Comp, Hydraulic, F & R |
| Headset | Tange 1-1/8" Internal Threadless, Cartridge Sealed, |
| Handlebar | SE Racing 1.25" Alloy Riser Bar, 25.5" Wide |
| Stem | SE Front Load Shorty, 1-1/8" Alloy |
| Grips | SE Bubble Jump Grip |
| Seat | SE Slim Seat w/Custom Cover, 8mm Rails |
| Seatpost | Race Rocker Micro-Adjust Aluminum 27.2 |
| Accessories | Shimano Acera Front Derailluer, Shimano Alivio Rear Derailluer, Shimano Acera Shifters, SE Plastic Grip End Caps |
| Wheel Size | 26" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 22" |
| C | Seat Tube Angle | 73° |
| D | Head Tube Angle | 69° |
| E | Chainstay Length | 16" |
| G | Bottom Bracket Height | 12.2" |
| Seat Tube Length | 14.5" | |
| Wheel Size | 26" |
