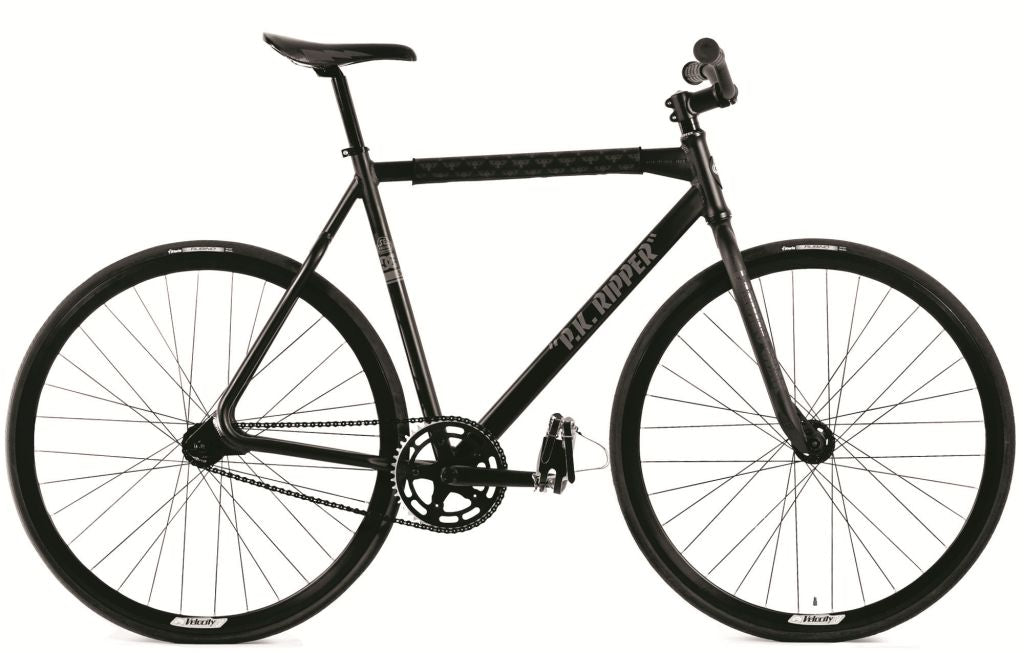

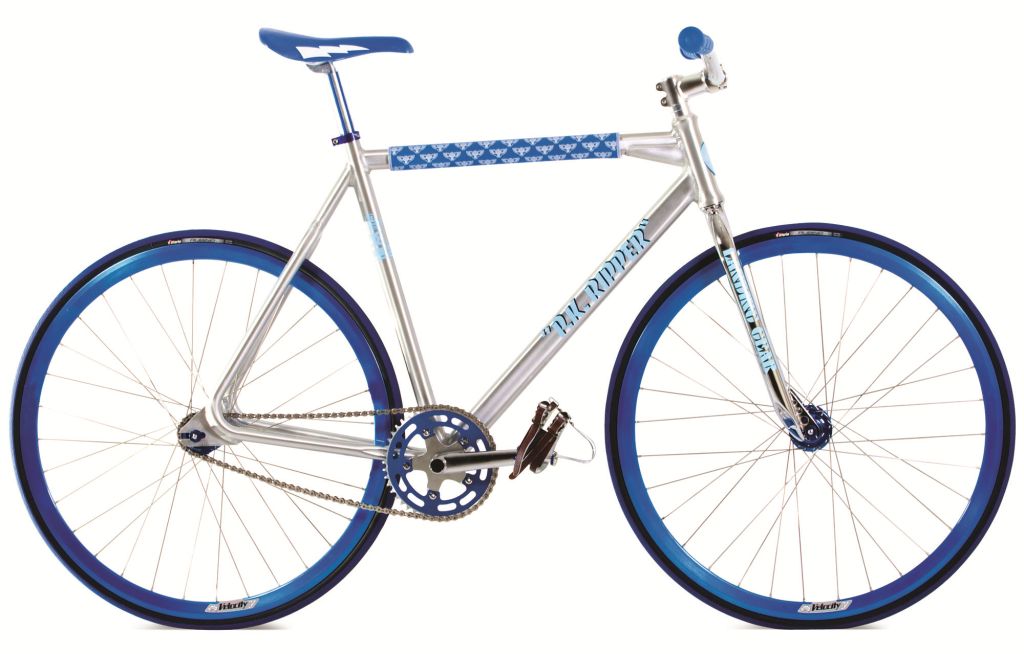

DC x PK Fixed Gear 700c (2009)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum Floval Tubing, Internally Machined Head Tube, Looptail Rear End, Retro Dropouts & Gussets |
| Fork | 100% Cr-Mo Landing Gear w/ Cr-Mo Steer Tube |
| Crankset | SE 3-pc Cr-Mo, 48 Spline Sealed Euro, 46T Alloy |
| Pedals | Wellgo R025, Machined Alloy Cage, Cr-Mo Axle, w/Toe Metal Clip & Straps |
| Chain | KMC K710SL |
| Wheelset | Velocity Deep V, Double Wall, 32 Hole, Stainless Spokes; Chosen High Flange Alloy, 32H, Japanese Sealed Bearing, Nutted Front Hub; Chosen High Flange Fixed Alloy, 32H, Japanese Sealed Bearing, Nutted, Sugino Alloy 17T Cog Rear Hub |
| Tires | Vittoria Rubino Pro 700x28c |
| Brakeset | Radius Alloy Caliper Rear Only |
| Brake Levers | Radius, 2 Finger Alloy Rear Only |
| Headset | Tange 1-1/8" Internal Threadless, Cartridge Sealed |
| Handlebar | SE 2" Alloy Riser Bar, 20" Wide |
| Stem | Kalloy Alloy Zero Degree Drop |
| Grips | Oury Mountain Grips |
| Seat | SE Lightning Blitz Seat w/ Bottle Opener |
| Seatpost | Retro Fluted Micro-Adjust, Aluminum 27.2 |
| Accessories | SE Wing Top Tube Pad, Alloy Axle Nuts |
Specifications subject to change without notice.
GEOMETRY
| Sizes | 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm | |
| A | Top Tube, Actual | 531, 533, 539, 548, 557, 569, 578 |
| C | Seat Tube Angle | 76°, 76°, 75.5°, 75.5°, 75.5°, 75.5°, 74.5° |
| D | Head Tube Angle | 73°, 73°, 73°, 74°, 74°, 74°, 74° |
| E | Chainstay Length | 405, 405, 405, 405, 405, 405, 405 |
| G | Bottom Bracket Height | 270, 270, 270, 270, 270, 270, 270 |
| Wheel Size | 700c |
