Colossal Quadangle 32"
Colossal Quadangle 32"
Colossal Quadangle 32"

Colossal Quadangle 32"

$1,399.99

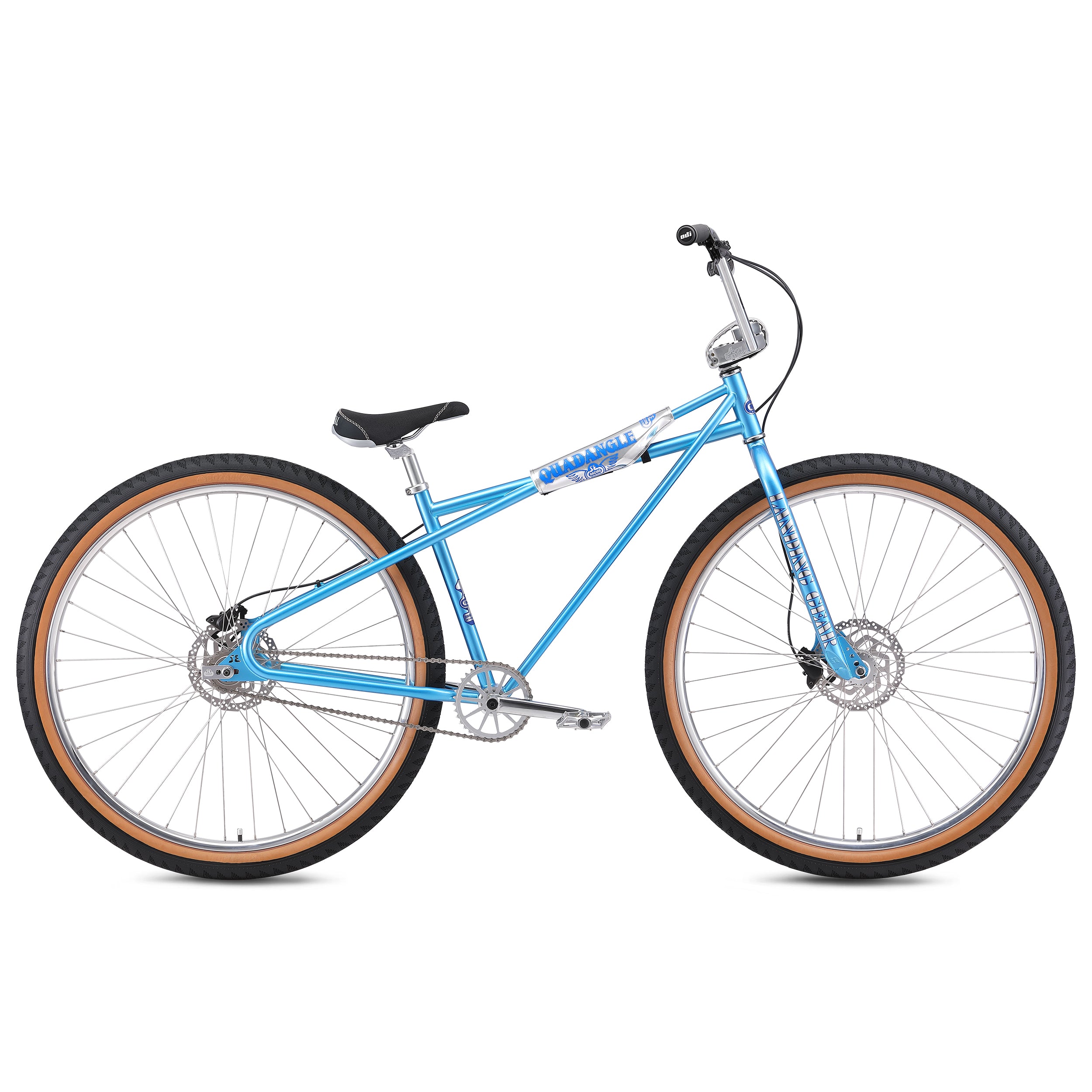

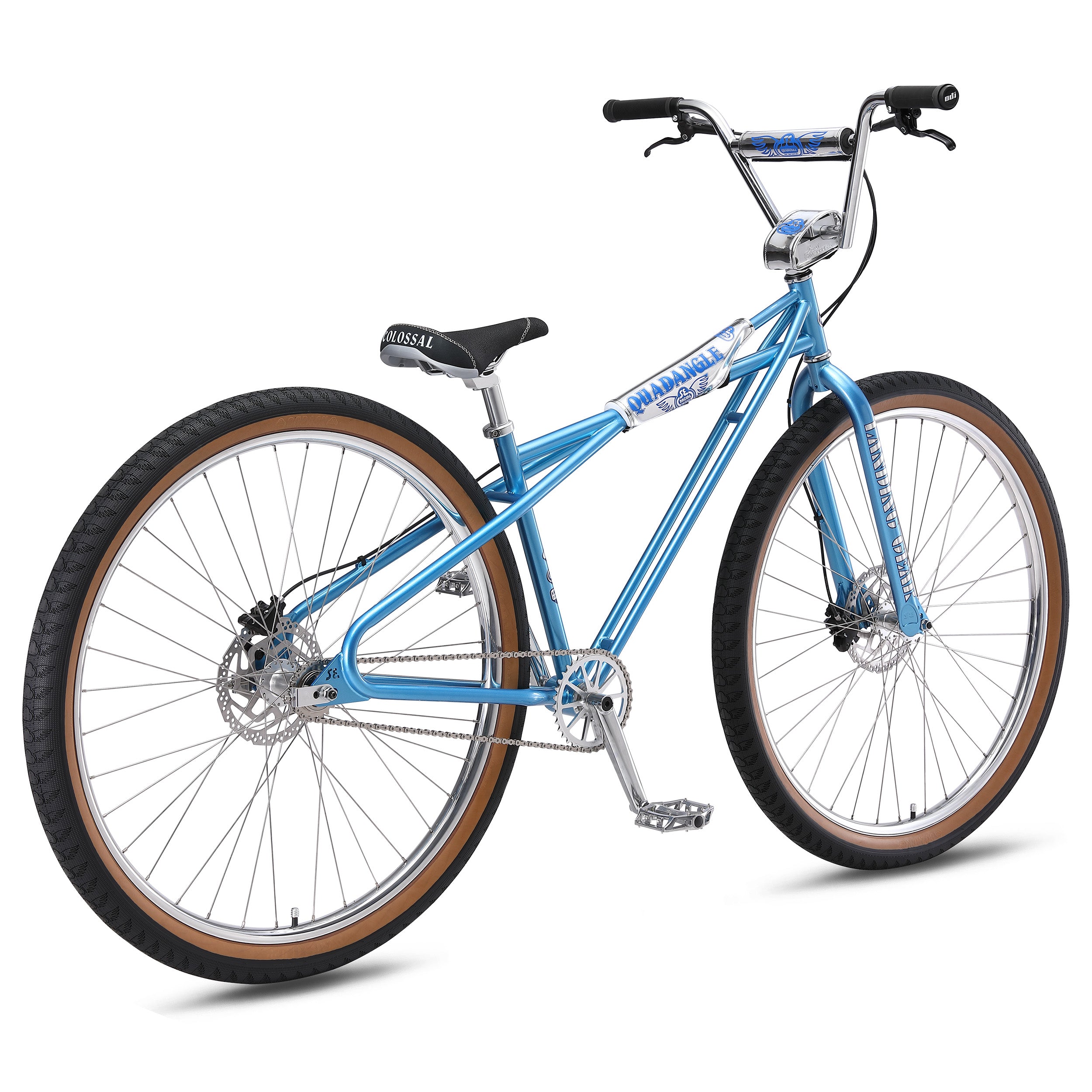

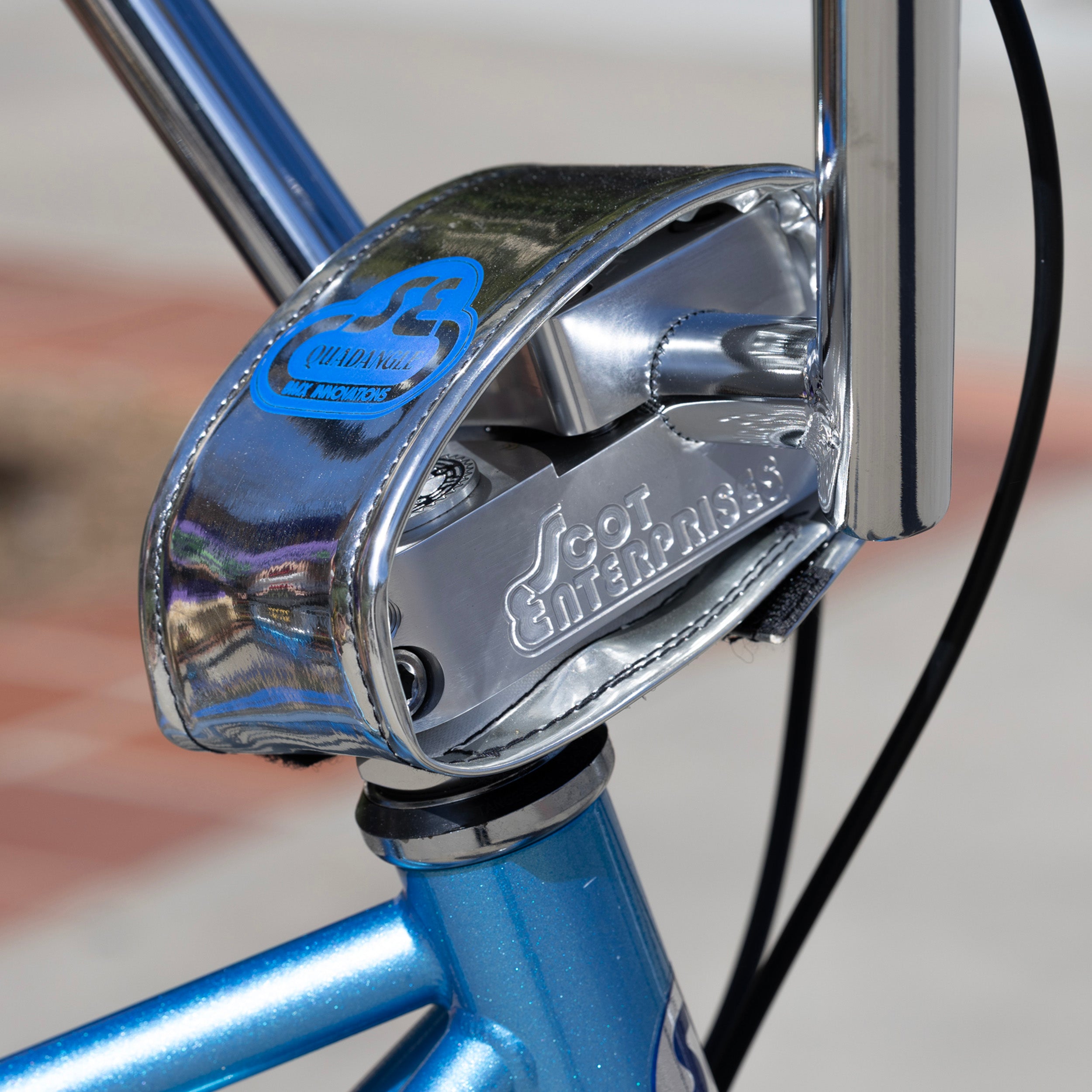

Introducing the world’s biggest Quadangle bike, the 32” Colossal Quadangle, a bike that's truly a work of art. The limited-edition Cr-Mo Quadangle has been scaled up into a unprecedented size built around 32” Bozack tires and featuring a lengthy 24.7” top tube with internal cable routing. The rear end of the bike remains compact, so you can easily pop that wheel up. The lightweight TSC cranks provide a powerful feel, while the Shimano MT200 hydraulic disc brakes give you precise control. The 8.25” Colossal 4pc Cruiser bars and Scot Enterprises stem provide a comfortable feel and sturdy cockpit. To top it off, this bike comes equipped with ODI Longneck grips, a new SE Captive seat, and a Quadangle padset. No doubt about it, this bike is the new trend setter!
Color:Cloud Sparkle
Assembly Instructions

Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

View Assembly Video
KEY FEATURES

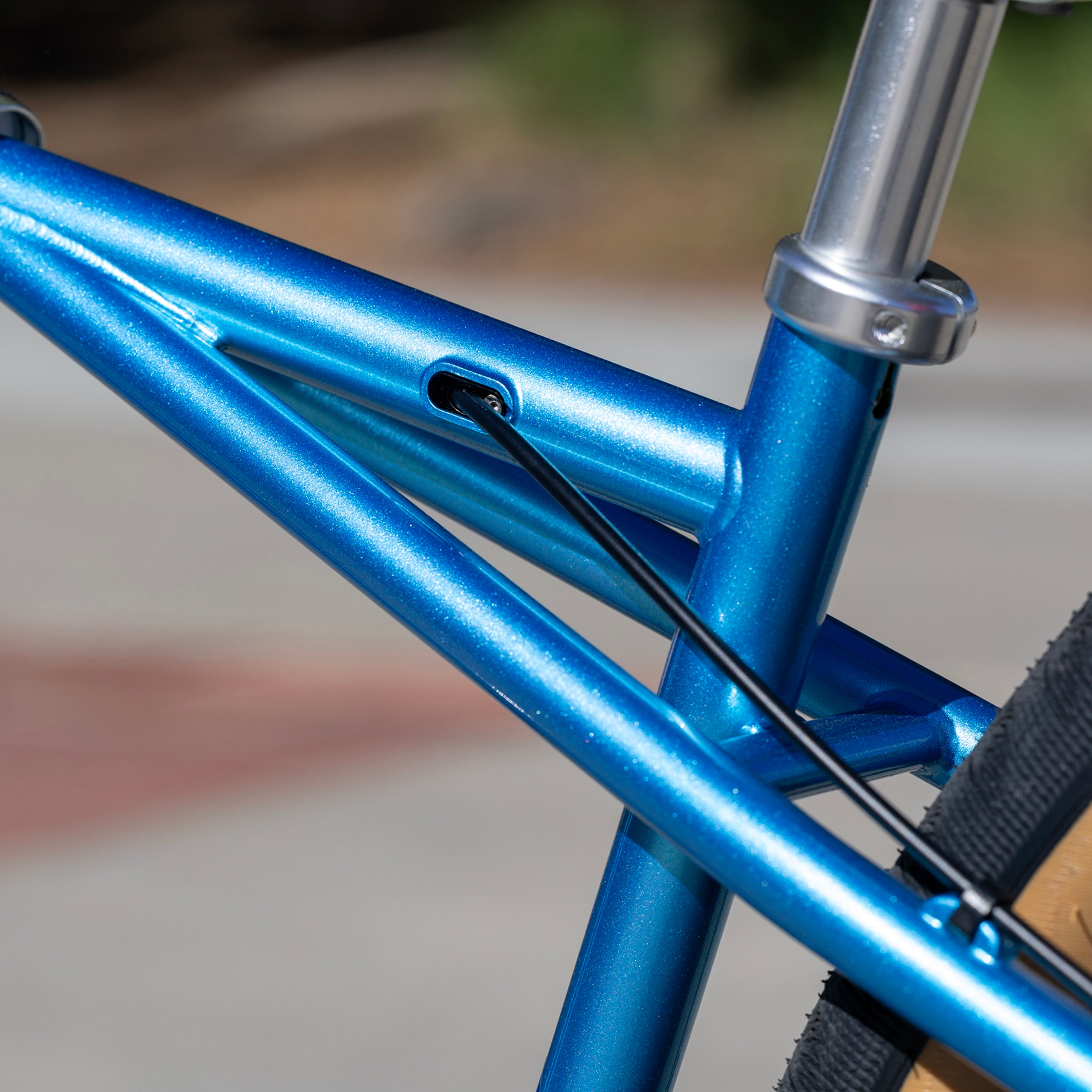

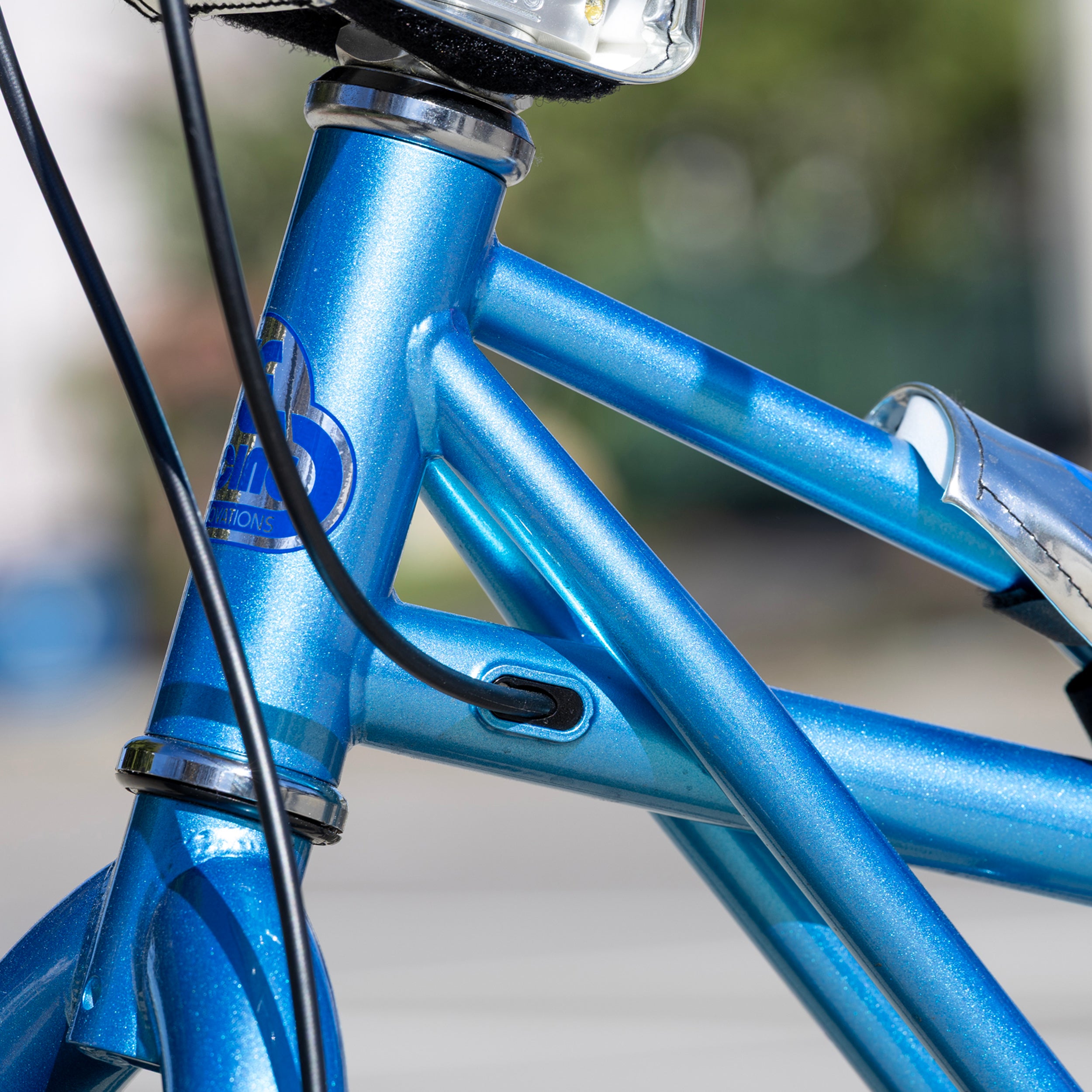

  • Legendary Cr-Mo Quadangle frame with double downtube, internal cable routing, Looptail rear end, retro dropouts, SE Bubble BB yoke
  • Each frame is individually numbered
  • Full Cr-Mo Landing Gear forks
  • Colossal 4pc Cr-Mo bars

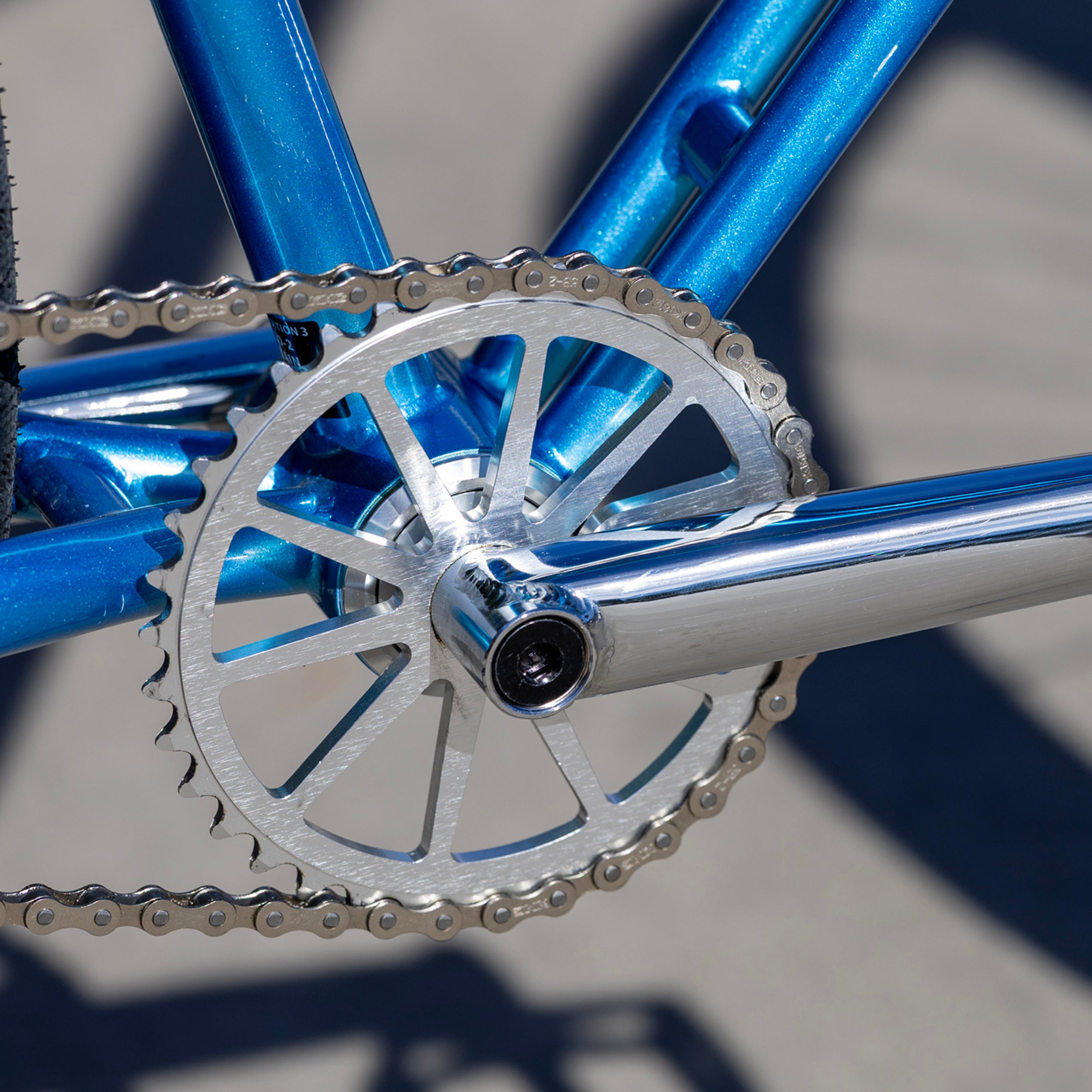

  • SE TSC 3-piece Cr-Mo cranks, non-pinch bolt w/ full wrap pedal bosses, sealed American bottom bracket, and 36T alloy sprocket
  • Shimano MT200 hydraulic disc brakes, dual-piston with 180mm rotors
  • SE Bozack 32" x 2.4" tires
  • New SE Captive seat with concave design and built-in bottle opener brace
  • Authentic ODI Longneck grips, made in the USA
SPECIFICATIONS
Frame Legendary Quadangle Design, 100% Cr-Mo Tubing, Double Downtubes, Looptail Rear End, Retro Dropouts, Internal Cable Routing, 68mm Wide American Bottom Bracket, Limited Edition & Individually Numbered on the Inside of the Rear Dropout
Fork Landing Gear, Full Cr-Mo, Disc Tabs
Crankset SE TSC Cr-Mo 3-pc Lightweight Cranks, Non-pinch bolt, Full Wrap Pedal Bosses, 170mm, Sealed American Bottom Bracket, 141mm Spindle Length, 19mm Spindle Diameter, 36T Alloy Sprocket
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Chain KMC S1
Wheelset Alloy 36H Nutted Hubs, Sealed Rear, 100mm Front Hub & 135mm Rear Hub, w/ Double-Wall Disc Rims, 19T, 38 Clicks Freewheel, Stainless Spokes
Tires SE Bozack, Street Proven Multi-Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 32" x 2.4" Front & Rear

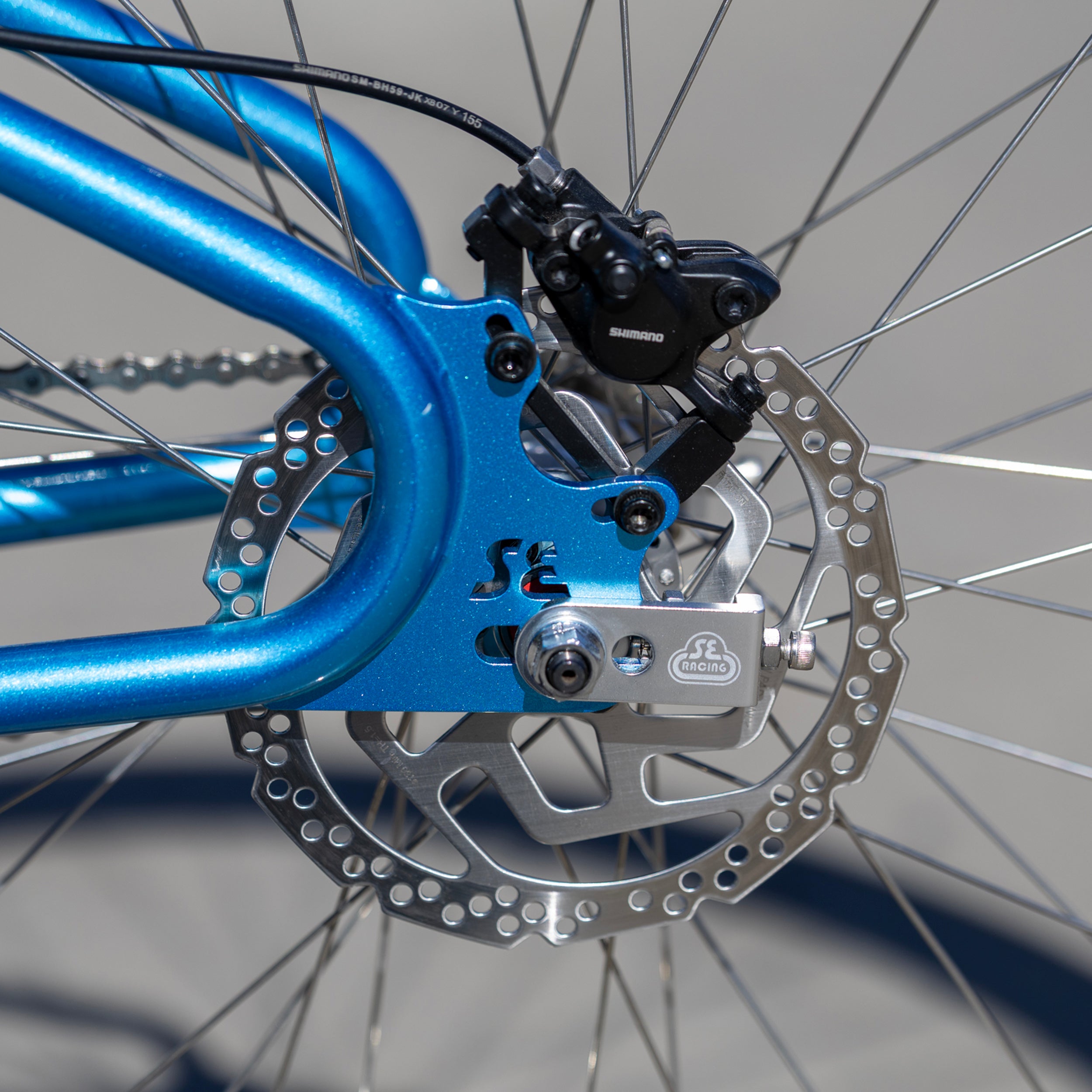

Brakeset Shimano MT200, Hydraulic Disc, Dual Piston, One Way Bleeding, 180mm Rotors
Brake Levers Shimano MT200, 2/3-Finger, Mineral Oil, Funnel Bleeding, Front & Rear
Headset Tange 1-1/8" Threadless
Handlebar Colossal 4pc Cr-Mo Cruiser Bar, 28.5" x 8.25", 10° Backsweep, 1° Upsweep
Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
Grips ODI Longneck Grips, Made in USA, w/ ODI End Plugs
Seat New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost Micro-Adjust Alloy, 27.2mm
Seat Clamp SE Racing Champ Clamp, Alloy, 29.8mm Inner Diameter
Accessories SE Quadangle Padset, Alloy Valve Caps, SE Chain Tensioners
Wheel Size 32"

Specifications subject to change without notice.
GEOMETRY
A Top Tube, Actual 24.7"
B Seat Tube, Center To Top 16.9"
C Seat Tube Angle 71°
D Head Tube Angle 71°
E Chainstay Length 19.7"
F Wheelbase 46.8"
G Bottom Bracket Height 13.7"
H Standover 32.1"
Stem 55mm
Handlebar Width 28.5"
Crank 170mm
Wheel Size 32"
Seat Post Diameter 27.2mm
Geometry diagram
