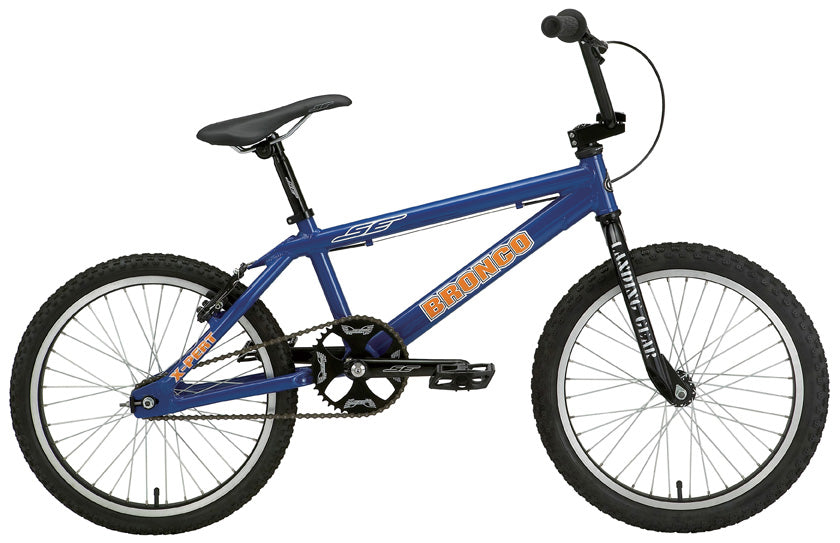

Bronco X-Pert (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 6061 Aluminum |
| Fork | 1-1/8" Landing gear |
| Crankset | 3-pc Tubular CR-MO; 44T Sprocket; 8 Spline Spindle, Loose |
| Pedals | Wellgo Alloy Platform, CR-MO Axle |
| Cassette | 16T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 36H Aluminum w/ Ground Sidewall; SE Racing 36H, Loose Alloy Front Hub; SE Racing 36H, Loose Alloy Rear Hub; 14 Ga. Spokes |
| Tires | Kenda Widetrack 2.125" / 1.75" |
| Brakeset | Tektro 918AL V-Brake (Rear Only) |
| Brake Levers | Tektro 319A, 2 Finger Alloy |
| Headset | CH 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 25.5" x 7" |
| Stem | SE Racing Top Load 1-1/8 Alloy |
| Grips | SE Custom Kraton Rubber |
| Seat | SE Racing w/ Custom Imprinted Cover |
| Seatpost | SE Racing Straight Post 27.2 |
| Seat Clamp | SE Racing Alloy |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.5" |
| G | Bottom Bracket Height | 12" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
