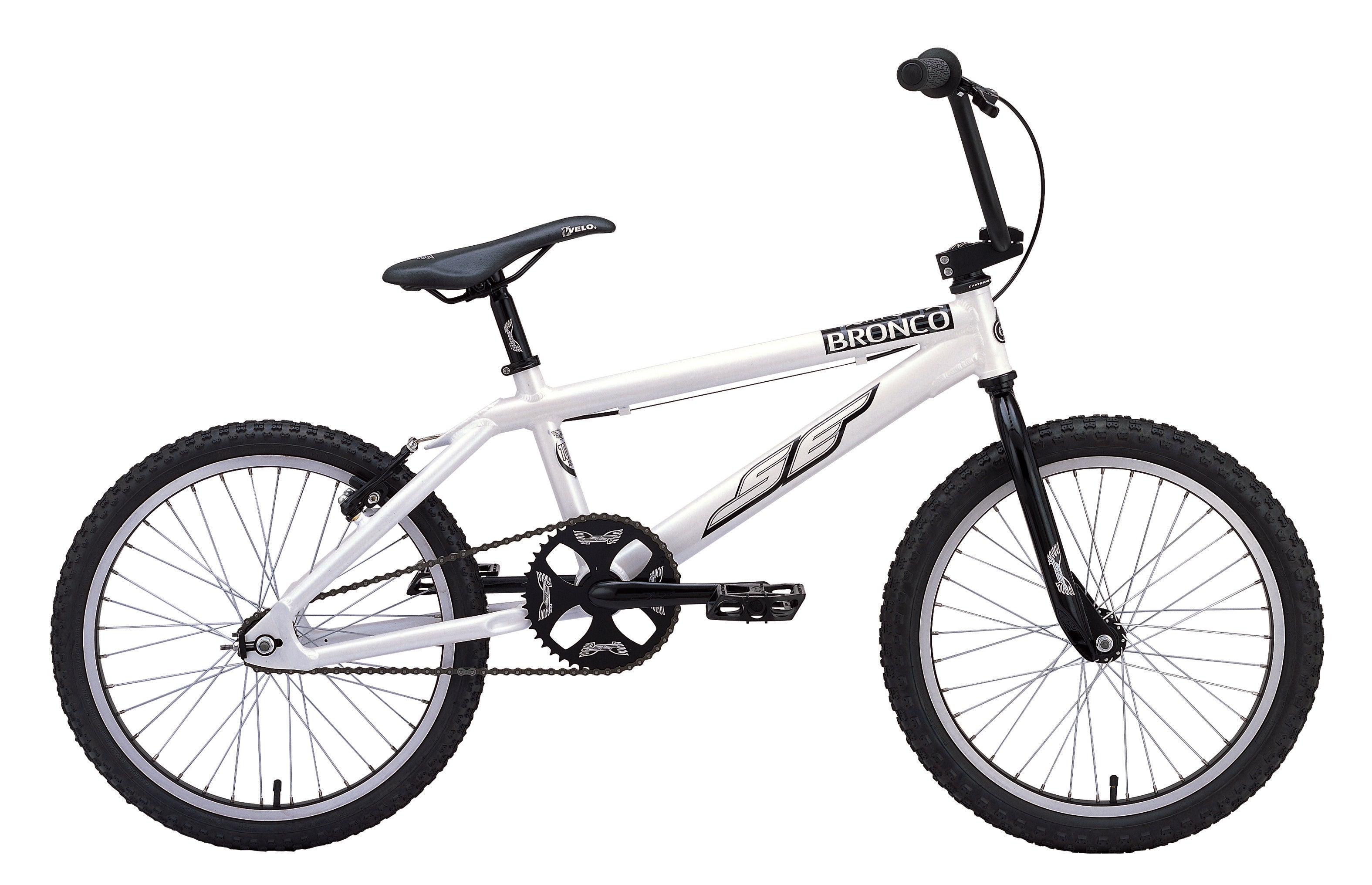

Bronco X-Pert (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | 7005 Aluminum |
| Fork | 1-1/8" Landing Gear, Threadless |
| Crankset | SE Racing Hot Forged CR-MO 1-pc, 175mm; SE Racing 44T Steel Sprocket; VP BB |
| Pedals | Wellgo Alloy Platform w/ CR-MO Axle |
| Cassette | AC 16T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 36H Aluminum w/ground sidewall; SE Racing Loose Alloy Front Hub; SE Racing Loose Alloy Rear Hub; Stainless 14 Ga. Spokes |
| Tires | Kenda Wide Track 2.125 / 1.75 |
| Brakeset | Tektro 918AL V-Brake (Rear only) |
| Brake Levers | Tektro 319A, 2 Finger Alloy |
| Headset | CH 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 25.5" X 7.5" |
| Stem | SE Racing, Top Load 1-1/8" Alloy |
| Grips | SE Racing Custom Kraton Rubber |
| Seat | SE Racing with custom imprinted cover |
| Seatpost | SE Racing Straight Post 27.2 |
| Seat Clamp | SE Racing Alloy |
| Accessories | Chain Tensioners |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 20" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 74° |
| E | Chainstay Length | 14.5" |
| G | Bottom Bracket Height | 12" |
| Seat Tube Length | 11" | |
| Wheel Size | 20" |
