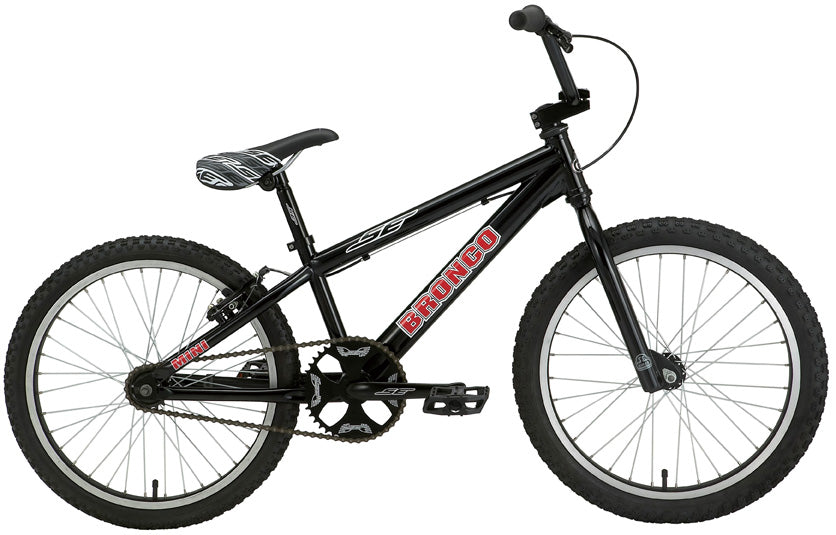

Bronco Mini (2007)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | SE Racing Hi-Ten |
| Fork | SE Racing 1-1/8" Threadless |
| Crankset | SE racing Hot Forged 1-pc, 140mm; 40T Sprocket; Modus Waterproof Bottom Bracket |
| Pedals | Wellgo Composite Resin |
| Cassette | 16T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 36H Aluminum w/ Ground Sidewall; SE Racing 36H, Loose Alloy; SE Racing 36H, Loose Alloy, Coaster Brake; 14 Ga. Spokes |
| Tires | Kenda Widetrack 2.125" / 1.75" |
| Brakeset | Pro Max Linear Pull V-Brake (Rear Only) |
| Brake Levers | Pro Max 2 Finger Pull |
| Headset | CH 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 23" x 6" |
| Stem | SE Racing Top Load 1-1/8 Alloy |
| Grips | Mini Size Kraton Rubber |
| Seat | SE Racing w/ Custom Imprinted Cover |
| Seatpost | SE Racing Straight Post 25.4 |
| Seat Clamp | SE Racing Alloy |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 18" |
| C | Seat Tube Angle | 72° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 13.75" |
| G | Bottom Bracket Height | 9.4" |
| Seat Tube Length | 10.2" | |
| Wheel Size | 20" |
