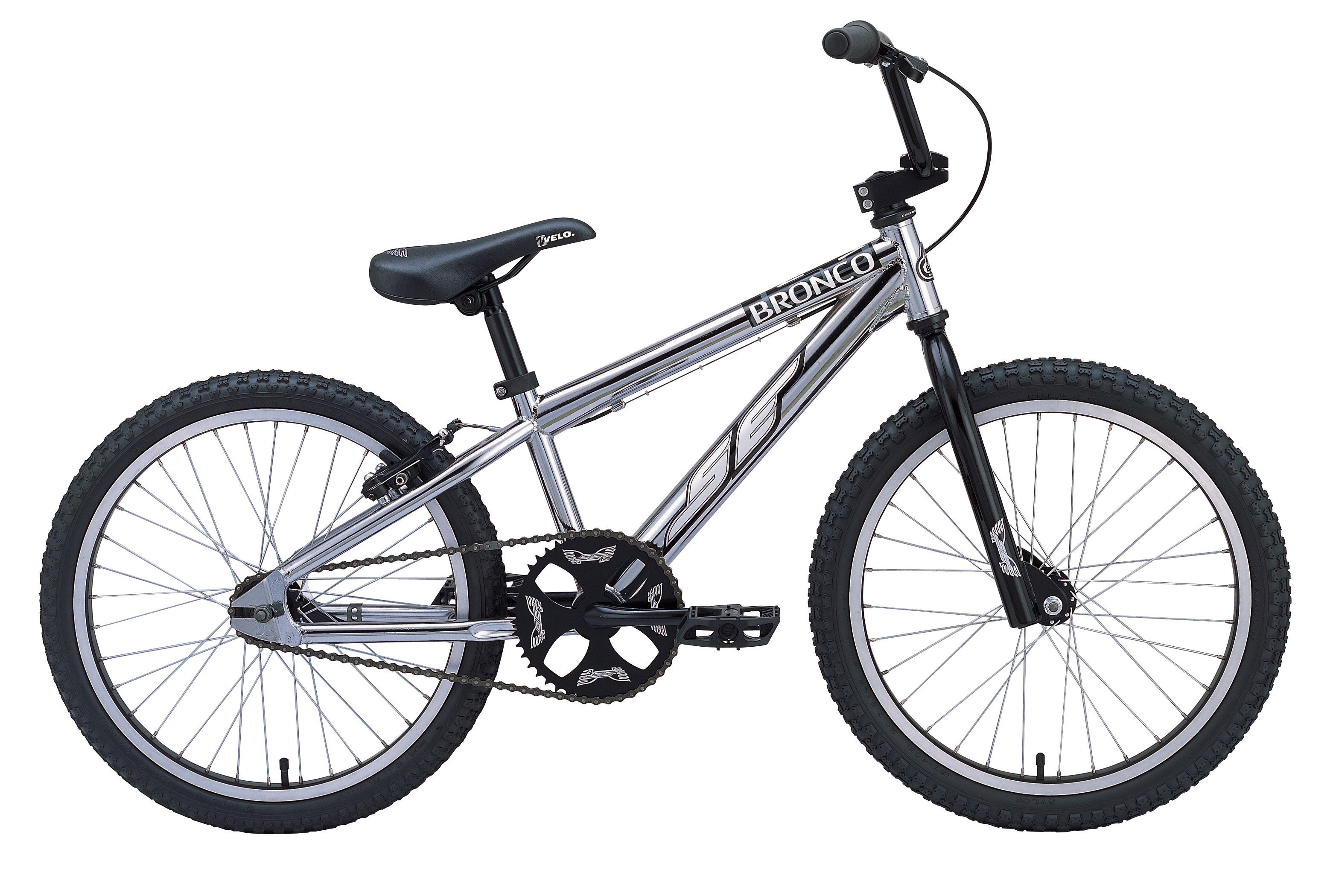

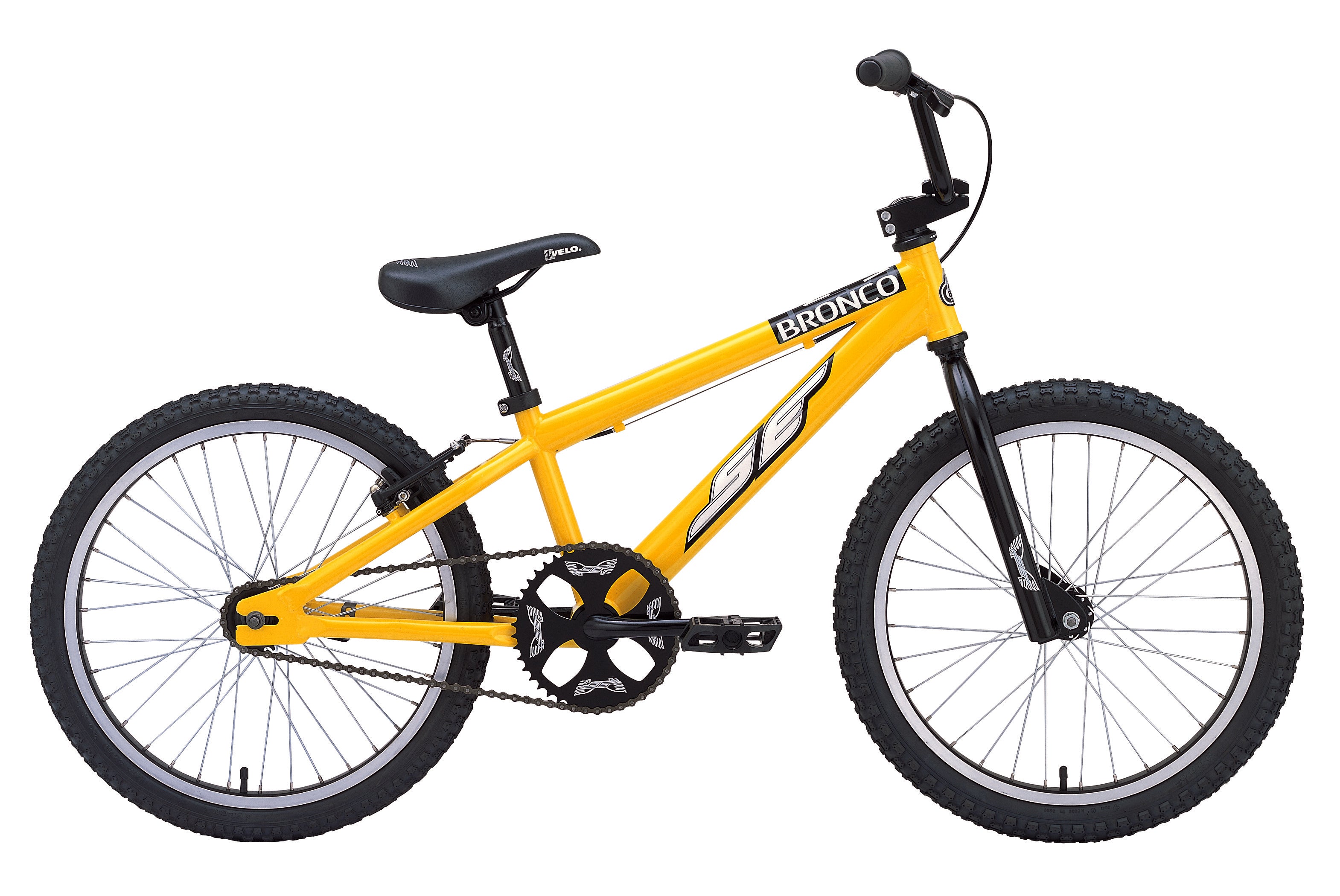

Bronco Mini (2006)
This bike is part of the SE Bikes archive. Bikes shown in the archive are not for sale, but it’s a cool way to look back at SE’s storied history.
SPECIFICATIONS
| Frame | SE Racing Hi-Ten |
| Fork | SE Racing 1-1/8" |
| Crankset | SE Racing Hot Forged 1-pc, 140mm; SE Racing 42T Sprocket; Modus 1-pc Sealed |
| Pedals | Wellgo BMX Composite Resin |
| Cassette | 16T Freewheel |
| Chain | KMC Z410 |
| Wheelset | Alex G-303, 36H Aluminum w/ground sidewall; SE Racing 36H Loose Front Hub; SE Racing 36H Loose, Coaster Brake Rear Hub; 14 Ga. Spokes |
| Tires | Kenda Wide Track 2.125 / 1.75" |
| Brakeset | Tektro BX310 V-Brake (Rear only) |
| Brake Levers | Tektro 317A |
| Headset | CH 1-1/8" Threadless |
| Handlebar | SE Wing Bar, 23" X 6" |
| Stem | SE Racing, Top Load 1-1/8" Alloy |
| Grips | SE Racing Custom Kraton Rubber |
| Seat | SE Racing with custom imprinted cover |
| Seatpost | SE Racing Straight Post 26.0 |
| Seat Clamp | SE Racing Alloy |
| Wheel Size | 20" |
Specifications subject to change without notice.
GEOMETRY
| A | Top Tube, Actual | 18" |
| C | Seat Tube Angle | 72° |
| D | Head Tube Angle | 72° |
| E | Chainstay Length | 13.75" |
| G | Bottom Bracket Height | 9.4" |
| Seat Tube Length | 10" | |
| Wheel Size | 20" |
